BLACK BOX MEG250AE-R2 VDSL2 INDUSTRIAL EXT 4-PORT, DC POWER

Transmits data at 160 Mbps and broadband multimedia services to all stations up to 3 km via 24-AWG existing telephone wires within a facility.

The Industrial VDSL2 Bridge provides high-speed transmissions up to 3 km using the 24-AWG telephone wires installed within a facility. The single-port bridge, equipped with four 10/100/100-Mbps Ethernet ports, transmits data at 160 Mbps as well as broadband Multimedia services to all stations required and supports 2000 bytes maximum packet size. To configure for either local Central Office (CO) or remote customer premise equipment (CPE) operation, just flip a DIP switch.

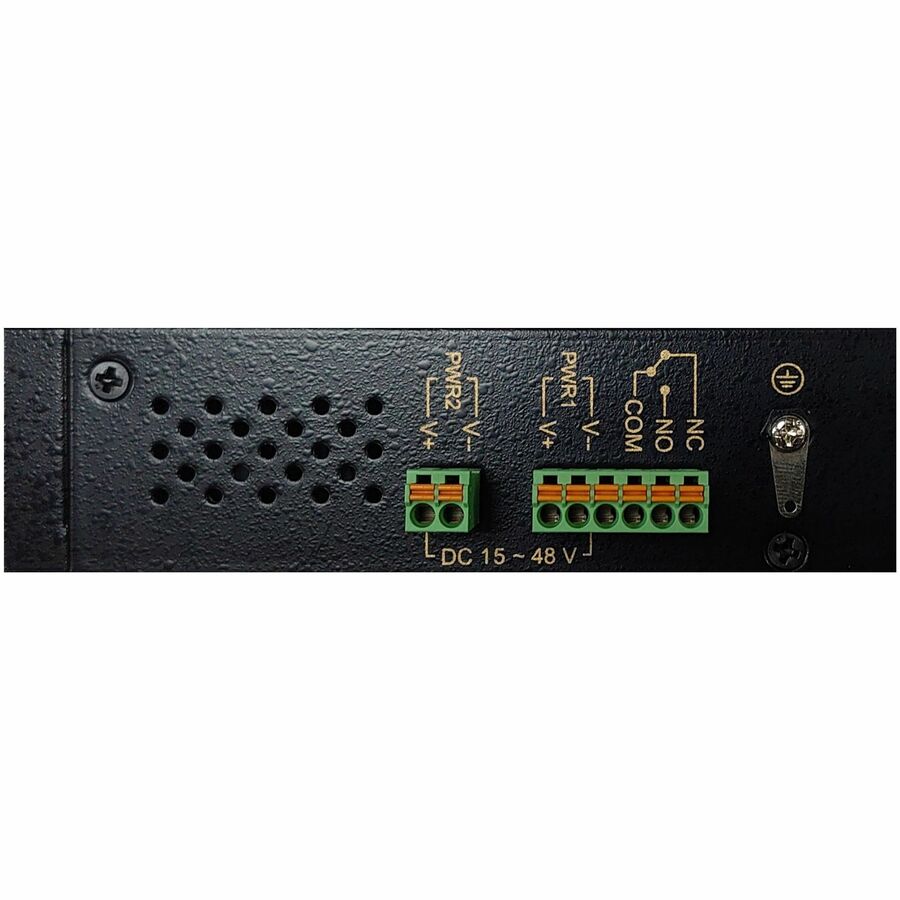

The Industrial VDSL2 Bridge is designed especially for industrial applications with a rugged metal IP30 chassis supporting DIN-rail mount installations and an extended temperature range from -20° up to +70° Celsius. Integrated surge and overload current protection ensure a long-life cycle. Redundant power and direct DC inputs from 15 to 48 VDC complete the intelligent design.
