SHUTTLE

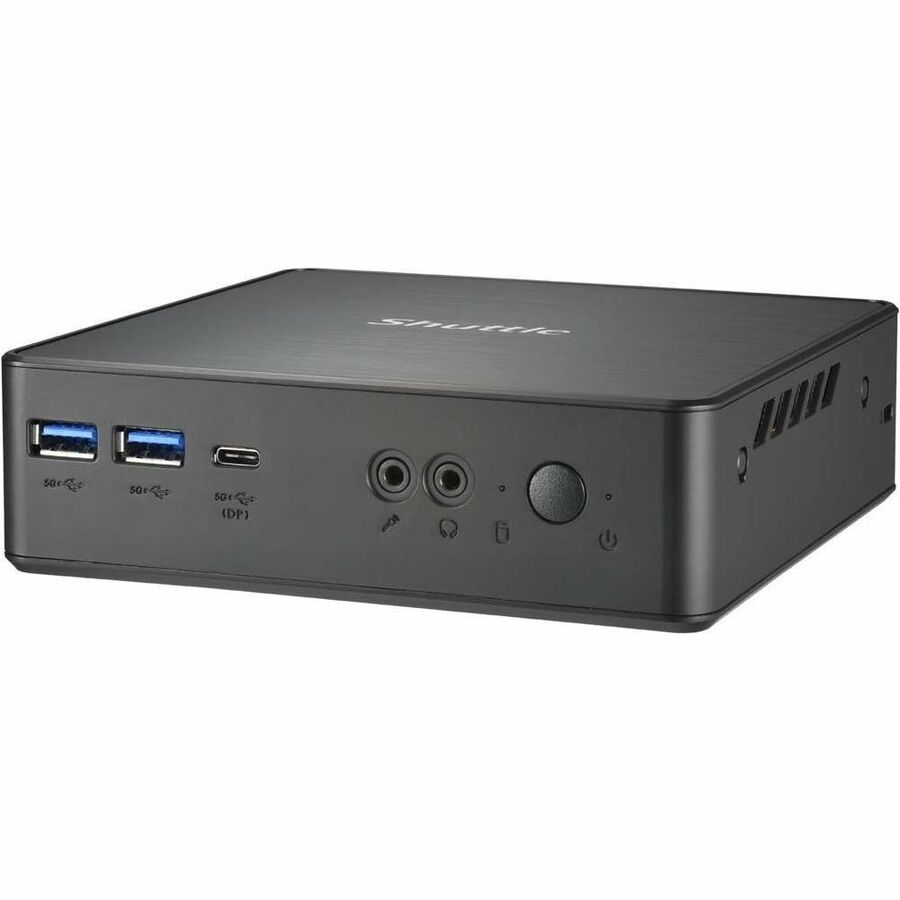

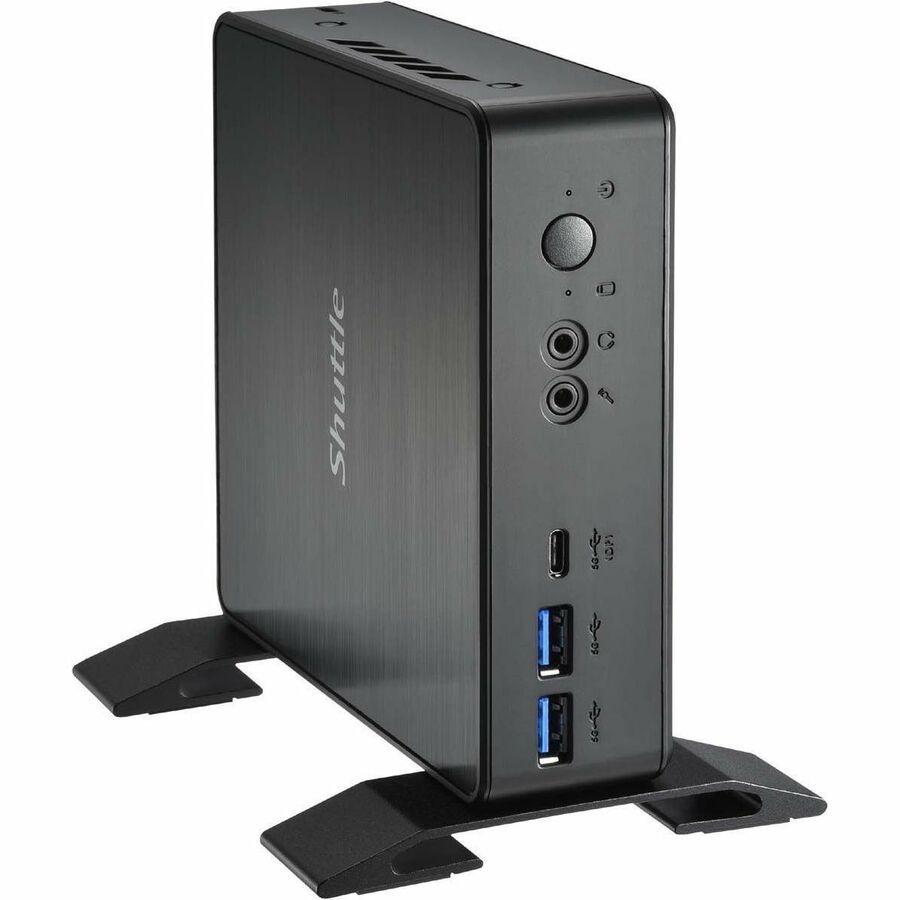

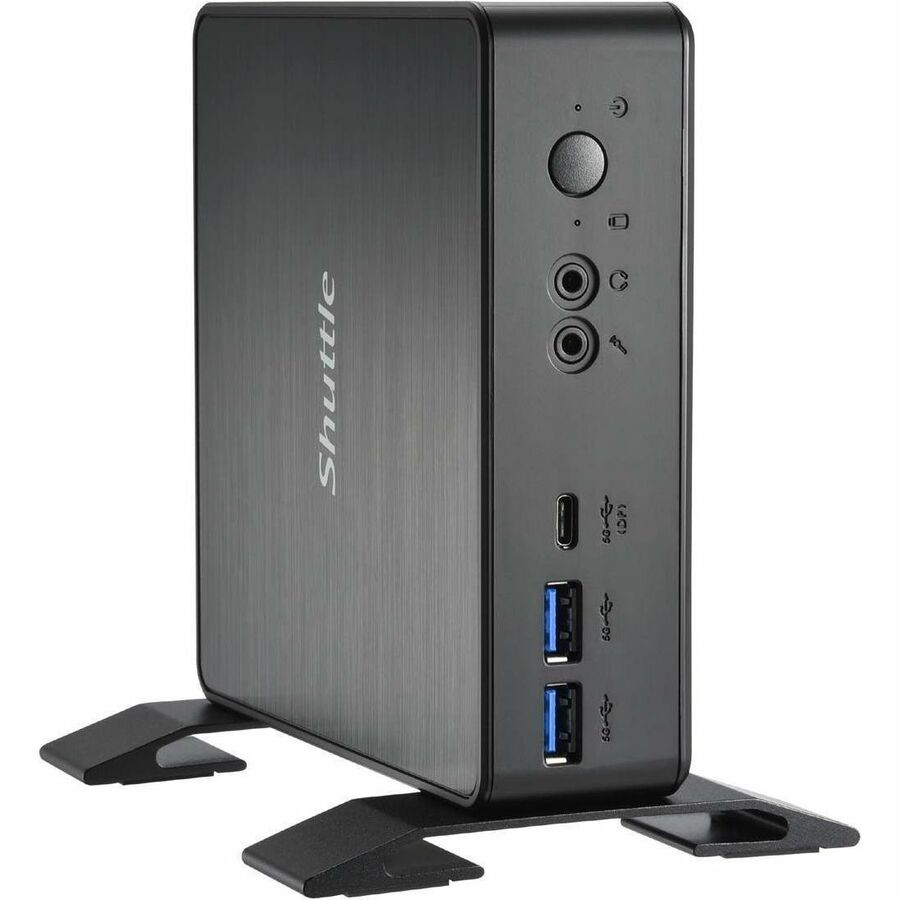

Shuttle SY NC40U7 XPC nano Ci7-1255U Intel Iris Xe no Memory OS Retail
Mfg Part Number: NC40U7 , Item #: 5493919

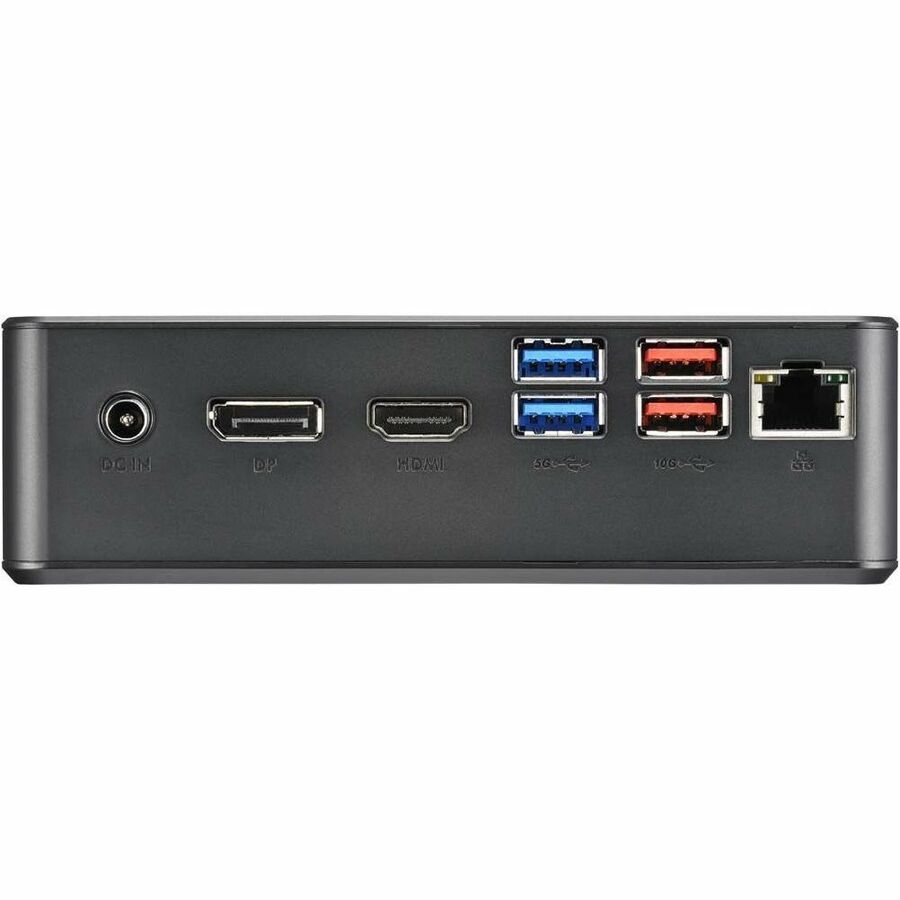

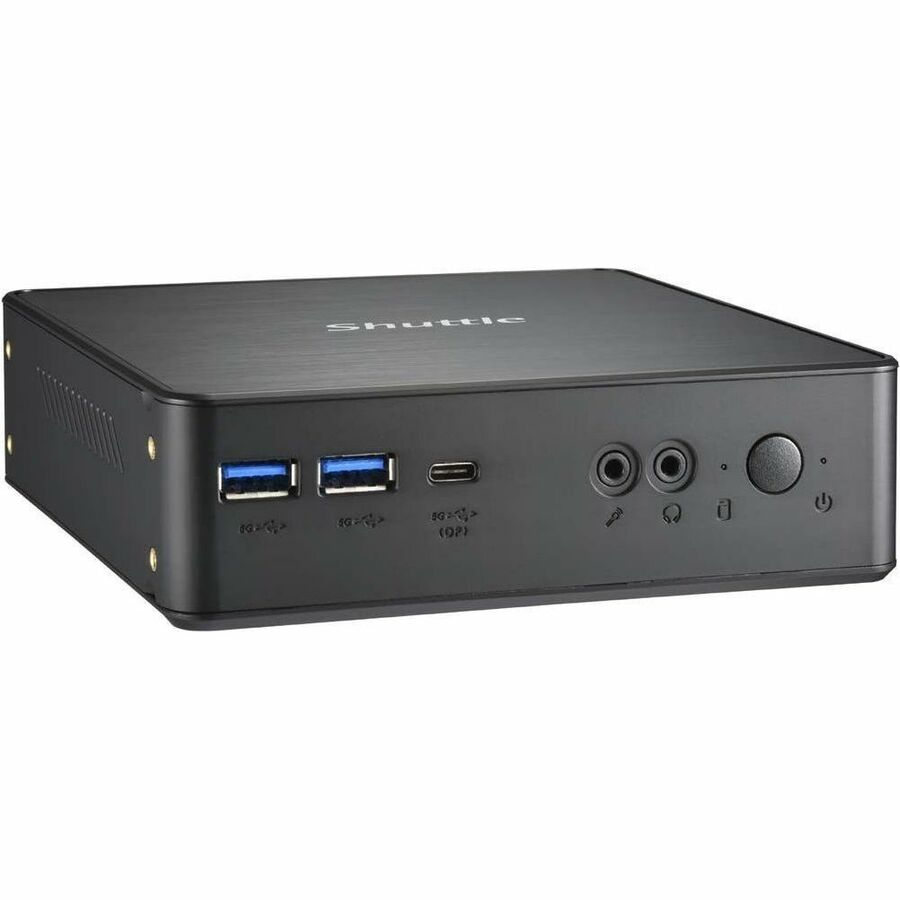

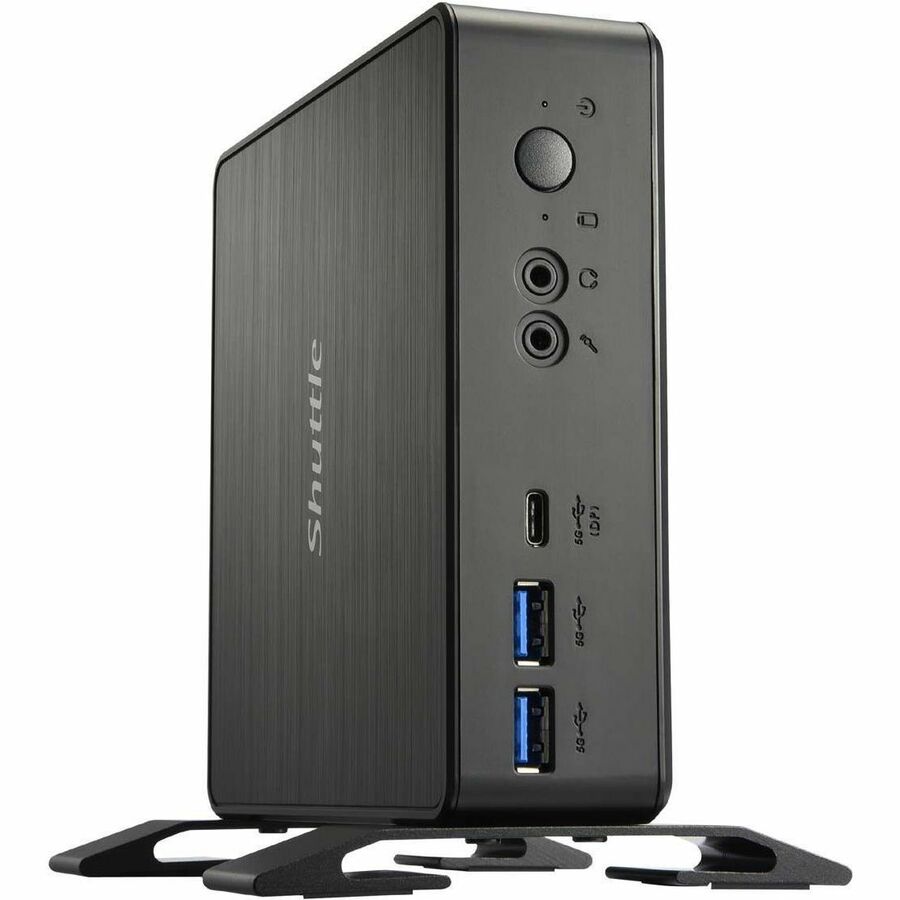

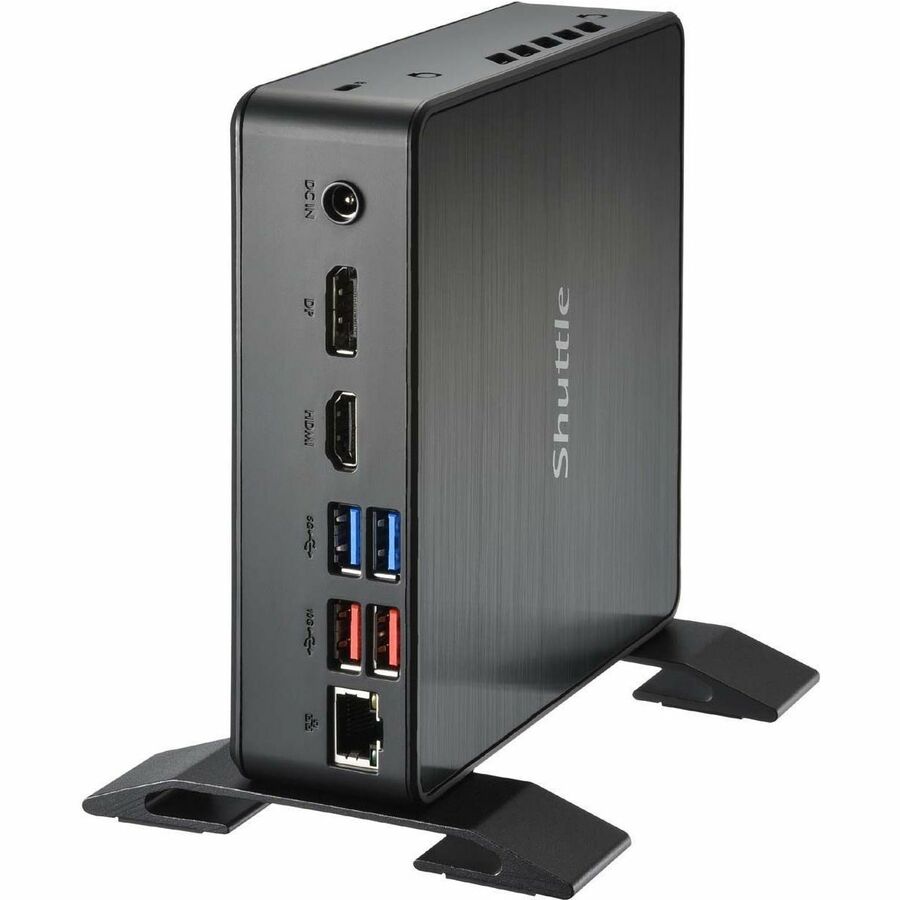

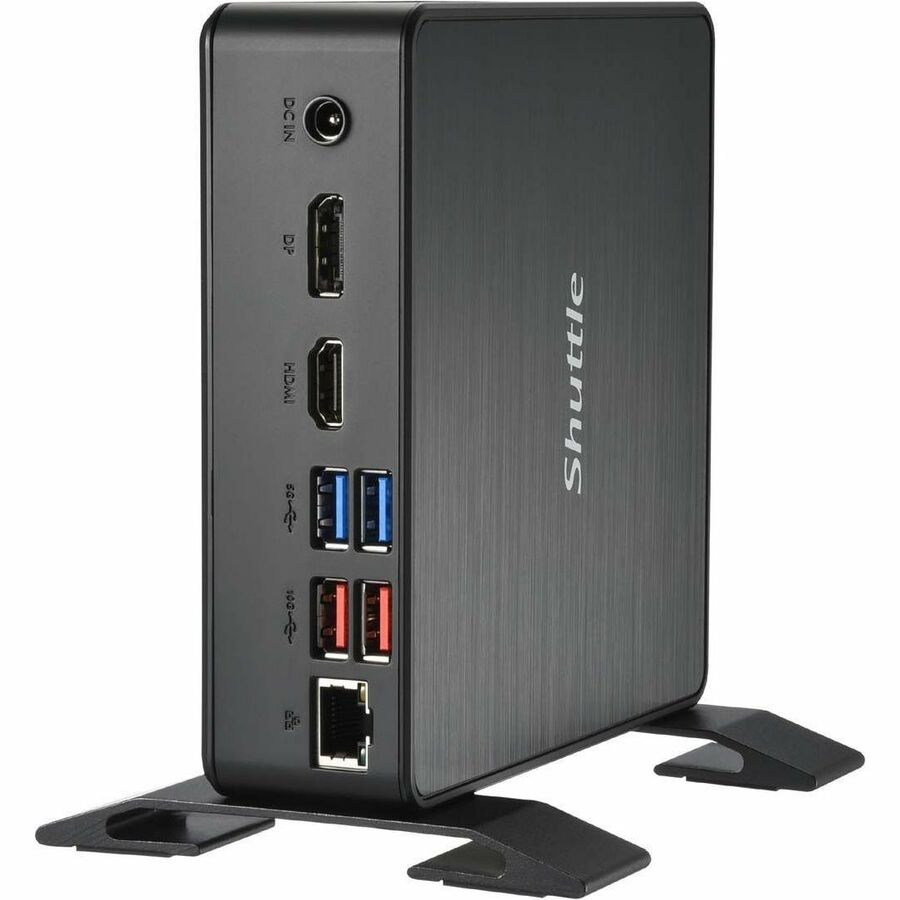

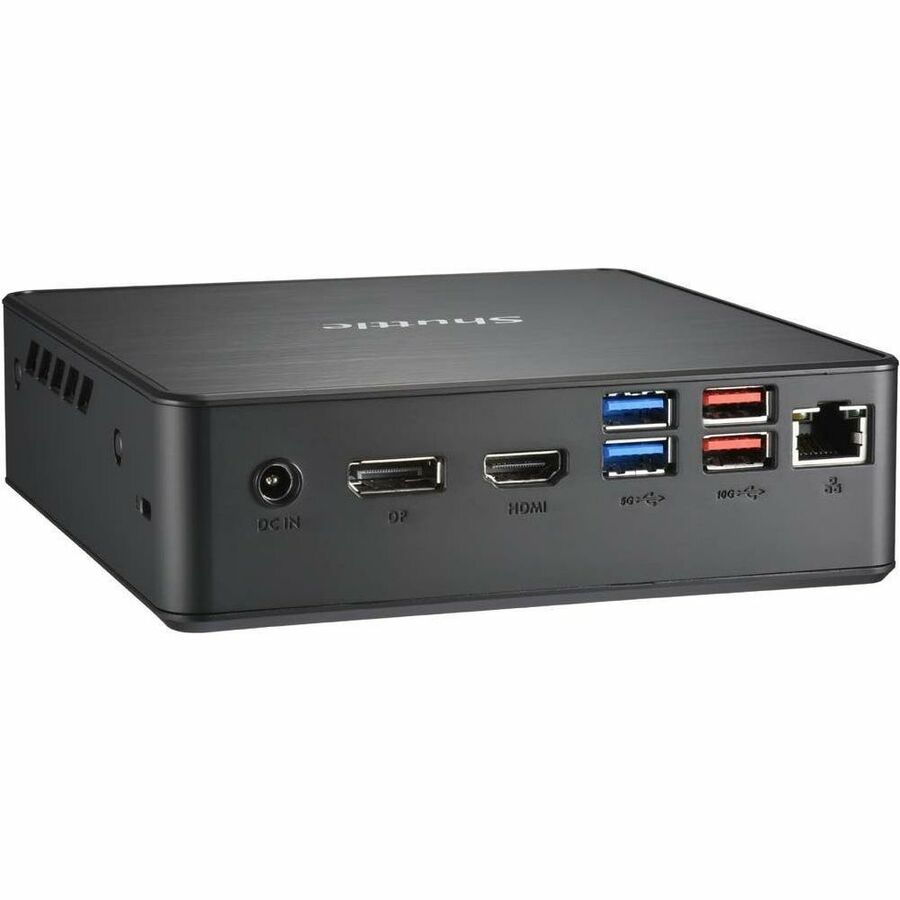

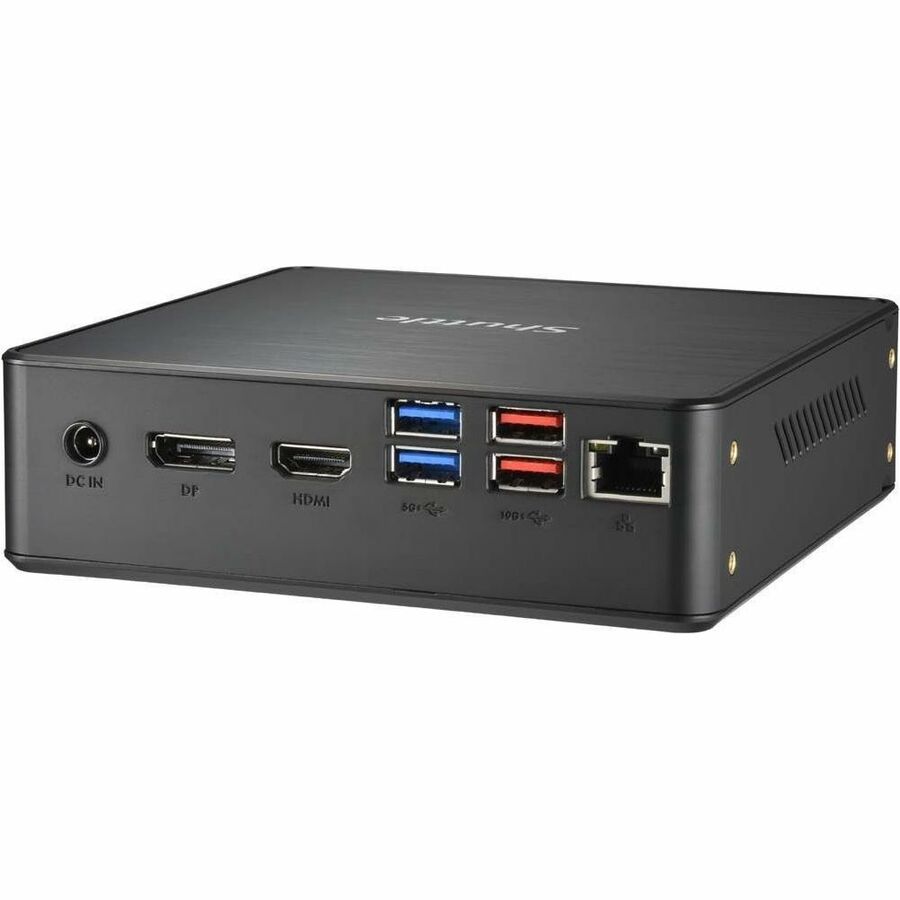

Image may not reflect the actual item.
Price: $1,276.14
Quantity:
More to Come
Last Updated: May 27, 2026
No Sales Tax except these states
, PO and Wire.
MANY PORTS AND HIGH PERFORMANCE IN NANO-FORMAT

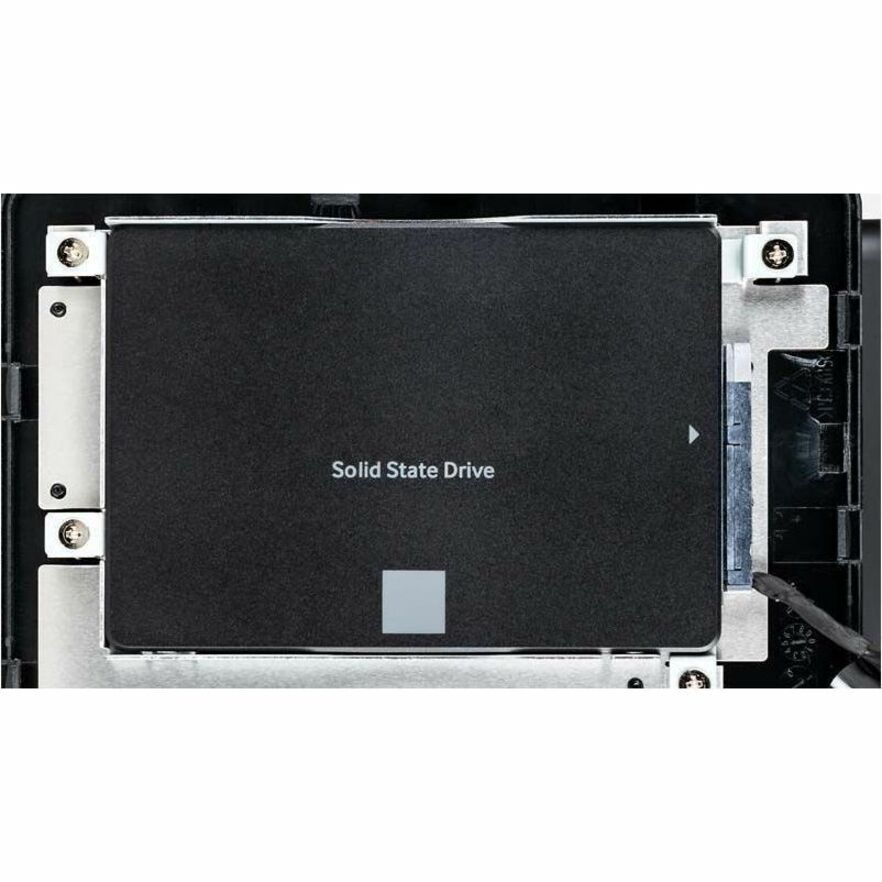

The NC40U series comes with powerful and efficient 12th generation Intel Core processors, codenamed "Alder Lake-U". Despite the nano format with only 850 ml volume, it offers enormous connection variety and expansion options. Thus, up to three UHD displays (4K/60Hz) and up to seven USB 3.2 devices can be connected, and two NVMe/SSD cards in M.2-2280 format as well as one 2.5" hard drive (up to 15 mm thickness) can be installed. The NC40U series is ideal for Digital Signage, POS, control, office or even multimedia.
Main Specification
| General Information | |
| Manufacturer | Shuttle, Inc |
| Manufacturer Part Number | NC40U7 |
| Manufacturer Website Address | http://www.us.shuttle.com |
| Brand Name | Shuttle |
| Product Line | XPC nano |
| Product Series | NC40U |
| Product Model | NC40U7 |
| Product Name | XPC nano Barebone NC40U7 |
| Product Type | Barebone System |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Core i7 |
| Processor Generation | 12th Gen |
| Processor Model | i7-1255U |
| Processor Core | Deca-core (10 Core) |
| Processor Speed | 1.70 GHz |
| Maximum Turbo Speed | 4.70 GHz |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |

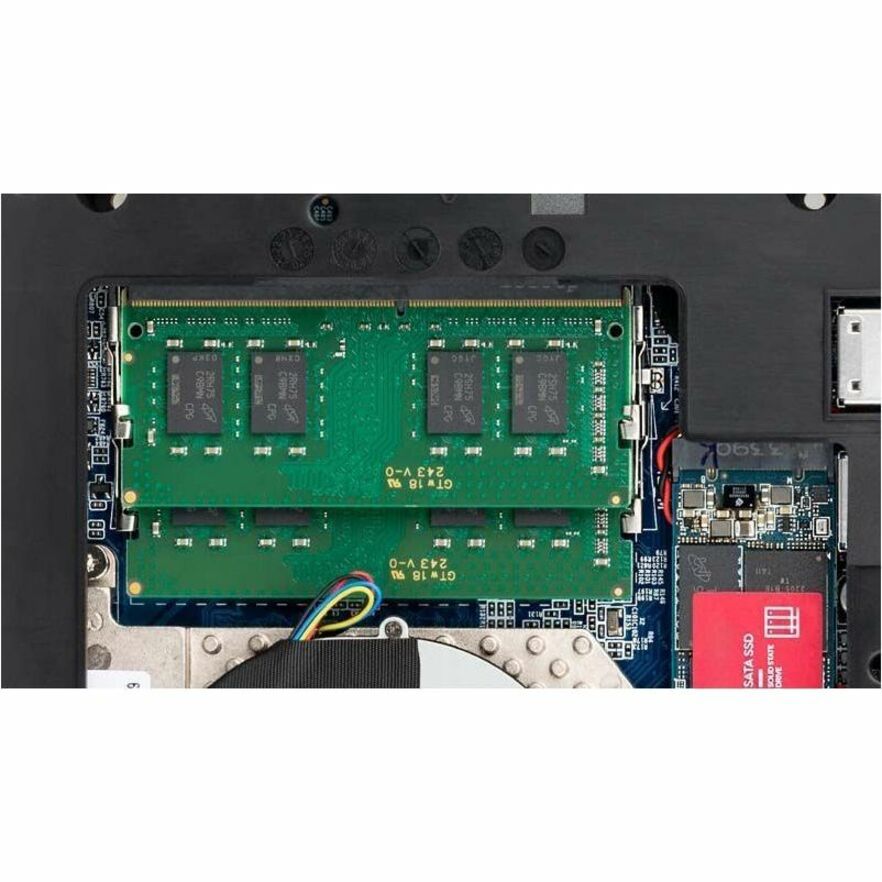

| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Storage | |
| Supported Storage Drive Interfaces | PCI Express NVMe 3.0 |
| Supported Storage Drive Interfaces | PCI Express NVMe 4.0 |
| Supported Storage Drive Interfaces | Serial ATA III |
| Supported Storage Drive Types | SSD |
| Supported Storage Drive Types | HDD |
| Controllers | |
| Controller Type | NVMe |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1 |
| Display & Graphics | |
| Graphics Controller Manufacturer | Intel |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 1 |

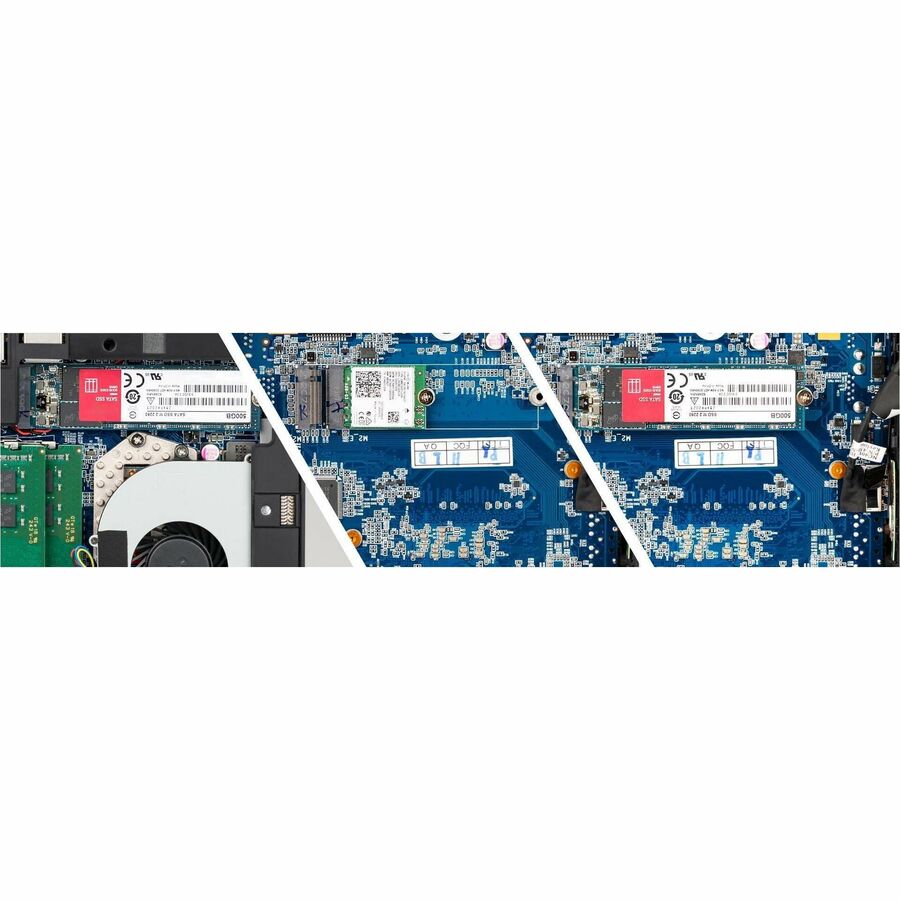

| Number of M.2 Interfaces | 2 |

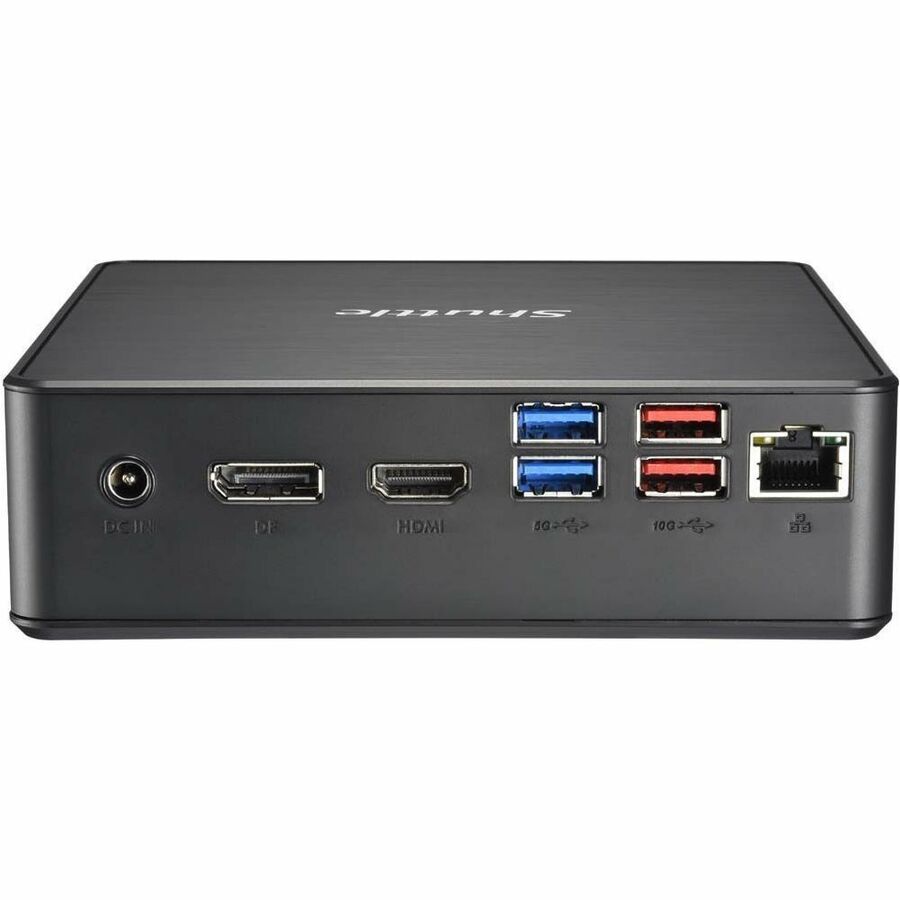

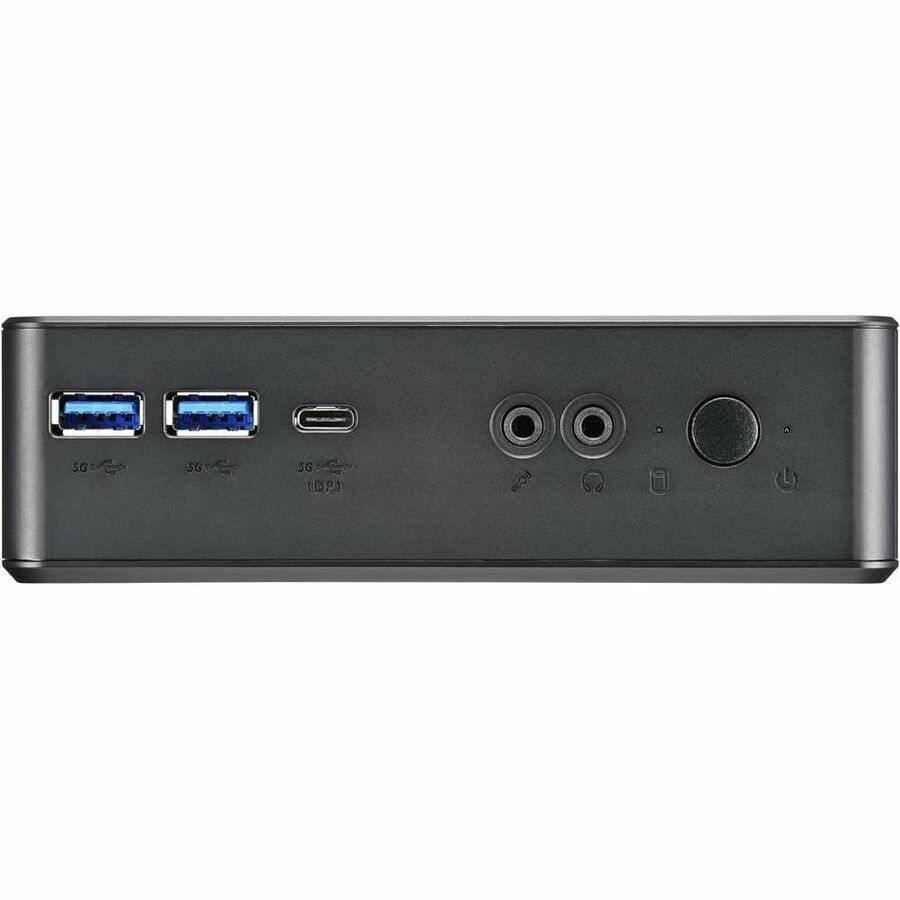

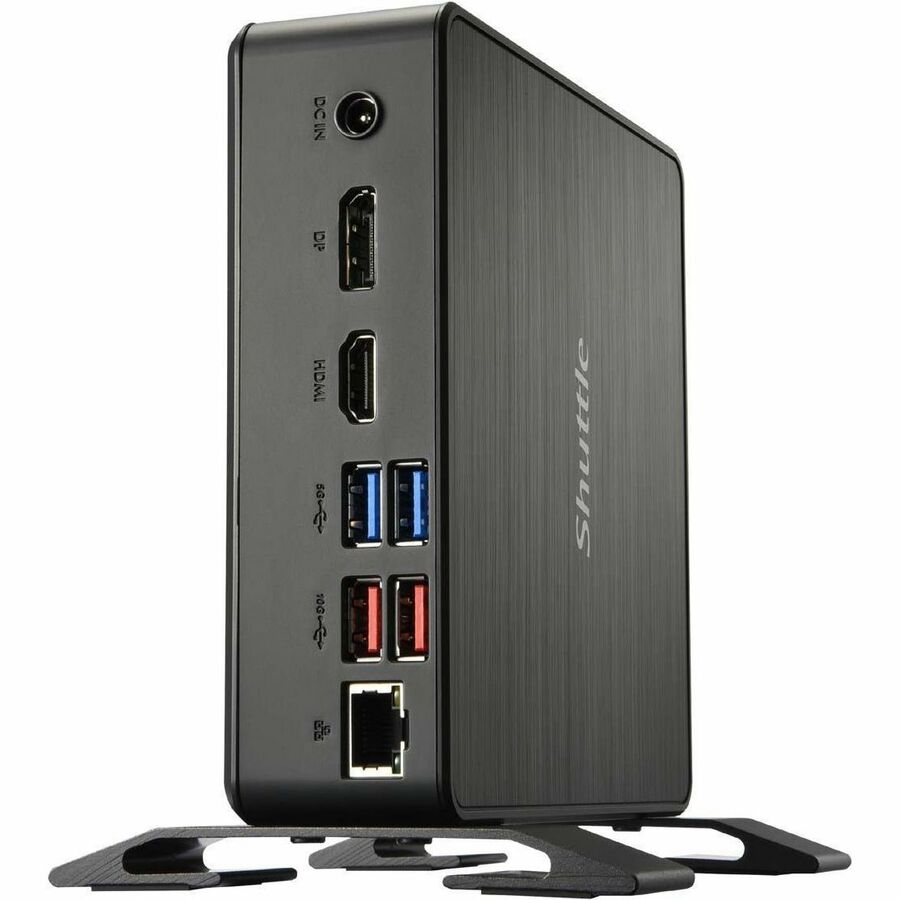

| Interfaces/Ports | |

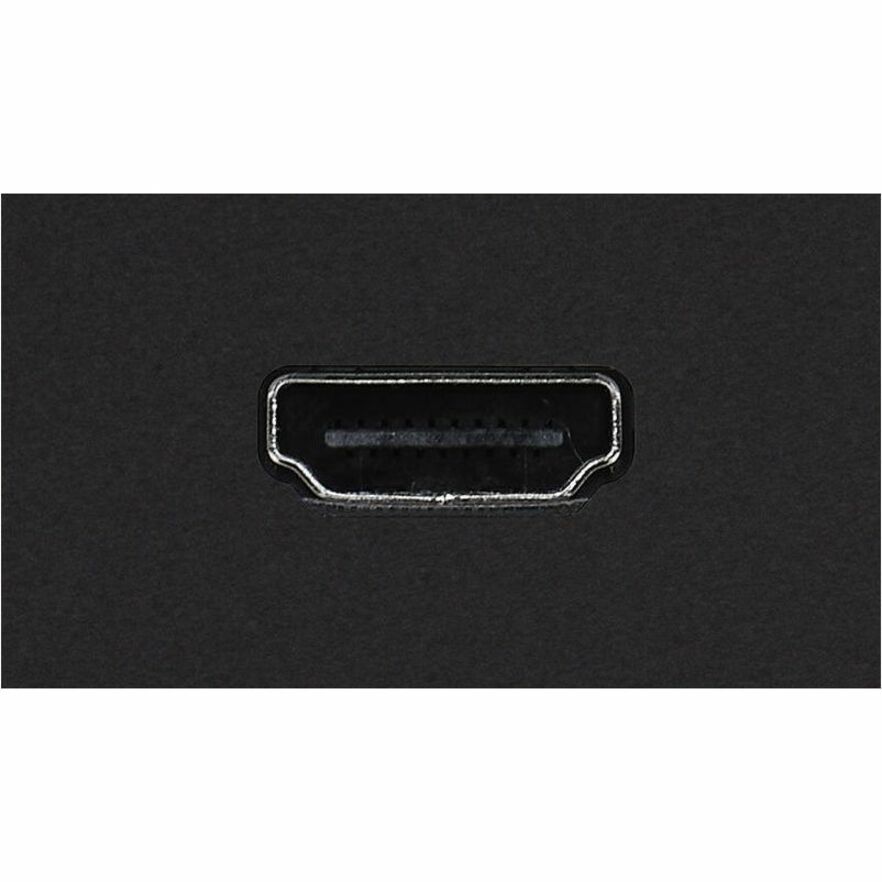

| HDMI (Rear) | Yes |
| Total Number of USB Ports | 7 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Number of USB 3.2 Gen 2 Ports | 2 |

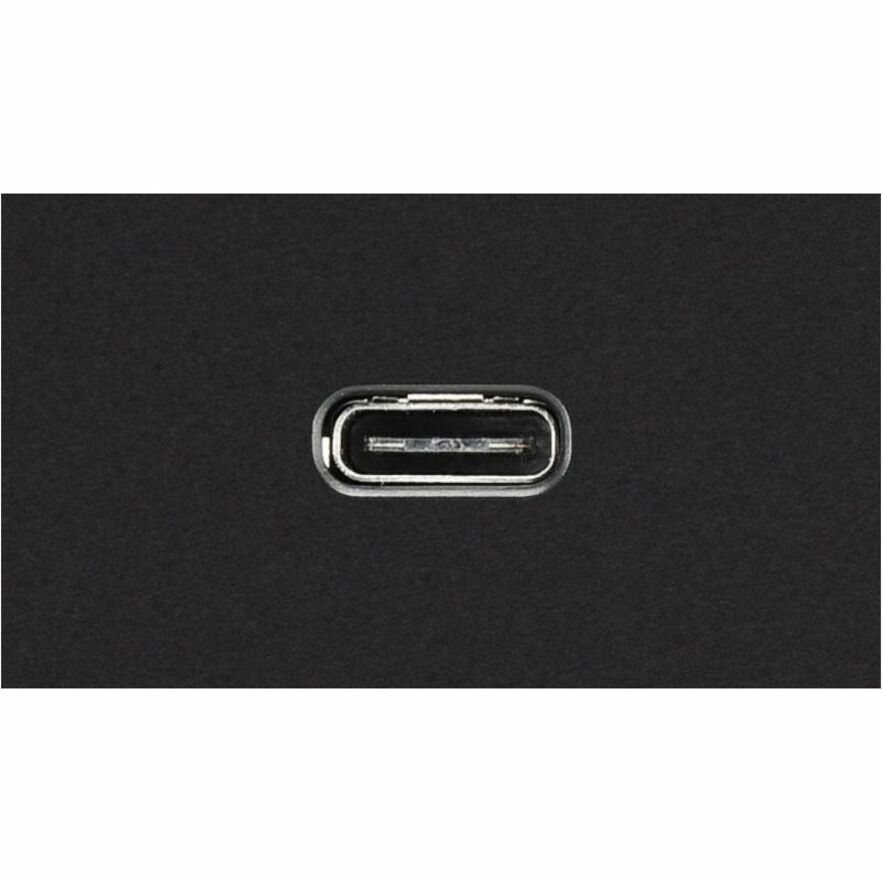

| USB Type-C (Front) | Yes |
| USB Type-C Detail | 1x USB 3.2 Gen 1, Type C supports DisplayPort 1.4a |
| Network (RJ-45) | Yes |

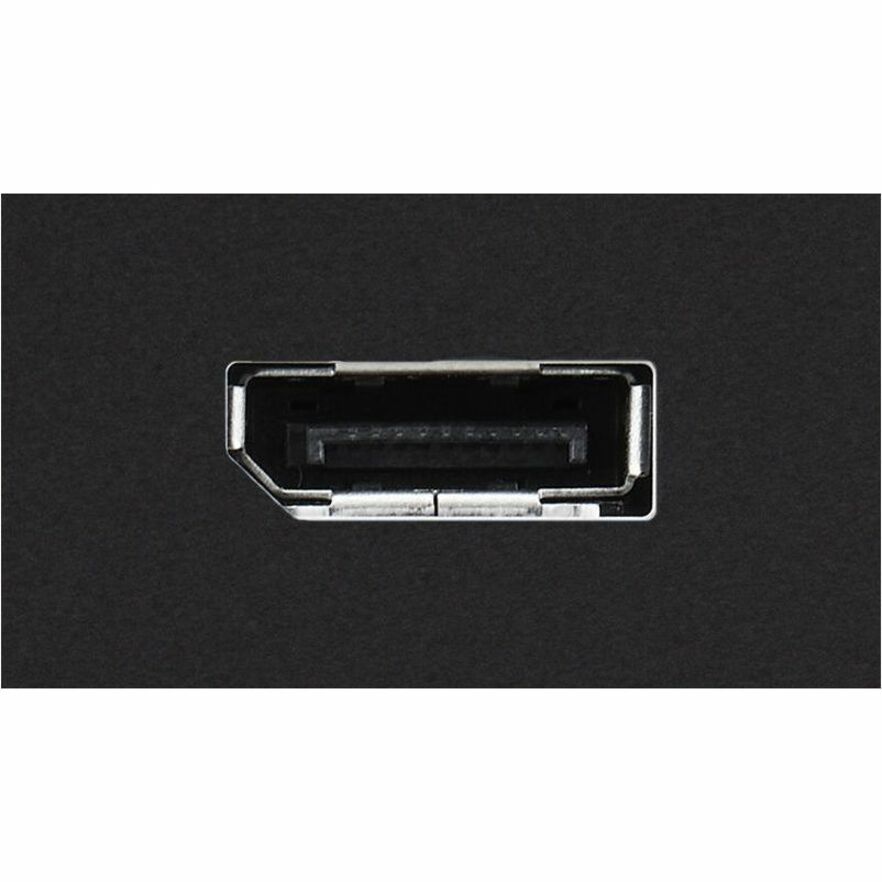

| DisplayPort | Yes |
| Number of SATA Interfaces | 1 |
| Operating System | |
| Operating System Supported | Windows 10 |
| Operating System Supported | Windows 11 |
| Operating System Supported | Linux |
| Power Description | |
| Number of Power Supplies Installed | 1 |
| Maximum Power Supply Wattage | 65 W |
| Frequency | 50 Hz |
| Frequency | 60 Hz |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Height | 1.7" |
| Width | 5.6" |
| Depth | 5.6" |
| Weight (Approximate) | 14.11 oz |
| Miscellaneous | |
| Energy Star | Yes |
