LANTRONIX
LANTRONIX SGETF1014-110-SA 1000BASE-T TO 1000BASE-SX/LX, SM, SC, 10KM- SA
Mfg Part Number: SGETF1014-110-SA , Item #: 5486623
Image may not reflect the actual item.
Price: $569.04
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Oct 02, 2025
No Sales Tax except these states
, PO and Wire.

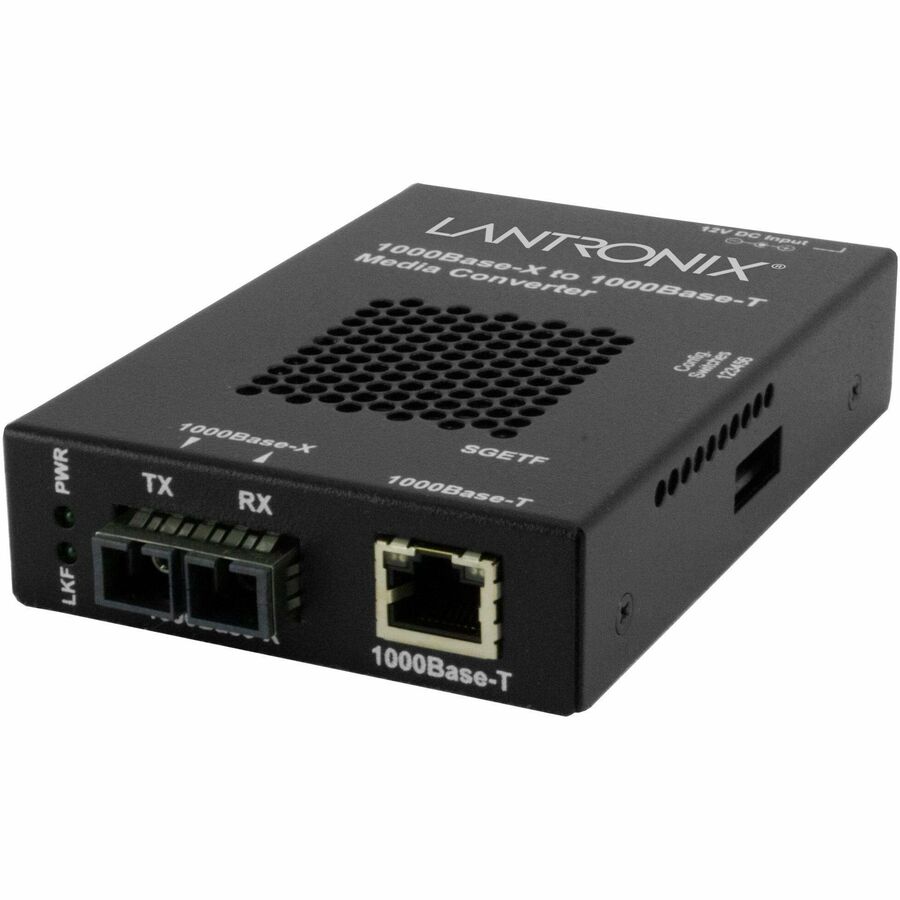

Stand-alone Gigabit Ethernet Media Converter
1000Base-T to 1000Base-SX/LX
The SGETF Series is a stand-alone media converter that provides an interface between 1000Base-T ports and 1000Base-SX/LX ports, allowing users to integrate fiber optic cabling into 1000Base-T copper environments. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential.
Main Specification
| General Information | |
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | SGETF1014110SA |
| Manufacturer Website Address | http://www.lantronix.com |
| Brand Name | Lantronix |
| Product Series | SGETF |
| Product Model | SGETF1014-110 |
| Product Name | SGETF1014-110 Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 0.1 mil |
| Maximum Data Transfer Rate | 1000 Mbit/s |
| Maximum Distance Supported | 10 km |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-LX |
| Network Technology | 1000Base-T |
| Power Description | |
| Power Source | AC/DC |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Power Consumption | 5.40 W |
| Physical Characteristics | |
| Form Factor | Shelf Mount |
| Form Factor | Standalone |
| Form Factor | DIN Rail Mountable |
| Form Factor | Rack-mountable |
| Form Factor | Wall Mountable |
| Height | 1" |
| Width | 3.3" |
| Depth | 4.8" |
| Weight (Approximate) | 2 lb |
| Miscellaneous | |
| Package Contents | |
| Application/Usage | Data |
| Application/Usage | Network |
| Additional Information | 1000Base-T (RJ-45) [100 m/328 ft.] to 1000Base-LX 1310nm single mode (SC) [10 km/6.2 mi.] Link Budget: 10.5 dB |
| Certifications & Standards | Safety: Wall Mount Power Supply: UL Listed, cUL Listed (Canada); FCC Class A, CISPR22/EN55022 Class A, EN55024, EN61000, CE Mark |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
