LANTRONIX

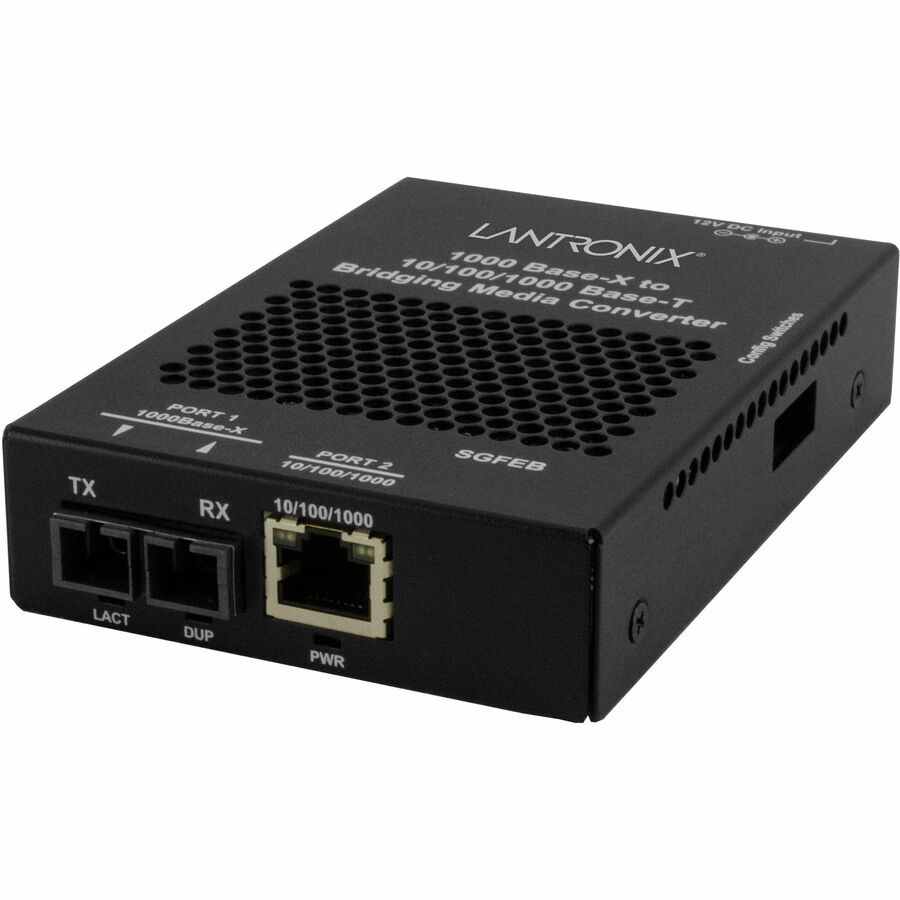

LANTRONIX SGFEB1013-130-SA 10/100/1000B-T TO 1000BASE-X, MM SC 850NM WITH SA PWR SUPPLY
Mfg Part Number: SGFEB1013-130-SA , Item #: 5486170
Image may not reflect the actual item.
Price: $437.10
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Oct 07, 2025
No Sales Tax except these states
, PO and Wire.
Stand-alone Gigabit Ethernet Media and Rate Converter
10/100/1000Base-T to 1000Base-SX/LX
The SGFEB Series is a stand-alone media converter that provides an interface between 10/100/1000Base-T ports and 1000Base-SX/LX ports, allowing users to integrate fiber optic cabling into 10/100/1000 copper environments. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10/100 copper devices to connect to 1000Base-SX/LX fiber.
Main Specification
| General Information | |
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | SGFEB1013130SA |
| Manufacturer Website Address | http://www.lantronix.com |
| Brand Name | Lantronix |
| Product Series | SGFEB |
| Product Model | SGFEB1013-130 |
| Product Name | SGFEB1013-130 Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 0 mil |
| Maximum Data Transfer Rate | 1000 Mbit/s |
| Maximum Distance Supported | 0.55 km |
| Fiber Optic Cable Core/Cladding Specification | 62.5/125 µm |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-SX |
| Network Technology | 10/100/1000Base-T |
| Power Description | |
| Power Source | AC Adapter |
| Input Voltage | 7.5 V DC |
| Input Voltage | 24 V DC |
| Power Consumption | 2.20 W |
| Physical Characteristics | |
| Form Factor | Standalone |
| Form Factor | Rail-mountable |
| Form Factor | Wall Mountable |
| Form Factor | Rack-mountable |
| Height | 1" |
| Width | 3.3" |
| Depth | 4.8" |
| Weight (Approximate) | 2 lb |
| Miscellaneous | |
| Package Contents | |
| Application/Usage | Data |
| Application/Usage | Network |
| Additional Information | 10/100/1000Base-T (RJ-45) [100 m/328 ft.] to 1000Base-SX 850nm multimode (SC )[62.5/125 um: 220 m/722 ft.] [50/125 um: 550 m/1804 ft.] Link Budget 7.5 dB |
| Certifications & Standards | EN55022 Class A, EN55024, FCC Class A, CE Mark Safety: Wall Mounted Power Supply: UL Listed, UL60950 and CSA Certified |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
