LANTRONIX S6010-1013-EU T1/E1 TO FIBER, MM SC, 2KM W/EU
Mfg Part Number: S6010-1013-EU , Item #: 5484769
, PO and Wire.
Stand-alone DS1 - T1/E1 Remotely Managed NID
DS1 - T1/E1 over Fiber

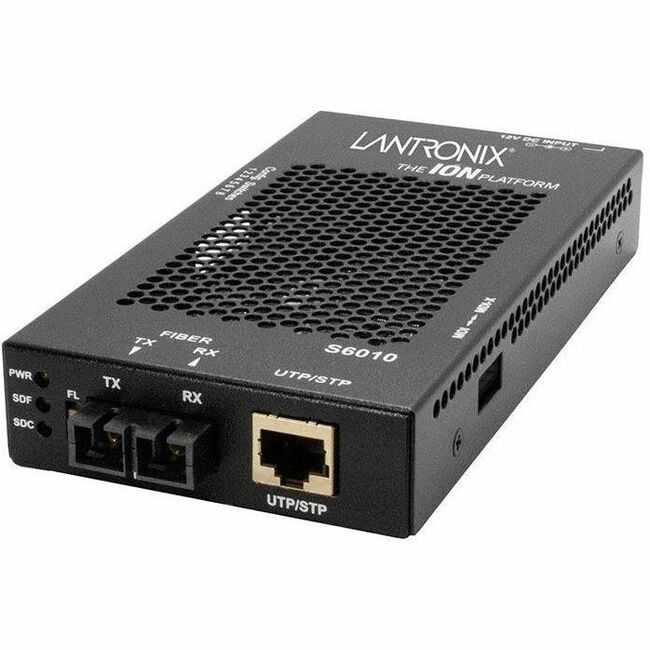

The ION S6010 is a stand-alone managed media converter that offers a solution for extending DS1 - T1/E1 or PRI connections over fiber optic cabling. It provides fiber extension though a twisted pair RJ-48 port and a fiber port. These DS1 - T1/E1 converters must be used in pairs, one on each end of the fiber link. Management of the stand-alone converter is supported, in-band, over the fiber, when the remote S6010 is linked to a C6010 card installed in a managed ION Chassis. These DS1 - T1/E1 converters are available with fixed fiber connectors or an open SFP slot, with support for various fiber types, distances, and wavelengths to provide maximum flexibility for any network topology. CWDM SFPs can also be used to further increase the bandwidth capacity of the fiber infrastructure.
| General Information | |
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | S60101013EU |
| Manufacturer Website Address | http://www.lantronix.com |
| Brand Name | Lantronix |
| Product Series | S6010 |
| Product Model | S6010-1013 |
| Product Name | S6010-1013 Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Number of SC Ports | 1 |
| Number of RJ-48 Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 0.1 mil |
| Maximum Distance Supported | 2 km |
| Network & Communication | |
| Carrier Supported | T-carrier/E-carrier |
| Network Technology | T1/E1 |
| Power Description | |
| Power Source | AC Adapter |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Power Consumption | 2.60 W |
| Physical Characteristics | |
| Form Factor | Standalone |
| Form Factor | Shelf Mount |
| Form Factor | Wall Mountable |
| Form Factor | Rack-mountable |
| Form Factor | DIN Rail Mountable |
| Height | 1" |
| Width | 3.3" |
| Depth | 6.5" |
| Weight (Approximate) | 2 lb |
| Miscellaneous | |
| Package Contents | |
| Application/Usage | Network |
| Application/Usage | Data |
| Additional Information | Twisted Pair (RJ-48) [1.5 km/0.9 mi.] to 1300nm multimode (SC) [2 km/1.2 mi.] Link Budget: 12.0 dB |
| Certifications & Standards | EN55035/55032 Class A, FCC Class A, CE, UKCA, UL |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
