LANTRONIX
LANTRONIX SM24DP4XA-EU MANAGED FIBER AGGREGATION SWITCH, 20-PORT 100/1000 SFP, 4 SFP/RJ COMBO, 4 1G/10G
Mfg Part Number: SM24DP4XA-EU , Item #: 5484157
Image may not reflect the actual item.
Price: $1,369.19
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Dec 29, 2025
No Sales Tax except these states
, PO and Wire.

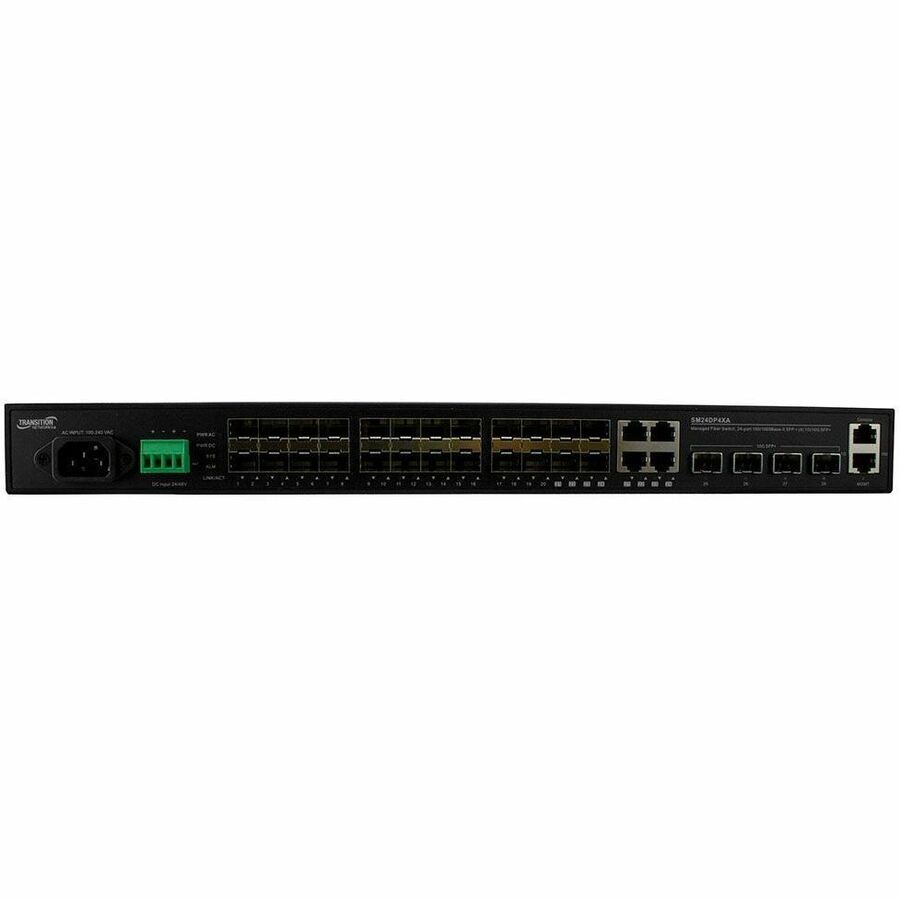

Managed Gigabit Ethernet Fiber Switch
(20) 100/1000Base-X SFP Slots + (4) 100/1000Base SFP/RJ-45 Combo Ports + (4) 1G/10GBase-X SFP+ Slots
This switch is a next generation Layer 2 managed switch with 128Gbps switching capacity. It provides up to (24) dual speed fiber slots and (4) 10Gig aggregation ports, it's an ideal switch for fiber aggregation applications.
Main Specification
| General Information | |
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | SM24DP4XAEU |
| Manufacturer Website Address | http://www.lantronix.com |
| Brand Name | Lantronix |
| Product Series | SM24DP4XA |
| Product Name | SM24DP4XA Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 4.0 |
| Modular | Yes |
| Stack Port | No |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet Combo (Ethernet/SFP) |
| Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet SFP+ |
| Port/Expansion Slot Details | 20 x Gigabit Ethernet SFP |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 100/1000Base-FX |
| Network Technology | 10GBase-X |
| Network Technology | 1000Base-X |
| Network Technology | 1000Base-TX |
| I/O Expansions | |
| Total Number of Expansion Slots | 28.0 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Expansion Slot Type | SFP+ |
| Shared SFP Slot | Yes |
| Number of SFP Slots | 24 |
| Network & Communication | |
| Layer Supported | 4 |
| Networking Standards | IEEE 802.3ad |
| Networking Standards | IEEE 802.3ae |
| Networking Standards | IEEE 802.1p |
| Networking Standards | IEEE 802.1s |
| Networking Standards | IEEE 802.3u |
| Networking Standards | IEEE 802.3az |
| Networking Standards | IEEE 802.3x |
| Networking Standards | IEEE 802.1x |
| Networking Standards | IEEE 802.3ah |
| Networking Standards | IEEE 802.3z |
| Networking Standards | IEEE 802.1Q |
| Networking Standards | IEEE 802.3ag |
| Networking Standards | IEEE 802.3 |
| Networking Standards | IEEE 802.1ad |
| Networking Standards | IEEE 1588v2 |
| Networking Standards | IEEE 802.1D |
| Networking Standards | IEEE 802.1w |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Input Voltage | 24 V DC |
| Input Voltage | -24 V DC |
| Input Voltage | 230 V AC |
| Input Voltage | -48 V DC |
| Input Voltage | 48 V DC |
| Input Voltage | 120 V AC |
| Power Source | Power Supply |
| Power Consumption | 60 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.7" |
| Width | 17.4" |
| Depth | 8.3" |
| Weight (Approximate) | 2.87 lb |
| Miscellaneous | |
| Package Contents | |
| Application/Usage | Network |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 5 Year |
