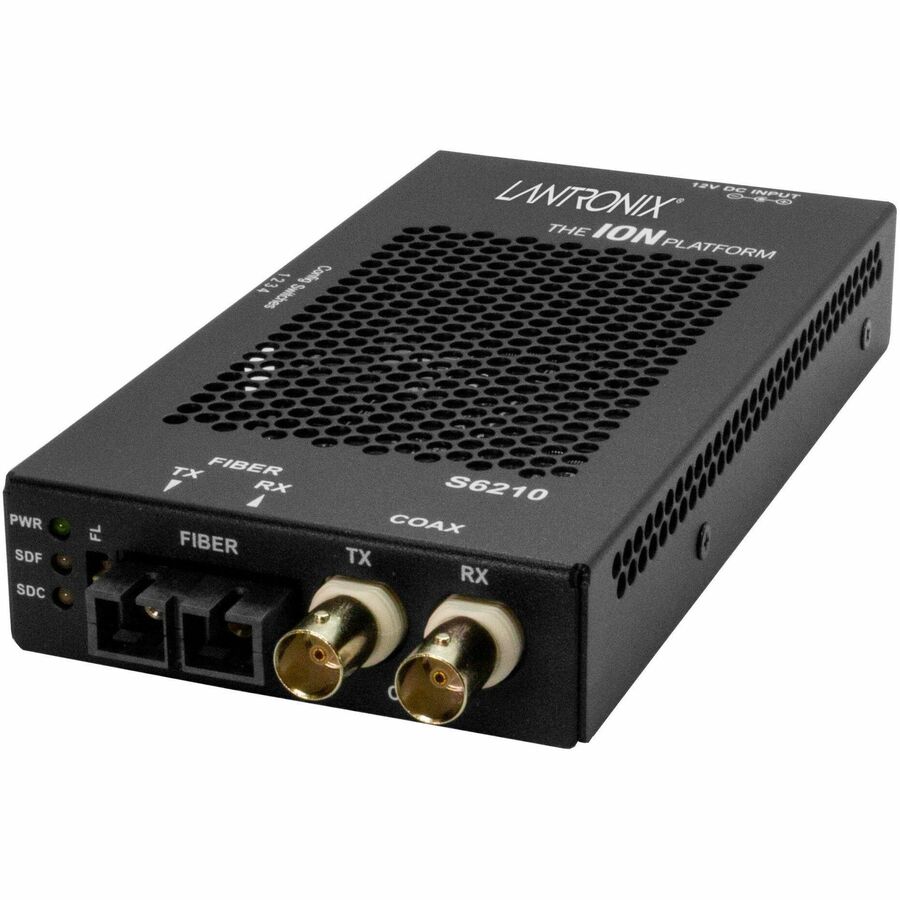

LANTRONIX S6210-3014-SA DS3-T3/ES COAX TO FIBER, SM SC, 20KM W/SA
Mfg Part Number: S6210-3014-SA , Item #: 5483977
, PO and Wire.
Stand-alone DS3-T3/E3 Network Interface Device
DS3 - T3/E3 Coax over Fiber
The ION S6210 is a managed stand-alone media converter that provides a solution for those users that need to extend DS3-T3/E3 connections over fiber. The S6210 is available in versions that support fixed fiber connectors as well as SFP fiber modules offering support for a variety of fiber types, distances, and wavelengths to provide maximum flexibility across a variety of network topologies. CWDM SFPs can also be utilized to further increase the bandwidth capacity of the fiber infrastructure.
The S6210 DS3-T3/E3 converters must be used in pairs. Management of the stand-alone converter is supported, in-band, over the fiber, when the remote S6210 is linked to a C6210 card installed in a managed ION chassis.
| General Information | |
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | S62103014SA |
| Manufacturer Website Address | http://www.lantronix.com |
| Brand Name | Transition Networks |
| Product Line | ION |
| Product Series | S6210 |
| Product Model | S6210-3014 |
| Product Name | S6210-3014 Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 3 |
| Number of SC Ports | 1 |
| Number of BNC Ports | 2 |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Coaxial |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 0.1 mil |
| Maximum Data Transfer Rate | 44.70 Mbit/s |
| Maximum Distance Supported | 20 km |
| Power Description | |
| Power Source | Power Supply |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Power Consumption | 2.40 W |
| Physical Characteristics | |
| Form Factor | Shelf Mount |
| Form Factor | Rack-mountable |
| Form Factor | Wall Mountable |
| Form Factor | Standalone |
| Form Factor | DIN Rail Mountable |
| Height | 1" |
| Width | 3.5" |
| Depth | 6.5" |
| Weight (Approximate) | 2 lb |
| Miscellaneous | |
| Package Contents | |
| Application/Usage | Network |
| Application/Usage | Data |
| Additional Information | (2) Coax (BNC) to 1310nm single mode (SC)[20 km/12.4 mi.] Link Budget: 16.0 dB |
| Certifications & Standards | CISPR/EN55022 Class A, FCC Class A, CE Mark, UL60950 |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
