LANTRONIX SISPM1040-3166-L-LA MANAGED HARDENED POE+ SWITCH, (16) 10/100/1000BASE-T POE+, (4) 100/1000 SFP, (2)
Mfg Part Number: SISPM1040-3166-L-LA , Item #: 5483359

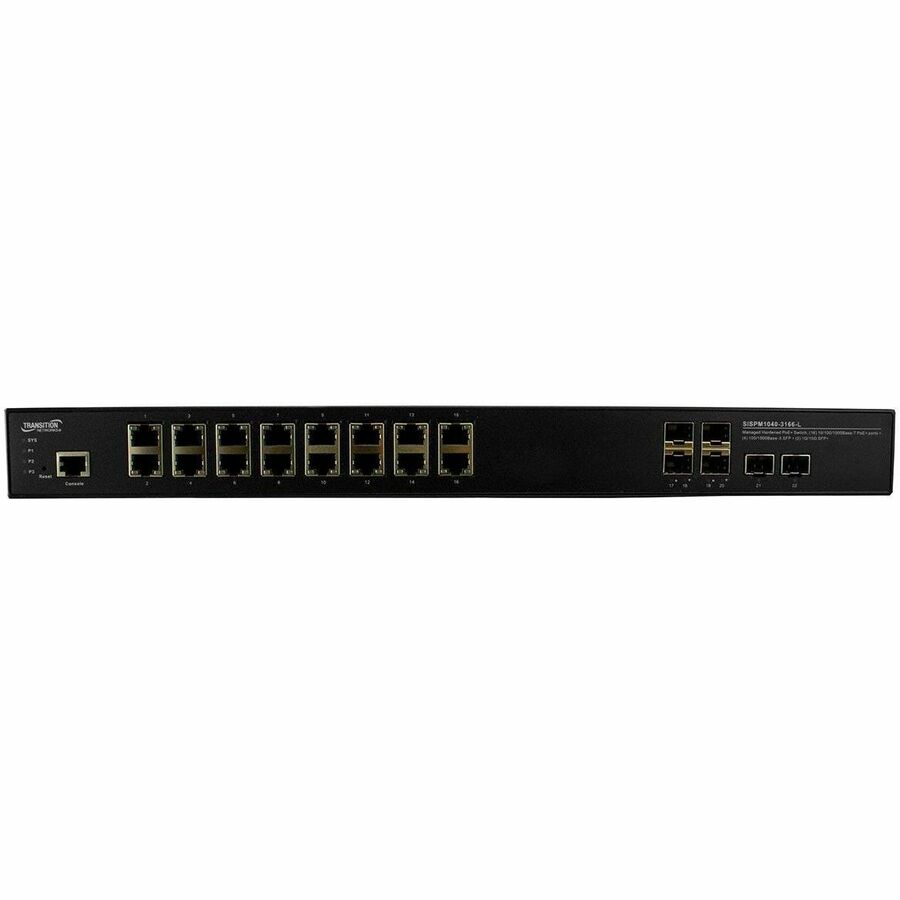

Image may not reflect the actual item.
Price: $1,616.77
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Nov 07, 2025
No Sales Tax except these states
, PO and Wire.
Managed Hardened Gigabit Ethernet PoE+ Rack Mountable Switch
(16) 10/100/1000Base-T PoE+ Ports + (4) 100/1000Base-X SFP Slots + (2) 1G/10GBase-X SFP+ Slots
This switch is a next generation rack mountable hardened switch with 80Gbps switching capacity. It provides (16) 10/100/1000 PoE+ ports, (4) 100/1000 dual speeds SFP ports and has (2) additional 1G/10G SFP+ slots.
Main Specification
| General Information | |
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | SISPM10403166LLA |
| Manufacturer Website Address | http://www.lantronix.com |
| Brand Name | Transition Networks |
| Product Series | SISPM1040-3166-L |
| Product Name | SISPM1040-3166-L Ethernet Switch |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Fanless |
| Interfaces/Ports | |
| Total Number of Network Ports | 16.0 |
| Modular | Yes |
| Stack Port | No |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet SFP |
| Port/Expansion Slot Details | 16 x Gigabit Ethernet Network PoE+ |
| Port/Expansion Slot Details | 2 x 10 Gigabit Ethernet SFP+ |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-X |
| Network Technology | 10/100/1000Base-TX |
| Network Technology | 100/1000Base-FX |
| I/O Expansions | |
| Total Number of Expansion Slots | 6.0 |
| Expansion Slot Type | SFP+ |
| Expansion Slot Type | SFP (mini-GBIC) |
| Shared SFP Slot | No |
| Number of SFP Slots | 4 |
| Network & Communication | |
| Layer Supported | 4 |
| Networking Standards | IEEE 802.3ad |
| Networking Standards | IEEE 802.1p |
| Networking Standards | IEEE 802.3ae |
| Networking Standards | IEEE 802.3u |
| Networking Standards | IEEE 802.1s |
| Networking Standards | IEEE 802.3af |
| Networking Standards | IEEE 802.3x |
| Networking Standards | IEEE 802.3az |
| Networking Standards | IEEE 802.3ah |
| Networking Standards | IEEE 802.1ag |
| Networking Standards | IEEE 802.3z |
| Networking Standards | IEEE 802.1Q |
| Networking Standards | IEEE 802.1ad |
| Networking Standards | IEEE 802.3 |
| Networking Standards | IEEE 802.1ab |
| Networking Standards | IEEE 802.1D |
| Networking Standards | IEEE 802.3at |
| Networking Standards | IEEE 802.1w |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 250 W |
| Input Voltage | 57 V DC |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Input Voltage | 52 V DC |
| Power Source | Power Supply |
| Power Source | PoE+ |
| Power Consumption | 15 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.7" |
| Width | 17.4" |
| Depth | 11.8" |
| Weight (Approximate) | 10.58 lb |
| Miscellaneous | |
| Package Contents | |
| Application/Usage | Network |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 5 Year |
