LANTRONIX

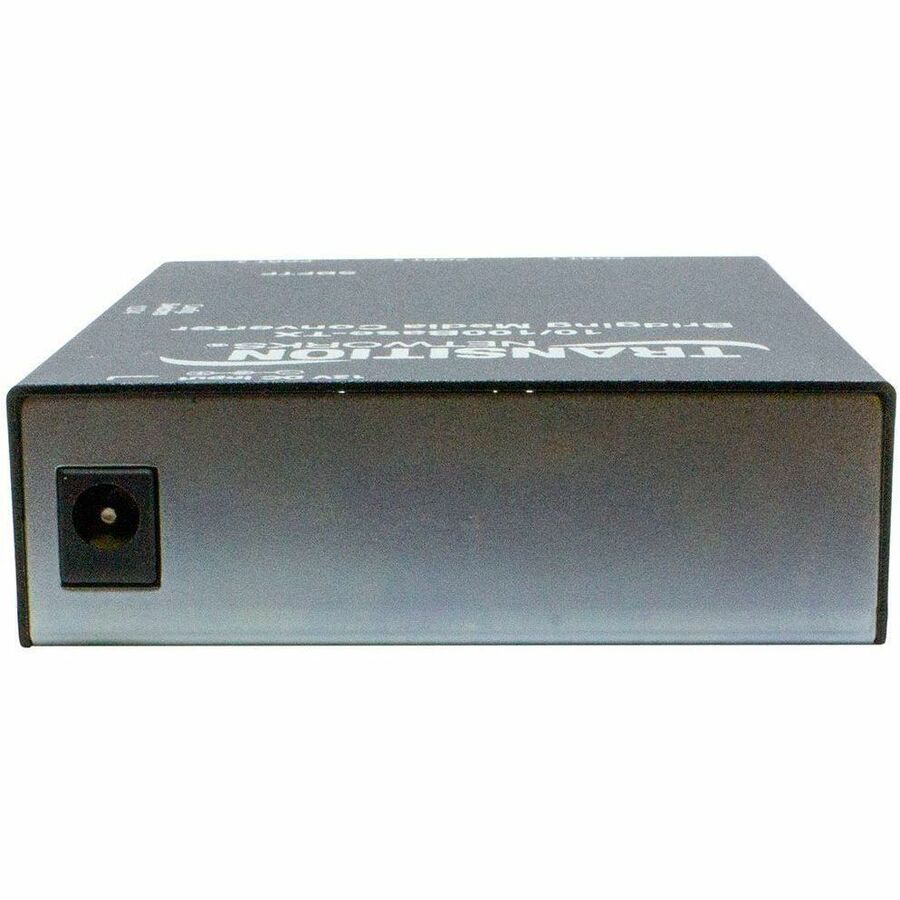

LANTRONIX SBFTF1010-130-BR 10/100BASE-TX, BRIDGING MEDIA CONVERTER, SA W/ BR POWER SUPPLY
Mfg Part Number: SBFTF1010-130-BR , Item #: 5483028
, PO and Wire.
Stand-alone Fault-Tolerant Redundant Link Protector
10/100Base-TX

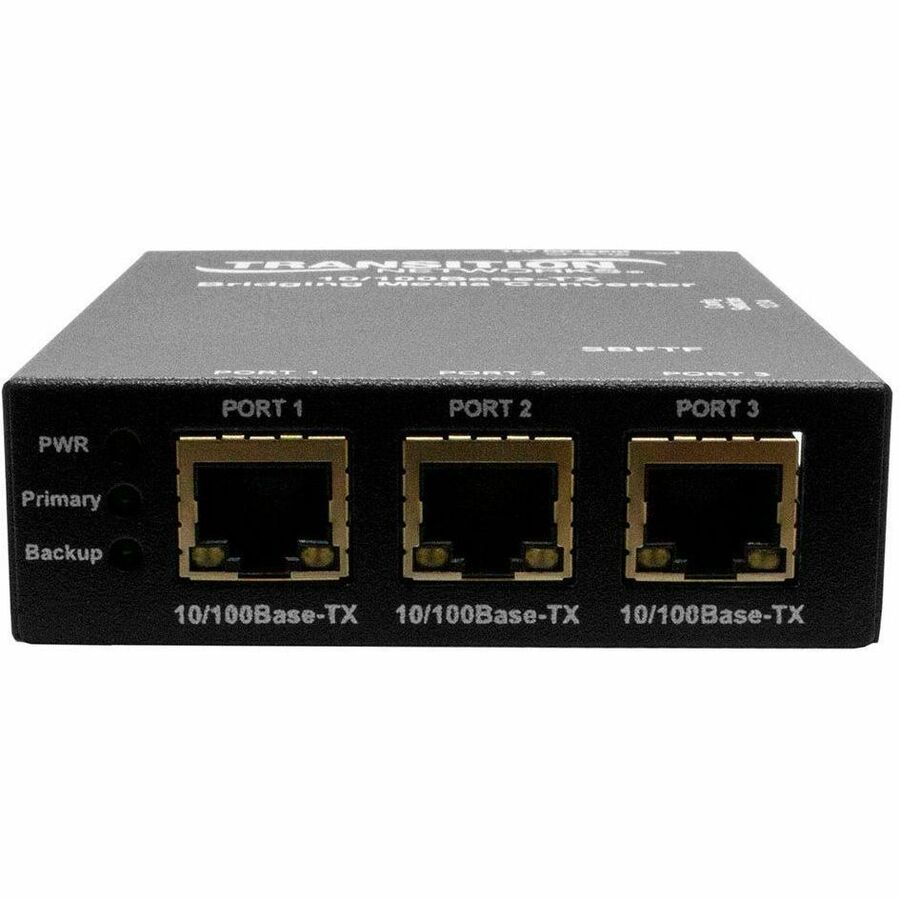

The SBFTF1010-130 Redundant Link Protector is a 10/100 Ethernet fault-tolerant transceiver that significantly reduces network down time by adding a new level of redundancy to 10/100 Ethernet connections. The Redundant Transceiver has three ports: one for the critical (main) device, one for the default (primary) path to the critical device, and another (backup) for the backup path. It is a smart device that will not send any signal on a path that is inactive. If the primary path loses its link, then the transceiver will switch to the backup path in approximately 189 milliseconds.
When the primary path re-establishes its link, the Redundant Link Protector will automatically switch back to the primary path. Optional functionality, controlled via a dip switch, allows the unit to move from the fault-tolerant mode to a 3-port switch mode.
| General Information | |
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | SBFTF1010130BR |
| Manufacturer Website Address | http://www.lantronix.com |
| Brand Name | Transition Networks |
| Product Model | SBFTF1010-130 |
| Product Name | SBFTF1010-130 Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 3 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 3 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Maximum Data Transfer Rate | 100 Mbit/s |
| Maximum Distance Supported | 0.10 km |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-TX |
| Power Description | |
| Power Source | Power Supply |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Power Consumption | 2.40 W |
| Physical Characteristics | |
| Form Factor | Shelf Mount |
| Form Factor | Rack-mountable |
| Form Factor | Wall Mountable |
| Form Factor | Standalone |
| Form Factor | DIN Rail Mountable |
| Height | 1" |
| Width | 3.3" |
| Depth | 4.8" |
| Weight (Approximate) | 2 lb |
| Miscellaneous | |
| Package Contents | |
| Application/Usage | Network |
| Application/Usage | Data |
| Additional Information | 10/100Base-TX Link Protector Transceiver (3) 10/100Base-TX (RJ-45) [100 m/328 ft.] |
| Certifications & Standards | Safety: Wall Mount Power Supply: UL Listed & CSA certified; FCC Class A, EN55024, EN61000, CE Mark |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
