LANTRONIX
LANTRONIX S3221-1040-SA 10/100/1000BASET TO 2XSFP - SA
Mfg Part Number: S3221-1040-SA , Item #: 5482967
, PO and Wire.

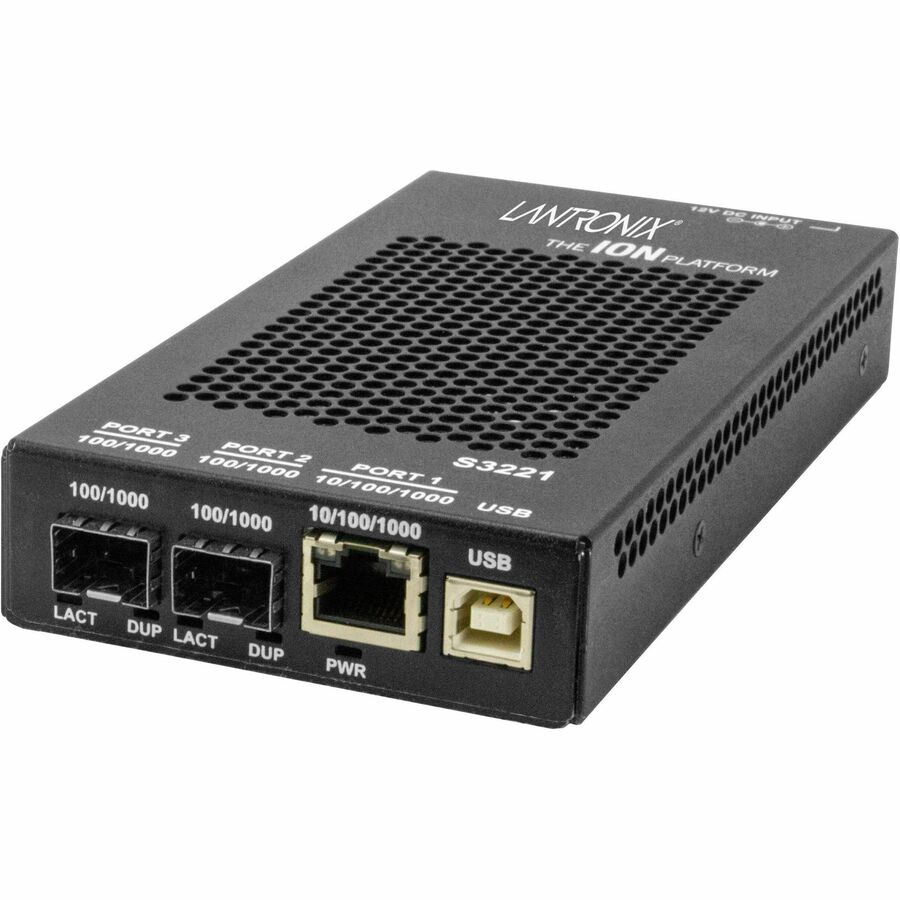

Stand-alone Gigabit Ethernet Remotely Managed NID
10/100/1000Base-T to 1000Base-X with OAM/IP-Based Management
The ION S3220 is a stand-alone managed Network Interface Device (NID) that provides an interface between 10/100/1000Base-TX ports and 1000Base-SX/LX ports, allowing users to manage their links while integrating fiber optic cabling into 10/100/1000 copper environments. As a remotely managed device, the S3220 can be managed individually via an IP address or it can be managed in-band, over the fiber when linked to a C3220 card installed in a managed ION chassis. With advanced features like IEEE 802.3ah Link OAM, VLAN, QoS, SSH/SSL, jumbo frame support, and bandwidth allocation, the S3220 offers a variety of methods for the secure delivery of mobile backhaul applications.
| General Information | |
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | S32211040SA |
| Manufacturer Website Address | http://www.lantronix.com |
| Brand Name | Transition Networks |
| Product Series | S3220 |
| Product Model | S3221-1040 |
| Product Name | S3221-1040 Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Network (RJ-45) | Yes |
| USB | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Maximum Data Transfer Rate | 1000 Mbit/s |
| Maximum Distance Supported | 0.10 km |
| I/O Expansions | |
| Total Number of Expansion Slots | 2.0 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 2 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 100/1000Base-X |
| Network Technology | 10/100/1000Base-T |
| Power Description | |
| Power Source | AC Adapter |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Physical Characteristics | |
| Form Factor | Standalone |
| Form Factor | Shelf Mount |
| Form Factor | Wall Mountable |
| Form Factor | DIN Rail Mountable |
| Height | 1" |
| Width | 3.3" |
| Depth | 6.5" |
| Weight (Approximate) | 2 lb |
| Miscellaneous | |
| Package Contents | |
| Application/Usage | Network |
| Application/Usage | Data |
| Additional Information | 10/100/1000Base-T (RJ-45) [100 m] to (2) 100/1000Base-X Open SFP Slots |
| Certifications & Standards | EN55022 Class A, EN55024, UL60950, CE Mark |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
