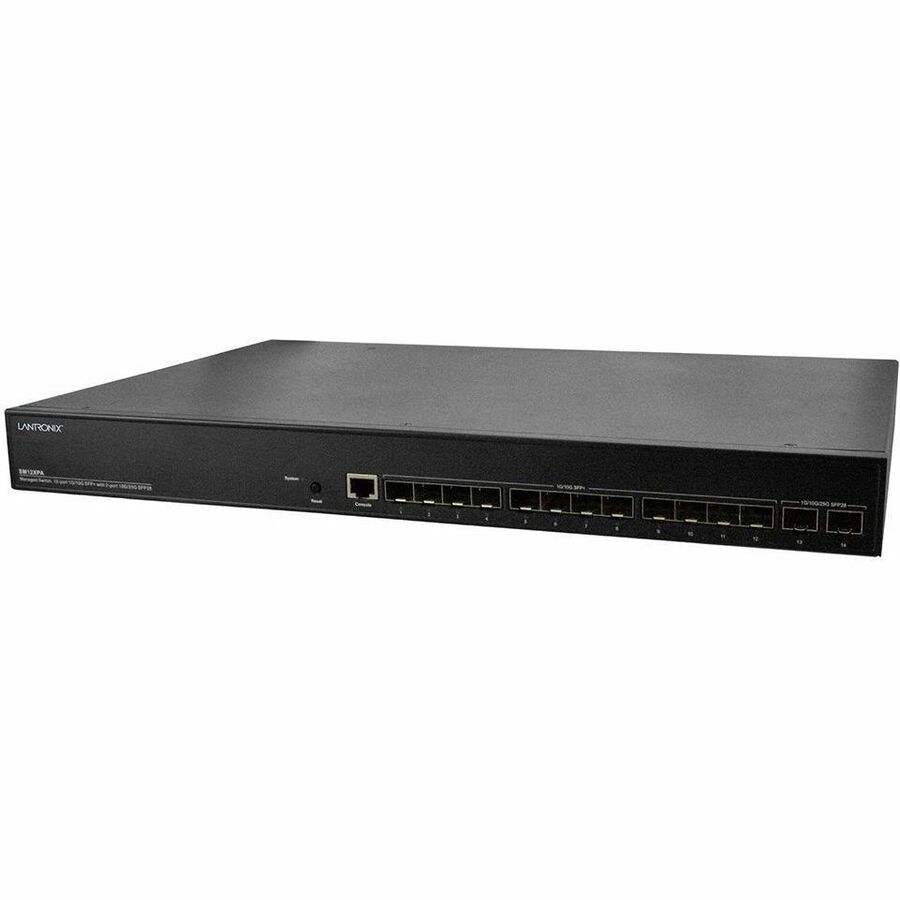

LANTRONIX SM12XPA-JP MANAGED FIBER SWITCH, 12-PORT 1G/10G SFP+, (2) PORT 10G/25G SFP28

Easier management and maintenance of end devices and networks

The SM12XPA Fiber Aggregation Switch is a managed Layer 3 (L3) Multi-Gigabit Ethernet fiber switch offering powerful Layer 2 and basic Layer 3 features for improved functionality.

The SM12XPA switch provides 340 Gbps switching capacity with (12) 1G/10G SFP+ and (2) 1G/10G/25G SFP28 slots and (1) RJ-45 console port. It offers high performance and reliability for high bandwidth aggregation and access network applications. The 10G and 25G SFP links provide the necessary backbone capacity to meet the high traffic needs of modern connected access switches.

High performance IP unicast routing using OSPF and RIP enables devices to dynamically learn and exchange routing information for rapid network convergence. This improves efficiency and productivity.

The embedded Device Managed System (DMS) software is easy to use and simplifies configuration, installation, and troubleshooting of devices in applications with high fiber density. The SM12XPA offers an improved user experience, and lowers operating and maintenance costs.

A RESTful API is available for integrating and managing the switch through third-party tools. It also supports enhanced security features such as IP source guard and Access Control Lists to guard networks against unauthorized access.
