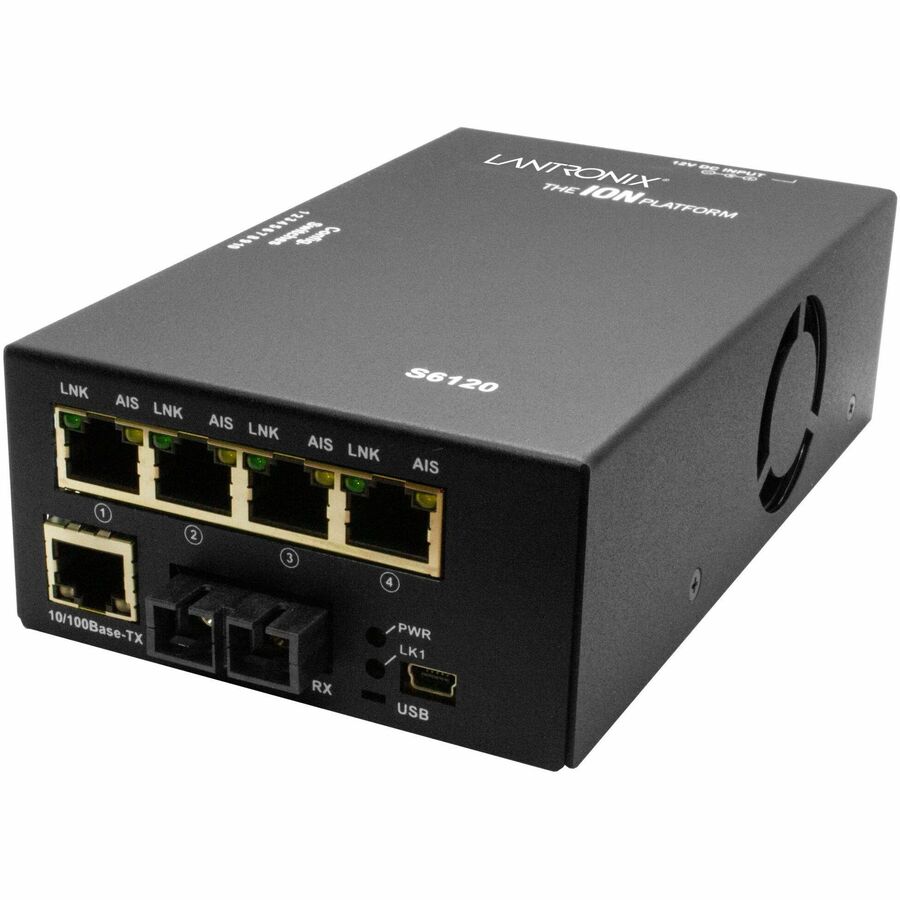

LANTRONIX S6120-1014-SA 4X T1/E1 ION WITH ETHERNET TO FIBER, SM SC, 20KM
Mfg Part Number: S6120-1014-SA , Item #: 5481827
, PO and Wire.
Stand-alone DS1 - T1/E1/J1 Network Interface Device
4 x DS1 - T1/E1/J1 + 10/100 Ethernet over Fiber
The ION S6120 is a managed stand-alone DS1 - T1/E1/J1 mux that provides a solution for those users that need to extend multiple DS1 - T1/E1/J1 connections, along with a 10/100 Ethernet connection, all over fiber. The S6120 includes (4) RJ-48 ports, (1) 10/100 Ethernet port, and (1) fiber port. The device is available in versions that support fixed fiber connectors as well as SFP fiber modules offering support for a variety of fiber types, distances, and wavelengths to provide maximum flexibility across a variety of network topologies. CWDM SFPs can also be utilized to further increase the bandwidth capacity of the fiber infrastructure.
The S6120 converter must be used in pairs. Management of the stand-alone converter is supported, in-band, over the fiber, when the remote S6120 is linked to a C6120 card installed in a managed ION chassis.
| General Information | |
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | S61201014SA |
| Manufacturer Website Address | http://www.lantronix.com |
| Brand Name | Transition Networks |
| Product Line | ION |
| Product Series | S6120 |
| Product Model | S6120-1014 |
| Product Name | S6120-1014 Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 5 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| Number of RJ-48 Ports | 4 |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 0.1 mil |
| Maximum Data Transfer Rate | 100 Mbit/s |
| Maximum Distance Supported | 20 km |
| Network & Communication | |
| Carrier Supported | T-carrier/E-carrier/J-carrier |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-TX |
| Network Technology | T1/E1/J1 |
| Power Description | |
| Power Source | Power Supply |
| Input Voltage | 12 V DC |
| Power Consumption | 6 W |
| Physical Characteristics | |
| Form Factor | Standalone |
| Form Factor | Wall Mountable |
| Height | 1.8" |
| Width | 3.7" |
| Depth | 6.5" |
| Weight (Approximate) | 2 lb |
| Miscellaneous | |
| Package Contents | |
| Application/Usage | Data |
| Application/Usage | Network |
| Additional Information | 1310nm single mode (SC)[20 km/12.4 mi.] Link Budget: 16.0 dB to (4) RJ-48 [1.5 km/0.9 mi.] + 10/100Base-TX (RJ-45) [100m] |
| Certifications & Standards | EN55022 Class A, EN55024, CE mark |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
