LANTRONIX

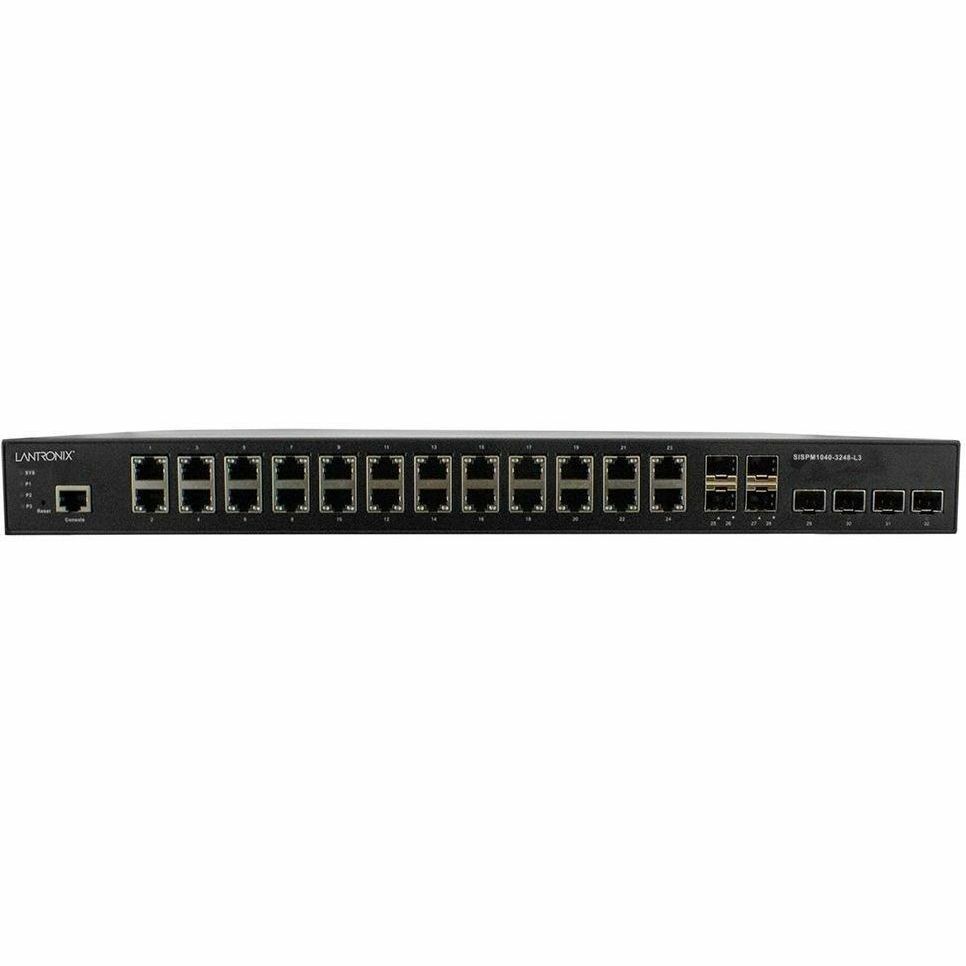

LANTRONIX SISPM1040-3248-L3-UK LAYER 3 MANAGED HARDENED POE+ SWITCH, (24) 10/100/1000BASE-T POE+, (4) 100/1000
Mfg Part Number: SISPM1040-3248-L3-UK , Item #: 5481342
, PO and Wire.
(16) 10/100/1000Base-T PoE+ Ports + (4) 100/1000Base-X SFP Slots + (2) 1G/10GBase-X SFP+ Slots
(24) 10/100/1000Base-T PoE+ Ports + (4) 100/1000Base-X SFP Slots + (4) 1G/10GBase-X SFP+ Slots
The SISPM1040-3000-L3 Series managed Layer 3 (L3) hardened Gigabit Ethernet PoE switches offer powerfulLayer 2 and Layer 3 features and performance required to meet the demands of Smart City and Utility,Transportation, Security and Surveillance applications where performance and reliability across a wide range oftemperatures is required. The SISPM1040-3000-L3 Series are designed to support current and future Internet ofThings (IoT) applications with their non-blocking / wirespeed performance, wide operating temperature range of-40°C to 75°C for outdoor and indoor environments.
Device management is made simple with Lantronix ConsoleFlow™. The ConsoleFlow Cloud device managerprovides cloud-based control of the Lantronix SISPM1040-3000-L3 Series network switches. ConsoleFlowCloud provides a single pane of glass to securely deploy, monitor and manage Lantronix network switches andconnected IT equipment. ConsoleFlow Cloud features True Zero-Touch automation, simplifying onboardinglogistics and provisioning new devices while eliminating remote or on-site visits and reducing operational costs.In addition, the native mobile apps for iOS® or Android™ platforms provide users the freedom to monitor andremotely connect to any device while on the go.
| General Information | |
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | SISPM10403248L3UK |
| Manufacturer Website Address | http://www.lantronix.com |
| Brand Name | Lantronix |
| Product Series | SISPM1040-3000-L3 |
| Product Name | SISPM1040-3000-L3 Layer 3 Switch |
| Product Type | Layer 3 Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 24.0 |
| Modular | Yes |
| Stack Port | No |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet SFP+ |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet SFP |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet Network PoE+ |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-TX |
| Network Technology | 100/1000Base-FX |
| Network Technology | 10GBase-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 8.0 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Expansion Slot Type | SFP+ |
| Shared SFP Slot | No |
| Number of SFP Slots | 4 |
| Network & Communication | |
| Layer Supported | 4 |
| Networking Standards | IEEE 802.3ah |
| Networking Standards | IEEE 802.3x |
| Networking Standards | IEEE 802.3 |
| Networking Standards | IEEE 802.1s |
| Networking Standards | IEEE 802.1ab |
| Networking Standards | IEEE 1588v2 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 370 W |
| Input Voltage | 52 V DC |
| Input Voltage | 230 V AC |
| Input Voltage | 57 V DC |
| Input Voltage | 120 V AC |
| Power Source | AC |
| Power Source | PoE+ |
| Power Source | DC |
| Power Consumption | 15 W |
| Physical Characteristics | |
| Height | 1.7" |
| Width | 17.4" |
| Depth | 11.8" |
| Weight (Approximate) | 11 lb |
| Miscellaneous | |
| Package Contents | |
| Application/Usage | Network |
| Application/Usage | Workplace |
| Application/Usage | Security |
| Application/Usage | Wireless Access Point |
| Application/Usage | Surveillance |
| Application/Usage | IP Camera |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 5 Year |
