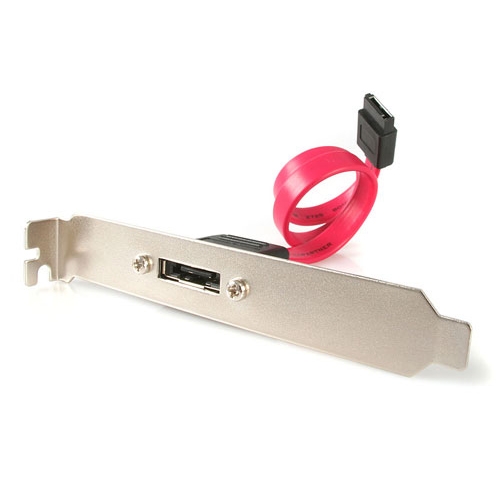

ESATAPLATE1 StarTech.com 1 Port SATA to eSATA Slot Plate Bracket

StarTech.com's eSATA SATA adapter plate adds external data support to any existing Serial ATA controller.

The adapter plate can be mounted to the rear panel of the computer case, providing straightforward eSATA to SATA connections allowing users to connect their eSATA device (hard drive enclosure, etc.) to the provided eSATA port which is an extension of the motherboard SATA data connector.

Designed to take advantage of the increased data integrity provided by external hard drives or RAID devices that support eSATA connections, the eSATA SATA adapter supports data transfer rates of up to 6Gbps and is backed by StarTech.com's Lifetime Warranty.

More from the Manufacturer

More from the Manufacturer

General Information
Manufacturer	StarTech.com
Manufacturer Part Number	ESATAPLATE1
Manufacturer Website Address	http://www.startech.com
Brand Name	StarTech.com
Product Name	1 Port SATA to eSATA Slot Plate Bracket
Packaged Quantity	1 Each
Product Type	Data Transfer Cable
Technical Information
Cable Type	SATA
Cable Length	1 ft
Connector Type on First End	eSATA - Female
Connector Gender on First End	Female
Connector on First End Details	1 x eSATA - Female
Connector Type on Second End	SATA - Male
Connector Gender on Second End	Male
Connector on Second End Details	1 x 7-pin SATA - Male
Conductor	Copper
Device Supported	PC
Device Supported	Hard Disk Drive Enclosure
Device Supported	Motherboard
Device Supported	External Hard Drive
Device Supported	RAID Controller
Device Supported	SATA Controller
Data Transfer Rate	6 Gbit/s
Physical Characteristics
Color Family	Black
Product Color	Black
Weight (Approximate)	0.07 lb
Shipping Height	0.79"
Shipping Width	4.92"
Shipping Weight (Approximate)	1.44 oz
Miscellaneous
Environmentally Friendly	Yes
Country of Origin	China
Warranty
Limited Warranty	Lifetime

Take the blazing speed of Serial ATA outside your case with an external slot plate from StarTech.com. The ESATAPLATE1 adds external data support to any existing Serial ATA controller. This product is designed to take advantage of the increased data integrity provided by external hard drives or RAID devices that support ESATA connections. You¡¦ll get up to 300 MBytes/sec of reliable data transfer for your Serial ATA peripherals, like external storage devices.

Installation is easy: just install the plate into an open I/O slot on your computer and connect the cables to the Serial ATA connectors on your motherboard or controller card. The slim SATA data cable provides less clutter for increased airflow inside your case. Like all our cable products, the ESATAPLATE1 is backed by our lifetime warranty.

Technical Specifications:

Warranty Lifetime warranty

Color Black Connector Types 1 - eSATA Plug Connector Types 1 - SATA Data 7 pin Male Shipping (Package) Weight 0.09 lb [0.04 kg] Length 12 inches
