SV411KUSB StarTech.com 4 Port Black USB KVM Switch Kit with Cables and Audio

The SV411KUSB 4 Port USB KVM Switch Kit with Audio and Cables lets you control up to four USB-enabled computers using a single keyboard, mouse and VGA monitor and offers both hotkey and top panel push-button operation for simple switching between connected computers. Designed to integrate seamlessly into any environment, the USB KVM switch offers a small footprint design (roughly the size of a deck of playing cards) and draws power from the connected computers, so it doesn't require an external power supply. A suitable solution for virtually any application, the USB KVM switch supports video resolutions of up to 2048 x 1536 as well as audio switching. The USB KVM switch includes four, 4ft 4-in-1 VGA and USB Host Cables, providing everything needed for quick installation to provide a complete, out-of-the-box KVM solution. Delivering dependable and convenient control of multiple computers from a single peripheral station, the KVM switch is backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the Manufacturer

More from the Manufacturer

General Information
Manufacturer	StarTech.com
Manufacturer Part Number	SV411KUSB
Manufacturer Website Address	http://www.startech.com
Brand Name	StarTech.com
Product Model	SV411KUSB
Product Name	SV411KUSB KVM Switch
Packaged Quantity	1 Each
Product Type	KVM Switchbox
Technical Information
Number of Computers Supported	4
Video
Graphic Mode	QXGA
Maximum Video Resolution	2048 x 1536
Interfaces/Ports
USB	Yes
VGA	Yes
Number of USB Ports	4
Number of VGA Ports	1
Physical Characteristics
Color Family	Black
Product Color	Black
Height	1"
Width	3.7"
Depth	2.4"
Weight (Approximate)	6.70 oz
Miscellaneous
Package Contents	SV411KUSB KVM Switch 1 x Instruction Manual 1 x Driver CD 4 x 4ft. VGA USB KVM Cable 4 x 4ft. Audio Cable (3.5mm speaker/mic)
Additional Information	Power-free operation - KVM draws power from attached computers and requires no power adapters. Compact, small footprint design fits easily into almost any environment saving desk space and reducing clutter. Included all-in-one KVM plus audio cables provide a complete out of the box KVM solution.
Environmentally Friendly	Yes
Environmental Certification	EU RoHS
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmental Compliance	Restriction of Hazardous Substances (RoHS) 2
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
REACH Declaration URL	https://media.startech.com/cms/pdfs/sv411kusb_rohs.pdf
EU RoHS Declaration URL	https://media.startech.com/cms/pdfs/sv411kusb_rohs.pdf
End of Life Manual Availability	Yes
REACH free of SVHC	Yes
WEEE Statement	https://media.startech.com/cms/pdfs/sv411kusb_weee.pdf
Country of Origin	China
Warranty
Limited Warranty	2 Year

If you are looking for a KVM that won't clutter your workspace, the SV411KUSB is your complete out-of-box solution. With hotkey switching and audio support, the SV411KUSB packs all the functionality you need into a form factor the size of a deck of playing cards.

Unlike integrated cable KVMs, the SV411KUSB is a kit that includes a set of 4 ft. cables for additional flexibility. With a maximum supported resolution of 2048 x 1536, this KVM is perfect for home offices, gaming enthusiasts, and multimedia production workstations.

• Designed to integrate into your existing environment
• Power-free operation draws power from attached computers and requires no power adapters

Features

• Cables (4 ft.) included
• Includes audio support for a complete switching solution
• Maximum resolution: 2048 x 1536
• Supports USB enabled keyboard and mouse emulation for error-free PC boot-up
• Switching type: Hotkey, push-button

Applications

• Controlling up to 4 USB-enabled computers using a single keyboard, mouse, and VGA monitor.
• Applicable for call centers, help desks, education environments, home gamers, video editing, and PC enthusiasts.

Specifications

Warranty	1 Year
Color	Brown
Color	Clear
Enclosure Type	Plastic
KVM Audio	Yes
KVM Cascadable	No
KVM Dual	No
KVM DVI	No
KVM Interface	USB
KVM IP Control	No
Number of KVM Ports	4
KVM Rackmount	No
KVM TFT	None
Maximum Video Resolutions	2048 x 1536 pixels
Maximum Number of Users	1
Carton Quantity	12

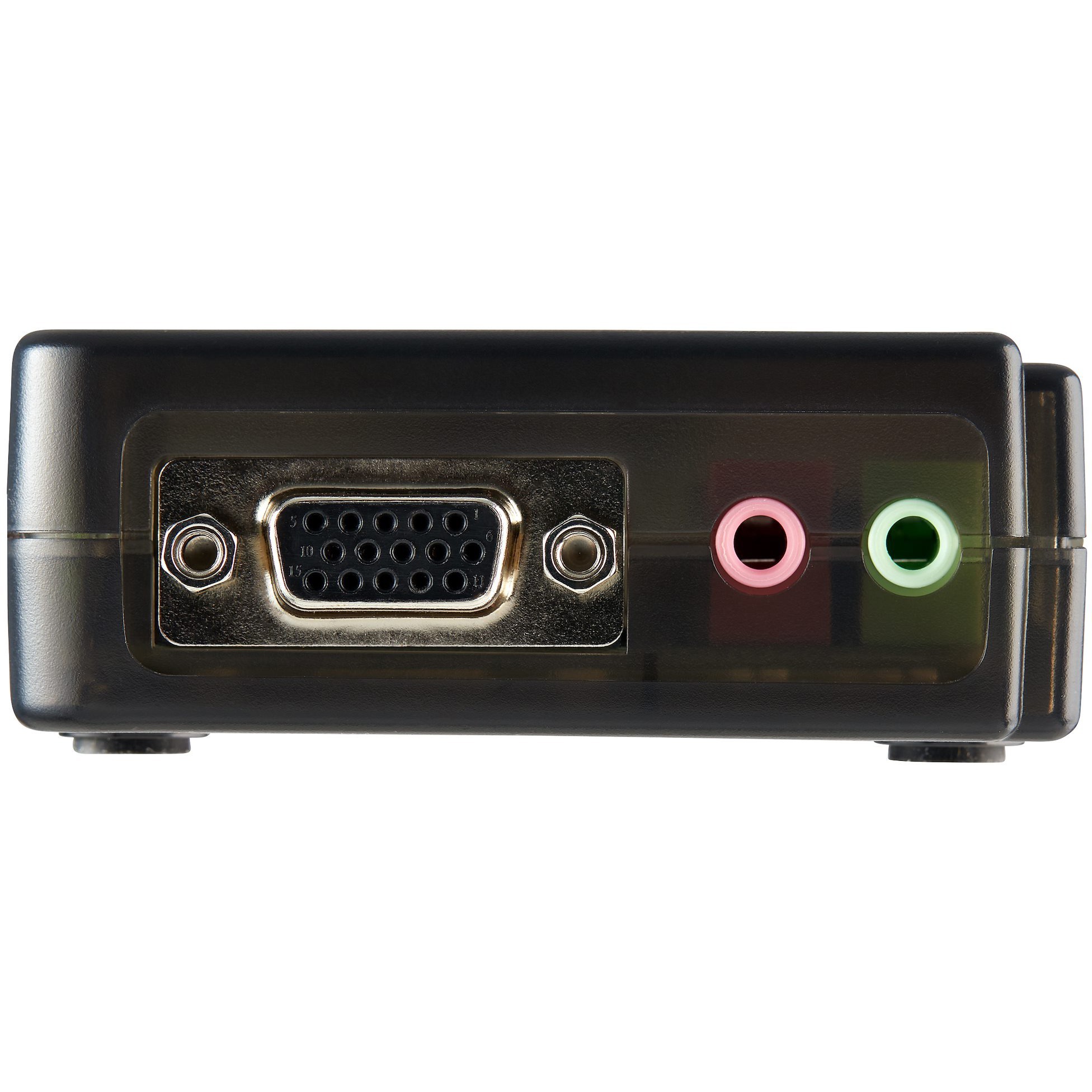

Console Connectors	2 x USB A female (keyboard, mouse) 2 x 3.5mm phono (female: 1 ea. speaker/mic) 1 x HD-15 VGA female
Computer Connectors (per port)	1 x USB A male 2 x USB to 3.5mm phono (male: 1 ea. speaker/mic) 1 x HD-15 VGA male
Power Adapter Requirement	None (self-powered)
Cables	Included (4 ft. to computers)
