BLACK BOX
BLACK BOX LGC324A-R5 IE GIGA MINIMC TX/SSLX SC 1310/1550
Mfg Part Number: LGC324A-R5 , Item #: 5364574
, PO and Wire.
Built Tough
Fiber Industrial MultiPower Media Converters are designed for demanding environments including factory automation, building systems, utilities (power and water), and oil/gas facilities. Typical applications include LAN extension, fiber mode conversion, and Ethernet speed conversion. These converters come in a compact metal housing, suitable for standalone use or integration into a high-density rack mount chassis.
Efficient Copper-to-Fiber Conversion
Seamlessly and transparently convert 10/100/1000 Mbps copper to 1000 Mbps fiber. These models require one or two strands of fiber. As Layer 2 media converters, they automatically detect and adjust to the copper side speed, offering a true plug-and-play experience.
Reliable Power Redundancy

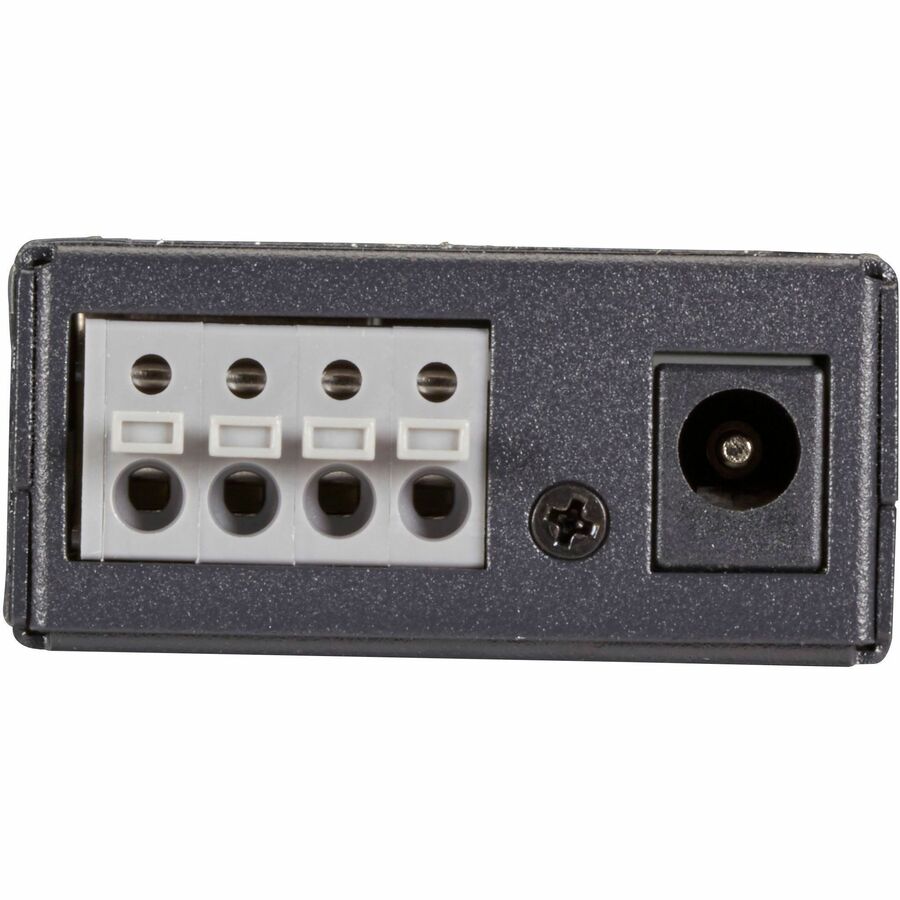

Multiple power options can be used simultaneously to maximize redundancy, ensuring mission-critical applications stay operational. If one power source fails, the remaining sources will continue to supply power seamlessly, keeping the converter running.
Link Fault Pass-Through (LFPT) Support
LFPT functionality can be enabled or disabled via a DIP switch on the unit. This feature combines TX LinkLoss (for twisted pair/copper interfaces) and FX LinkLoss (for fiber interfaces) between paired IMC Networks media converters. When enabled, LFPT passes a link fault through the device at each segment. When disabled, faults are no longer passed through making it easier for troubleshooting to find where the issue is. If a link fails on one interface, the media converter will bring down the link on its partner and pass the fault to the next interface.
Hardened and Rugged
Industrial MultiPower Media Converters are built for harsh industrial settings. When powered by DC, they support an extended temperature range of -13 to +167°F (-25 to +75°C), making them suitable for a wide range of industrial applications.
| General Information | |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LGC324A-R5 |
| Manufacturer Website Address | http://www.blackbox.com |
| Brand Name | Black Box |
| Product Line | Multipower Miniature |
| Product Name | MultiPower Miniature Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| USB | Yes |
| Number of PoE (RJ-45) Ports | 1 |
| PoE Port Type | PD |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| SC Port Type | Simplex |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 0.1 mil |
| Maximum Distance Supported | 10 km |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-X |
| Network Technology | 10/100/1000Base-T |
| Power Description | |
| Power Source | AC/DC |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Physical Characteristics | |
| Form Factor | Standalone |
| Form Factor | DIN Rail Mountable |
| Height | 0.8" |
| Width | 1.8" |
| Depth | 3.4" |
| Weight (Approximate) | 11.20 oz |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Industrial |
| Certifications & Standards | CE |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
