TRIPP LITE

TRIPP LITE B118-004-8K 4-PORT HDMI SPLITTER 8K HDR10+

Mfg Part Number:  B118-004-8K
Image may not reflect the actual item.
Price: $120.51
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Oct 17, 2025
No Sales Tax except these states
, PO and Wire.

8K HDMI Splitter Transmits 8K Video + Audio to 4 HDMI Displays at the Same Time

Recommended for home theaters or short-distance digital signage applications in classrooms, offices, restaurants, bars, hotels and trade shows, this Ultra High Definition (UHD) HDMI splitter is quick and easy to install. It connects to an HDMI source device, such as a laptop or Blu-ray player, and transmits an 8K audio/video signal to four HDMI monitors, projectors or televisions simultaneously. Multi-resolution output allows video content to be presented at the optimal resolution for each display's capabilities.

Transmits 8K Video with HDR10+ and 4:4:4 Color

The B118-004-8K supports Ultra HD 8K resolutions up to 7680 x 4320 at 60 Hz with 36-bit Deep Color (12 bits per channel), as well as DTS-HD, Dolby TrueHD, Dolby Digital Plus and LPCM 7.1-channel surround sound. Place the splitter up to 10 feet from an HDMI source and up to 15 feet from a connected monitor for a maximum distance of nearly 25 feet from source to display. High Dynamic Range (HDR10+) provides a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 8K display. HDCP 2.3 encryption allows you to stream 8K content with no loss in resolution. This splitter also supports uncompressed 4:4:4 chroma subsampling for top-level PC gaming or for using your HDTV as a PC monitor.

Multi-Resolution Support Allows Mixing and Matching of Displays of Different Resolutions

Say you have a brand new 8K/60 Hz HDTV in the living room, but want to also connect your Blu-ray player or media server to the older 1080p TV in the kitchen and the 4K/60 Hz monitor in your home office. The B118-004-8K is backward compatible with 4K and 1080p resolutions via automatic switching, allowing each connected display to show video at its maximum resolution without affecting the other outputs.

Ready to Use Right Out of the Package

The plug-and-play HDMI splitter requires no software to download and install. User-supplied HDMI cables (such as P568-Series, sold separately) connect the splitter to both the source and displays. The included external power supply comes with four international plug adapters that allow you to use the B118-004-8K around the world.


Main Specification
General Information
Manufacturer Eaton Corporation
Manufacturer Part Number B118-004-8K
Manufacturer Website Address http://www.eaton.com
Brand Name Tripp Lite series
Product Model B118-004-8K
Product Name 4-Port HDMI Splitter - 8K 60 Hz, HDR10+, Multi-Resolution Support, TAA
Product Type HDMI Splitter
Technical Information
Minimum Frequency 50 Hz
Maximum Frequency 60 Hz
Indicator Light Yes
Video
Maximum Video Resolution 7680 x 4320
Interfaces/Ports
HDMI In Yes
HDMI Out Yes
Number of HDMI Inputs 1
Number of HDMI Outputs 4
Connector Gender Female
Media & Performance
Maximum Operating Distance 25 ft
Power Description
Input Voltage 240 V AC
Input Voltage 100 V
Physical Characteristics
Color Family Black
Product Color Black
Product Material SECC
Product Material Cold Rolled Steel
Form Factor Wall Mount
Form Factor Box Mount
Height 1.2"
Width 5"
Depth 3.9"
Weight (Approximate) 1.54 lb
Miscellaneous

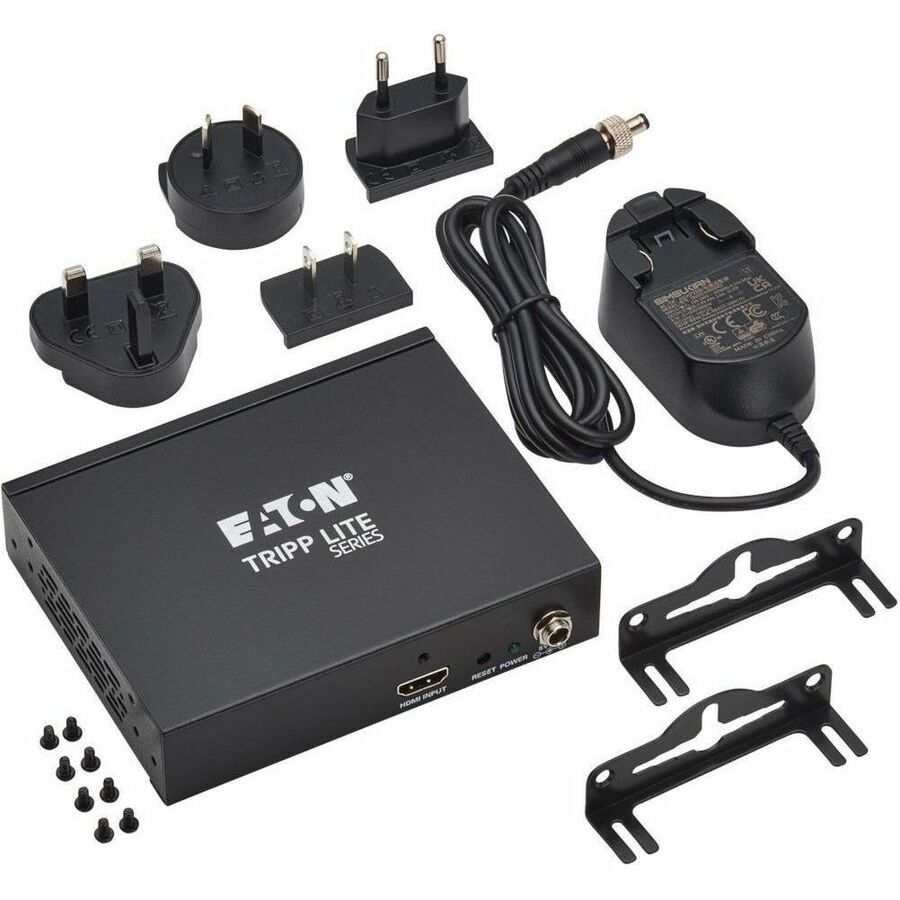

Package Contents
  • B118-004-8K 4-Port HDMI Splitter
  • External power supply (Input: 100-240V, 50/60 Hz, 0.2A; Output: 5V 1A)
  • 4x International plug adapters (North America, Europe, U.K., Australia)
  • Installation instructions
Application/Usage Notebook
Application/Usage Television
Application/Usage Monitor
Application/Usage Home Theater
Application/Usage Blu-ray Player
Application/Usage Projector
Application/Usage Restaurant
Application/Usage PC
Application/Usage Digital Signage
TAA Compliant Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Environmental Compliance Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty 1 Year
WARNING:: The plastic used in cable products can expose you to lead and lead components, chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov
