APC
APC AP4422A RACK ATS, 230V, 16A, (2) IEC 309 IN, (1) IEC 309 OUT
Mfg Part Number: AP4422A , Item #: 5267763
, PO and Wire.

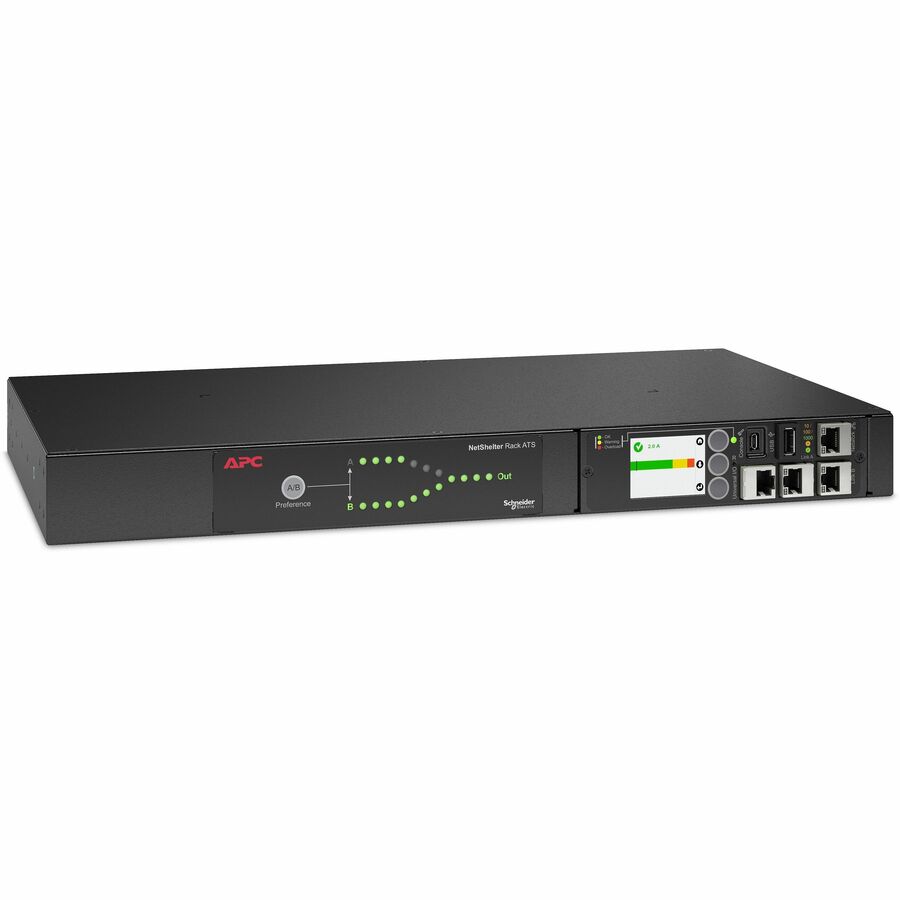

APC NetShelter Rack Automatic Transfer Switch (ATS) AP4422A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4422A is single phase 1U Rack ATS with 16A rated current, 230V rated voltage and 3840VA load capacity. It comes with 2 IEC 309 inlet and 1 IEC 309 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
| General Information | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | AP4422A |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | NetShelter |
| Product Name | NetShelter Automatic Transfer Switch |
| Product Type | Automatic Transfer Switch |
| Technical Information | |
| Plug/Connector Type | IEC 60309 16A 2P+E |
| Receptacles | 1 x IEC 60309 16A 2P+E |
| Cord Length | 95.64" |
| Power Description | |
| Load Capacity (VA) | 3840 W |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Current | 16 A |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Mounting Location | Front |
| Mounting Preference | No Preference |
| Mounting Preference | Horizontal |
| Rack Height | 1U |
| Height | 1.7" |
| Width | 17" |
| Depth | 9.3" |
| Weight (Approximate) | 9.28 lb |
| Miscellaneous | |
| For Country/Region | United States |
| Package Contents |
|
| Certifications & Standards | CE|EMC Directive 2004/108/EC|LVD directive 2006/95/EC |
| Product Take Back Program | No |
| Mercury Free | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP4422A_ROHS_DECLARATION&p_FileName=AP4422AKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=559241356&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=559241356&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712015EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712015_EN |
| REACH free of SVHC | No |
| Lead Free | Yes |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Optimized Energy Efficiency | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
