APC
APC GVSUPS40KMHS GALAXY VS UPS 40KW 400V FOR EXTERNAL BATTERIES, HALOGEN-FREE CABLES, MARINE CERT
Mfg Part Number: GVSUPS40KMHS , Item #: 5266374
Special Note: Nov 03, 2025
NCNR; If you do not have loading facility, please contact our CST for special handling service.
Image may not reflect the actual item.
Price: $28,913.53
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Jun 27, 2026
No Sales Tax except these states
, PO and Wire.

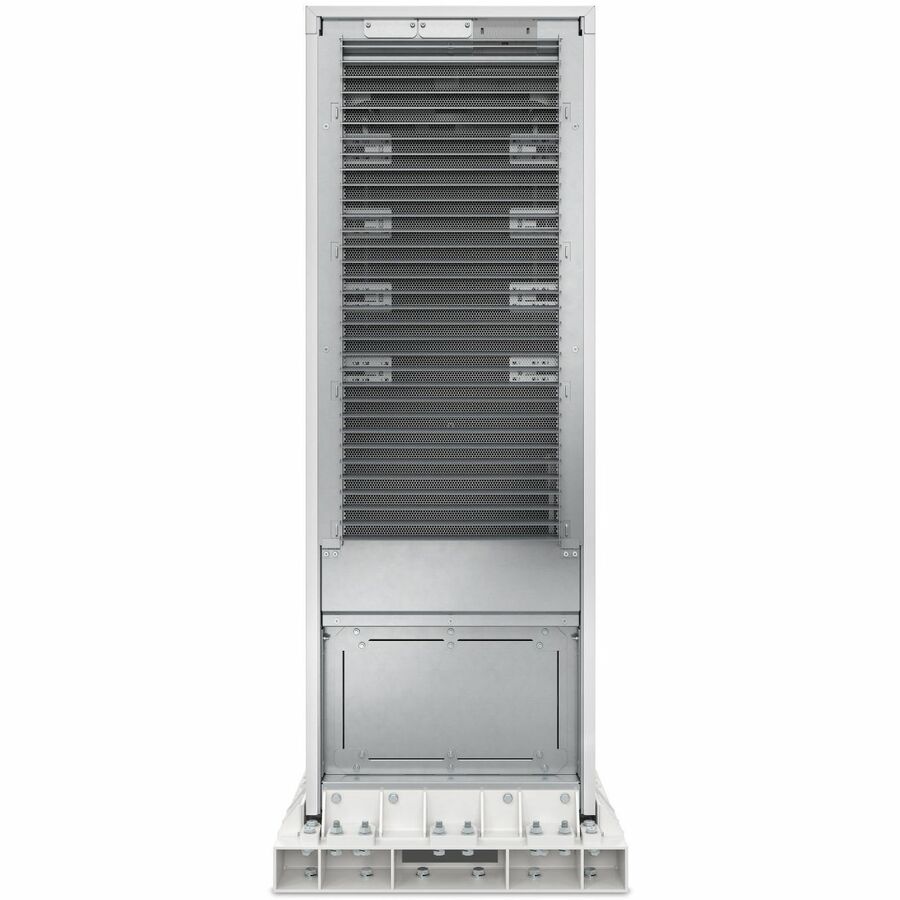

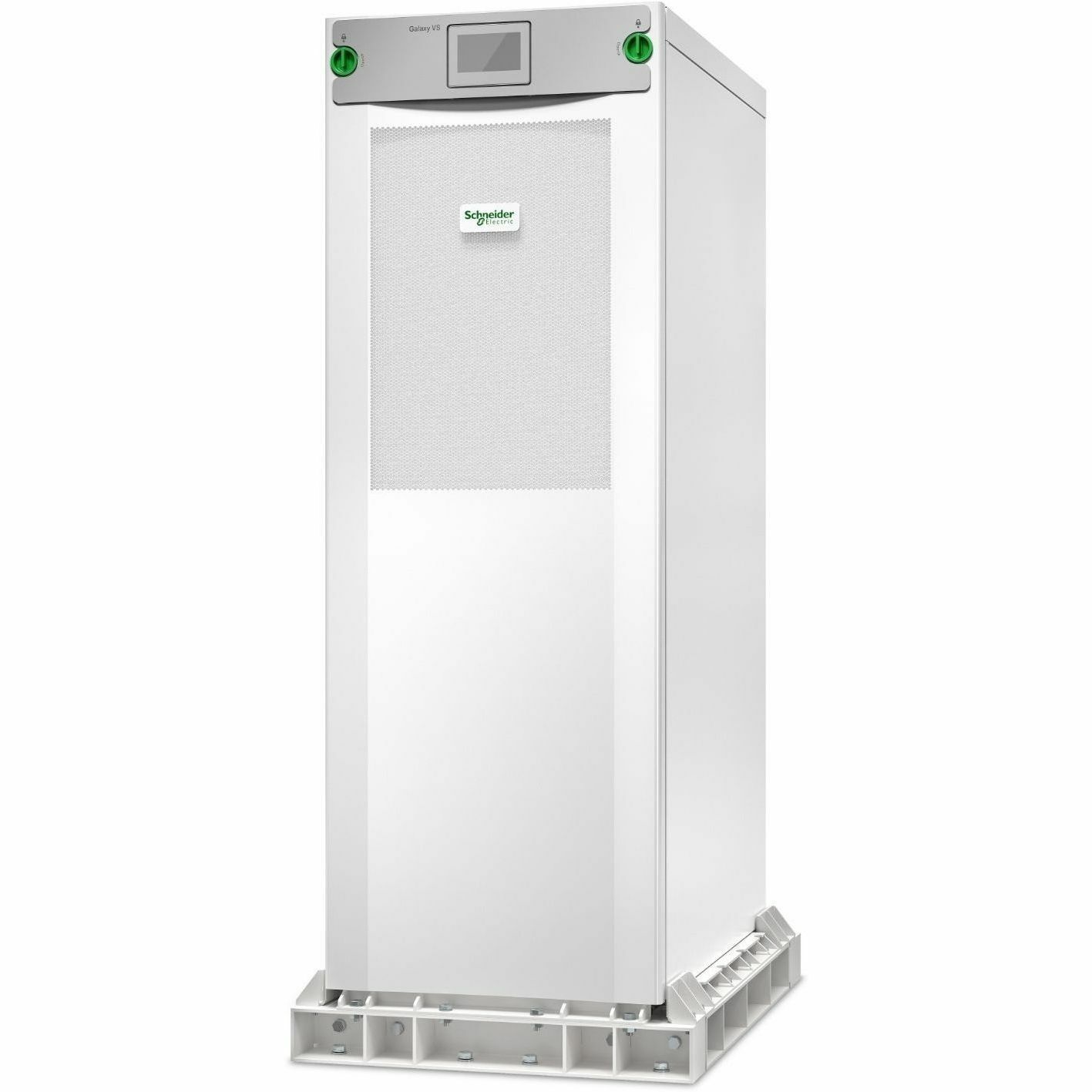

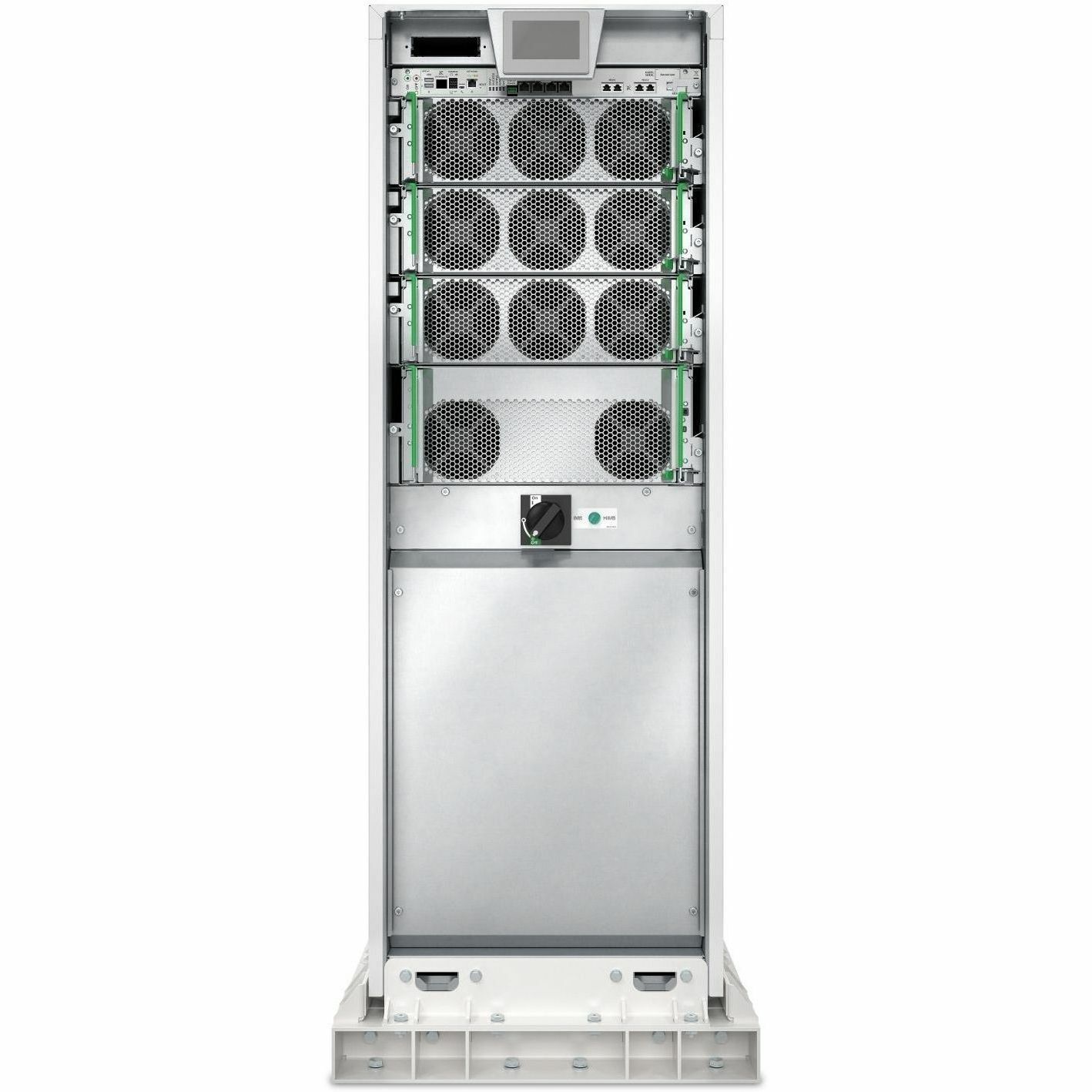

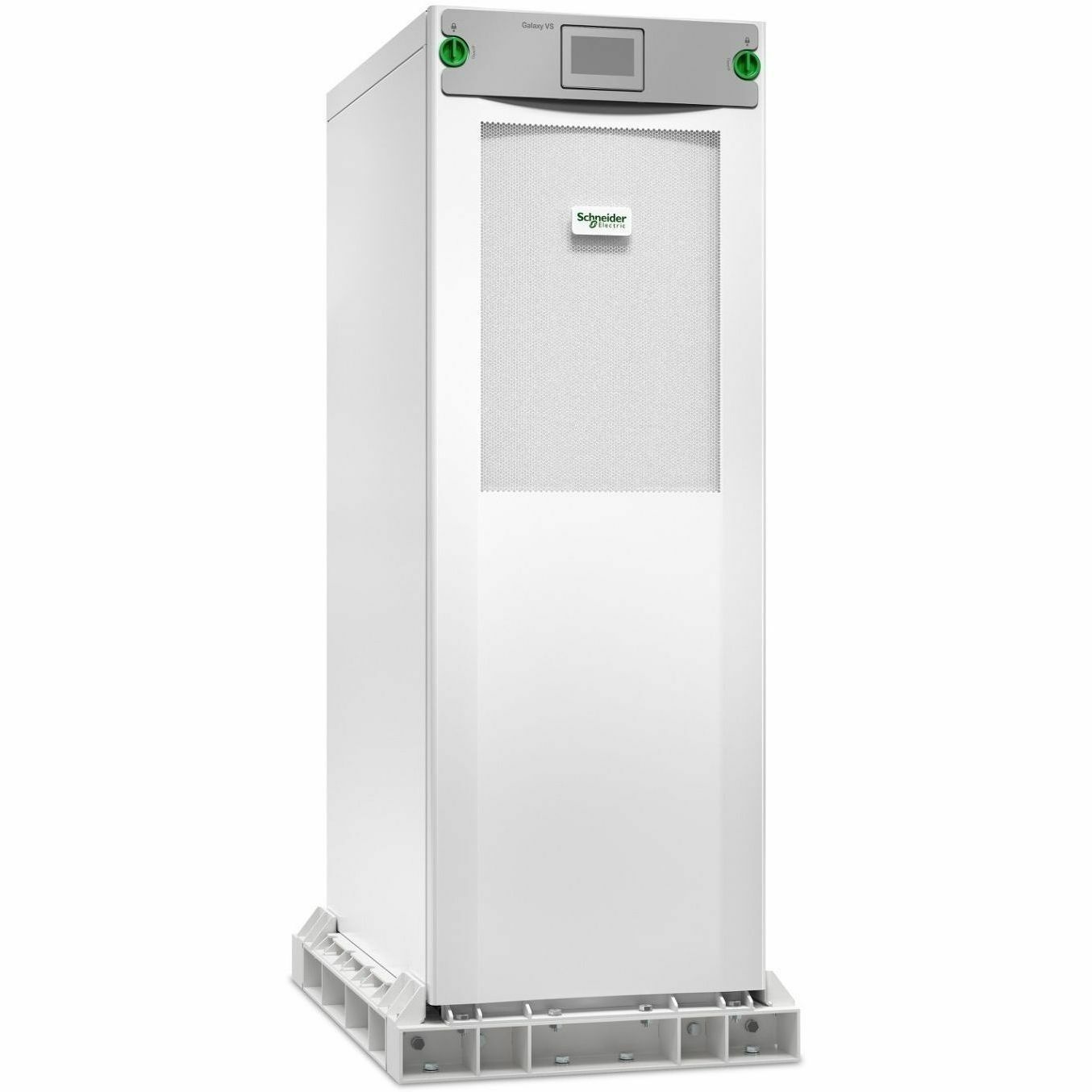

Galaxy VS UPS 40kW 400V for external batteries, halogen-free cables, marine certified, Start-up 5x8
Highly efficient, easy-to-deploy 40kW, 400V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5x8 start-up service and halogen-free cables. Marine certified.
Main Specification
| General Information | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | GVSUPS40KMHS |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | Galaxy VS |
| Product Name | Galaxy VS 40kVA Modular UPS |
| Packaged Quantity | 1 Pack |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Receptacle Type | Terminal Block |
| Receptacle Detail | 1 x Terminal Block |
| Protection Type | Backfeed |
| Phase | Three Phase |
| Application/Usage | Industrial |
| Application/Usage | Commercial |
| Application/Usage | Infrastructure |
| Application/Usage | Data Center |
| Efficiency | 96% |
| Power Description | |
| Load Capacity (VA) | 40 kVA |
| Load Capacity (Watt) | 40 kW |
| Input Voltage | 415 V AC |
| Input Voltage | 380 V AC |
| Input Voltage | 400 V AC |
| Input Voltage Range | 340 V AC - 460 V AC |
| Output Voltage | 400 V AC |
| Input Frequency | 40 Hz |
| Input Frequency | 70 Hz |
| Output Frequency | 50 Hz |
| Output Frequency | 60 Hz |
| Input Current | 72 A |
| Waveform Type | Sine Wave |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | SmartSlot |
| Network Management | EcoStruxure IT/Web/SNMP/Modbus TCP/Modbus RTU |
| Interfaces/Ports | |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| USB | Yes |
| Battery Information | |
| DC System Voltage | 576 V DC |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Chemistry | Lead Acid |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | -13°F (-25°C) - 131°F (55°C) |
| Maximum Operating Elevation | 3300 ft |
| Operating Humidity | 0% - 95% |
| Storage Relative Humidity | 10% - 80% |
| Sound Emission (A-Weighted) | 68 dB(A) |
| Thermal Dissipation | 1269.88 W |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Form Factor | Modular |
| Height | 58.5" |
| Width | 2" |
| Depth | 33.3" |
| Weight (Approximate) | 454.15 lb |
