Nova is the most significant energy discharge ever witnessed by mankind, it's super-powerful which represents the performance our motherboard can deliver.
FAST MYSTERIOUS UNBEATABLE
Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It's all about bringing a new gaming experience to gamers!
Hi-Density Power Connector
CPU overclocking requires higher current. ASRock Hi-Density Power Connectors are designed to withstand higher currents compared to traditional CPU and ATX power connectors, providing a more stable system and reducing the risk of fire during heavy overclocking.
The server grade low loss PCB improves signal integrity, allowing motherboard to support PCIe 5.0 for both graphics card and M.2 SSD, it also improves memory OC potential to deliver the most extreme memory performance.
Derived from the "built for stable and reliable" designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel®XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
Graphics Card EZ Release
ASRock redesigned the PCIe slot installation method to cater to user needs, allowing for hassle-free installation and removal of the graphics card effortlessly
XXL M.2 Heatsink
The extra large aluminum alloy M.2 heatsink effectively improves heat dissipation to keep those high speed M.2 SSDs as cool as possible, it is able to give better stability while maintaining top performance.
The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.
Advanced Thermal Design
Equipped with XXL aluminum heatsinks that cover the VRM, PCH, and M.2 areas, providing enhanced heat dissipation for stable operation and optimal performance.
| General Information | |
| Manufacturer | ASRock, Inc |
| Manufacturer Part Number | MB-X870ENOVAWI |
| Manufacturer Website Address | http://www.asrock.com |
| Brand Name | Phantom Gaming |

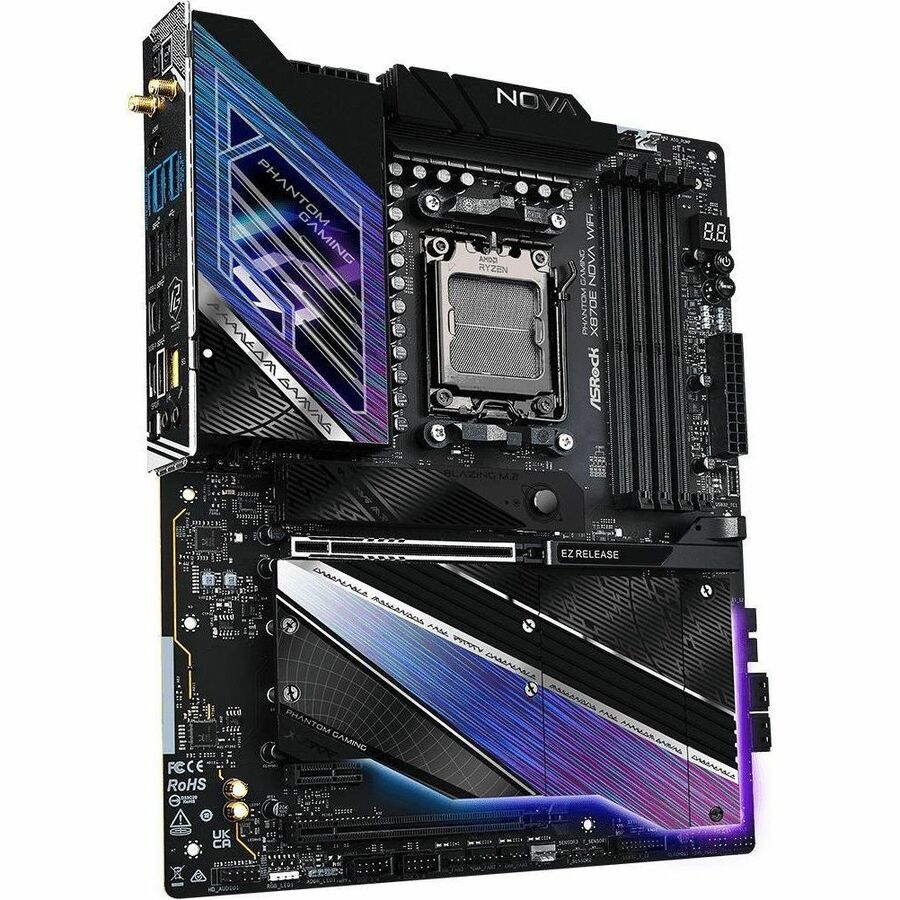

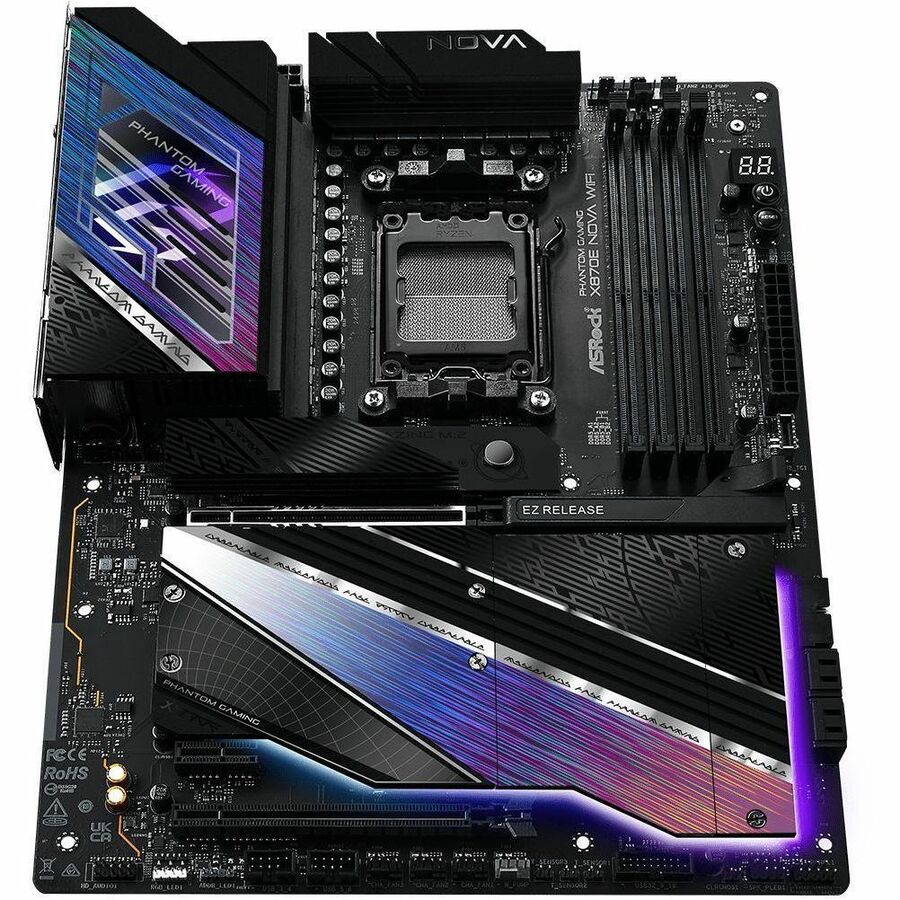

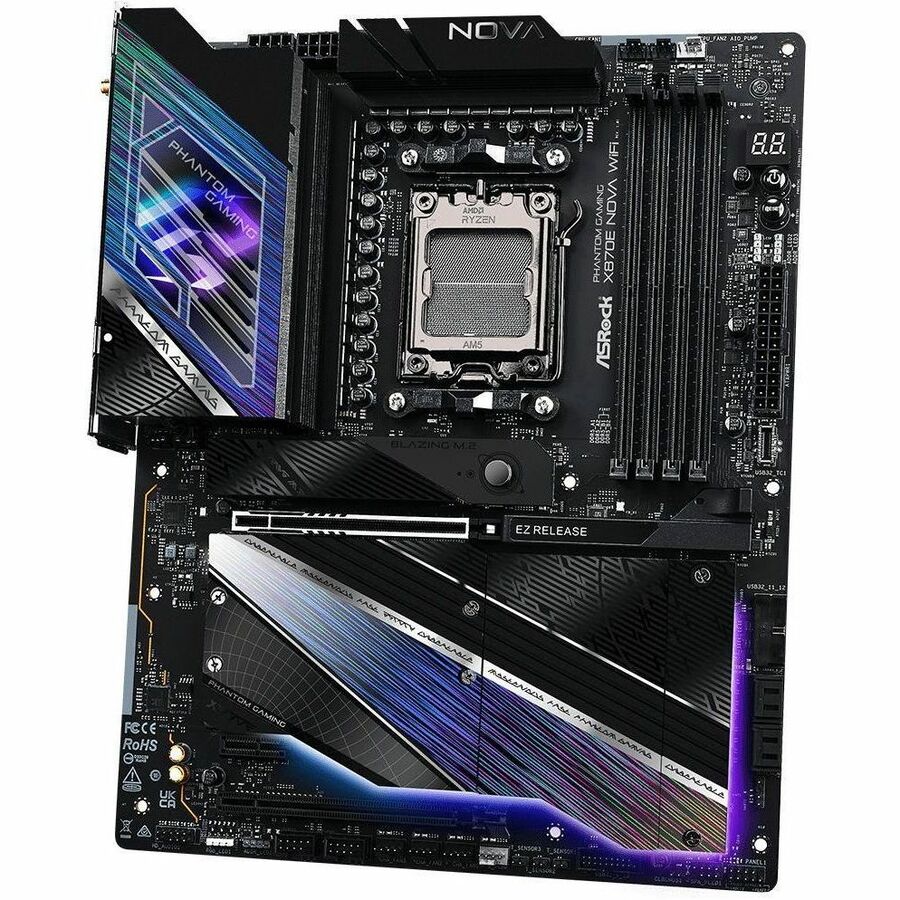

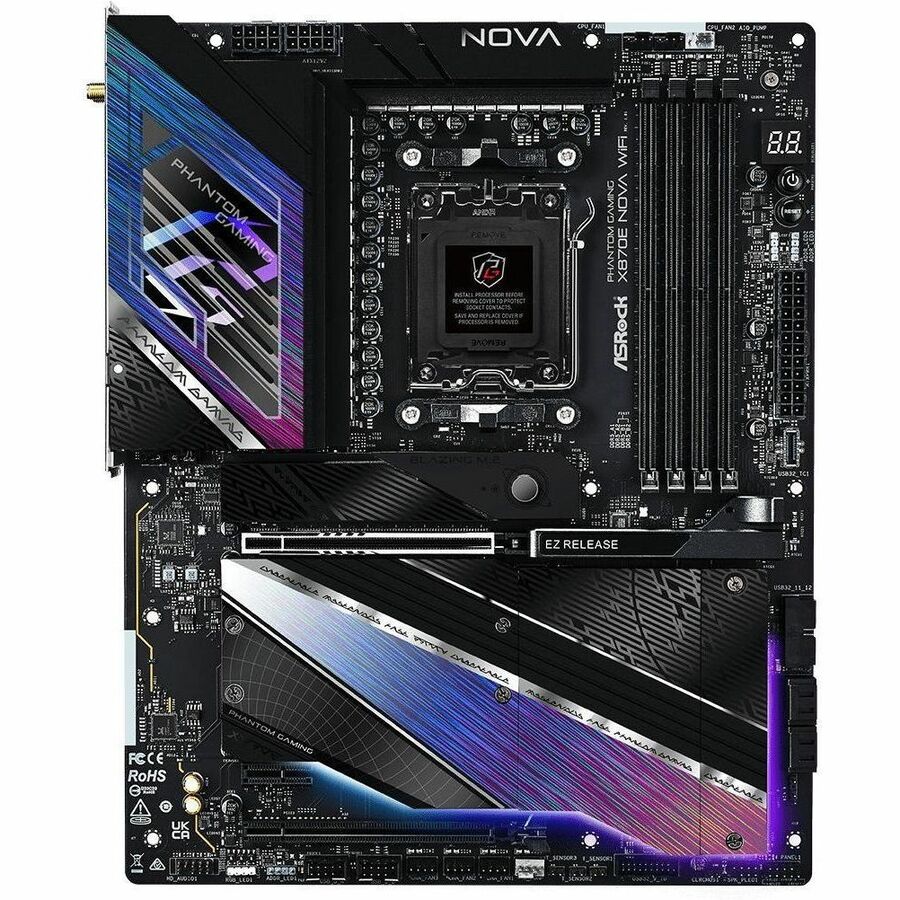

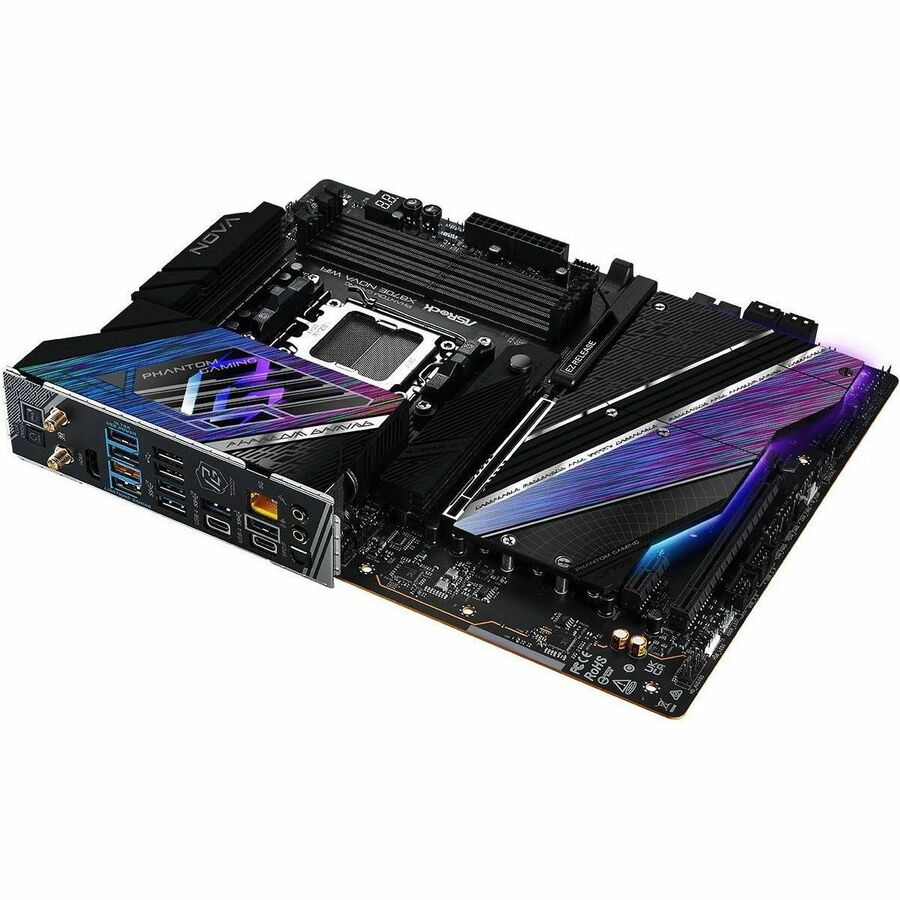

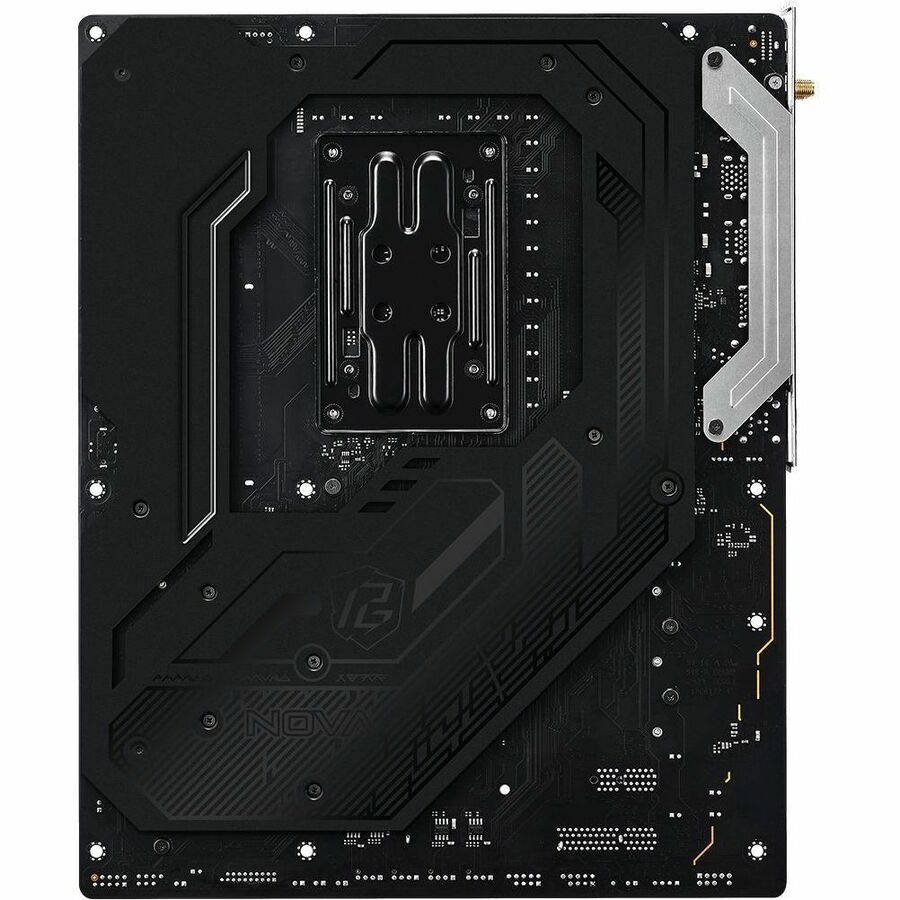

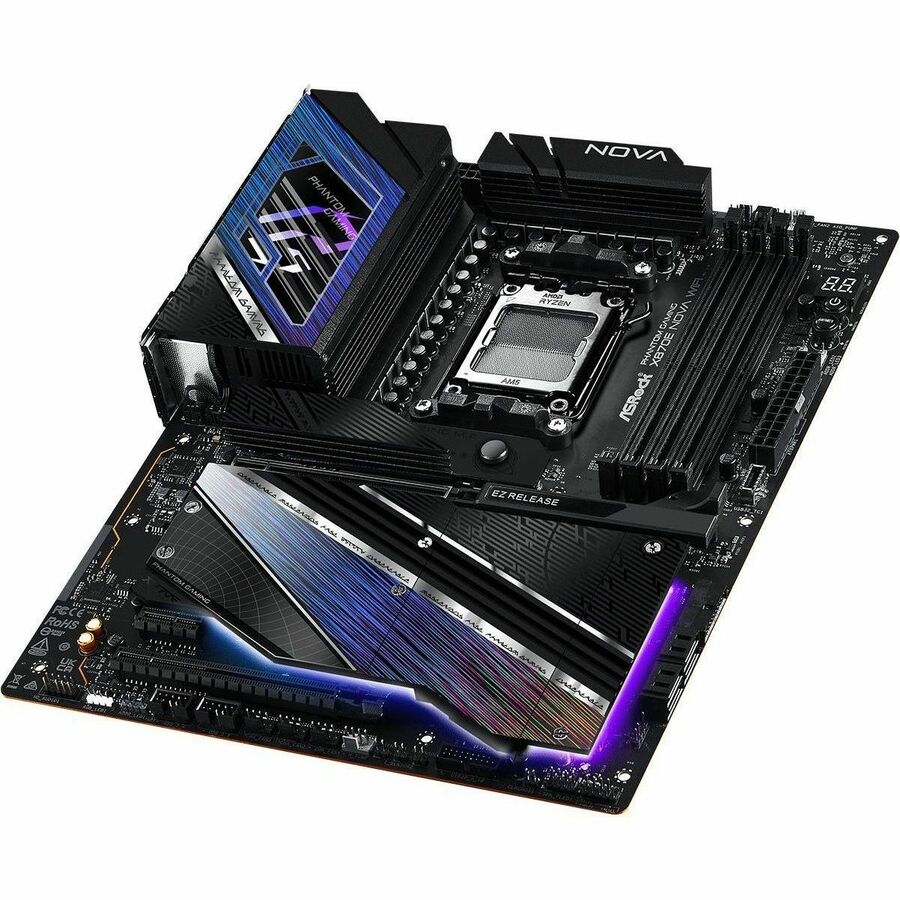

| Product Model | X870E NOVA WIFI |
| Product Name | X870E NOVA WIFI Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| Technical Information | |
| AI-powered | Yes |
| Processor & Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | X870E |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM5 |
| Processor Supported | Ryzen 8 |
| Processor Supported | Ryzen 7 |
| Processor Supported | Ryzen 9 |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM |
| Memory Form Factor | UDIMM |
| Maximum Memory Supported | 256 GB |
| Memory Technology | DDR5 SDRAM |
| Error Checking | ECC |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0 |
| RAID Levels | 1 |
| RAID Levels | 10 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Graphics Controller Manufacturer | AMD |
| Graphics Controller Model | RDNA Graphics |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.4 |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11be |
| I/O Expansions | |
| PCI Express Standard | PCI Express 5.0 |
| PCI Express Standard | PCI Express 3.0 |
| Total Number of PCI Express Slots | 3 |
| Number of PCI Express x1 Slots | 1 |
| Number of PCI Express x16 Slots | 2 |
| Interfaces/Ports | |
| Total Number of USB Ports | 12 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 1 Ports | 3 |
| Number of USB 3.2 Gen 2 Type-A Ports | 5 |
| S/PDIF | Yes |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Onboard Interfaces | |
| Number of M.2 Interfaces | 5 |
| Total Number of Onboard USB Ports | 9 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" |
| Depth | 9.6" |
| Miscellaneous | |
| Package Contents |
|
| Brand Compatibility | AMD |
| Energy Efficiency Compliance | Energy-using Products Directive Ready (EuP Ready) |
| Energy Efficiency Compliance | Energy-related Products Directive Ready (ErP Ready) |
