MANHATTAN
MANHATTAN 154345 EXTERNAL COMPUTER PERIPHERALS ADAPTERS & CONVERTERS HDMI
Mfg Part Number: 154345 , Item #: 5265612
, PO and Wire.

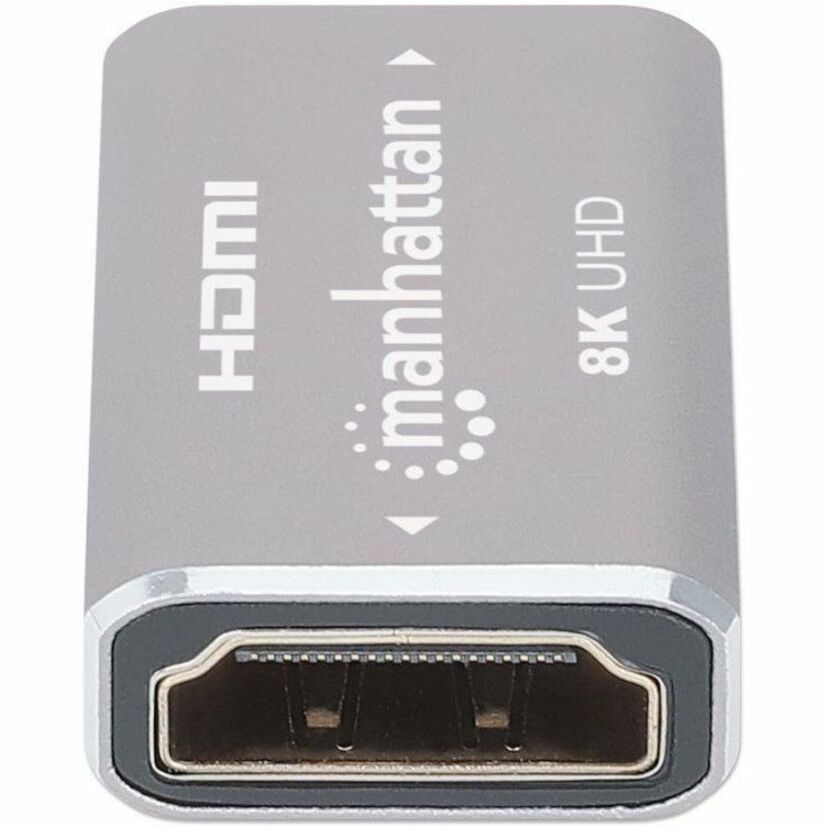

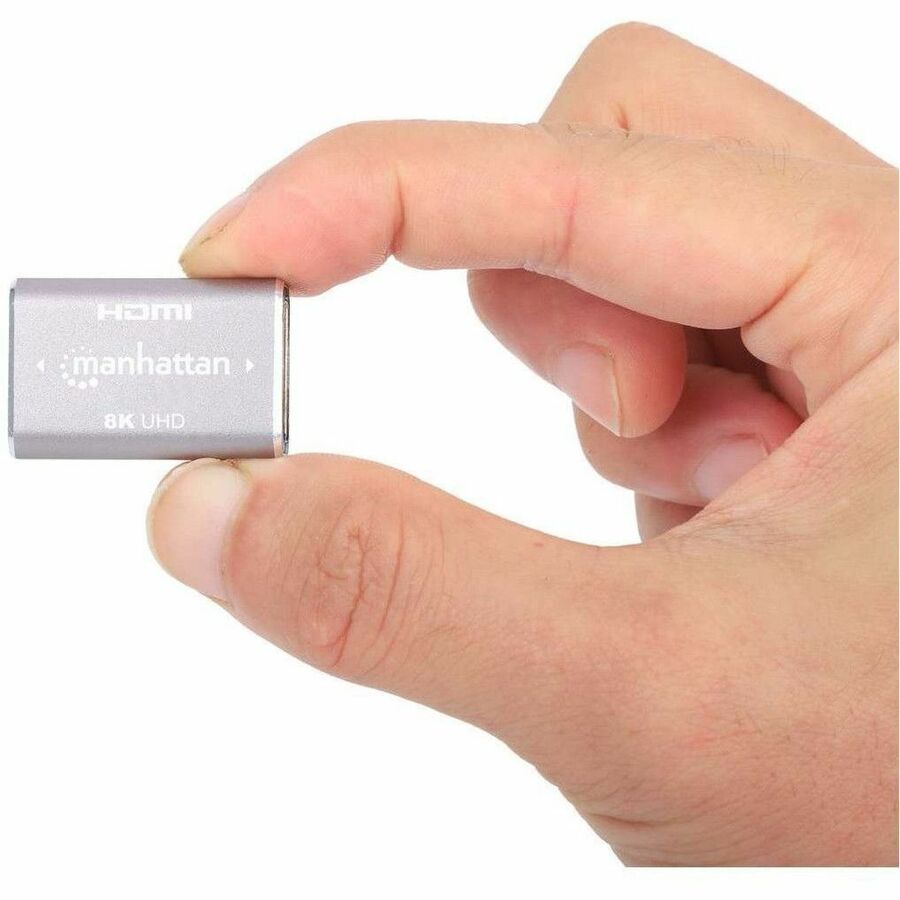

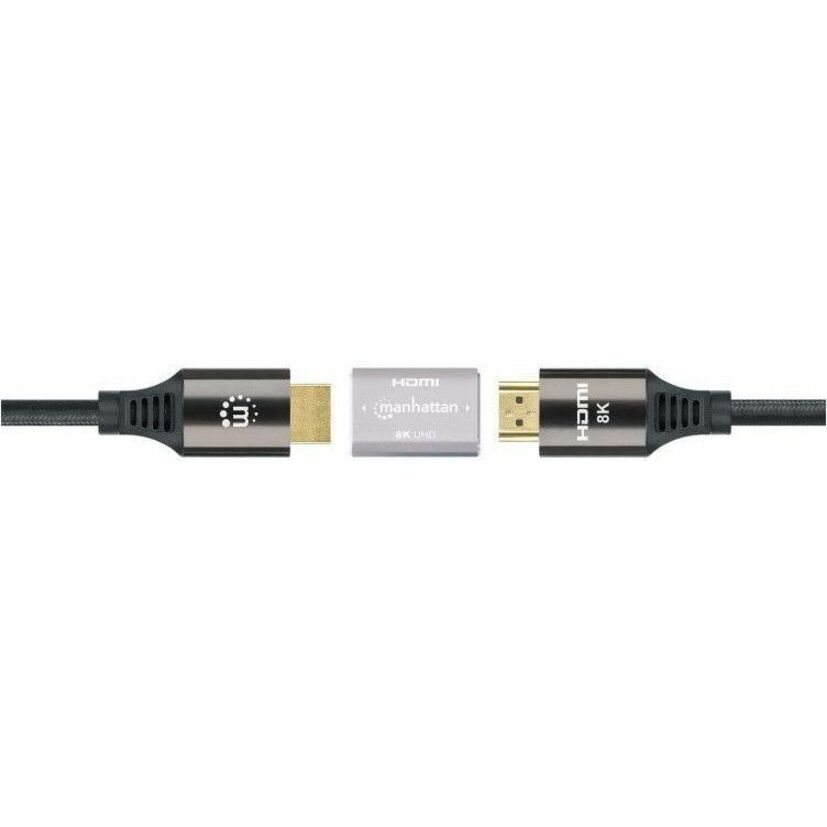

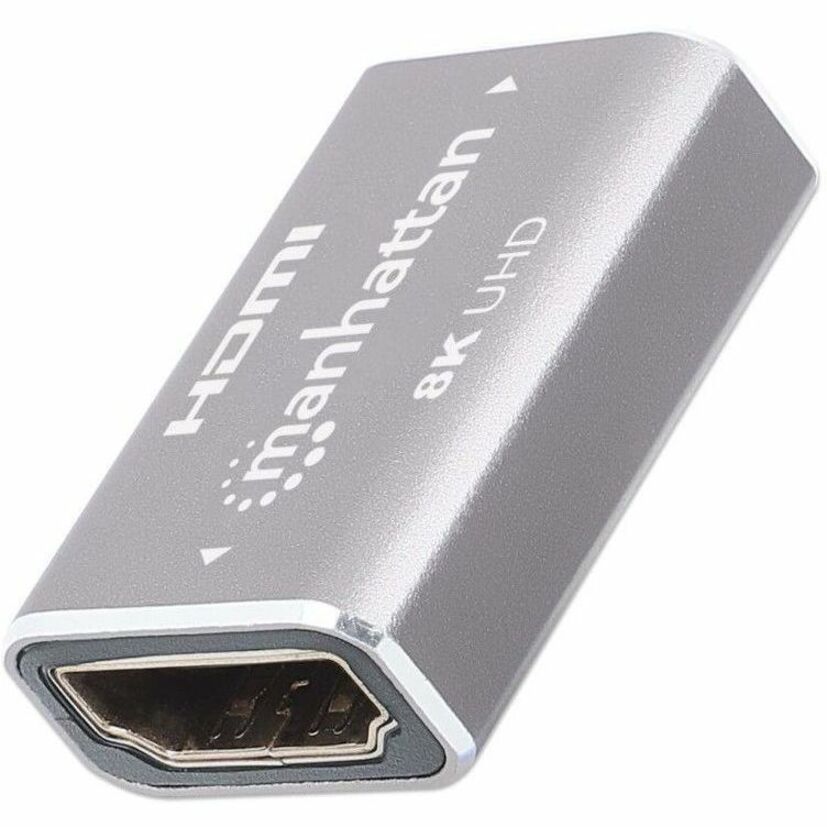

HDMI to HDMI Adapter Female / Female to Join 2 HDMI Cables Together
The Manhattan 8K@60Hz Ultra High Speed HDMI Coupler is a convenient solution for seamlessly connecting two HDMI cables while ensuring superior performance and signal quality. This passive HDMI type A female-to-female adapter allows you to overcome distance limitations, with the ideal setup using HDMI cables up to 5 meters (16 ft.) on each side. Featuring a robust aluminum housing with a sleek powder-coated finish, it supports cutting-edge resolutions, including 8K@60Hz, 4K@120Hz, and 1080p@240Hz, alongside Dynamic HDR for perfect contrast and vibrant colors. It is built to handle the most demanding entertainment and professional needs with every HDMI device like TV, projector, gaming console, or streaming device.
Features:
- Passive HDMI type A female to female adapter easily connects two HDMI cables to overcome distance limitations
- Using HDMI cables up to 5 m (16 ft.) on each side of the coupler is ideal for maintaining signal quality and reliable performance
- High-quality aluminum housing with powder coating
- Supports 8K@60Hz, 4K@120Hz, 1440p@144Hz (WQHD) and 1080p@240Hz resolutions
- Dynamic HDR for superior contrast and brilliant colors
- Supports Dolby Vision™ and Dolby Atmos®
- Up to 48 Gbps bandwidth
- 4:4:4 chroma subsampling
- Enhanced Audio Return Channel (eARC) to allow TV's audio to transmit through your audio system without a separate audio cable
- eARC to support the most advanced audio formats and highest audio quality (full compatibility only with HDMI 2.1 products)
- HDMI Consumer Electronics Control (CEC) so one remote can be used with all compatible HDMI devices
- Pass HDMI Ethernet Channel (HEC) passthrough to add network connectivity to an HDMI link without a separate Ethernet cable
- Enhanced features include Variable Refresh Rate (VRR), Quick Media Switching (QMS), Quick Frame Transport (QFT) and Auto Low Latency Mode (ALLM)
- Compatible with every HDMI device - TVs, projectors, monitors, notebooks, PCs, AV receivers, streaming boxes, game consoles, PlayStation® (PS4/PS5), Xbox® (One/Series S/Series X), Blu-ray players and more
- HDCP 2.3 compliant
- Uncompressed 32-channel audio
- Lifetime warranty
| General Information | |
| Manufacturer | IC INTRACOM |
| Manufacturer Part Number | 154345 |
| Manufacturer Website Address | http://www.icintracom.com |
| Brand Name | Manhattan |
| Product Name | 8K@60Hz Ultra High Speed HDMI Coupler |
| Product Type | A/V Adapter |
| Technical Information | |
| Adapter Type | HDMI |
| Connector Type on First End | HDMI Type A Digital Audio/Video |
| Connector Gender on First End | Female |
| Connector on First End Details | 1 x 19-pin HDMI Type A Digital Audio/Video - Female |
| Connector Type on Second End | HDMI Type A Digital Audio/Video |
| Connector Gender on Second End | Female |
| Connector on Second End Details | 1 x 19-pin HDMI Type A Digital Audio/Video - Female |
| Maximum Resolution Supported | 7680 x 4320 |
| Features | HDCP 2.3 |
| Features | Passive |
| Features | Consumer Electronics Control (CEC) |
| Features | HDMI Ethernet Channel (HEC) |
| Features | HDR Support |
| Physical Characteristics | |
| Color Family | Gray |
| Product Color | Space Gray |
| Product Material | Aluminum |
| Material Details | Aluminum - Housing |
| Height | 0.4" |
| Width | 0.7" |
| Length | 1.1" |
| Weight (Approximate) | 0.35 oz |
| Miscellaneous | |
| Compatibility | PlayStation
Xbox
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | Lifetime |
