STARTECH H1M1AG2-MONITOR-ARM DESK MOUNT MONITOR ARM MAX 32IN C-CLAMP MECHANICAL SPRING TAA
Mfg Part Number: H1M1AG2-MONITOR-ARM , Item #: 5263830
, PO and Wire.
This monitor desk mount is designed to support up to a 32-inch ultrawide display, creating an ergonomic area for productivity. The mechanical spring-assisted arm enables multiple adjustment to suit different ergonomic needs.
Quick and Toolless Installation

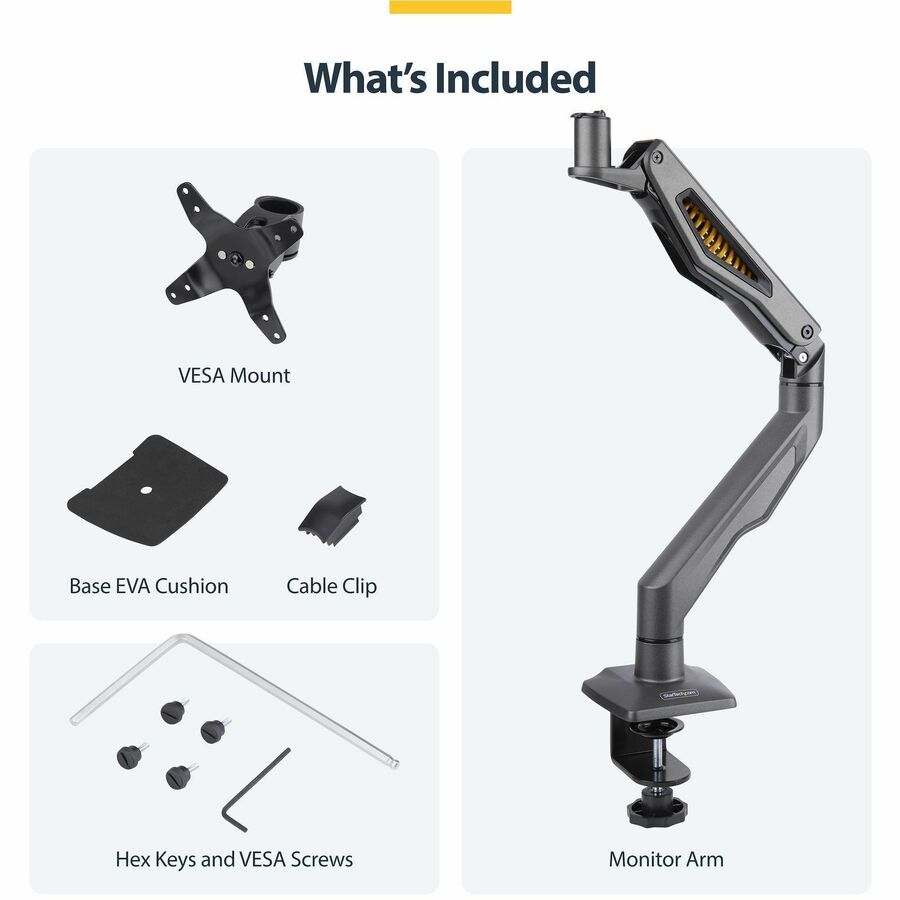

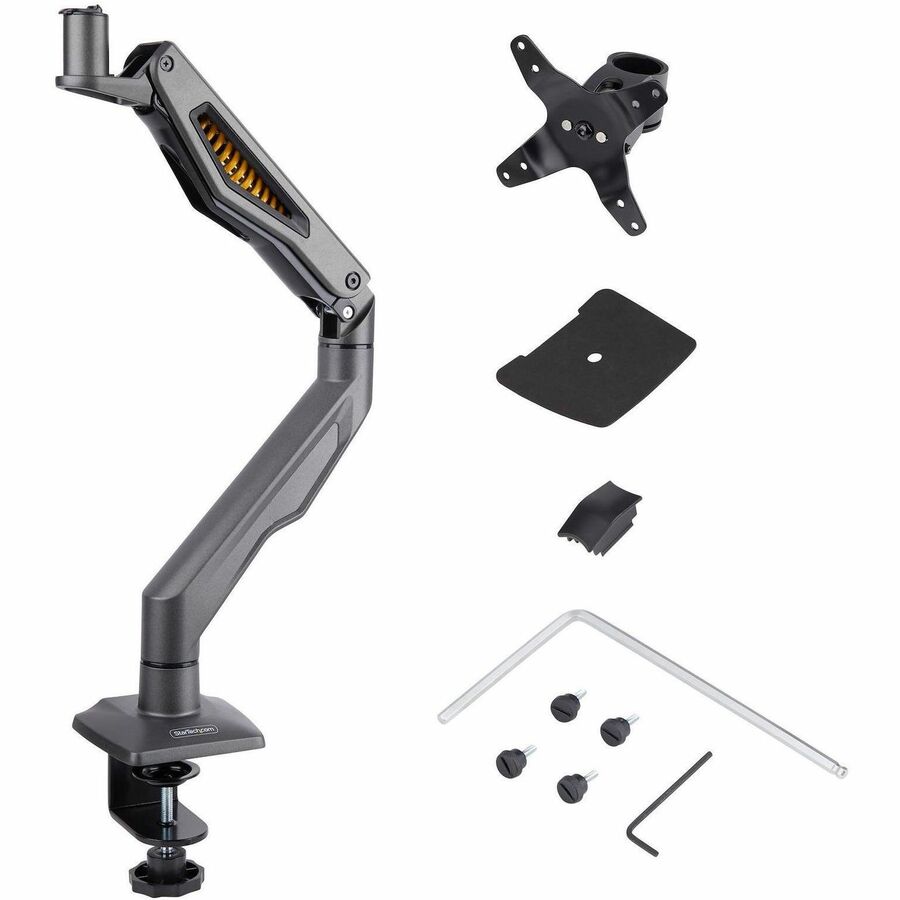

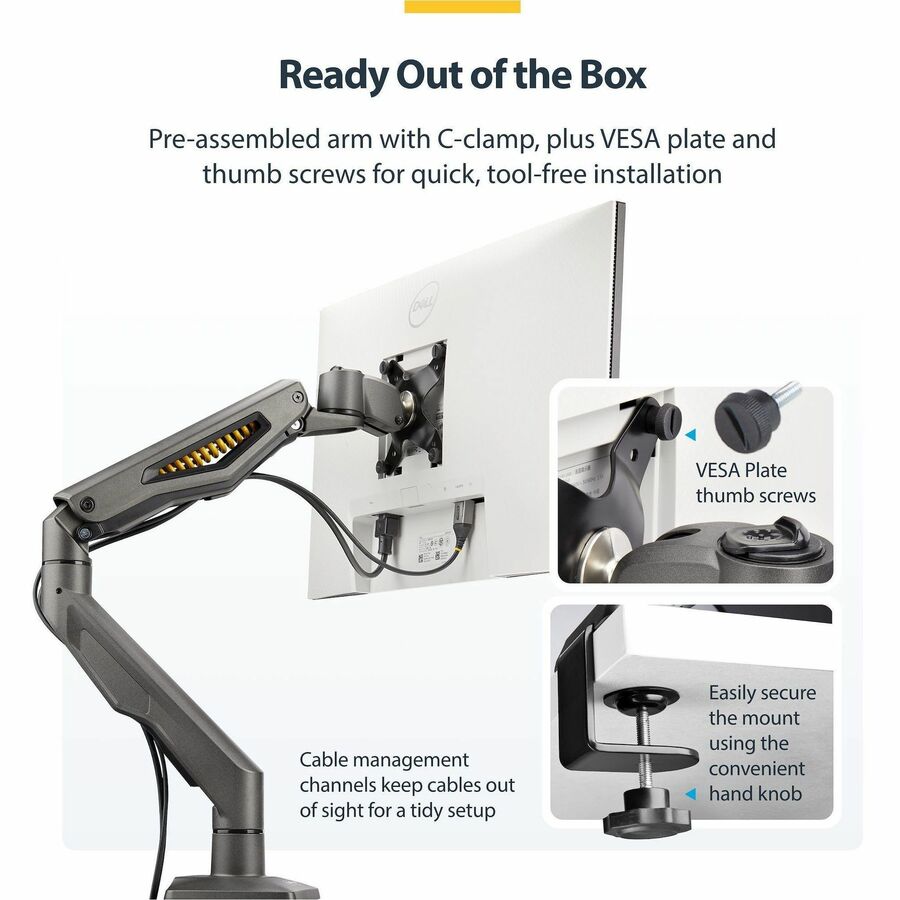

The monitor arm comes pre-assembled and includes a VESA monitor plate that uses thumb screws to securely mount the monitor quickly and without additional tools.
Height Adjustment with One Smooth Motion

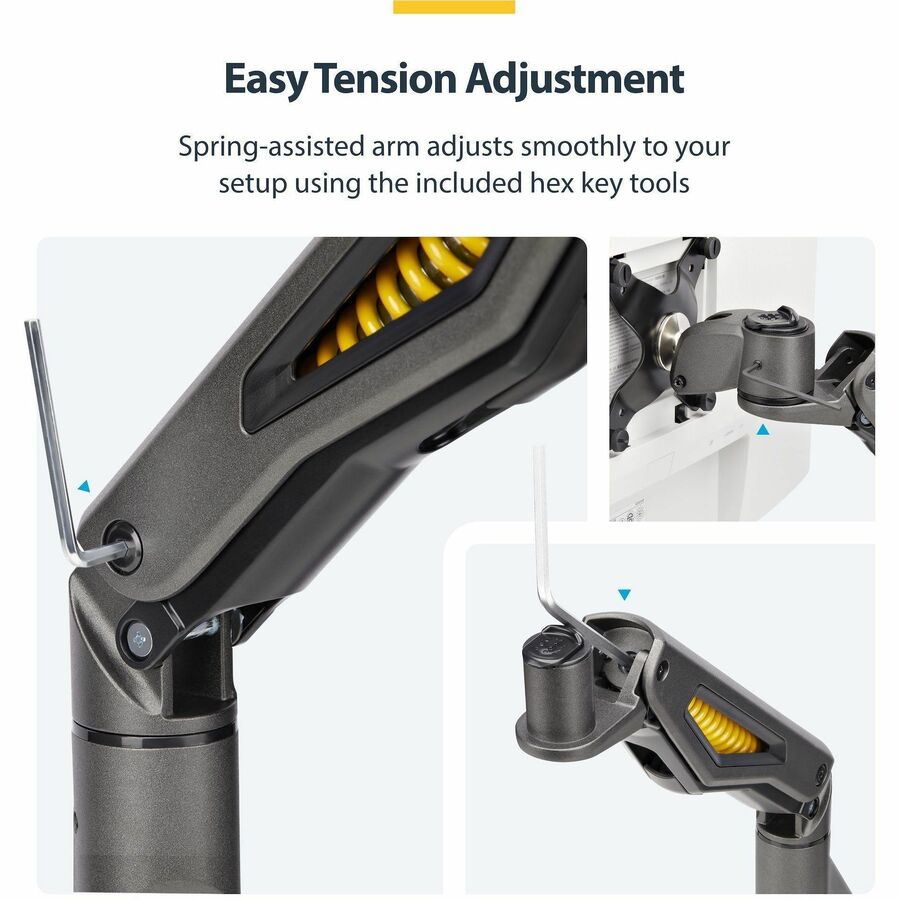

The mechanical spring arm enables toolless height adjustment with a range from 7.7 to 20.6in (19.7 to 52.4cm) with effortless one-touch motion. The maximum arm extension is 21in (53.5cm) with a total weight capacity of 22lb (10kg).
Range of Motion
The monitor's VESA mounts enable support of +/-15° swivel, +90/-15° tilt, and 360° screen rotation for portrait/landscape orientation.
Cable Management
To maintain an organized workspace, the arms feature a cable management channel along the underside to keep cables out of sight, reducing clutter and contributing to a tidy setup.
The monitor mount is TAA-compliant and is backed for 10-years including free lifetime 24/5 multi-lingual technical assistance.
| General Information | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | H1M1AG2-MONITOR-ARM |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | Mounting Arm |
| Packaged Quantity | 1 |
| Product Type | Mounting Arm |
| Product Information | |
| Device Supported | Monitor |
| Device Supported | Display |
| Number of Displays Supported | 1 |
| Maximum Load Capacity | 22 lb |
| Minimum Screen Size Supported | 17" |
| Maximum Screen Size Supported | 32" |
| Features | 180° Pivot |
| Features | Articulating Arm |
| Features | Extendable |
| Features | Ergonomic |
| Features | Full Motion |
| Features | Wear Resistant |
| Features | Spring Loaded Mechanism |
| Features | Grommet |
| Features | Gas Spring |
| Orientation | Landscape/Portrait |
| Height Adjustable | Yes |
| Minimum Tilt Angle | -15° |
| Maximum Tilt Angle | 65° |
| Minimum Swivel Angle | -180° |
| Maximum Swivel Angle | 180° |
| Maximum Rotate Angle | 360° |
| Mount Function | Adjustable |
| Mount Function | Swivel |
| Mount Function | Rotate |
| Mount Function | Cable Management |
| Mount Function | Articulating |
| Mount Function | Tilt |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 75 x 75 |
| Mounting Pattern | 100 x 100 |
| Product Material | Aluminum |
| Product Material | Steel |
| Product Material | Plastic |
| Form Factor | Desk |
| Height | 23" |
| Width | 4.70" |
| Length | 23.60" |
| Weight (Approximate) | 7.70 lb |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Workspace |
| Assembly Required | No |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 10 Year |
