EVGA
EVGA PS 220-P6-0650-X1 SuperNOVA 650 P6 650W 80+Platinum Fully Modular Retail
Mfg Part Number: 220-P6-0650-X1 , Item #: 5262426
Image may not reflect the actual item.
Price: $230.08
Quantity:
More to Come
Last Updated: Jan 29, 2026
No Sales Tax except these states
, PO and Wire.

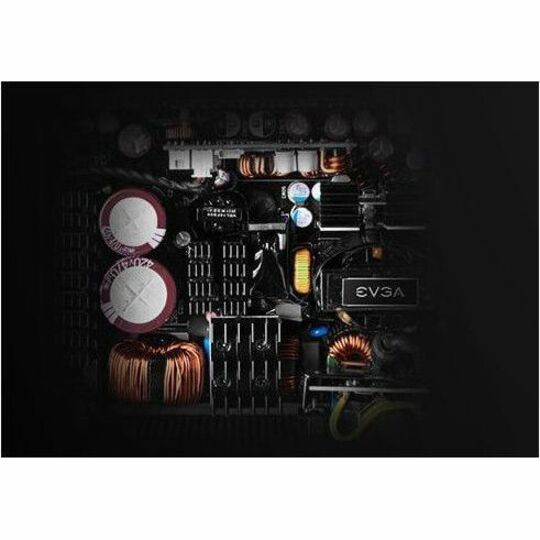

The EVGA SuperNOVA P6 power supplies feature a new platform design, using new materials and better layout placement to achieve greater efficiency with extremely low ripple and noise in an even smaller chassis. With a full-bridge, LLC Resonant Rectification, and DC-DC design, the SuperNOVA P6 provides rock-solid stability, uncompromising efficiency, and extremely tight voltage regulation.
Main Specification
| General Information | |
| Manufacturer | EVGA Corporation |
| Manufacturer Part Number | 220-P6-0650-X1 |
| Manufacturer Website Address | http://www.evga.com |
| Brand Name | EVGA |
| Product Line | SuperNOVA |
| Product Series | P6 |
| Product Name | SuperNOVA P6 650W Power Supply |
| Product Type | Power Supply |
| Technical Information | |
| Specification Compliance | EPS12V |
| Specification Compliance | ATX12V |
| Efficiency | 94% |
| Power Factor Correction (PFC) | Active |

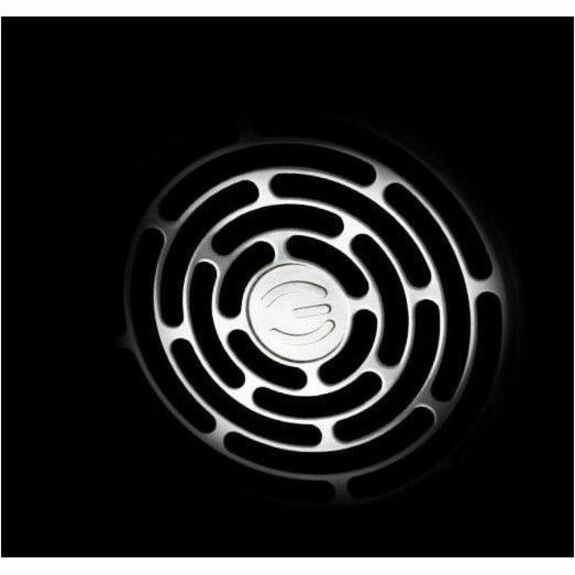

| Number of Fans | 1 |
| Fan Bearing Type | Fluid Dynamic Bearing |
| Fan Diameter | 135 mm |
| Protection Type | Short Circuit |
| Protection Type | Over Current |
| Protection Type | Over Power |
| Protection Type | Over Voltage |
| Protection Type | Over Temperature |
| Protection Type | Under Voltage |
| Modular | Yes |
| Features | Compact |
| Reliability | |
| MTBF | 100000 Hour |
| Power Description | |
| Number of +12V Rails | 1 |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | -12 V DC |
| Output Voltage | 12 V DC |
| Output Voltage | 5 V SB |
| Output Voltage | 5 V DC |
| Output Voltage | 3.3 V DC |

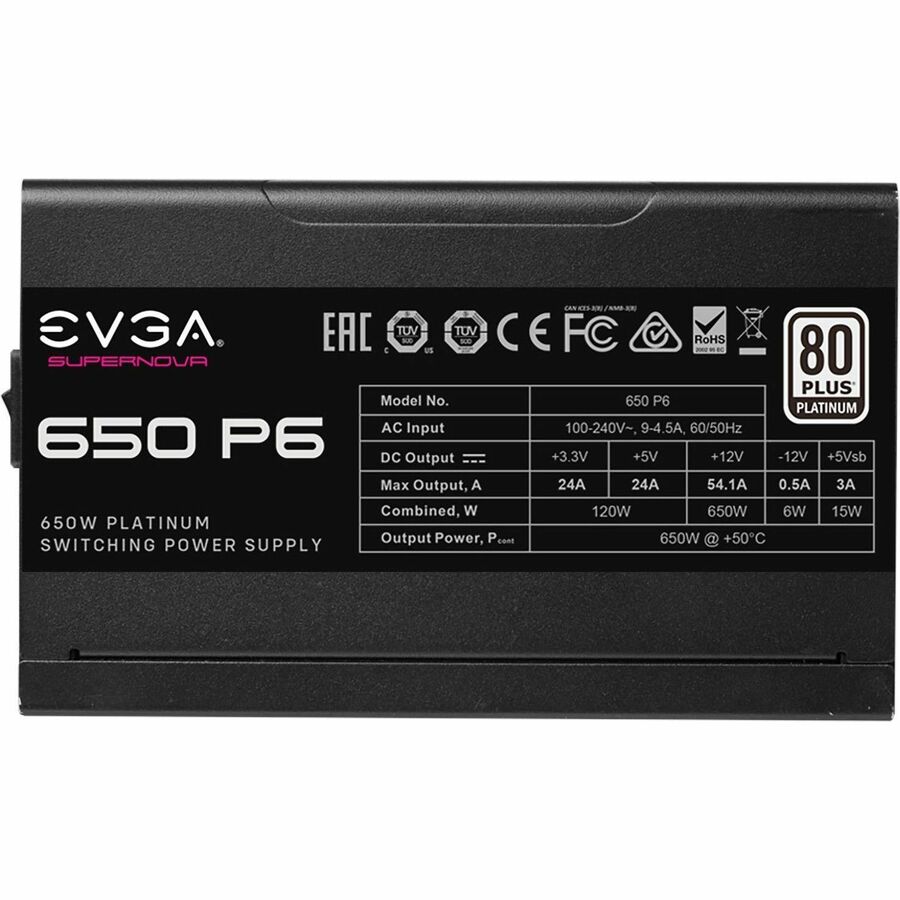

| Output Voltage Detail | 5 V DC @ 24 A |
| Output Voltage Detail | 12 V DC @ 54.1 A |
| Output Voltage Detail | 5 V SB @ 3 A |
| Output Voltage Detail | -12 V DC @ 0.5 A |
| Output Voltage Detail | 3.3 V DC @ 24 A |
| Output Power | 650 W |
| Input Frequency | 60Hz |
| Interfaces/Ports | |

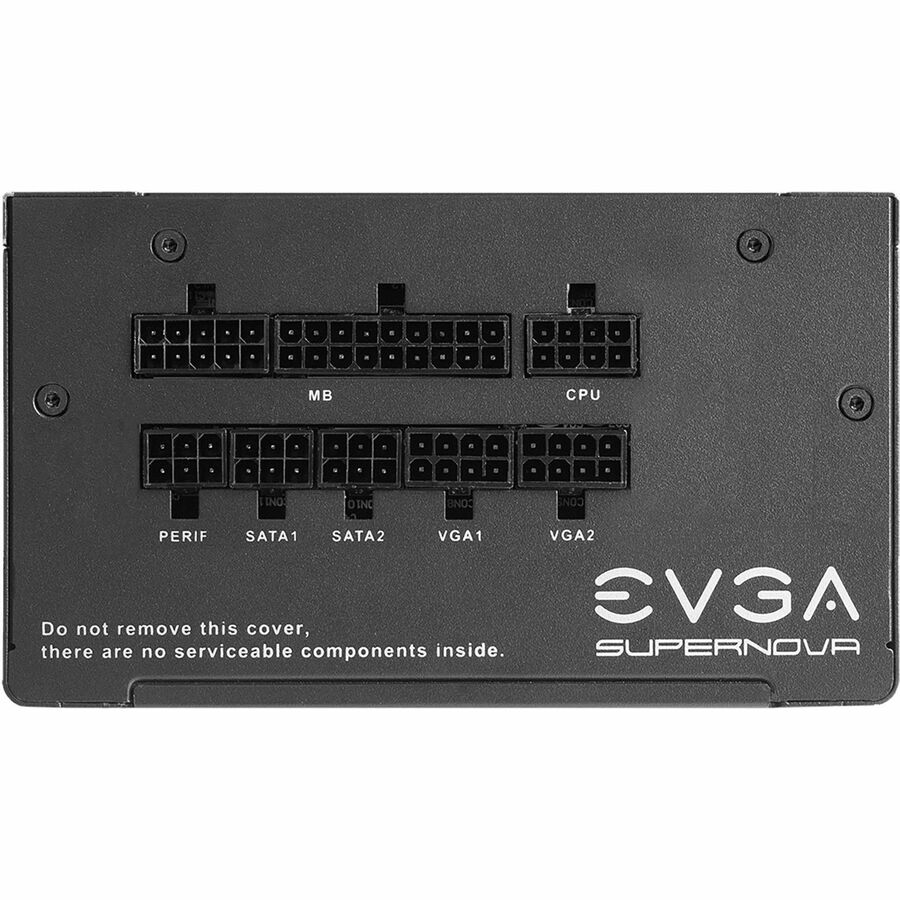

| Number of SATA Power Connectors | 6 |
| PCI Express Connector | Yes |
| Number of (6+2 pin) PCI Express Power Connectors | 3 |
| Number of (4+4 pin) CPU Power Connectors | 1 |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Physical Characteristics | |
| Form Factor | Internal |
| Form Factor | ATX |
| Height | 3.4" |
| Width | 5.9" |
| Weight (Approximate) | 6.45 lb |
| Miscellaneous | |
| Certifications & Standards |
|
| Energy Efficiency Certification | 80 Plus Platinum |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 3 (ErP Lot 3) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 10 Year |
