COOLER MASTER

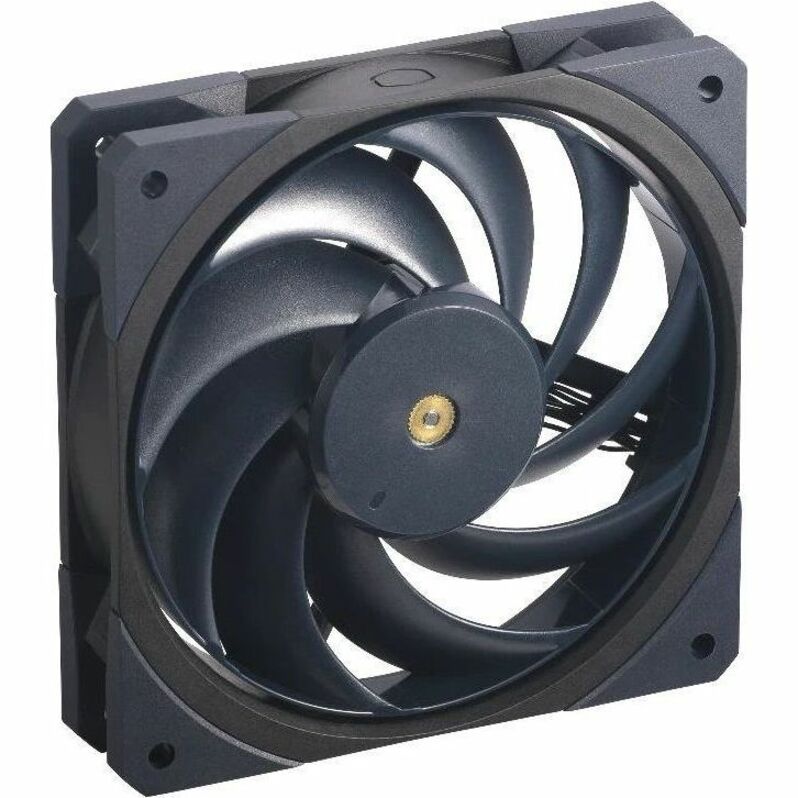

MFZ-M2NN-32NPK-R1 Cooler Master Mobius 120mm OC
Mfg Part Number: MFZ-M2NN-32NPK-R1 , Item #: 5260059
, PO and Wire.
PERFECTING ENGINEERING
Cooler Master has expanded on the Mobius Series performance fans with the new flagship model, Mobius 120 OC. The Mobius 120 OC features premium design and materials to deliver unprecedented quiet cooling performance. The upgraded Double Ball Bearing and metal motor hub guarantee high performance up to speeds of 3200rpm. We give you performance you can be confident in, and back it up with our lifetime warranty. Switch your experience into overdrive with the Mobius 120 OC.

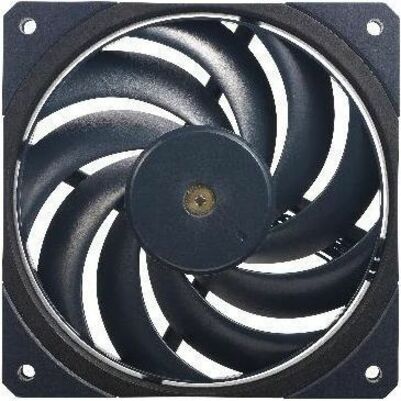

RING BLADE DESIGN
Interconnecting fan blades designed for a reinforced and rigid structure, eliminating vibration for stable and fluid fan operation.
FAN SPEED TOGGLE
Integrated fan speeds toggle built into the cable let you conveniently adjust fan speeds from 1500rpm up to 3200rpm.
DOUBLE BALL BEARING
Double Ball Bearings reduces friction to a minimum for silence and extended lifespan.

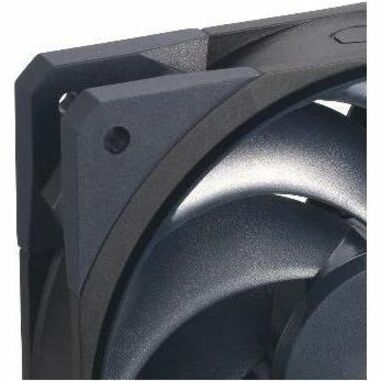

PREMIUM | ANTI-VIBRATION DAMPERS
Patented corner mount design dampen vibration and rattling while maintaining chassis stability for silent operation.

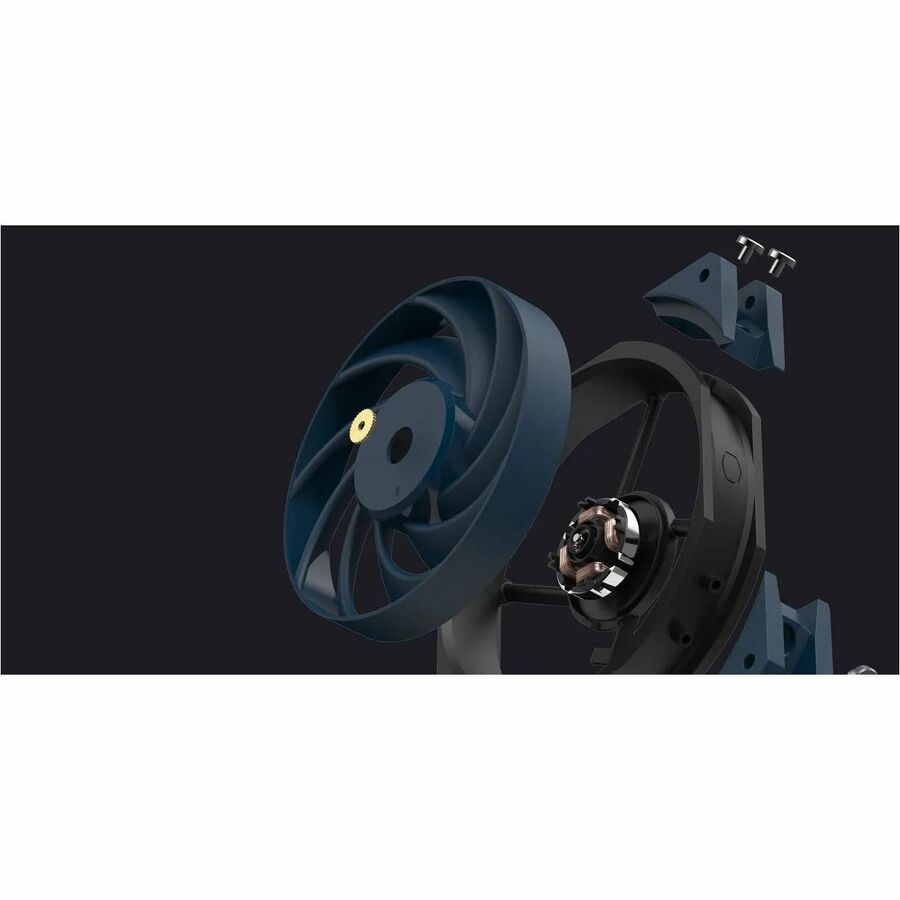

METAL MOTOR HUB
Motor hub constructed of metal for additional stability and reinforcement for extended superior fan performance.
LIFETIME WARRANTY
Premium materials and superior engineering provide incredible fan lifespan - backed by Cooler Master's lifetime warranty.
| General Information | |
| Manufacturer | Cooler Master Co., Ltd |
| Manufacturer Part Number | MFZM2NN32NPKR1 |
| Manufacturer Website Address | http://www.coolermaster-usa.com |
| Brand Name | Cooler Master |
| Product Line | Mobius 120 OC |
| Product Name | Mobius 120 OC |
| Product Type | Cooling Fan |
| Fan Information | |
| Number of Fans | 1 |
| Fan Bearing Type | Dual Ball Bearing |
| Fan Speed (Min) | 1050 rpm |
| Fan Speed (Max) | 3200 rpm |
| Minimum Airflow | 40.20 CFM |
| Maximum Airflow | 88.10 CFM |
| Noise Levels (A-Weighted) | 39.3 dB(A) |
| Fan Life | 22.8 Year |
| Maximum Air Pressure | 4.75mmH2O |
| Interfaces/Ports | |
| Connectors | 4-Pin PWM |
| Power Description | |
| Maximum Power Consumption | 4.20 W |
| Rated Current | 350 mA |
| Physical Characteristics | |
| Maximum Fan Diameter | 4.72" |
| Fan Height | 1.06" |
| Fan Width | 4.72" |
| Weight (Approximate) | 7.76 oz |
| Miscellaneous | |
| Application/Usage | PC |
| Application/Usage | Case |
| Warranty | |
| Limited Warranty | Lifetime |
