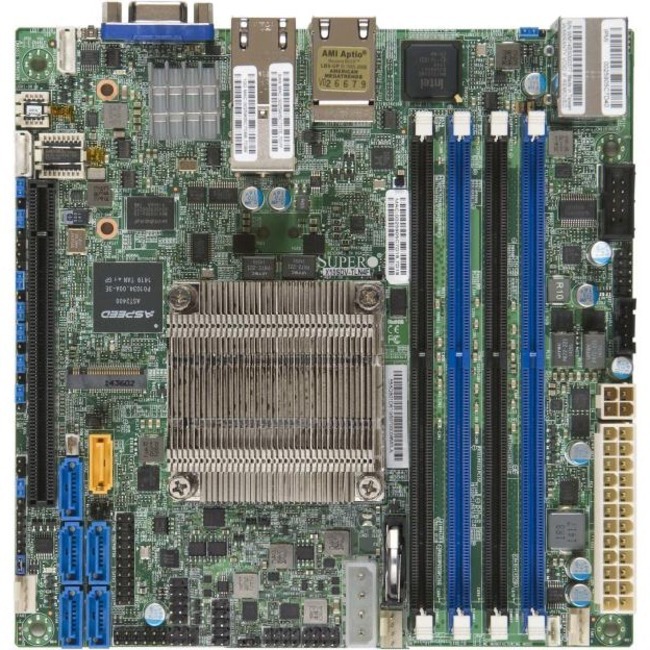

Supermicro MB MBD-X10SDV-16C-TLN4F-B Xeon D-1587 S1667 SoC Max128GB Mini-ITX
Mfg Part Number: MBD-X10SDV-16C-TLN4F-B , Item #: 5259928
, PO and Wire.
X10SDV Embedded Boards / Xeon D SoC BGA
Supermicro leverages its deep expertise in server technology to bring customers the first Intel® Xeon®/Pentium® System-on a-Chip (SoC) D-1500 Family solutions. The X10SDV series offer infrastructure optimization, by combining the performance and advanced intelligence of Intel® Xeon® processors into a dense, lower-power system-on-a-chip. With server-class reliability, availability and serviceability (RAS) features now available in an ultra-dense, low-power device, the X10SDV will be able to deliver balanced compute, storage and intelligent edge networks and appliances. These advanced technology building blocks offer the best work load optimized solutions and long life availability with the Intel® Xeon®/Pentium® processor D family, with up to 128GB DDR4 ECC RDIMM operating at 2133MHz, USB 3.0 I/O, six SATA3.0 storage and dual 10 GbE LAN networking ports.
| General Information | |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | MBD-X10SDV-16C-TLN4F-B |
| Manufacturer Website Address | http://www.supermicro.com |
| Brand Name | Supermicro |
| Product Model | X10SDV-16C-TLN4F |
| Product Name | X10SDV-16C-TLN4F Server Motherboard |
| Packaged Quantity | 1 |
| Package Type | Bulk |
| Product Type | Server Motherboard |
| Processor & Chipset | |
| Processor Socket | Socket BGA-1667 |
| Integrated Processor | |
| Integrated Processor Manufacturer | Intel |
| Integrated Processor Type | Xeon |
| Integrated Processor Model | D-1587 |
| Integrated Processor Core | Hexadeca-core (16 Core) |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | UDIMM |
| Memory Form Factor | RDIMM |
| Memory Form Factor | DIMM |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Speed Supported | 1600 MHz |
| Memory Speed Supported | 2133 MHz |
| Memory Speed Supported | 1866 MHz |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| Intel RSTe | Yes |
| RAID Supported | Yes |
| RAID Levels | 10 |
| RAID Levels | 5 |
| RAID Levels | 0 |
| RAID Levels | 1 |
| Video | |
| Onboard Video | On-board Video Chipset |
| Graphics Controller Manufacturer | ASPEED |
| Graphics Controller Model | AST2400 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| 10Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Total Number of PCI Express Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 5 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 6 |
| Number of M.2 Interfaces | 1 |
| Total Number of Onboard USB Ports | 4 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | Mini ITX |
| Width | 6.7" |
| Depth | 6.7" |
| Miscellaneous | |
| Package Contents |
|
| Compatibility | Supermicro Chassis:
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
