CISCO
CISCO WS-G5484-RF 1000BASESX SHORTWAVELENGTH GBIC MULTIMOD
Mfg Part Number: WS-G5484-RF , Item #: 5257563

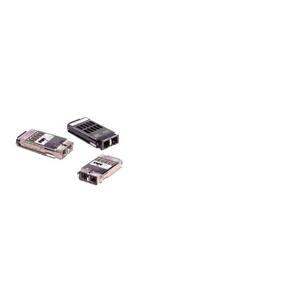

Image may not reflect the actual item.
Price: $237.99
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Aug 29, 2025
No Sales Tax except these states
, PO and Wire.
The industry-standard Cisco Gigabit Interface Converter (GBIC) is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network. Cisco GBICs can be interchanged on a wide variety of Cisco products and can be intermixed in combinations of 1000BASE-T, 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-ZX, or 1000BASE-CWDM interfaces on a port-by-port basis.
Main Specification
| General Information | |
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | WS-G5484-RF |
| Manufacturer Website Address | http://www.cisco.com |
| Brand Name | Cisco |
| Product Name | 1000Base-SX GBIC |
| Product Type | GBIC |
| Technical Information | |
| Application/Usage | Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | SC |
| Interfaces/Ports Details | 1 x SC 1000Base-SX LAN |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Maximum Distance Supported | 0.55 km |
| Maximum Data Transfer Rate | 1 |
| Physical Characteristics | |
| Height | 0.4" |
| Width | 1.2" |
| Depth | 2.6" |
| Weight (Approximate) | 0.06 lb |
| Miscellaneous | |
| Additional Information | - Refurbished - No Returns GBIC Channel Insertion Loss: - Transmitter output power (minimum/maximum): 0/-9.5 dBm - Receiver maximum input power: 0 dBm - Receiver sensitivity: -17 dBm - 50 micron MMF: 3.4 dB - 62.5 micron MMF: 3.2 dB - Contains a Class 1 laser of 850 nm for 1000BASE-SX (short-wavelength) applications Connector polishing: - The SX GBIC uses ball lenses and an air gap. A flat polish on the fiber-optic interface connectors is suggested |
| Compatibility | - Catalyst 4000 - Catalyst 5000 - Catalyst 6000 |
| Warranty | |
| Limited Warranty | 90 Day |
