TRIPP LITE

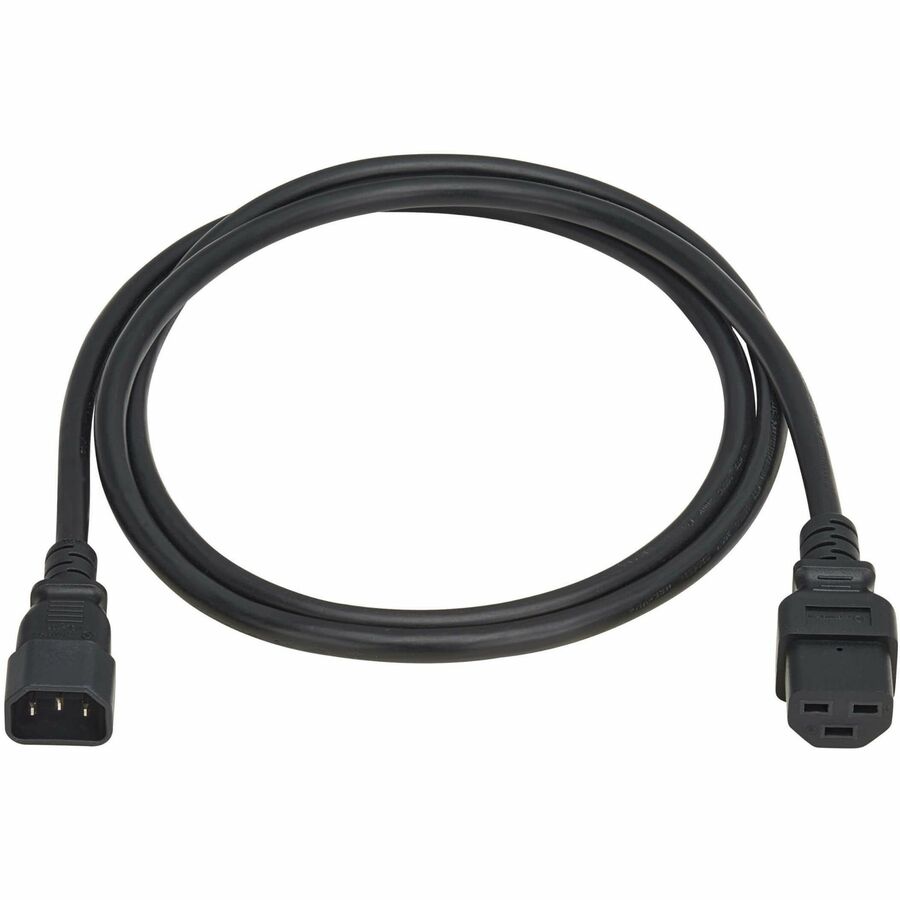

TRIPP LITE P037-005 PWR CRD C14 TO C21 15A 5FT BLK
Mfg Part Number: P037-005 , Item #: 5257247
, PO and Wire.
Features | 15A C14-to-C21 Power Cable for Network Devices That Require a Heavy-Gauge Connection
This heavy-duty cord features 14 AWG wire suitable for high power connections, making it a reliable solution for large server applications that require a higher-rated, heavier-gauge cable, including AI/machine-learning data centers. The five-foot (1.5-meter) length helps reduce cable clutter by providing a tailor-made fit between the device and the PDU or UPS in a crowded rack enclosure.
Recommended for High-Temperature Environments
The P037-005 can be used to connect a blade server, large router or network switch with a C22 inlet, usually found on high-powered, high-temperature (overall operating temperature maximum 105°C/221°F) equipment, to a PDU or UPS system. It's an ideal upgrade to a power cord with improved temperature threshold for data center applications in which temperature control and fire safety are high priorities.
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | P037-005 |
| Manufacturer Website Address | http://www.eaton.com |
| Brand Name | Tripp Lite series |
| Product Model | P037-005 |
| Product Name | Power Cord, C14 to C21 - Heavy-Duty, 15A, 250V, 14 AWG, 5 ft. (1.5 m), Black |
| Product Type | Standard Power Cord |
| Technical Information | |

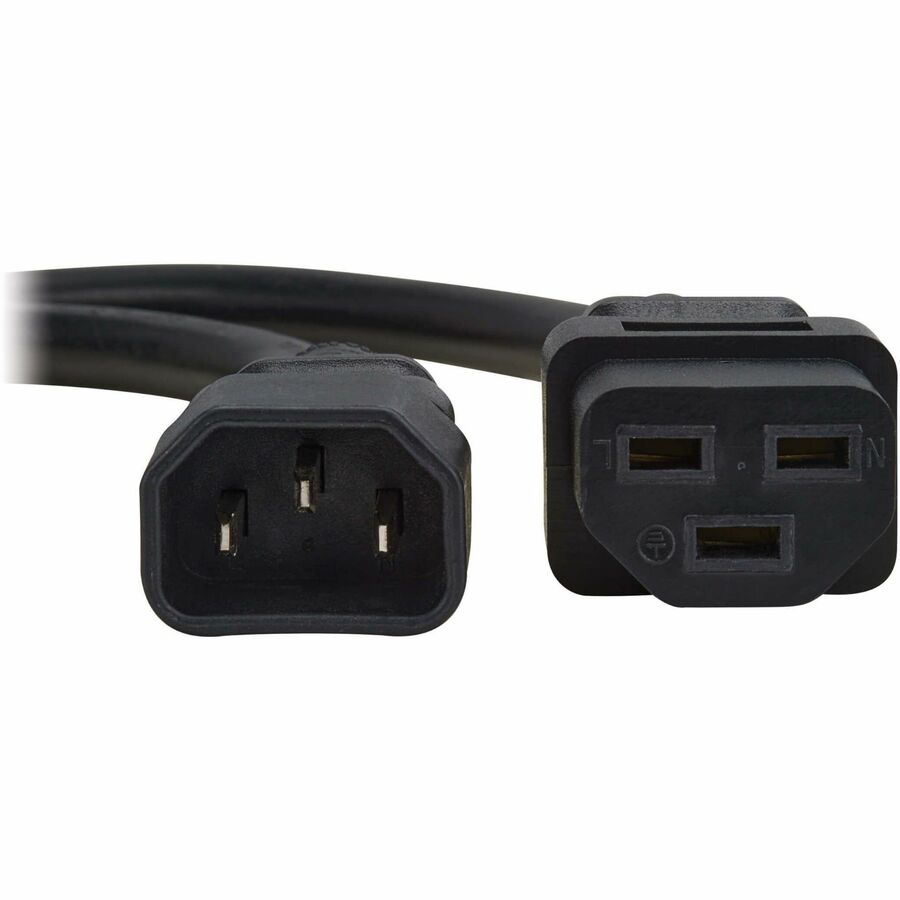

| First End Connector Type | IEC 60320 C14 |
| First End Connector Detail | 1 x 3-pin IEC 60320 C14 Male |
| Second End Connector Type | IEC 60320 C21 |
| Second End Connector Detail | 1 x 3-pin IEC 60320 C21 Female |
| Device Supported | Network Device |
| Device Supported | Computer |
| Device Supported | Network Switch |
| Device Supported | UPS |
| Device Supported | Switch |
| Device Supported | Router |
| Device Supported | PDU |
| Device Supported | Blade Server |
| Device Supported | Rack |
| Device Supported | Server |
| Localization | North America |
| Number of Conductors | 3 |
| Features | Heavy Duty |
| Features | High Temperature Rating |
| Power Description | |
| Voltage Rating | 250 V AC |
| Current Rating | 15 A |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Jacket Material | Service Junior Thermoplastic (SJT) |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Height | 12.8" |
| Width | 8.9" |
| Depth | 0.5" |
| Cord Length | 5 ft |
| Environmental Conditions | |
| Minimum Operating Temperature | -4°F (-20°C) |
| Maximum Operating Temperature | 221°F (105°C) |
| Minimum Storage Temperature | -4°F (-20°C) |
| Maximum Storage Temperature | 221°F (105°C) |
| Miscellaneous | |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | Lifetime |
