TAKE THE ESSENTIALS
MSI SHADOW brings a performance-focused design that delivers the gaming experience players want, making it the ideal choice when upgrading or building a gaming rig.
NVIDIA Blackwell Architecture The Ultimate Platform for Gamers and Creators
Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4
New Streaming Multiprocessors
Optimized for neural shaders
Fourth-Gen Ray Tracing Cores
Built for Mega Geometry
AI-Enhanced Graphics and Performance
NVIDIA DLSS 4 with Multi Frame Generation
Game-Winning Responsiveness
NVIDIA Reflex 2 with Frame Warp
True-to-Life Graphics
Full ray tracing with neural rendering
Digital Humans and AI Assistants
NVIDIA ACE
Accelerate Your Creativity
NVIDIA Studio creator tools and technology
Enhance Any Video with AI
NVIDIA Broadcast and ninth-gen NVIDIA Encoder
Performance and Reliability
NVIDIA app with Game Ready and Studio Drivers and Studio Drivers
The Ultimate Gaming Display Technologies
NVIDIA G-SYNC

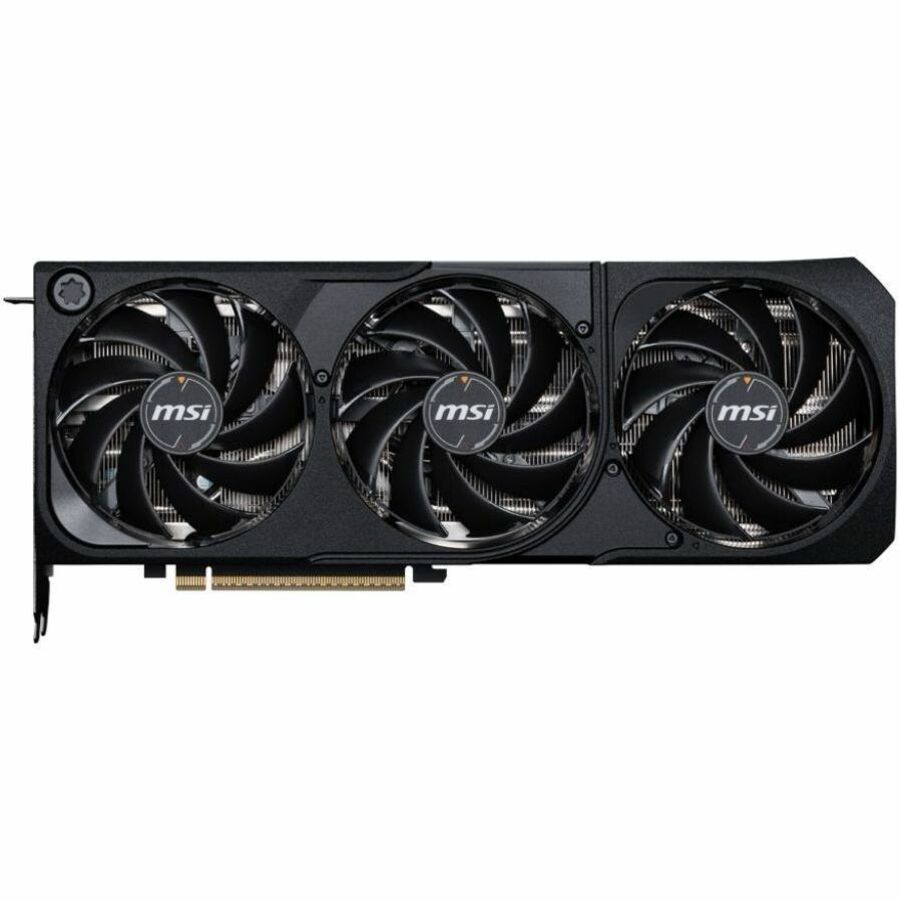

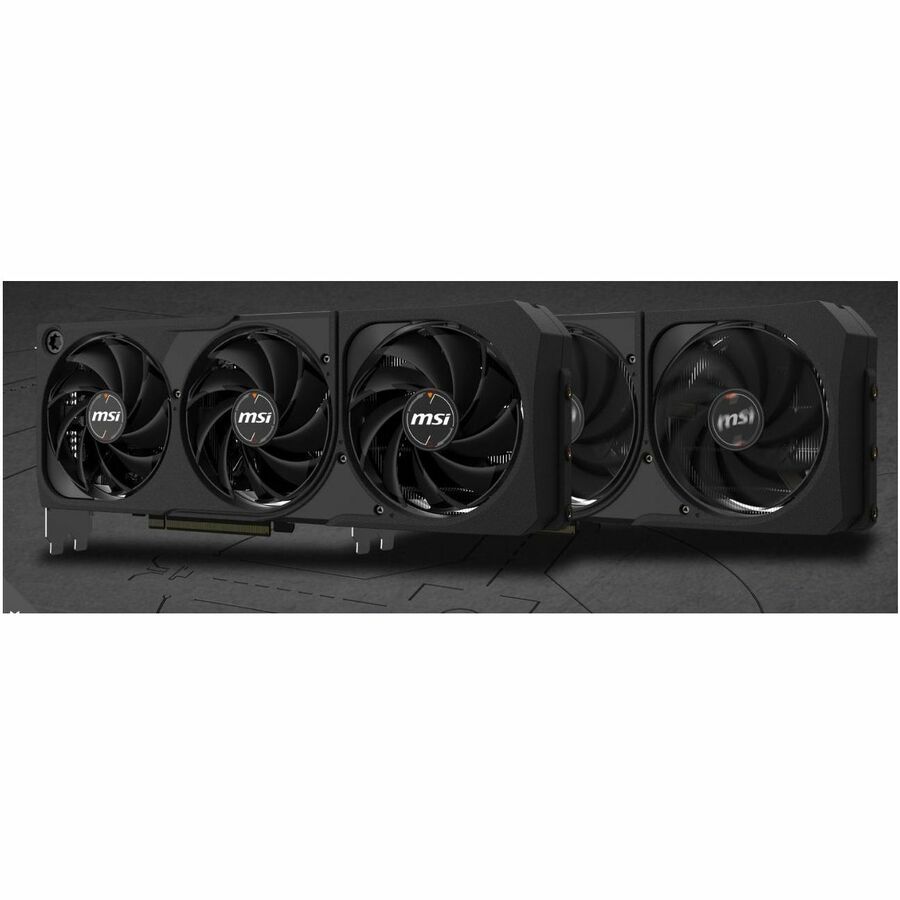

Triple-Fan Thermal Design
Three fans on a large heatsink deliver both superior and quieter cooling.
| General Information | |
| Manufacturer | MSI |
| Manufacturer Part Number | G5080-16S3C |
| Manufacturer Website Address | http://www.msi.com |
| Brand Name | MSI |
| Product Line | Shadow 3X |
| Product Model | G5080-16S3C |

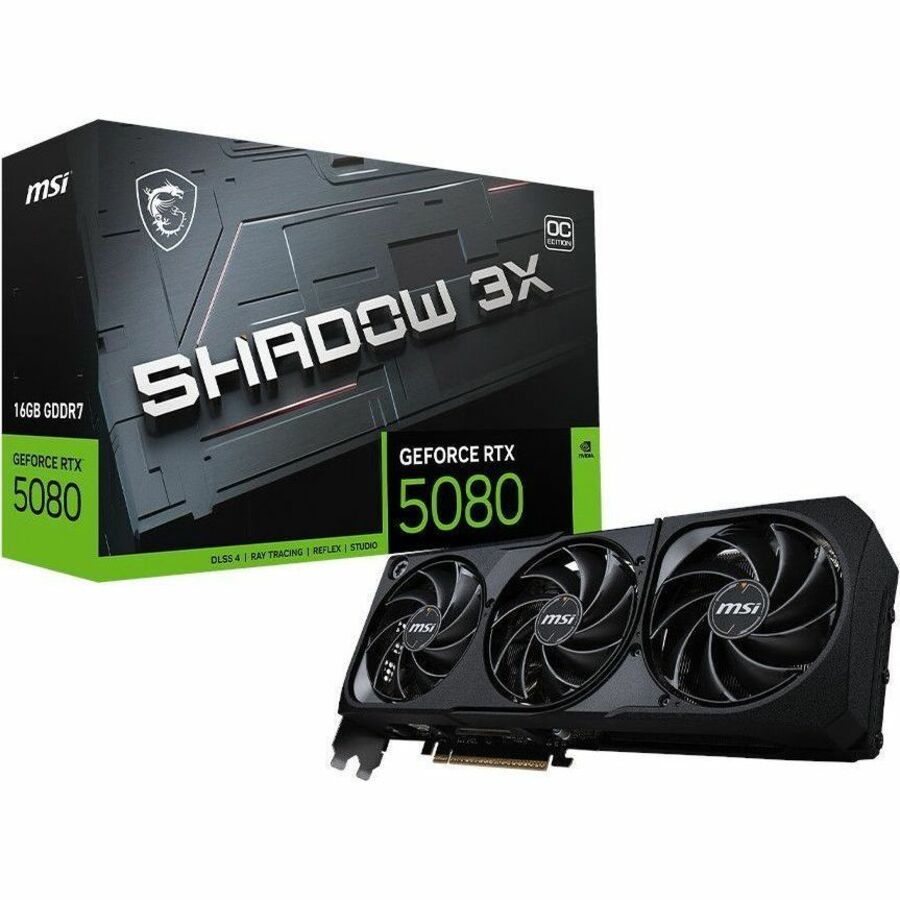

| Product Name | GeForce RTX 5080 16G SHADOW 3X OC Graphic Card |
| Product Type | Graphic Card |
| Technical Information | |
| API Supported | OpenGL 4.6 |
| API Supported | DirectX 12 Ultimate |
| Number of Monitors Supported | 4 |
| Features | Triple-fan Cooler |
| Maximum Digital Display Resolution | 7680 x 4320 |
| CUDA Cores | 10752 |
| AI-powered | Yes |
| Processor & Chipset | |
| Chipset Manufacturer | NVIDIA |
| Chipset Line | GeForce |
| Chipset Series | RTX |
| Chipset Model | RTX 5080 |
| GPU Boost Clock | 2.66 GHz |
| Memory | |
| Standard Memory | 16 GB |
| Memory Technology | GDDR7 |
| Bus Width | 256 bit |

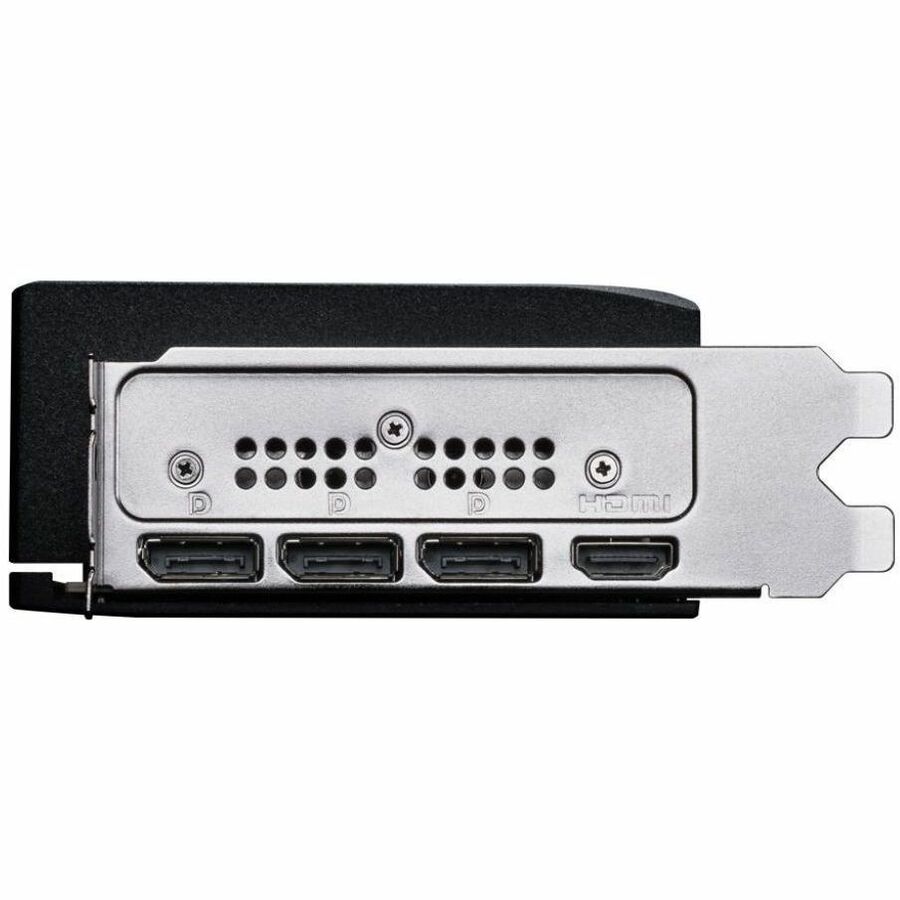

| Interfaces/Ports | |
| Host Interface | PCI Express 5.0 |
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 3 |
| HDMI | Yes |
| Number of HDMI Outputs | 1 |
| Power Description | |
| Power Supply Wattage | 850 W |

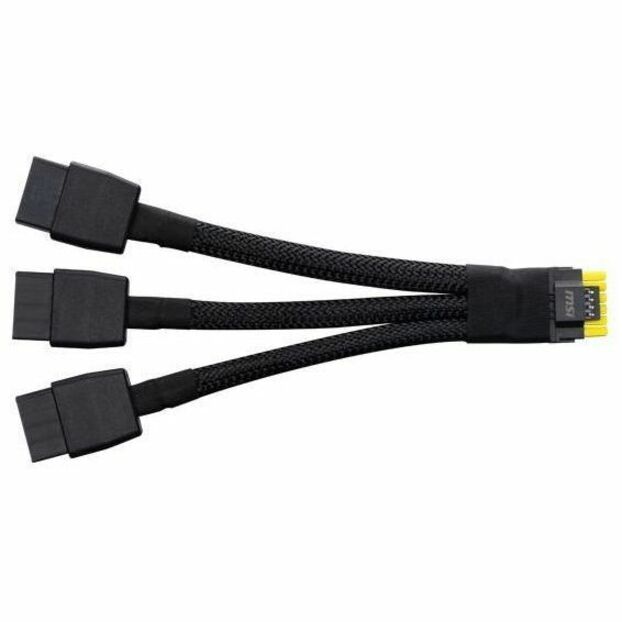

| Power Connector | 1x 16-pin |
| Physical Characteristics | |
| Slot Space Required | Triple |
| Form Factor | Plug-in Card |
| Cooler Type | Fan Cooler |
| Height | 1.9" |
| Width | 4.8" |
| Length | 11.9" |
| Weight (Approximate) | 2.31 lb |
| Miscellaneous | |
| Platform Supported | PC |
