GIGABYTE

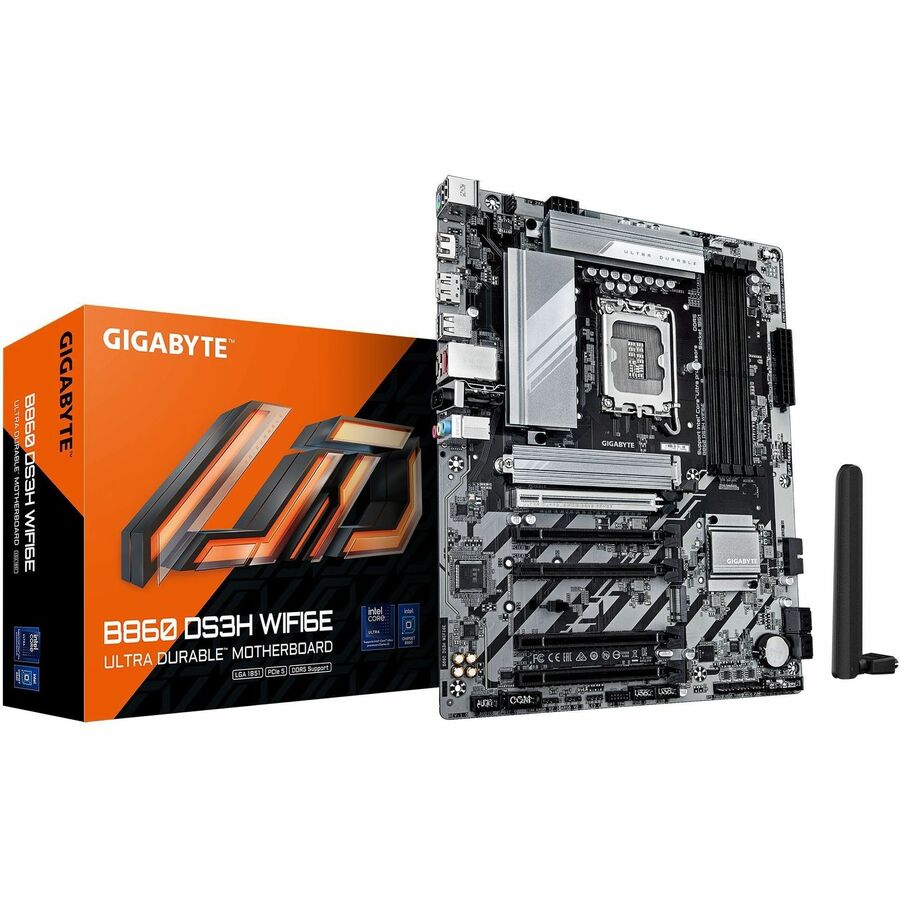

Gigabyte MB B860 DS3H WIFI6E B860 LGA1851 Max192GB DDR5 ATX Retail
Mfg Part Number: B860 DS3H WIFI6E , Item #: 5252833
, PO and Wire.
OVERVIEW
Infinite Memory Performance
UD motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
DDR5 Overclocking Up to 9066 MT/s
D5 Bionic Corsa
AI Overclocking For peak performance
AORUS AI
Auto-Overclocking Software by AI model
AI Engine
Advanced AI Overclocking Model
AI Design For MB signal enhancement
AI-Driven PCB Design
Redefining PCB Design with AI
HyperTune BIOS
AI-Driven Advanced BIOS Optimization Technology
Durable Performance
GIGABYTE Ultra Durable motherboards built with optimal components inside out provide the prime performance and timeless platform.
Comprehensive Thermal
UD motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.
M.2 Thermal Guard
The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
802.11ax Wi-Fi 6E
The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
2.5GbE LAN
Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.
PCIe 5.0 / 4.0 Hardware Design
Featuring PCIe 5.0 x16 slot and PCIe 5.0 / 4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 5.0 / 4.0 devices to provide the superior performance.
Hi-Fi Audio
High-End Audio CapacitorsAudio Noise Guard
Easy Friendly
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.
WIFI EZ-Plug
The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install.
EZ Debug Zone
Centralized debug LEDs and control buttons provide a handy and organized troubleshooting process when building a new computer.
| General Information | |
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | B860 DS3H WIFI6E |
| Manufacturer Website Address | http://www.gigabyte.us |
| Brand Name | GIGABYTE |
| Product Line | Ultra Durable |
| Product Model | B860 DS3H WIFI6E |
| Product Name | B860 DS3H WIFI6E Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| Technical Information | |
| AI-powered | Yes |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | B860 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1851 |
| Processor Supported | Core Ultra |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM |
| Memory Form Factor | UDIMM |
| Maximum Memory Supported | 256 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Speed Supported | 6600 MHz |
| Memory Speed Supported | 8000 MHz |
| Memory Speed Supported | 7900 MHz |
| Memory Speed Supported | 8400 MHz |
| Memory Speed Supported | 8266 MHz |
| Memory Speed Supported | 8800 MHz |
| Memory Speed Supported | 7200 MHz |
| Memory Speed Supported | 7400 MHz |
| Memory Speed Supported | 7600 MHz |
| Memory Speed Supported | 7800 MHz |
| Memory Speed Supported | 8200 MHz |
| Memory Speed Supported | 6400 MHz |
| Memory Speed Supported | 6800 MHz |
| Memory Speed Supported | 8600 MHz |
| Memory Speed Supported | 7000 MHz |
| Memory Speed Supported | 5600 MHz |
| Memory Speed Supported | 9066 MHz |
| Memory Speed Supported | 7950 MHz |
| Error Checking | ECC |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 5 |
| RAID Levels | 1 |
| RAID Levels | 10 |
| RAID Levels | 0 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | HD Graphics |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| I/O Expansions | |
| Total Number of Expansion Slots | 5 |
| PCI Express Standard | PCI Express 5.0 |
| PCI Express Standard | PCI Express 4.0 |
| Total Number of PCI Express Slots | 5 |
| Number of PCI Express x16 Slots | 5 |

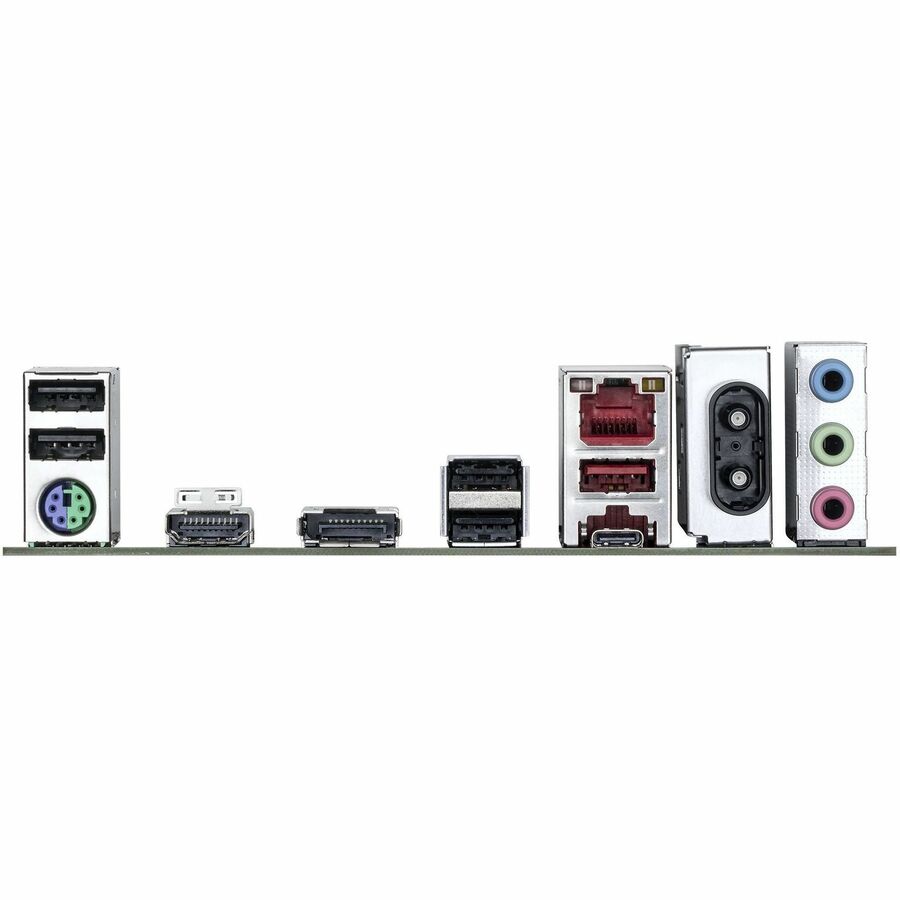

| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 4 |
| Number of USB 3.2 Gen 2 Type-A Ports | 1 |
| S/PDIF | Yes |
| HDMI | Yes |
| HDMI Version | |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 2 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| Onboard S/PDIF Header | Yes |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" |
| Depth | 9.6" |
| Miscellaneous | |
| Brand Compatibility | Intel |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Taiwan Restriction of Hazardous Substances (Taiwan RoHS) |
