STARTECH

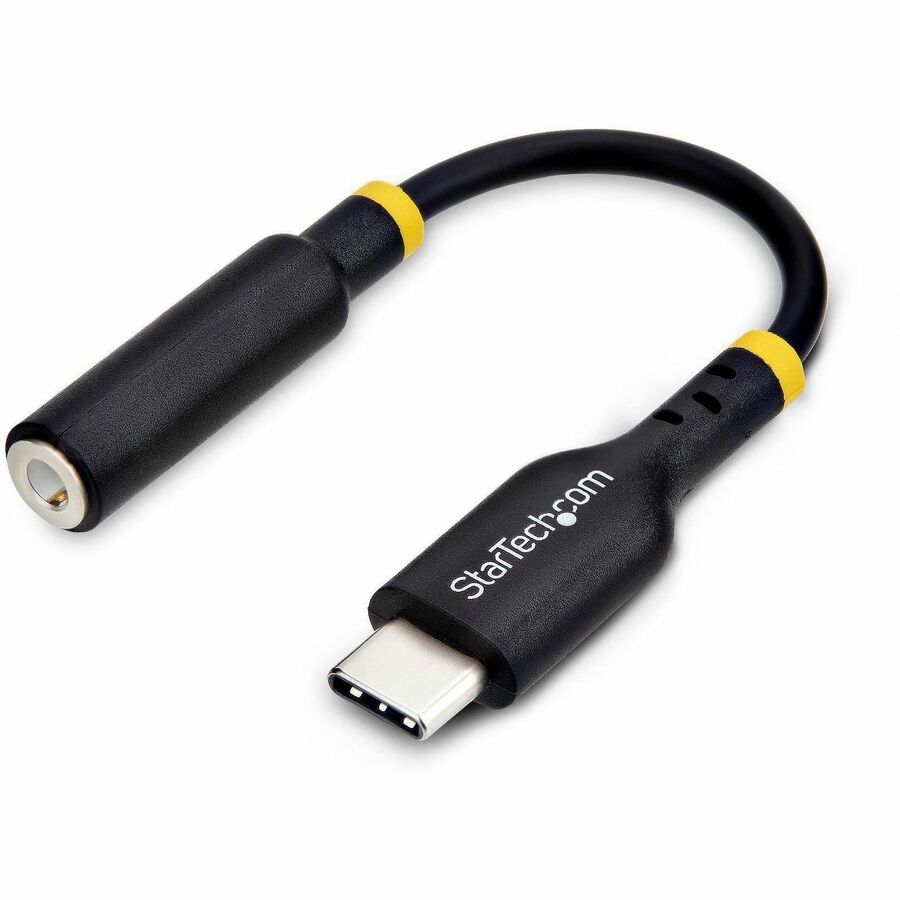

STARTECH USBCAUDIO2 USB-C AUDIO ADAPTER TO 3.5MM TRRS HEADPHONE JACK - TYPE-C DONGLE
Mfg Part Number: USBCAUDIO2 , Item #: 5251195
, PO and Wire.
Connect wired headphones or earphones to a USB Type-C-enabled device with this USB-C to 3.5mm audio adapter. The built-in 32-bit DAC supports stereo sound and microphone functionality via the TRRS jack for clear and immersive audio.
Superior Sound Quality
Experience excellent sound quality supporting audio ranges from 44.1 to 384kHz and 16, 24, and 32-bit sample rates, delivering a 105dBA signal-to-noise ratio for crisp and detailed output. The stereo ADC features a 94dB SNR for microphone input, with 48kHz and 16-bit sampling, all powered by the Realtek ALC4030U chipset.
Wide Compatibility
This versatile aux audio adapter is universally compatible with USB-C and Thunderbolt devices, including Windows, macOS, and Linux computers, as well as phones and tablets running iOS or Android. It supports wired headphones and headsets (including models with in-line controls), making it an ideal solution for using existing audio gear and eliminating the need for Bluetooth audio solutions.
Sleek and Portable Design
The compact, sleek adapter measures just 5 inches (127mm) and features a flexible and durable TPE jacket with a soft-touch finish. Use this adapter cable on the go or at a workstation for audio playback, recording, or calls.
| General Information | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | USBCAUDIO2 |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | Mini-phone/USB-C Audio Cable |
| Packaged Quantity | 1 / Each |
| Product Type | Audio Cable |
| Technical Information | |
| Cable Type | Mini-phone/USB-C |
| Cable Length | 5" |
| Connector Type on First End | USB 2.0 Type C - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x 24-pin USB 2.0 Type C - Male |
| Connector Type on Second End | Mini-phone Stereo Audio - Female |
| Connector Gender on Second End | Female |
| Connector on Second End Details | 1 x Mini-phone Stereo Audio - Female |
| Device Supported | Headphone |
| Device Supported | Headset |
| Device Supported | Microphone |
| Device Supported | Phone |
| Device Supported | Audio Device |
| Device Supported | Smartphone |
| Device Supported | Earphone |
| Device Supported | Computer |
| Device Supported | Notebook |
| Device Supported | Sound Card |
| Device Supported | Tablet |
| Data Transfer Rate | 480 Mbit/s |
| Features | Durable |
| Features | Flexible |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Rubber |
| Jacket Material | Thermoplastic Elastomer (TPE) |
| Height | 0.3" |
| Width | 0.5" |
| Weight (Approximate) | 0.02 lb |
| Miscellaneous | |
| Operating System Compatibility | Android |
| Operating System Compatibility | macOS Sonoma 14.0 |
| Operating System Compatibility | mac OS 15 Sequoia |
| Operating System Compatibility | windows 11 (ARM) |
| Operating System Compatibility | Windows 10 |
| Operating System Compatibility | macOS Ventura 13.0 |
| Operating System Compatibility | iOS |
| Operating System Compatibility | iPadOS |
| Operating System Compatibility | Windows 11 |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| REACH free of SVHC | Yes |
| REACH Declaration URL | https://media.startech.com/cms/pdfs/usbcaudio2_rohs.pdf |
| EU RoHS Declaration URL | https://media.startech.com/cms/pdfs/usbcaudio2_rohs.pdf |
| End of Life Manual Availability | Yes |
| WEEE Statement | https://media.startech.com/cms/pdfs/usbcaudio2_weee.pdf |
| Warranty | |
| Limited Warranty | 2 Year |
