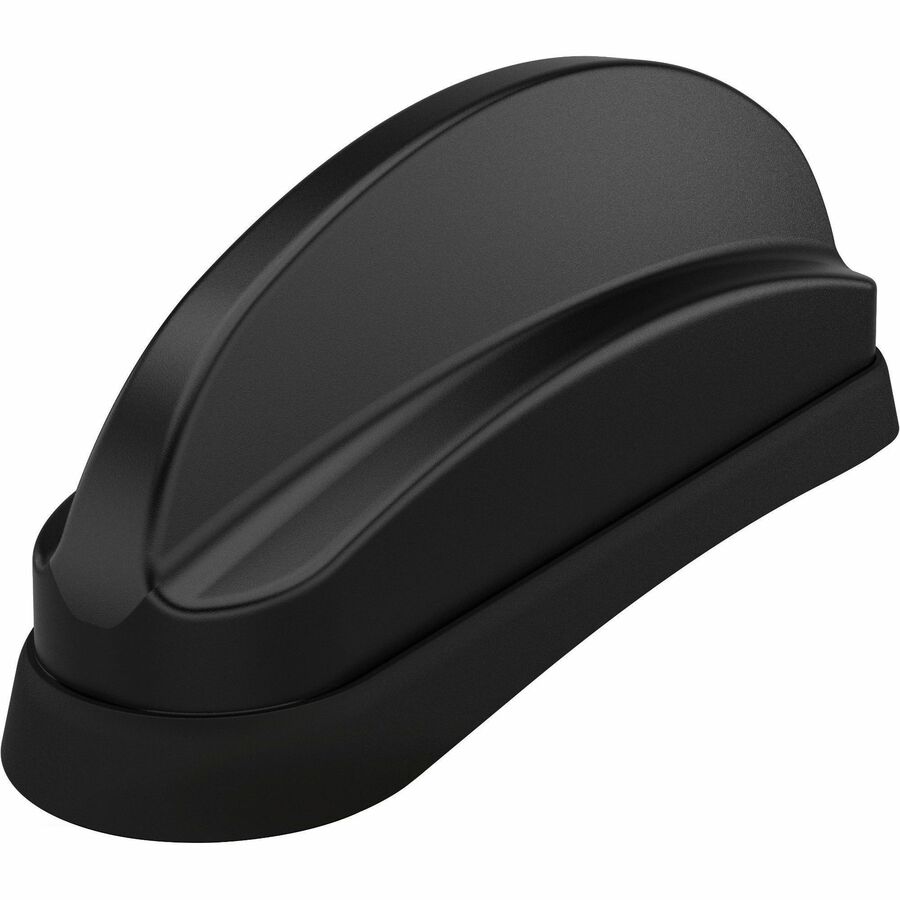

PANORAMA ANTENNAS LGAM-6-60 LOW PROFILE SHARKFIN IOT ANTENNA 2X CELL GPS/GNSS 3M CBLS
Mfg Part Number: LGAM-6-60 , Item #: 5251099
, PO and Wire.
The LP[G]AM[F]-6-60 platform contains a 2×2 MiMo antenna function for 4G/5G (617-960/1427-6000MHz) and the option of 2×2, 3×3 or 4×4 MiMo dual-band WiFi, which supports WiFi 6E
An optional active antenna for GPS/GLONASS/Galileo/ BeiDou can be included, with 26dB gain LNA and advanced filtering for LTE Band 13/14 operation.
The LP[G]AM[F]-6-60 is designed for use on conductive metal panels but can be used on non-conductive panels with some detriment to performance in the 600MHz band.
This antenna is ideal for IoT applications including vending machines, kiosks, display screens and payment terminals where a cost-effective, efficient and robust antenna is essential. Supplied with integrated flexible FR RG174 cables and requiring only a single hole mounting, the LP[G]AM-6-60 range is a convenient and easy to install solution for a range of applications.
| General Information | |
| Manufacturer | Panorama Antennas Ltd |
| Manufacturer Part Number | LGAM660 |
| Manufacturer Website Address | http://www.panorama-antennas.com |
| Brand Name | Panorama Antennas |
| Product Series | LP[G]AM[F]-6-60 |
| Product Name | LP[G]AM[F]-6-60 Antenna |
| Product Type | Antenna |
| Technical Information | |
| Directivity | Omni-directional |
| Operating Frequency Range | 1427MHz - 6000MHz |
| Operating Frequency Range | 617MHz - 960MHz |
| Antenna Gain | 26 dB |
| Antenna Gain (Isotropic) | 9 dBi |
| Voltage Standing Wave Ratio (VSWR) | <2:1 |
| Interfaces/Ports | |
| Connector Type | SMA |
| Physical Characteristics | |
| Product Color | Black |
| Height | 3.54" |
| Width | 2.48" |
| Depth | 9.57" |
| Form Factor | Mast/Panel/Wall |
| Miscellaneous | |
| Application/Usage | Display Screen |
| Application/Usage | Cellular Network |
| Application/Usage | Vending Machine |
| Application/Usage | Kiosk |
| Application/Usage | GPS |
| Package Contents |
|
