STARTECH H2MPV-MONITOR-MOUNT DUAL MONITOR VERTICAL MOUNT - C-CLAMP DUAL VESA 16:9/32:9
Mfg Part Number: H2MPV-MONITOR-MOUNT , Item #: 5250405
, PO and Wire.

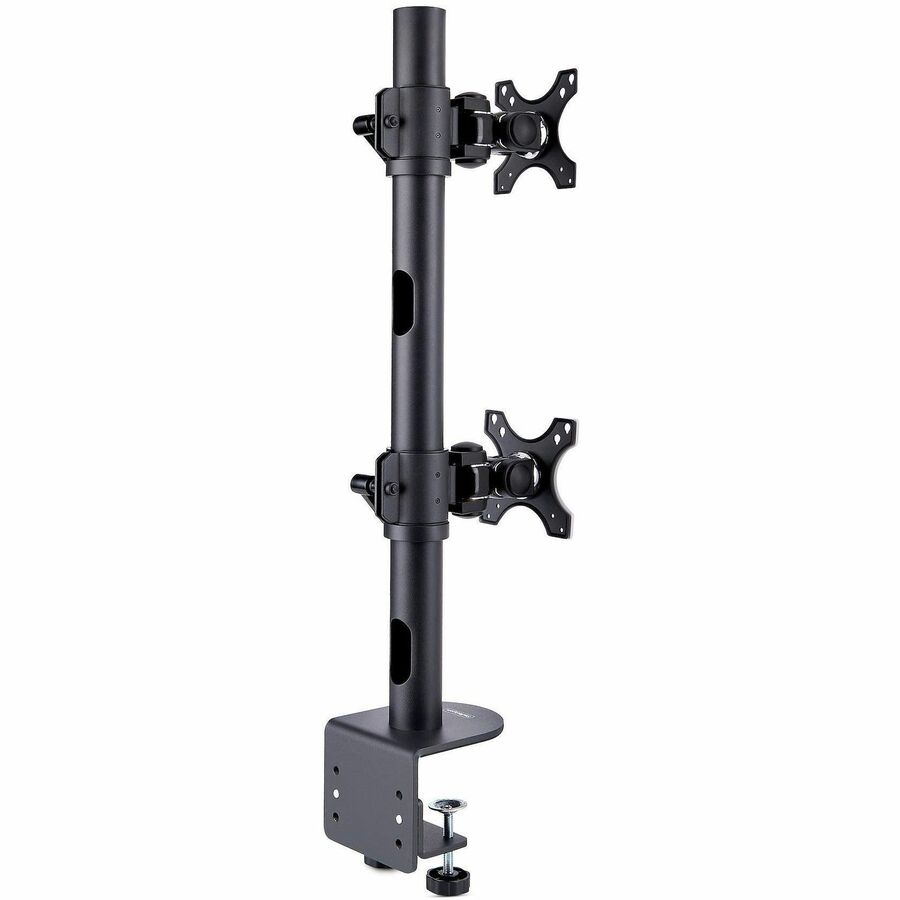

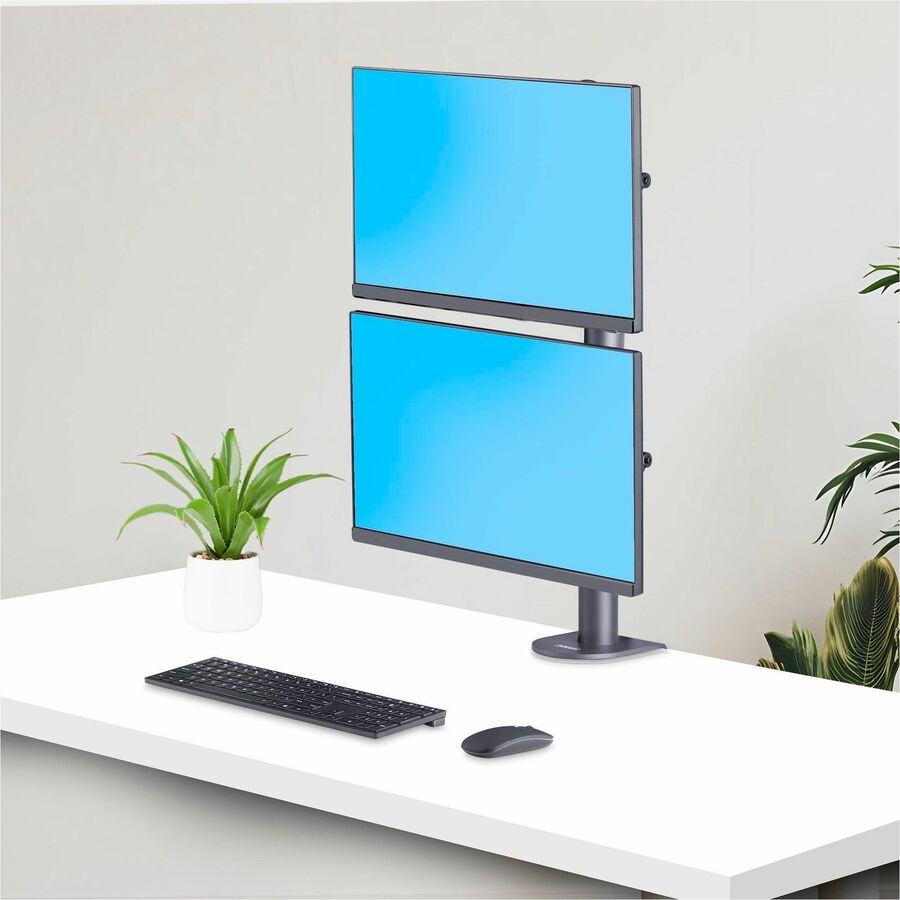

This dual ultrawide display monitor mount is engineered to support up to two vertically stacked 49-inch 32:9 aspect ratio curved screens, providing an enhanced workspace for data aggregation and multi-window applications. The monitor desk mount is TAA-compliant.
Robust Weight Capacity
With a total weight capacity of 35.3lb (16kg) per VESA mount, the vertically stacked mount provides a secure and stable solution for mounting heavy monitors whether they are standard (4:3), widescreen (16:9), and ultrawide (32:9).
Fixed C-clamp design fits desks ranging from 1 to 3.9 inches (2.5 to 10cm) thick.

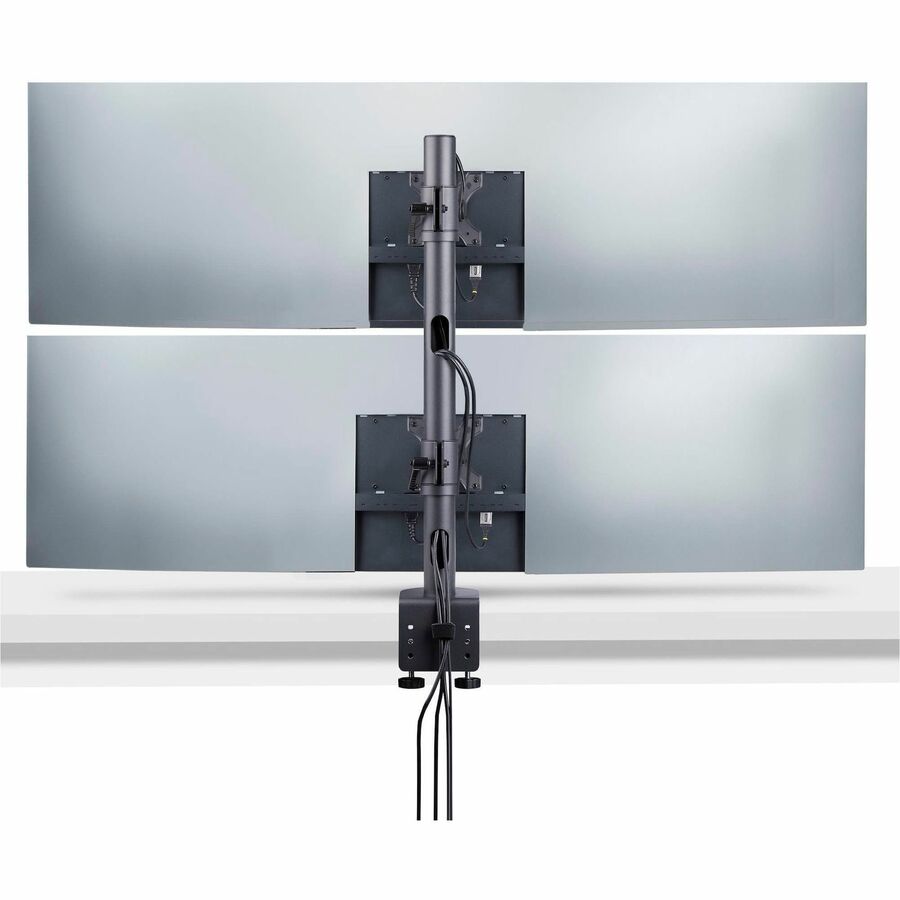

Concealed Cable Management
The double monitor mount features concealed cable management running the cables inside the pole for an organized and clutter-free setup. The powder-coated finish enhances durability and aesthetics.

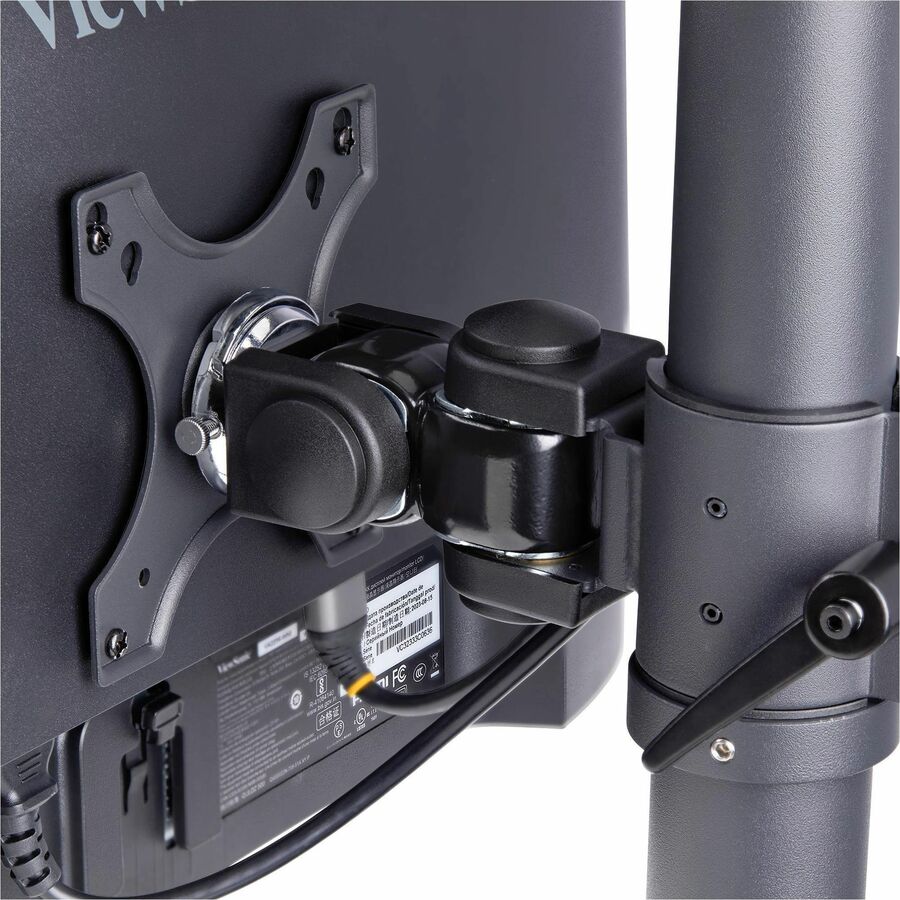

Quick-Release VESA Mounts
Detachable VESA plates feature a toolless quick-release mechanism, simplifying display installation and removal. The mount supports VESA 75x75mm and 100x100mm standards, making it compatible with a wide range of monitors.
Display Adjustment

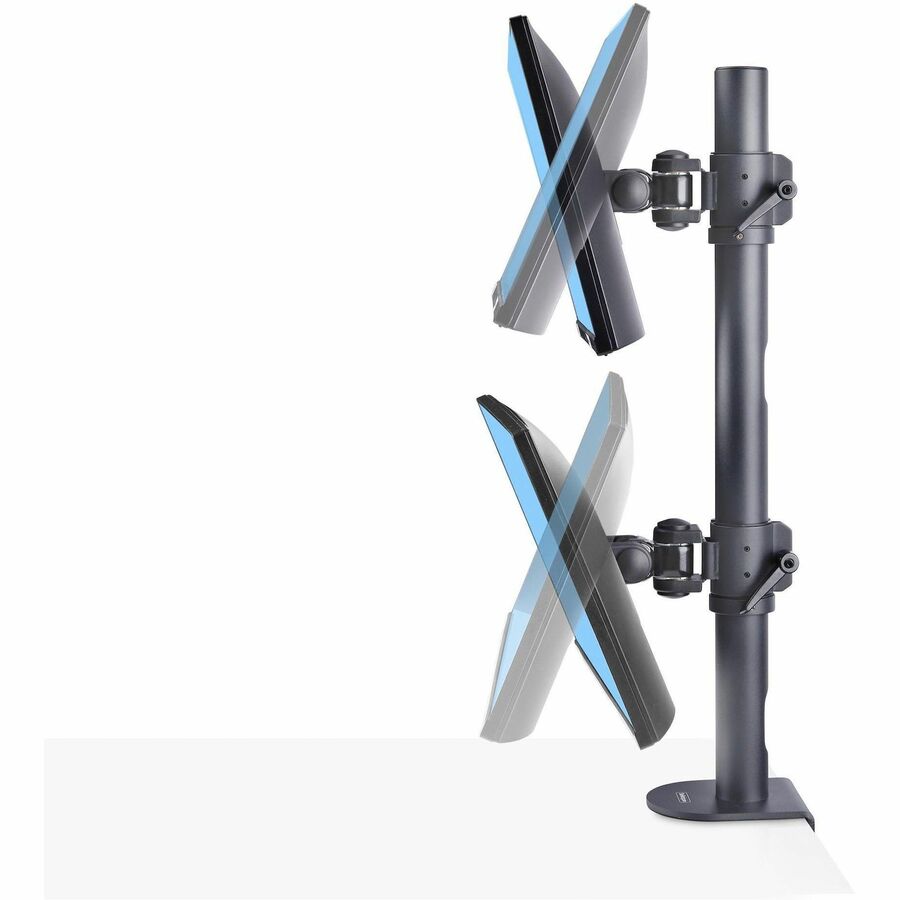

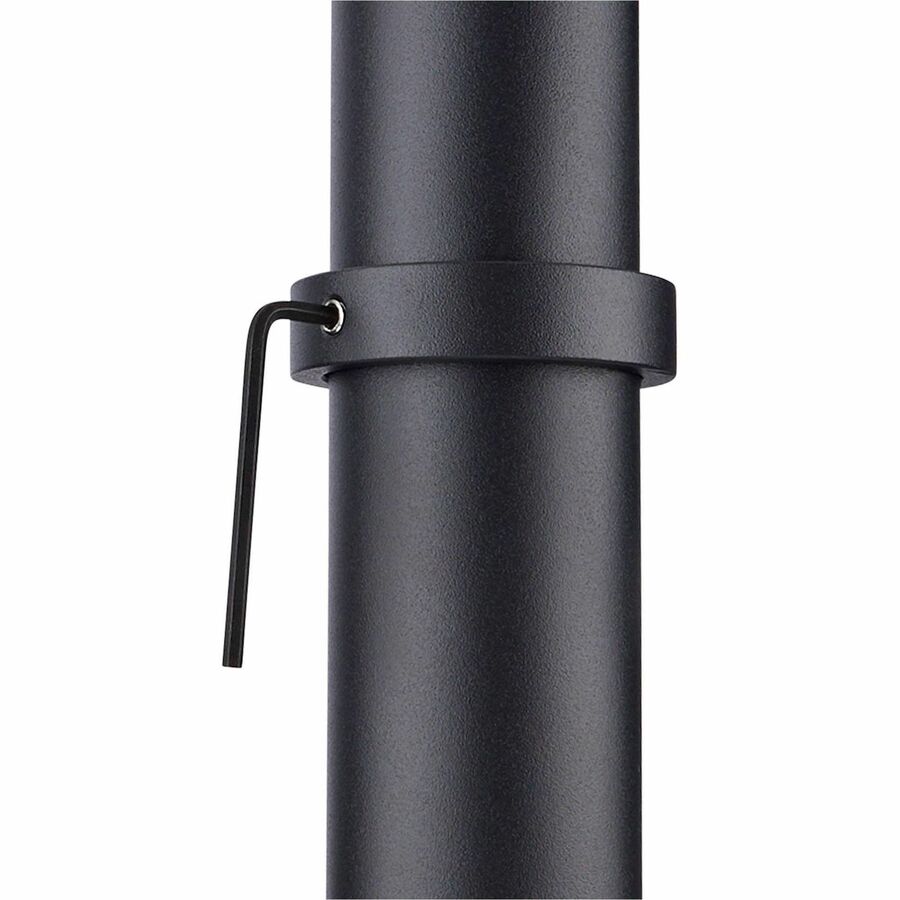

The mount's adjustable design enables height adjustments along the 27.4-inch (69.6cm) pole. Each monitor can be tilted and swiveled up to +/-90° and rotated 360° for seamless switching between portrait and landscape orientations. Additionally, the monitor mounts can be rotated around the pole without requiring tools, offering maximum flexibility.
| General Information | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | H2MPV-MONITOR-MOUNT |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | Desk Mount |
| Packaged Quantity | 1 |
| Product Type | Desk Mount |
| Product Information | |
| Device Supported | Monitor |
| Device Supported | Curved Screen Display |
| Number of Displays Supported | 2 |
| Minimum Load Capacity | 35.30 lb |
| Maximum Load Capacity | 70 lb |
| Minimum Screen Size Supported | 17" |
| Maximum Screen Size Supported | 49" |
| Features | Tool-less Adjustment |
| Features | Cable Management |
| Features | Quick Release Mechanism |
| Features | Adjustable |
| Features | Flexible |
| Features | Robust |
| Features | Durable |
| Orientation | Landscape/Portrait |
| Minimum Extended Height | 27.40" |
| Mount Profile | Fixed |
| Height Adjustable | Yes |
| Minimum Tilt Angle | -90° |
| Maximum Tilt Angle | 90° |
| Minimum Swivel Angle | -90° |
| Maximum Swivel Angle | 90° |
| Minimum Rotate Angle | 180° |
| Maximum Rotate Angle | -180° |
| Mount Function | Tilt |
| Mount Function | Rotate |
| Mount Function | Swivel |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Finishing | Powder Coated |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 75 x 75 |
| Mounting Pattern | 100 x 100 |
| Product Material | Plastic |
| Product Material | Steel |
| Form Factor | Desk |
| Height | 36.30" |
| Width | 36.30" |
| Length | 8.40" |
| Weight (Approximate) | 15.40 lb |
| Miscellaneous | |

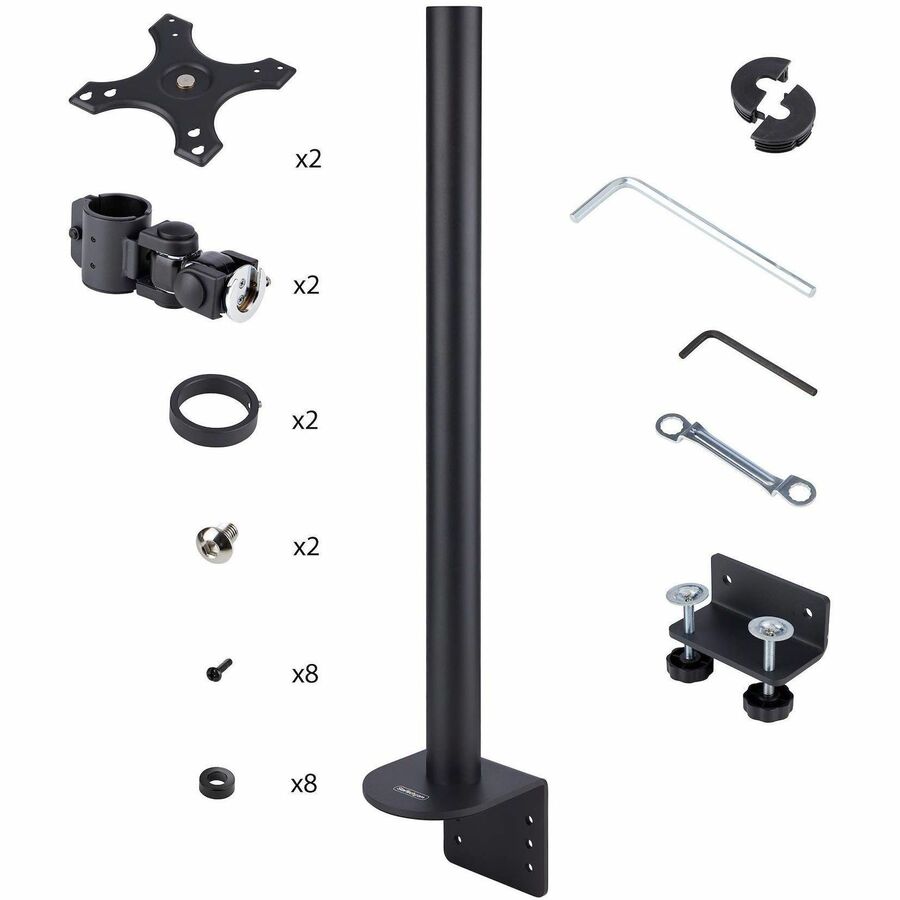

| Package Contents |
|
| Application/Usage | Workspace |
| Application/Usage | Desk |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 5 Year |
