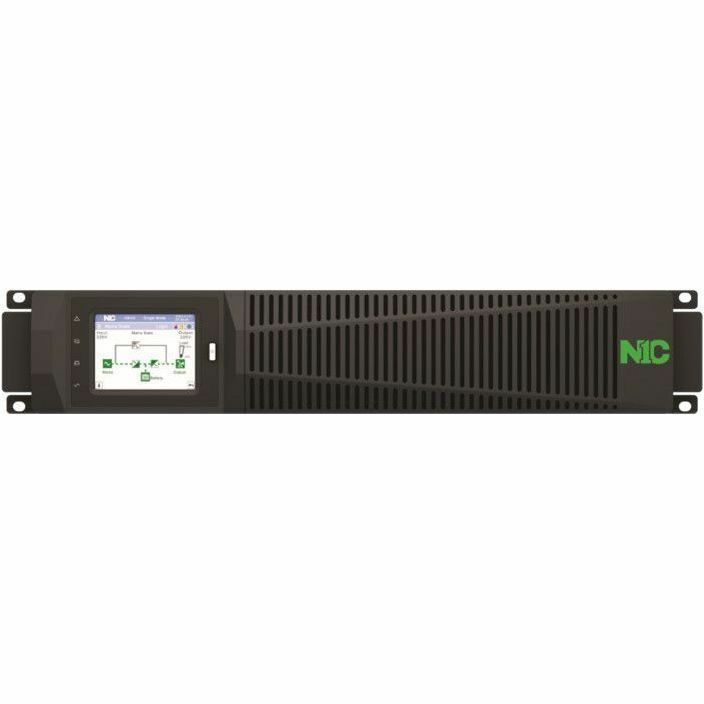

N1 CRITICAL TECHNOLOGIES, INC. 40-100608 LK-SERIES 6000VA / 6000W ONLINE 2U 230V UPS MODULE

The N1C LK Series offers the most unity power factors in a small space with long runtime. 5, 6 and 10kvA options with unity power factors maximize load capacity. Extend the runtime with up to 8x total line-and-match external battery modules. Each system comes with 4-post rail kits, SNMP cards for remote monitoring, license-free software and our industry-best 10-year warranty! Get piece-of-mind and maximum protection from all 9 power problems with online double conversion topology and a 0ms transfer time to battery power. On board outlets offer easy connectivity and 6 and 10kVA models allow for parallel connection (up to 4x units) for power capacity growth or N+1 redundancy. Monitor and control units with an intuitive full-color touchscreen or via the included SNMP user interface via a connected PC. Keep critical loads online for longer with N1C LK-Series.

General Information
Manufacturer	N1 Critical Technologies, Inc
Manufacturer Part Number	40-100608
Manufacturer Website Address	http://www.n1critical.com
Brand Name	N1C
Product Series	LK
Product Model	N1C.LK6000
Product Name	N1C.LK6000 6000VA Rack-mountable UPS
Product Type	Double Conversion Online UPS
Technical Information
Plug/Connector Type	Hardwired
Receptacle Type	NEMA L6-30R
Receptacle Type	Hardwired
Receptacle Detail	2 x NEMA L6-30R
Cord Length	8 ft
Transfer Time	0 ns
Phase	Single Phase
Application/Usage	Hospital
Power Description
Load Capacity (VA)	6000 VA
Load Capacity (Watt)	6000 W
Input Voltage	230 V AC
Input Voltage Range	135 V AC - 250 V AC
Input Voltage Range	208 V AC - 240 V AC
Output Voltage	230 V AC
Output Voltage	208 V AC
Output Voltage	220 V AC
Output Voltage	240 V AC
Input Frequency	60 Hz
Input Frequency	50 Hz
Input Frequency Converter	Yes
Waveform Type	Pure Sine Wave
Management
Network Management	Dry Contact
Network Management	Intelligent Card Slot
Network Management	SNMP
Interfaces/Ports
Serial Port	Yes
USB	Yes
EPO Port	Yes
Battery Information
Battery Characteristics	External Battery System
Battery Chemistry	Lithium Iron Phosphate (LiFePO4)
Backup/Run Time (Full Load)	15 Minute
Backup/Run Time (Half Load)	35 Minute
Typical Battery Recharge Time	6 Hour
Environmental Conditions
Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	122°F (50°C)
Operating Humidity	0% - 95%
Sound Emission (A-Weighted)	45 dB(A)
Physical Characteristics
Height	3.4"
Width	17.3"
Depth	24.5"
Rack Height	2U
Form Factor	Rack/Tower
Weight (Approximate)	34.20 lb
Miscellaneous
Package Contents	LK N1C.LK5000 5000VA Rack-mountable UPS 4-post rail kit USB cable SNMP Card Manual Software
Certifications & Standards	cTUVus UL 1778 2014 R4.23 CSA C22.2 NO. 107.3-14 + GI1 FCC 47 CFR Part 15 Subpart B Class A
Country of Origin	China
Warranty
Limited Warranty	10 Year
Additional Warranty Information	10-year warranty on electronics and battery
