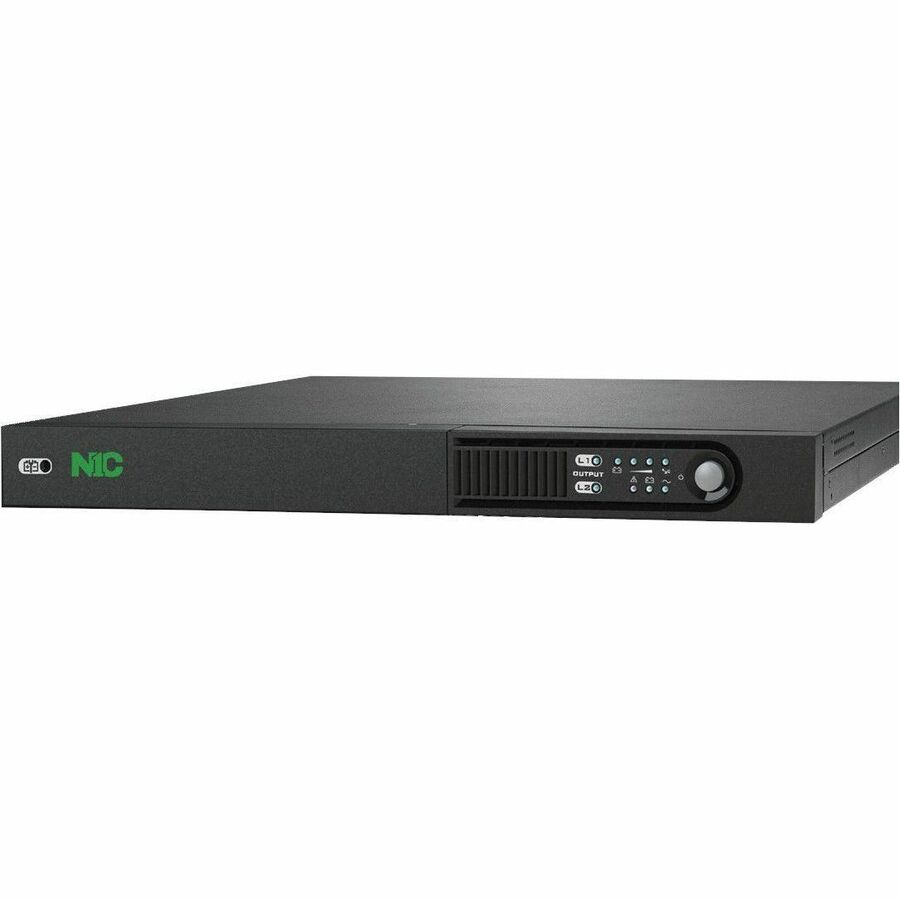

Tight on space but need extra protection? Choose the N1C C-Series UPS System. Each UPS module is 1U in rack height containing a long-lasting lithium-ion battery module. Extend the runtime of the N1C.C2200 and N1C.C3000 models with up to 4x 1U line-and-match external battery modules, allowing up to 75 mins full load runtime (2.2kva) or 55 mins full load runtime (3kva). Each system comes with universal 2-/4-post rail kits, SNMP cards for remote monitoring, license-free software and our industry-best 10-year warranty! Get piece-of-mind and maximum protection from all 9 power problems with online double conversion topology and a 0ms transfer time to battery power.
N1C's pair of C-Series 1kva models (N1C.C1000 and C1000G) are medical-grade quality with IEC 60601-1 certification for use in hospitals, clinics and field hospitals. The lithium iron phosphate (LiFePO4) battery technology on each C-Series UPS come with integrated battery management systems (BMS) for safety and a 12-15 year design life with >8,000 charge/discharge cycles in normal operating conditions. This lowers your overall total cost of ownership by virtually eliminating costly battery replacements (sourcing, shipping, downtime, maintenance, recycling, etc.). All systems offer a pure sine wave output maintain even the most sensitive equipment. The always-included SNMP network monitoring card offers remote monitoring, alerting and shutdown capabilities, and our multi-UPS monitoring software suite is license free to all users. Dry contact relay cards are also available for interfacing with building control systems, PLC boards and other industrial gear.
General Information | |
Manufacturer | N1 Critical Technologies, Inc |
Manufacturer Part Number | 20-100300 |
Manufacturer Website Address | http://www.n1critical.com |
Brand Name | N1C |
Product Series | C |
Product Model | N1C.C3000 |
Product Name | C N1C.C3000 3000VA Rack-mountable UPS |
Product Type | Double Conversion Online UPS |
Technical Information | |
Plug/Connector Type | NEMA L5-30P |
Receptacle Type | NEMA 5-15/20R |
Receptacle Type | NEMA L5-30R |
Receptacle Detail | 3 x NEMA 5-15/20R |
Receptacle Detail | 1 x NEMA L5-30R |
Cord Length | 6 ft |
Transfer Time | 0 ns |
Phase | Single Phase |
Application/Usage | Hospital |
Application/Usage | Medical |
Power Description | |
Load Capacity (VA) | 3000 VA |
Load Capacity (Watt) | 2700 W |
Input Voltage | 120 V AC |
Input Voltage Range | 87 V AC - 145 V AC |
Output Voltage | 110 V AC |
Output Voltage | 120 V AC |
Waveform Type | Pure Sine Wave |
Management | |
Network Management | USB/RS-232/Intelligent Slot |
Network Management | SNMP |
Network Management | Dry Contact |
Network Management | Relay-MS Card |
Interfaces/Ports | |
Serial Port | Yes |
USB | Yes |
EPO Port | Yes |
Battery Information | |
Battery Characteristics | Internal Battery |
Battery Chemistry | Lithium Iron Phosphate (LiFePO4) |
Backup/Run Time (Full Load) | 4 Minute |
Backup/Run Time (Half Load) | 8.50 Minute |
Battery Life | 15 Year |
Typical Battery Recharge Time | 2 Hour |
Replaceable Battery | Yes |
Environmental Conditions | |
Minimum Operating Temperature | 32°F (0°C) |
Maximum Operating Temperature | 122°F (50°C) |
Operating Humidity | 20% - 90% |
Physical Characteristics | |
Height | 1.7" |
Width | 17.2" |
Depth | 22.8" |
Rack Height | 1U |
Form Factor | Rack-mountable |
Weight (Approximate) | 31.10 lb |
Miscellaneous | |
Package Contents |
|
Certifications & Standards |
|
Software Included | WiseInsight multi-UPS monitoring software |
Country of Origin | China |
TAA Compliant | Yes |
Warranty | |
Limited Warranty | 10 Year |
Additional Warranty Information | Industry-best 10-year warranty on electronics and battery |
