ASUS
ROGSTRXB850GMNGWF ASUS ROG STRIX B850-A GAMING WIFI AMD AM5 B850 ATX DDR5 AEMP
Mfg Part Number: ROGSTRXB850GMNGWF , Item #: 5249569
Image may not reflect the actual item.
Price: $316.25
Quantity:
More to Come
Last Updated: Jun 05, 2025
No Sales Tax except these states
, PO and Wire.

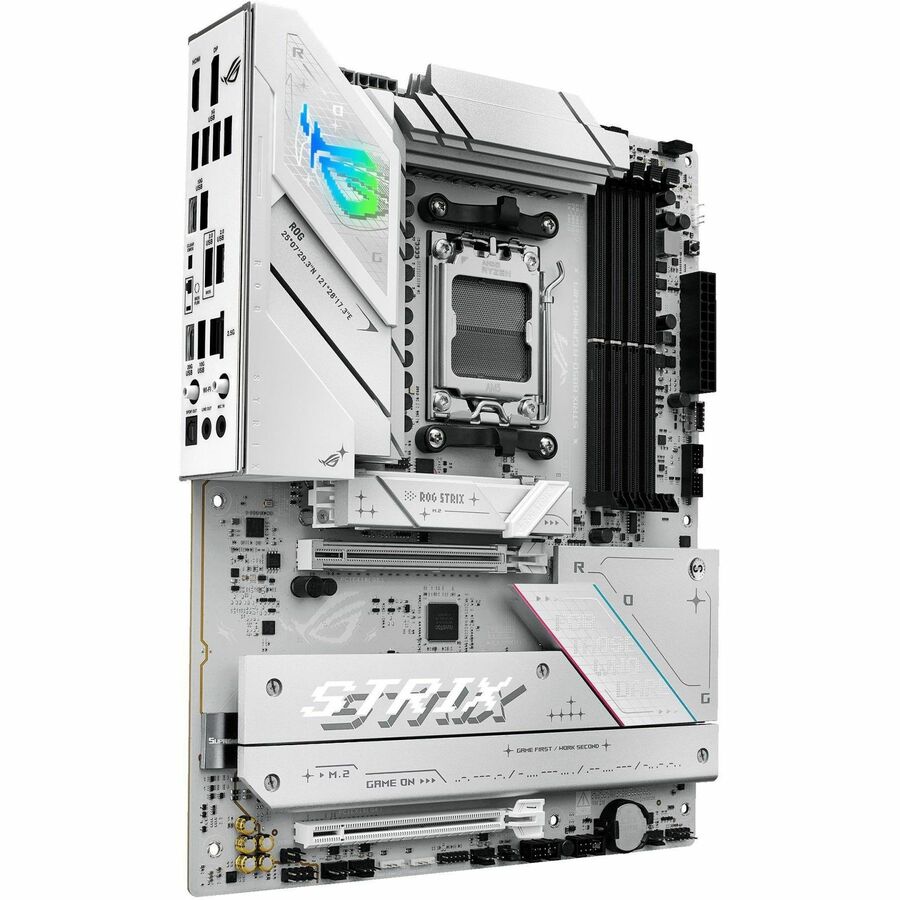

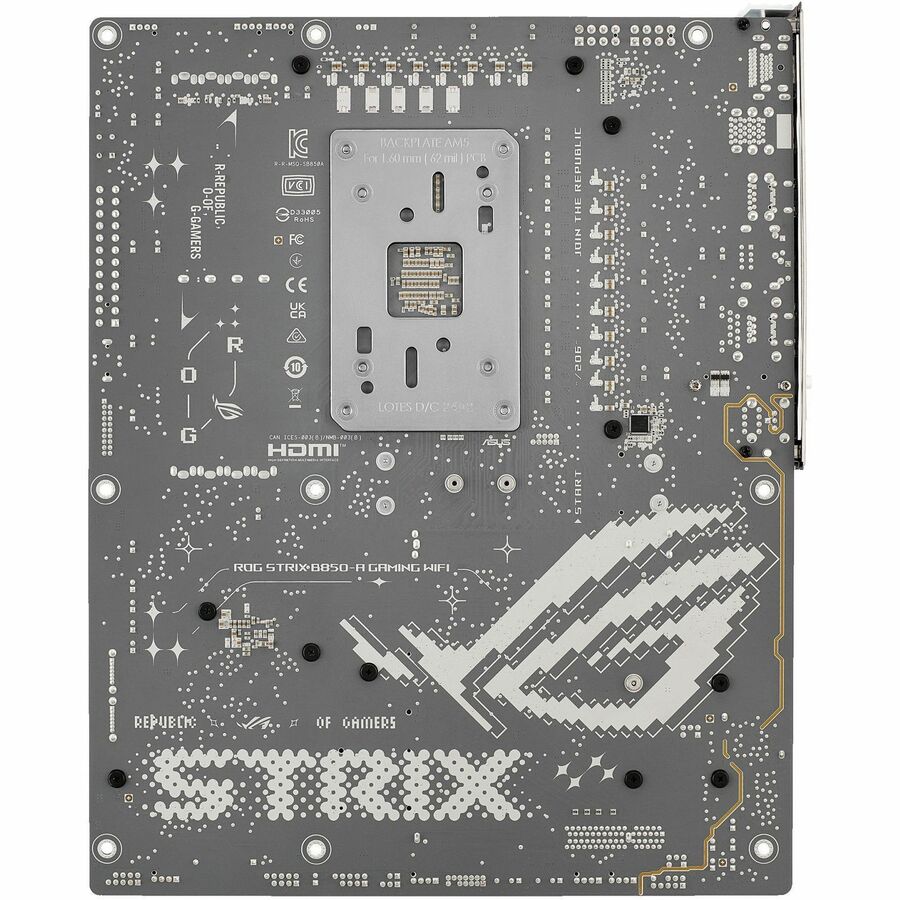

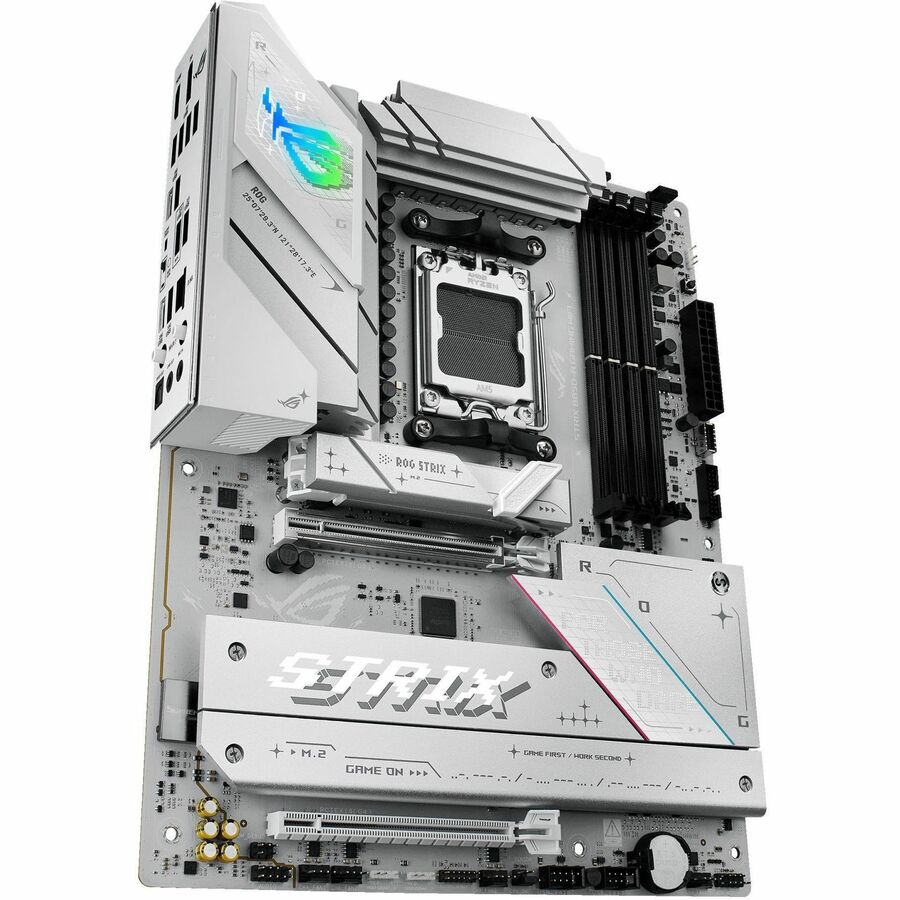

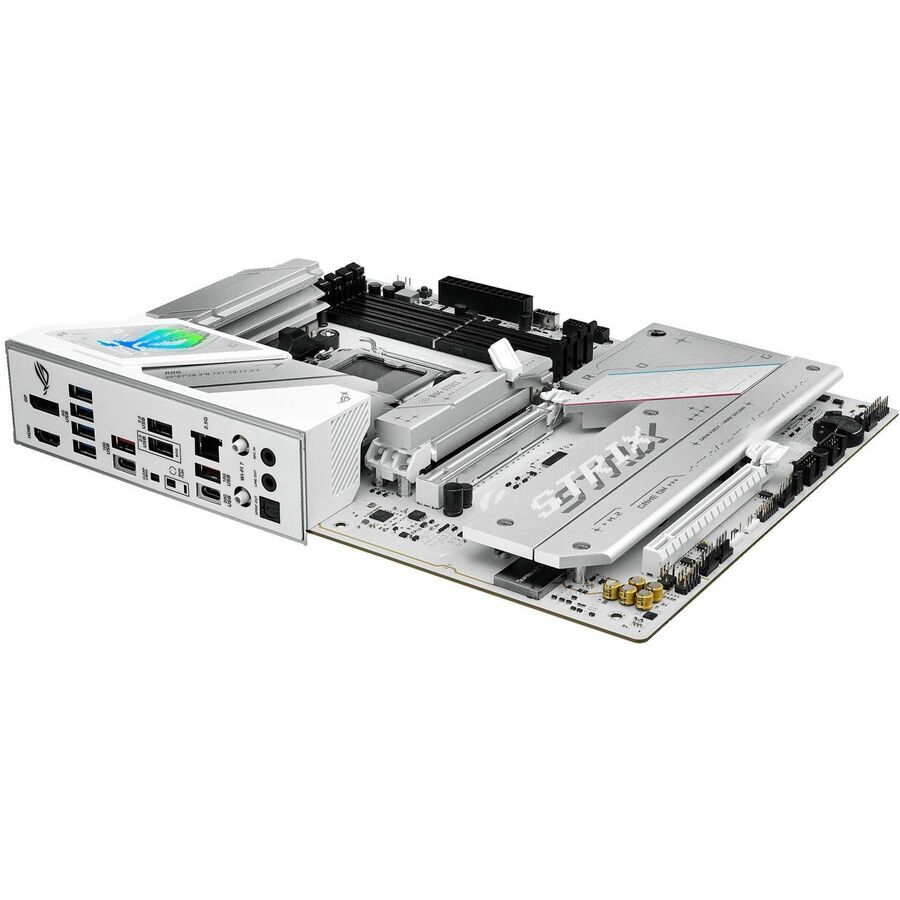

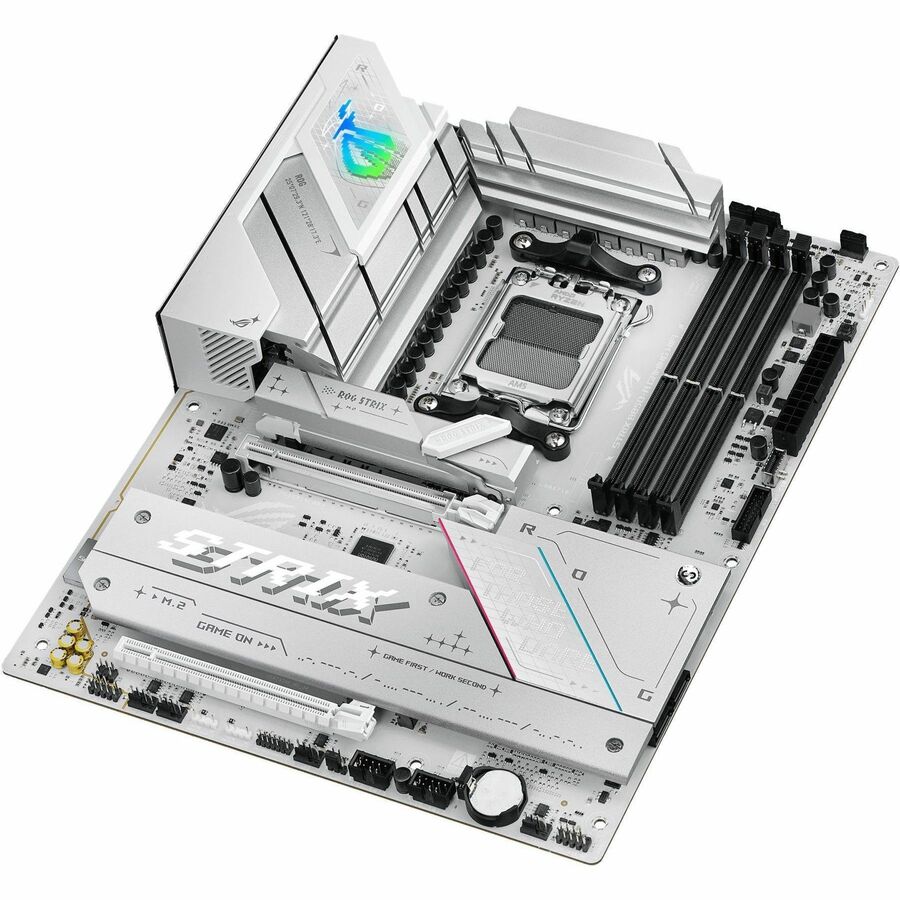

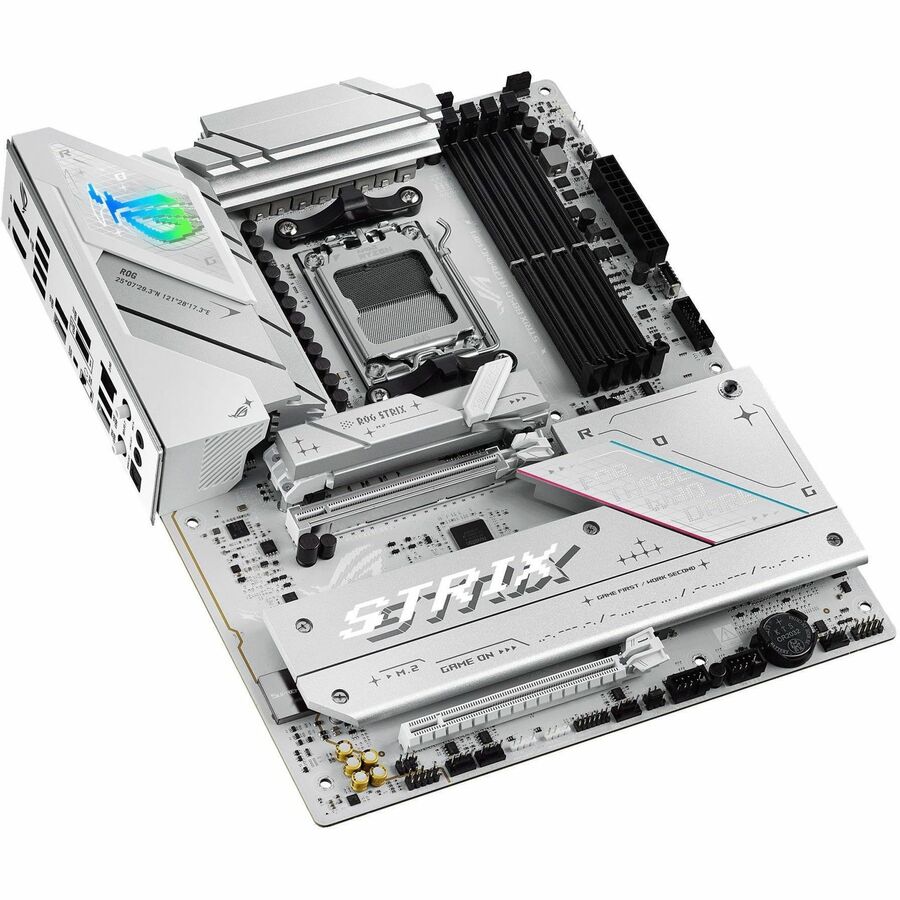

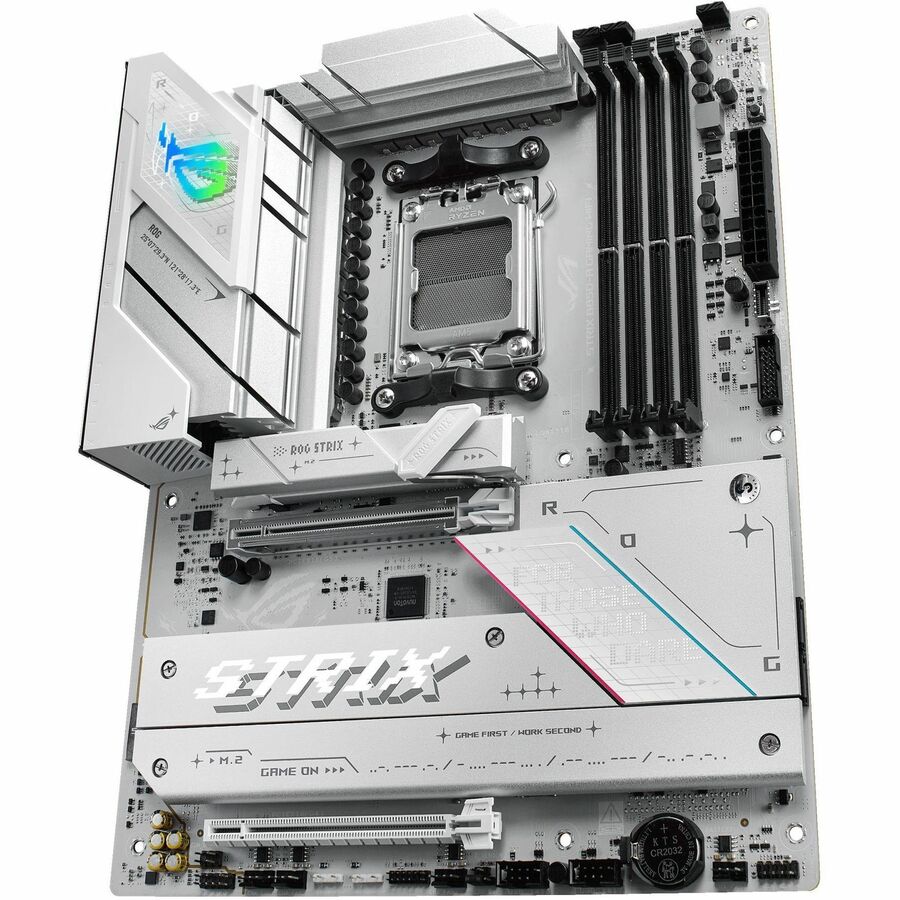

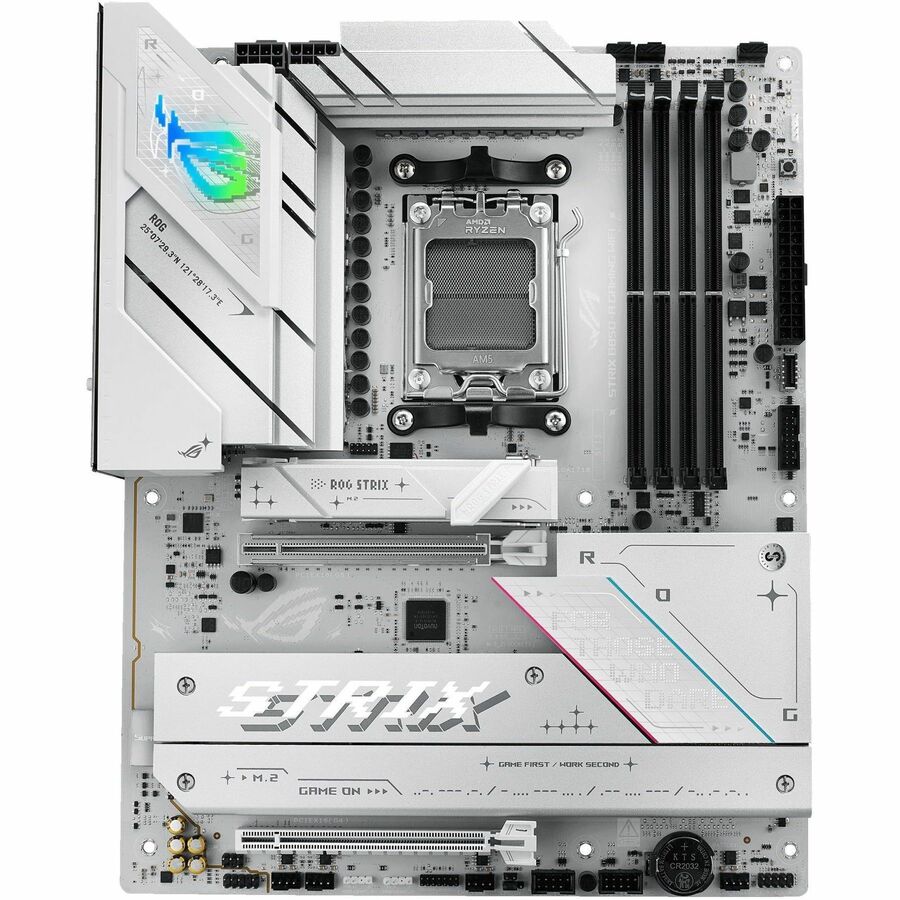

ROG STRIX B850-A GAMING WIFI
AMD B850 ATX motherboard with 14+2+2 power stages, DDR5 support with AEMP, WiFi 7 with ASUS WiFi Q-Antenna, four M.2 slots, PCIe®5.0 x16 SafeSlots with PCIe Slot Q-Release Slim, USB 20Gbps Type-C®, USB
10Gbps Type-C®, ASUS AI Advisor, AI Networking II, and Aura Sync RGB lighting.
- Ready for Advanced AI PCs:Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AMD AM5 Socket: Ready for AMD Ryzen™ 9000, 8000 and 7000 series desktop processors
- Intelligent Control:ASUS AI Advisor, AI Networking II and AEMP to simplify setup and improve performance
- Robust Power Solution: 14+2+2 power solution rated for 80A per stage with an 8+8-pin ProCool power connector, high-quality alloy chokes, and durable capacitors to support multi-core processors
- Optimized Thermal Design: Massive heatsinks bridged to the VRMs with high-conductivity thermal pads and an integrated I/O cover
- Latest M.2 Support:One onboard PCIe®5.0 M.2 slot and three PCIe 4.0 M.2 slots, all with substantial cooling solutions

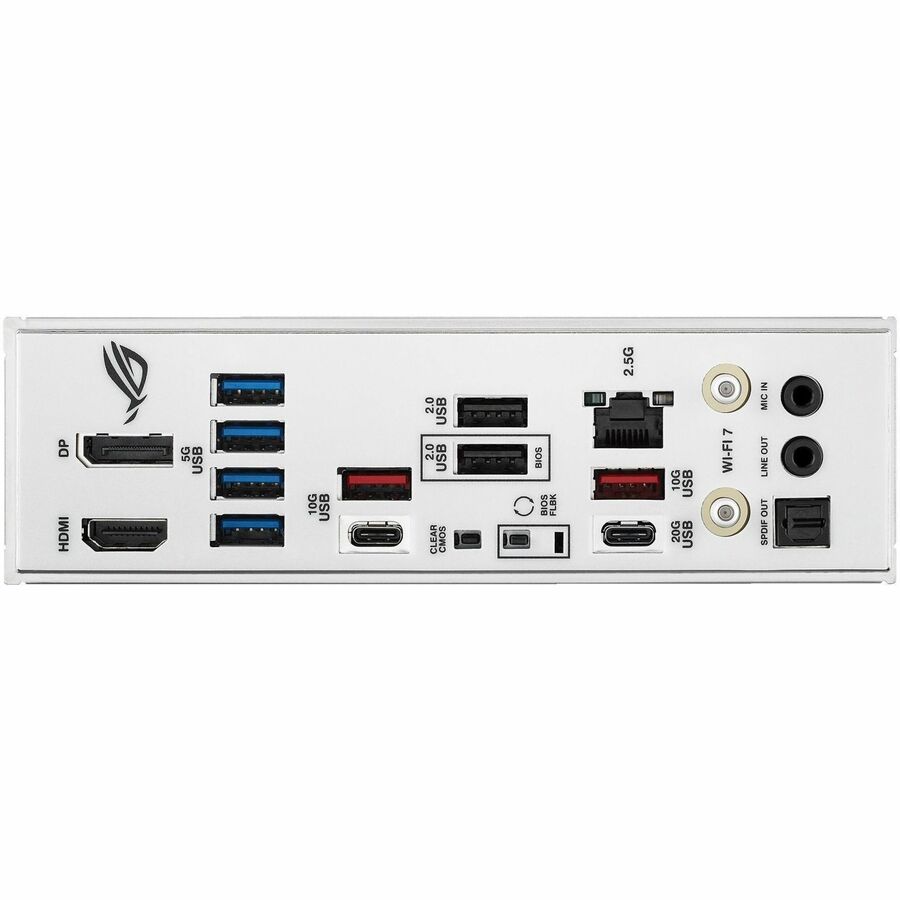

- Abundant Connectivity: USB 20Gbps Type-C®, USB 10Gbps Type-C®, USB 10Gbps Type-C®front-panel connector, six additional USB 5Gbps ports, PCIe 5.0 x16 SafeSlots, HDMI™ port and DisplayPort port
- High-Performance Networking: On-board WiFi 7 (802.11be) with Intel 2.5 Gb Ethernet
- DIY Friendly Design:PCIe Slot Q-Release Slim, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, Q-Dashboard, Q-LED, BIOS FlashBack™ button, Clear CMOS button and pre-mounted I/O shield
- Immersive Audio: ROG SupremeFX ALC4080 codec with Savitech SV3H712 amplifier, along with Dolby Atmos®
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including three addressable Gen 2 headers
- Renowned Software:ASUS DriverHub, TurboV Core, ASUS GlideX, HWiNFO, Norton 360 for Gamers (60-day free trial), bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard
ASUS AI INTELLIGENCE | ASUS AI ADVISOR
Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
Main Specification
| General Information | |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | ROGSTRIX B850-AGAMINGWIFI |
| Manufacturer Website Address | http://usa.asus.com |
| Brand Name | Asus ROG |
| Product Line | Strix |
| Product Model | B850-A GAMING WIFI |
| Product Name | Strix B850-A GAMING WIFI Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| Technical Information | |
| AI-powered | Yes |
| Processor & Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | B850 |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM5 |
| Processor Supported | Ryzen 7 |
| Processor Supported | Ryzen 8 |
| Processor Supported | Ryzen 9 |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM |
| Memory Form Factor | UDIMM |
| Maximum Memory Supported | 192 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Speed Supported | 8000 MHz |
| Error Checking | ECC |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 5 |
| RAID Levels | 10 |
| RAID Levels | 0 |
| RAID Levels | 1 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.4 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11be |
| I/O Expansions | |
| Total Number of Expansion Slots | 3 |
| PCI Express Standard | PCI Express 5.0 |
| PCI Express Standard | PCI Express 4.0 |
| Total Number of PCI Express Slots | 3 |
| Number of PCI Express x16 Slots | 3 |
| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| S/PDIF | Yes |
| VGA | Yes |
| HDMI | Yes |
| HDMI Version | 2.1 |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Thunderbolt | Yes |
| Number of Thunderbolt 4 Ports | 2 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 2 |
| Number of M.2 Interfaces | 4 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" |
| Depth | 9.6" |
| Miscellaneous | |

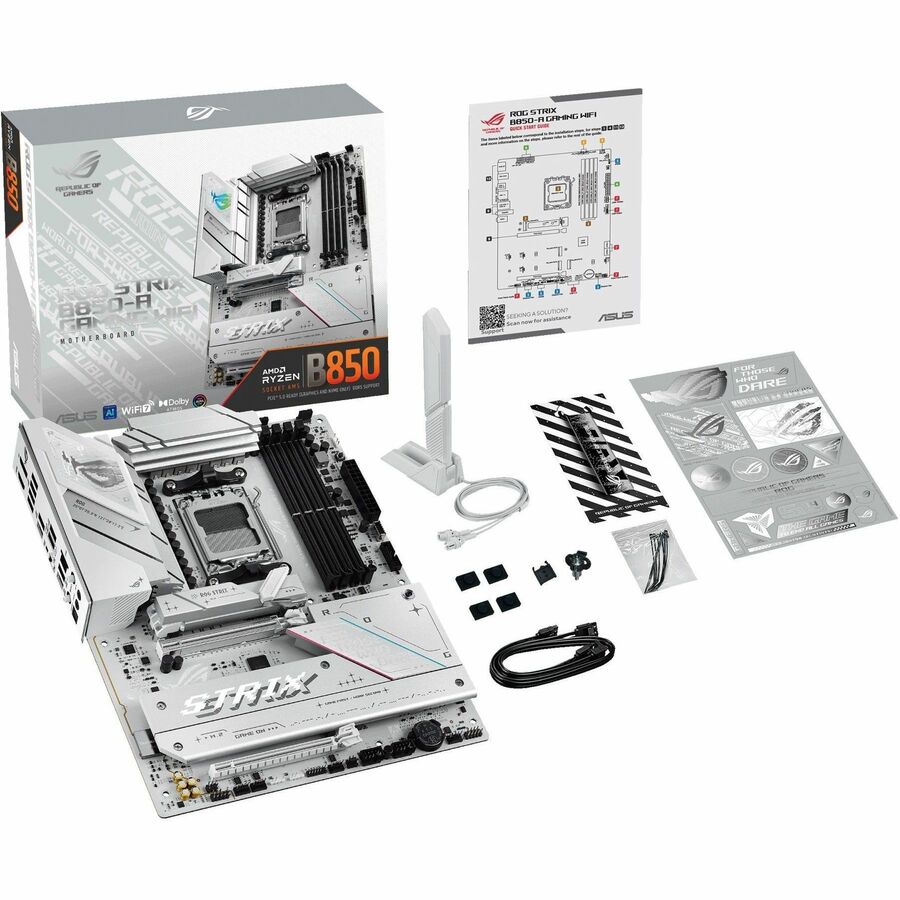

| Package Contents |
|
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Environmental Compliance | Taiwan Restriction of Hazardous Substances (Taiwan RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
