STARTECH
STARTECH PEXUSB314A2V2 USB A 3.2 GEN2 PCIE CARD 10GBPS PCI EXPRESS X4 *** Open Box Item ***
Mfg Part Number: PEXUSB314A2V2 , Item #: 5243796
, PO and Wire.

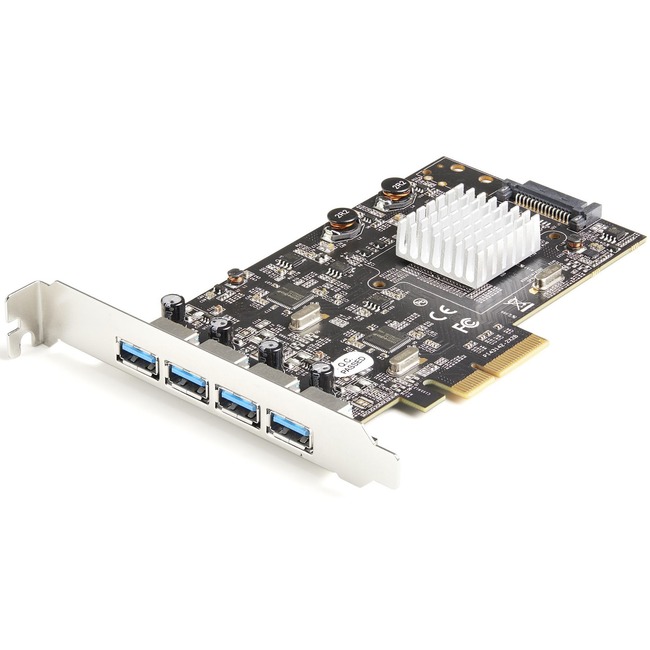

This PCIe USB 3.2 Gen 2 controller card installs into an available PCI-Express x4 slot in your computer and enables you to upgrade your current system by adding four SuperSpeed USB-A (10Gbps) ports. The card features dual ASM3142 controllers with up to 20 Gbps of total bandwidth shared across all 4 ports.
The controller card enables you to connect four USB-A Gen 2 (10 Gbps) devices to your desktop computer. The USB-A ports are ideal for connecting USB devices such as external hard drives and solid state drives or powering and syncing your mobile devices. The USB-A ports provides up to 4.5W (5V/0.9A) of power per USB port, and are backward compatible with USB 3.2 Gen 1 (5 Gbps), and USB 2.0 (480 Mbsp) devices.
Note: USB 3.2 Gen 2 (10 Gbps) is also know as USB 3.1 Gen 2 (10 Gbps), and USB 3.2 Gen 1 (5 Gbps) is also know as USB 3.1 Gen 1 and USB 3.0 (5 Gbps).
The USB 3.2 Gen 2 card features dual ASMedia ASM3142 host controllers that utilizes x4 lanes of the PCIe 2.0 bus, making the card capable of speeds up to 10 Gbps on each port, and enabling fast access to high-performance devices like NVMe drives and SSDs. The controller cards support Multiple INs to reduce bandwidth loss when multiple devices are connected, even when connected through a USB Hub (Note: The USB hub must also support this feature). The card also supports UASP for improved performance with storage devices.
This add-on card includes a full-profile installation bracket ensuring you can install it into full-profile PCIe 2.0 x4 slots. For wide platform support the card is compatible with Windows, Linux and macOS. For hassle-free installation the drivers install automatically on computers running Windows 8 or higher. Works w/USB 3.2/3.0/2.0 devices
PEXUSB314A2V2 is backed by a StarTech.com lifetime warranty and free 24/5 multi-lingual North American based technical support. StarTech.com has been the IT professionals' choice for over 30 years.
More from the Manufacturer
| General Information | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | PEXUSB314A2V2 |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | USB Adapter |
| Packaged Quantity | 1 |
| Product Type | USB Adapter |
| Technical Information | |
| Host Interface | PCI Express x4 |
| Media & Performance | |
| UASP Support | Yes |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 3.2 Ports | 4 |
| Number of SATA Ports | 1 |
| Software | |
| Operating System Supported | Linux 3.5 |
| Operating System Supported | Mac OS X 12.0 Monterey |
| Operating System Supported | Mac OS X 13.0 Ventura |
| Operating System Supported | Windows Server 2016 |
| Operating System Supported | Windows Server 2019 |
| Operating System Supported | Windows 11 |
| Operating System Supported | Windows 7 |
| Operating System Supported | Mac OS X 10.13 High Sierra |
| Operating System Supported | Windows 10 |
| Operating System Supported | Mac OS X 11.0 Big Sur |
| Operating System Supported | Mac OS X 10.15 Catalina |
| Operating System Supported | Windows Server 2012 R2 |
| Operating System Supported | Windows 8.1 |
| Operating System Supported | Windows 8 |
| Operating System Supported | Mac OS X 10.14 Mojave |
| Operating System Supported | Windows Server 2022 |
| Physical Characteristics | |
| Product Color | Black |
| Form Factor | Plug-in Card |
| Height | 0.7" |
| Width | 5.9" |
| Length | 4.7" |
| Weight (Approximate) | 4.40 oz |
| Miscellaneous | |
| Package Contents |
|
| Additional Information | OS Compatibility:
|
| Platform Supported | PC |
| Platform Supported | Mac |
| Platform Supported | Linux |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | Lifetime |
