REDUCED TO THE MAX
Classic appearance

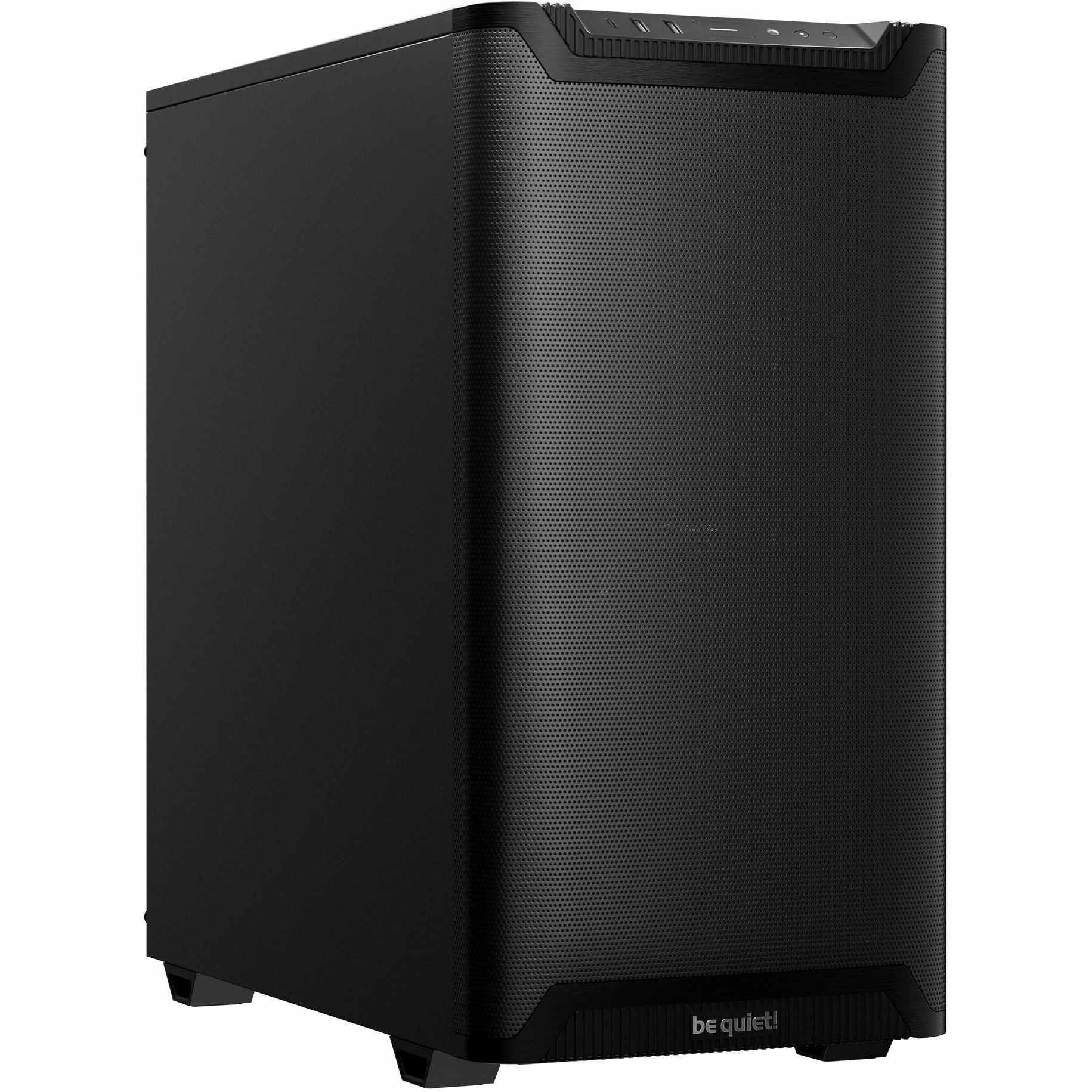

Without any distractions, Pure Base 501 Airflow Black is reduced to excel at its core functions and is aimed at users that appreciate an unagitated presentation.
PERFECT CASE FAN
Fan blades optimized for high airflow

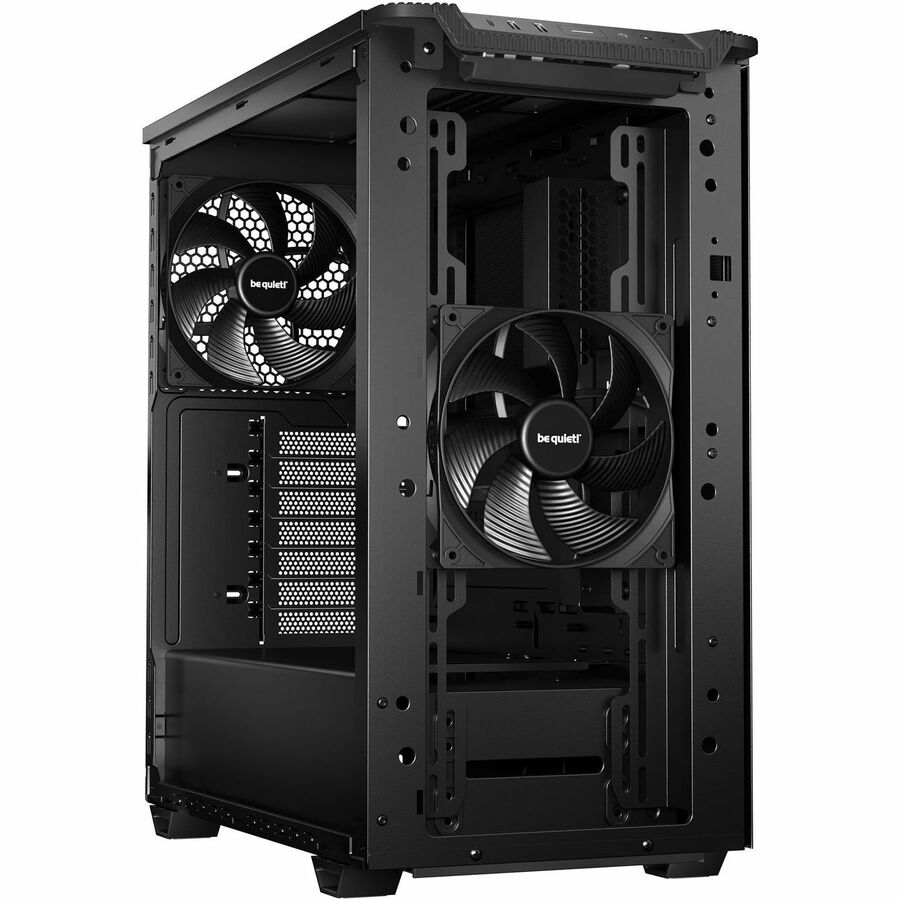

With optimization for maximum airflow, Pure Wings 3 140mm PWM is the perfect choice for Pure Base 501 Airflow Black. Its 7 airflow-optimized fan blades not only reduce noise-generating turbulences but also ensure Pure Wings 3 140mm PWM provides the performance that is needed for demanding configurations.
MORE THAN MEETS THE EYE
Generous space for high-end hardware

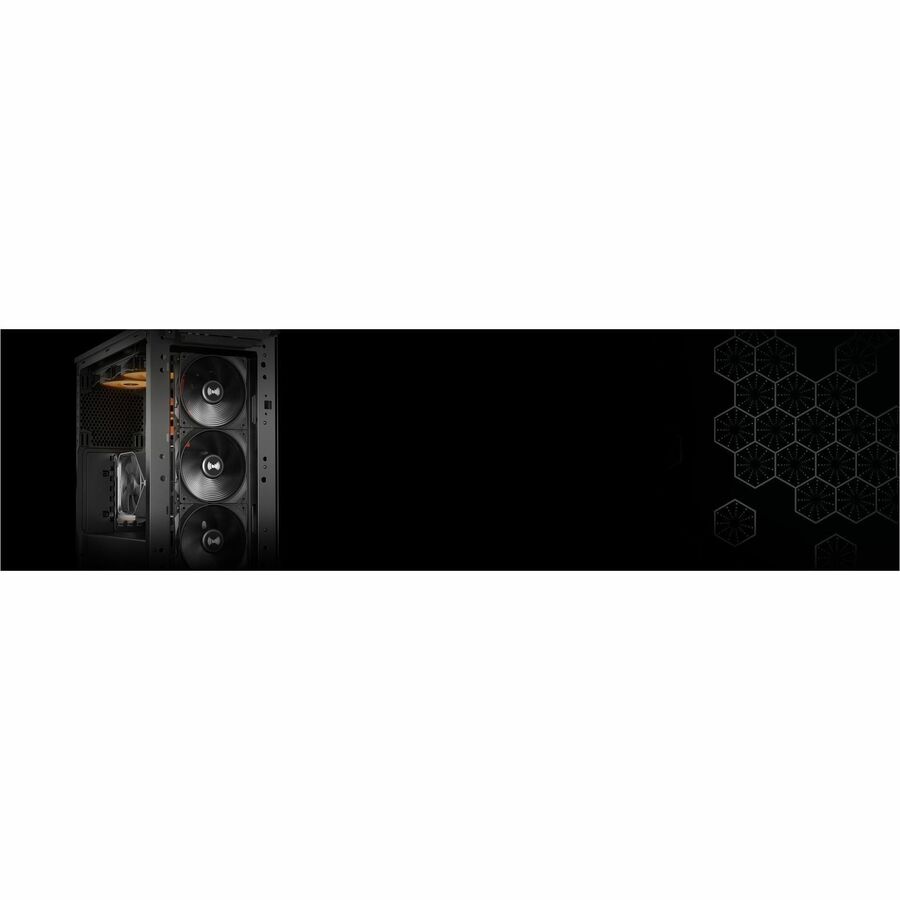

Despite its compact dimensions, Pure Base 501 Airflow Black offers enough space for high-end graphics cards and large coolers. Triple fans or a radiator up to 360mm can be installed easily at the front, while the top area provides space for up to 2 fans or a radiator up to 240mm.

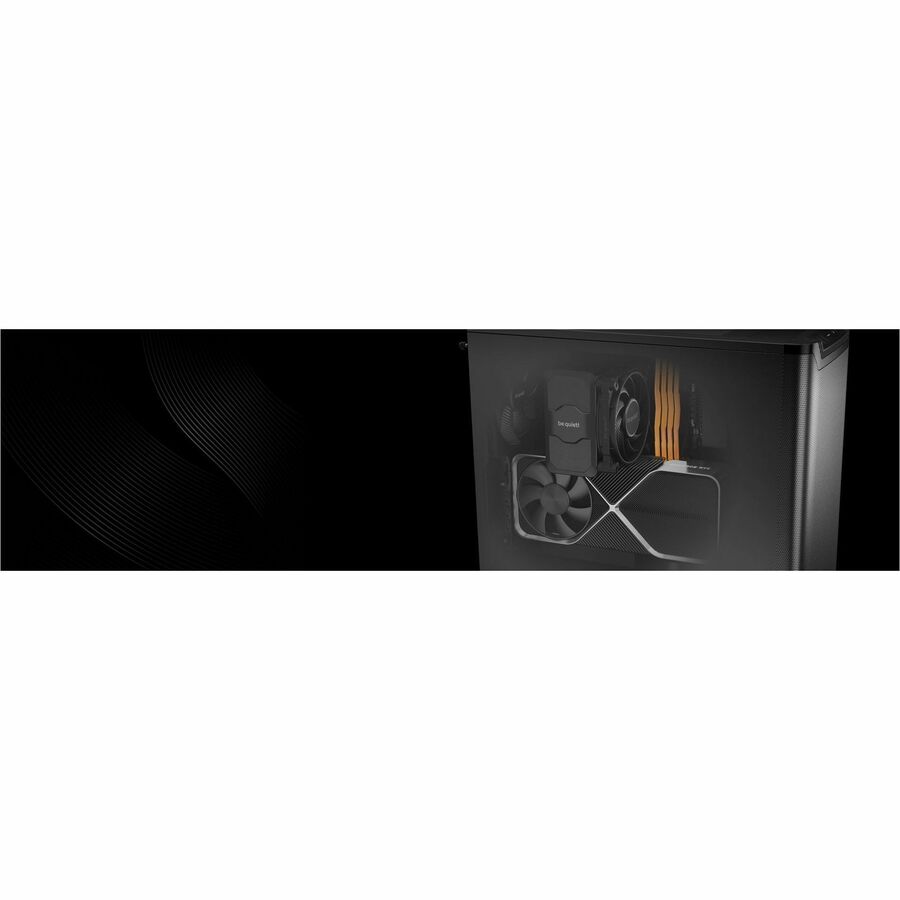

WAY UP!
With rotatable PCIe slots

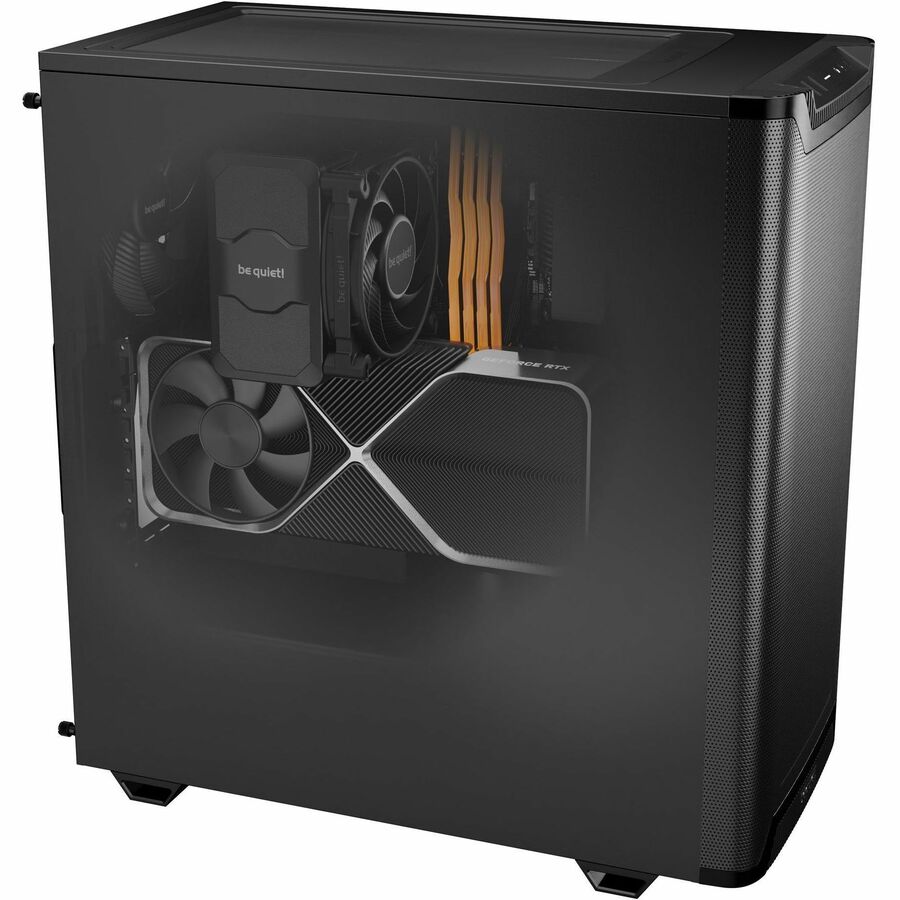

Why not try something else with your GPU? The PCIe slots of the Pure Base 501 Airflow Black can be rotated 90° for an upright installation of wide high-end graphics cards. The spacing is perfect for the optional be quiet! Riser Cable, whose foam base provides excellent anti-sag support for graphics cards in vertical orientation.
INVENTORY MANAGEMENT
With smart cable routing options
As a compact PC case, Pure Base 501 Airflow Black optimally uses the offered space. Thanks to cleverly integrated cable routing options, it makes cable management a breeze.

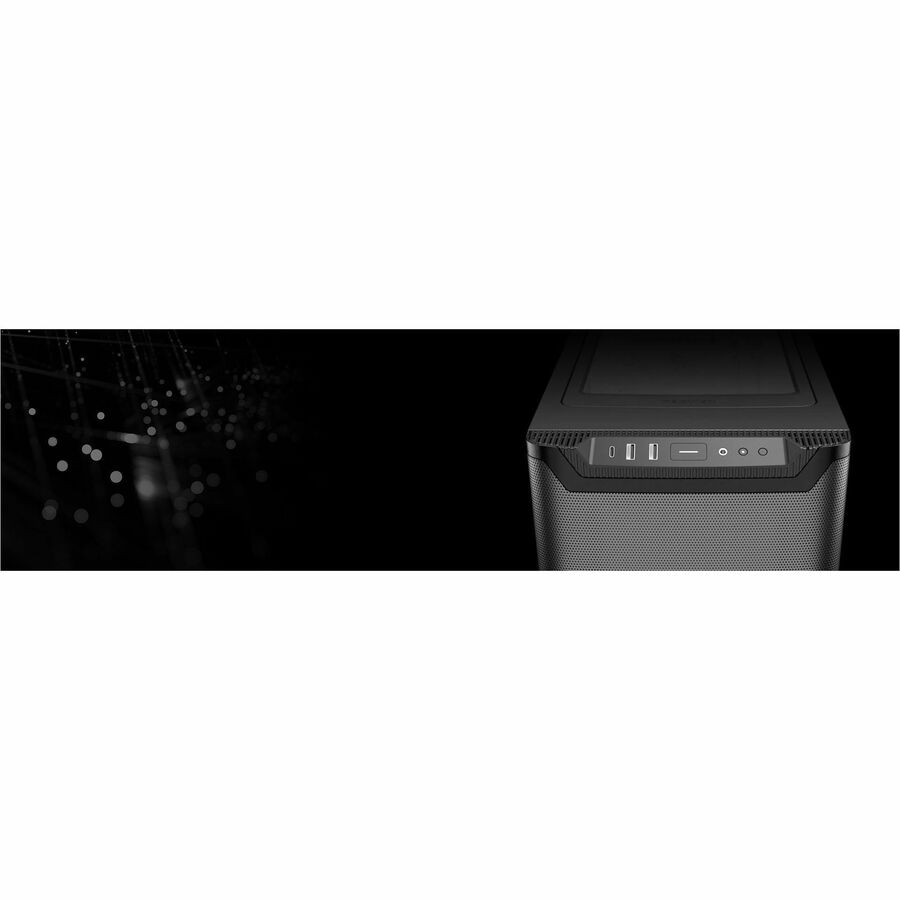

CONNECT WITH ME
State-of-the-art technology for your system

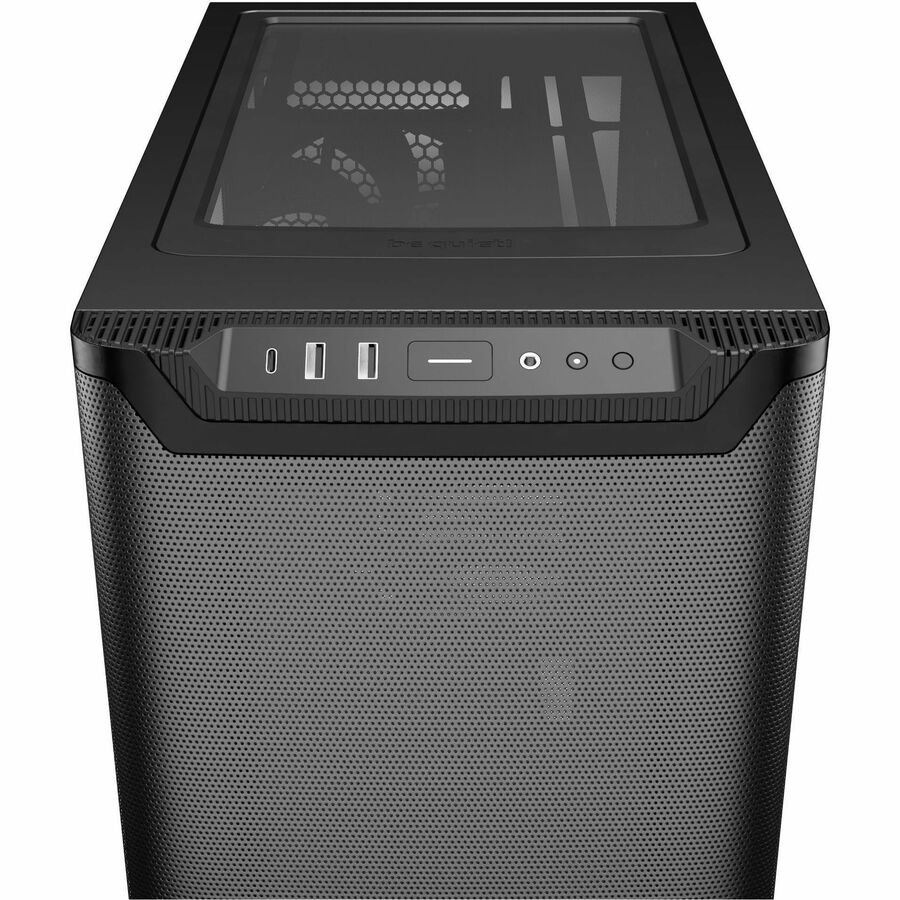

A USB 3.2 Gen. 2 Type C connector and 2 Type A ports on the front I/O port for fast and easy connectivity.
General Information | |
Manufacturer | Listan GmbH & Co. |
Manufacturer Part Number | BG074 |
Manufacturer Website Address | http://www.listan.de |
Brand Name | be quiet! |
Product Line | Pure Base 501 |
Product Model | Pure Base 501 Airflow Black |
Product Name | Pure Base 501 Airflow Black |
Packaged Quantity | 1 |
Product Type | Computer Case |
Technical Information | |
Motherboard Supported | Micro ATX |
Motherboard Supported | ATX |
Motherboard Supported | Mini ATX |
Number of Fans Supported | 5 |
Number of Fans Installed | 2 |
Fan Size Supported | 5.51" |
Fan Size Supported | 4.72" |
Installed Fan Size | 5.51" |
Installed Fan Size Details | 2 x 140mm |
Features | Cable Management |
Features | Dust Filter |
Bays | |
Number of Internal 3.5" Bays | 2 |
Number of Internal 2.5" Bays | 5 |
I/O Expansions | |
Total Number of Expansion Slots | 7 |
Interfaces/Ports | |
Total Number of USB Ports | 3 |
USB Port Details | 1 x USB 3.2 Gen 2 Type C |
USB Port Details | 2 x USB 3.2 Type-A |
Front USB | Yes |
Microphone | Yes |
Physical Characteristics | |
Color Family | Black |
Product Color | Black |
Product Material | Steel |
Product Material | Acrylonitrile Butadiene Styrene (ABS) |
Cooler Type | Fan/Liquid Cooler |
Form Factor | Midi Tower |
Maximum CPU Cooler Height | 7.01" |
Maximum PSU Length | 7.09" |
Maximum GPU Length | 14.49" |
Height | 18.2" |
Width | 9.1" |
Depth | 17.7" |
Weight (Approximate) | 15.87 lb |
