SIMPLY NUC
SIMPLY NUC 916-U0HG-005 ONYX PRO V9 (NUC24OXGV9), 32GB MEM, 256GB PCIE GEN 4 M.2 SSD, 256GB PCIE GEN 4 M
Mfg Part Number: 916-U0HG-005 , Item #: 5242386
, PO and Wire.
VERSATILE MINI WORKSTATION
The Onyx Pro provides a Mini Workstation powered by the Intel Core i9 vPRO "Raptor Lake" 13900H CPU, Intel IRIS Xe™ integrated graphics and optional graphics cards (Nvidia T1000, Radeon Pro WX3200 and Intel Arc A40) within a compact form factor. Utilizing the low profile PCIe x 16 slot enables many customer applications such as video-capture, AI, CAD Design, Complex Modeling, Large Database Analysis and Simulation just to name a few. If additional storage or I/O is desired you can take advantage of the one M.2 / 2280 PCIe Gen4 slot, two M.2 / 2280 PCIe Gen3 slots and multiple connectivity options including HDMI 2.0, two USB4 Type-C/Alt DP, three USB 3.2 Type-A and two USB2.0 Type-A ports.
AI-READY POWER FOR VERSATILE APPLICATIONS
Whether it's addressing performance-intensive tasks, diving into AI inferencing with support of both software and hardware acceleration, engaging in machine learning, being used as a powerful Mini Workstation or conducting data analysis, the Onyx Pro seamlessly handles a variety of applications. The harmonious collaboration between the Intel Core i9 vPRO "Raptor Lake" CPU, Intel IRIS Xe™ integrated graphics and nVidia GPUs makes complex modeling, 3D design, and large database analysis effortlessly achievable. Support for quad 4K monitors running at up to 60Hz ensures a visually stunning experience for multitasking, excelling in E-CAD / M-CAD design, modeling, and simulation.
ADVANCED NETWORKING

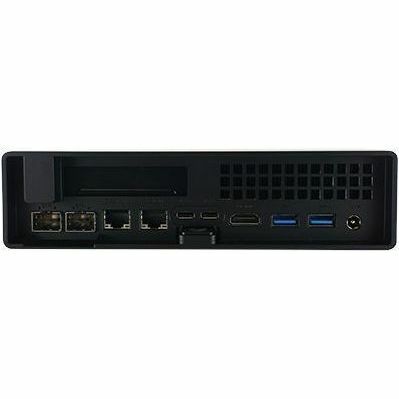

Experience the advanced network capabilities available in the Onyx Pro with (x2) 10GbE SFP+ fiber ports and two 2.5GbE ports to support your high throughput and integrated router needs. SFP+ enables fiber, video-in and R45 connections. Additionally a low profile Networking PCIe card could be added to provide an additional 3 extra ports or for advanced networking supporting a security device. Transform your computing journey with the Onyx Pro - embrace innovation, harness unparalleled power and networking, and pioneer the next generation of workstation platform computing.
| General Information | |
| Manufacturer | SimplyNUC |
| Manufacturer Part Number | 916-U0HG-005 |
| Manufacturer Website Address | http://www.simplynuc.co.uk |
| Brand Name | SimplyNUC |
| Product Line | Onyx Pro |
| Product Model | NUC24OXGv9 |
| Product Name | Onyx Pro NUC24OXGv9 Desktop Computer |
| Product Type | Desktop Computer |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Core i9 |
| Processor Generation | 13th Gen |
| Processor Model | i9-13900H |
| Processor Core | Tetradeca-core (14 Core) |
| Maximum Turbo Speed | 5.40 GHz |
| Processor Threads | 20 |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 96 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Speed | 5600 MHz |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 256 GB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| SSD Form Factor | M.2 |
| Display & Graphics | |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | Iris Xe Graphics |
| Graphics Memory Technology | DDR5 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| LAN Manufacturer | Intel |
| LAN Model | i226-LM |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth | Yes |
| Interfaces/Ports | |
| HDMI (Rear) | Yes |
| Total Number of USB Ports | 7 |
| Number of USB 2.0 Ports (Front) | 2 |
| Number of USB4 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 3 |
| Number Of Ethernet Ports | 2 |
| Power Description | |
| Maximum Power Supply Wattage | 180 W |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Business |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 1 Year |
