Auto DDR5 Memory Boost
With just a single click, unleash the full potential of DDR5 memory, instantly boosting your gaming and work efficiency.
One-Click Acceleration:
Enhance DDR5 speeds with a single click.
Real time Analyze
OC accuracy UP
EZ to Pro
- Enhanced Computing Power
- Fast AI Performance
- EZ to Peak
- Safe OC
- Less Power Usage
DDR5 Zenith-Memory Zenith of the Memory
AORUS gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
Top-tier Compatibility
DDR5 Overclocking Up to
8000 MT/s
Exclusive BIOS Design
Advanced BIOS functionality provides seamless optimization of industry-leading DDR5 memory performance.
AMD EXPO™ Settings
Optimize memory with AMD's user-friendly profiles.
AMD EXPO™ User Profile
Boost Performance: Get the most out of your system's memory.
Unmatched Hardware Excellence
Elevate your gaming with our state-of-the-art technology for a superior experience.
- Shielded Memory Routing
- Daisy-Chained Routing
- 6-Layer Server-Grade PCB

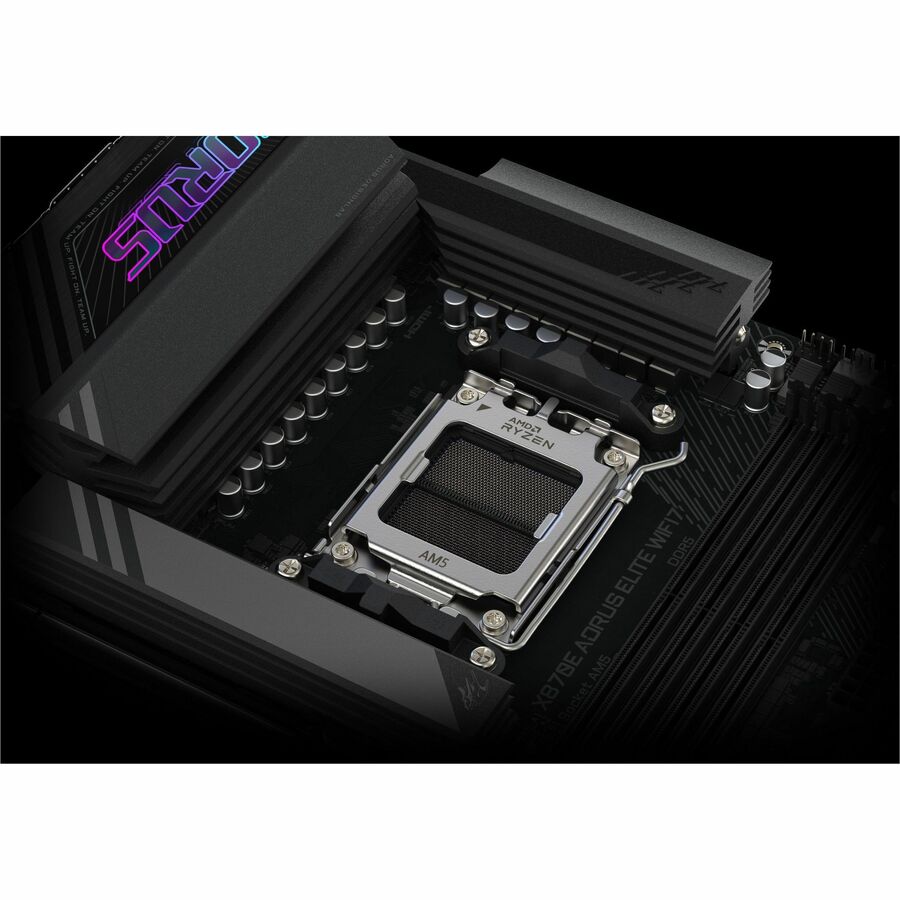

Sturdy VRM Design Steady Power
Better Play AORUS Series, steady power keeps your gaming smooth.
Digital Twin VRM Design
Delivers consistent, high-powered performance to elevate your overclocking to the next level.
16 VCORE Phases DrMOS 60A
Unlock the full power of your multi-core CPU for unmatched performance.
2 SOC Phases DrMOS 60A
Optimized for integrated GPU performance and memory management within the CPU.
2 MISC Phases Ppak
Deliver reliable power to your CPU-connected PCIe lanes for uninterrupted performance.
Cooling Comprehensive Thermal
AORUS motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.

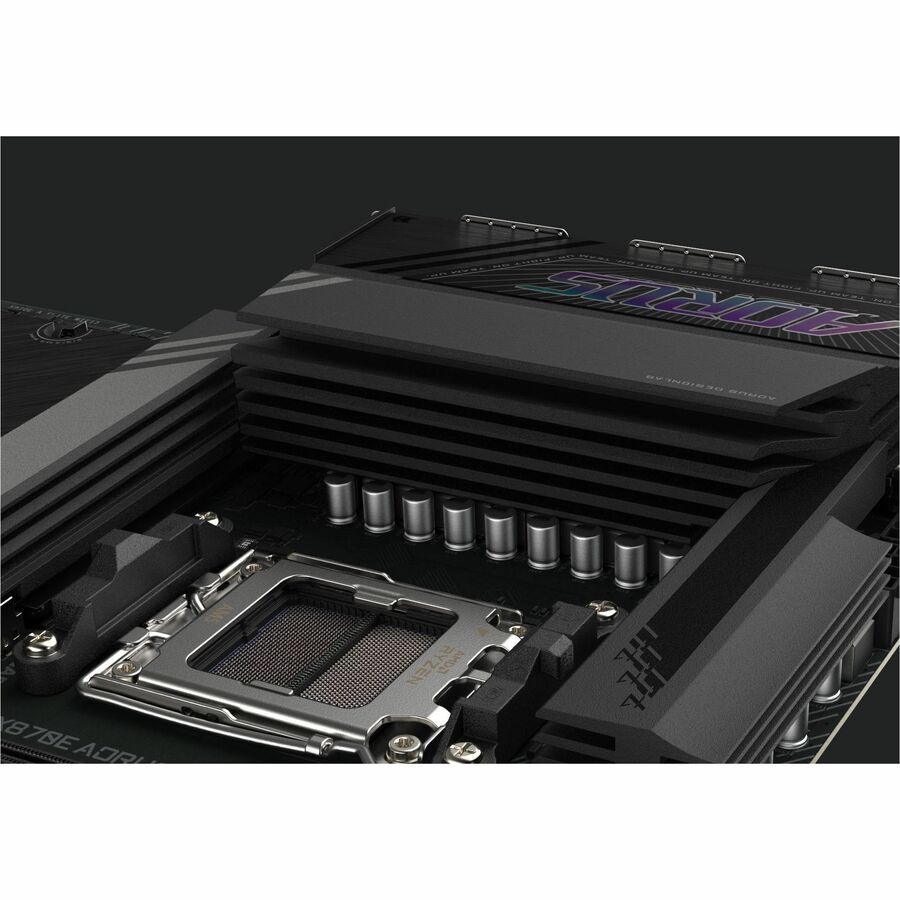

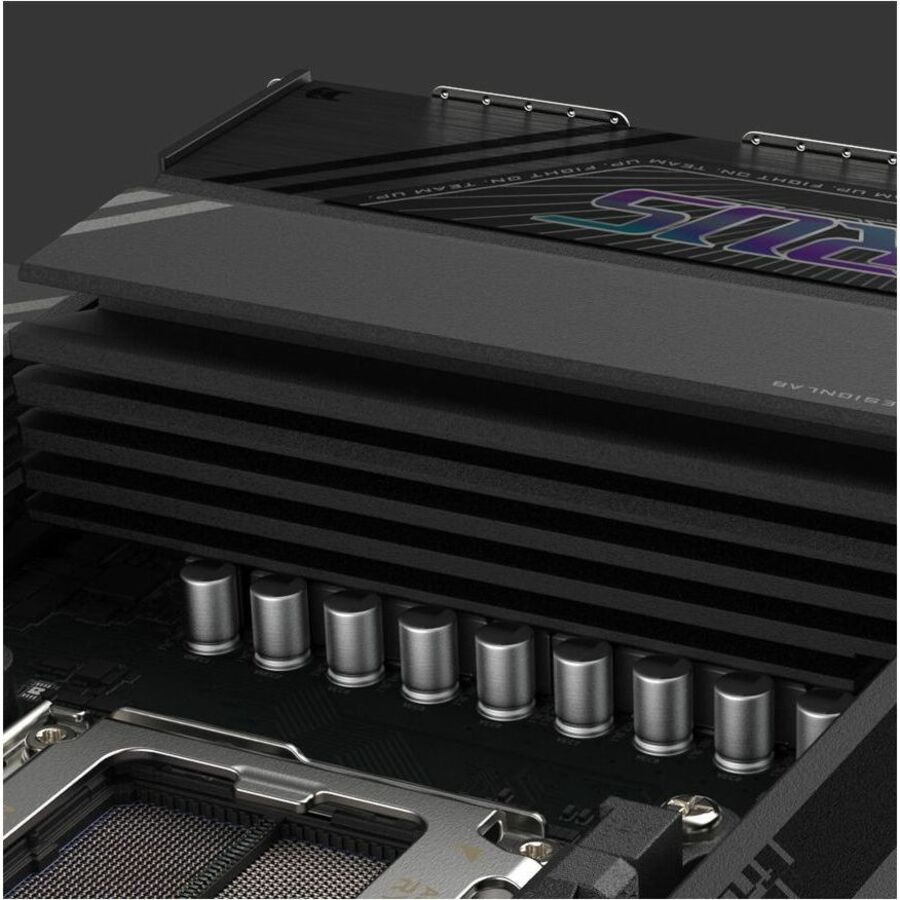

VRM Thermal Armor Fins-Array
These solid heatsinks are forged to keep your system cool.
4X
more surface area
Small Vents, Big Cooling Power
Up To
7°C
lower temperature
M.2 Thermal Guard L
with M.2 Thermal Guard Backplate
6x
optimized heat dissipation
M.2 Thermal Guard Ext.
with M.2 Thermal Guard Backplate
4x
M.2 slots coverage
| General Information | |
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | X870E A ELITE WIFI7 |
| Manufacturer Website Address | http://www.gigabyte.us |
| Brand Name | Aorus |
| Product Line | Ultra Durable |
| Product Model | X870E AORUS ELITE WIFI7 |

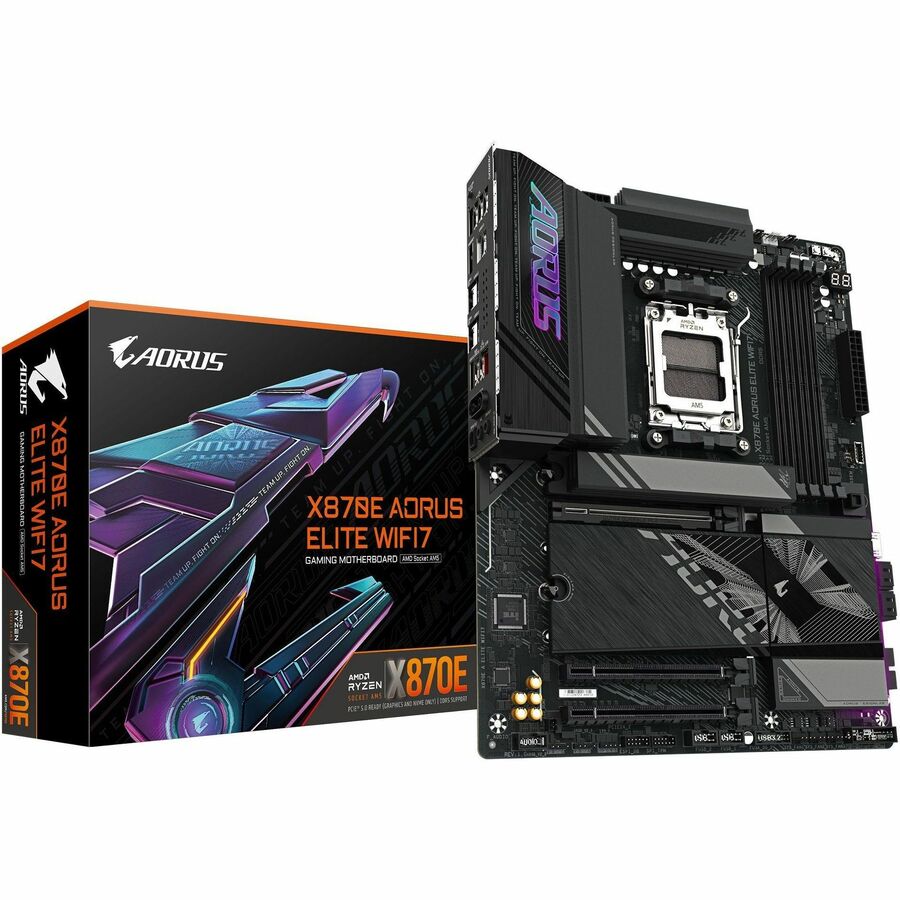

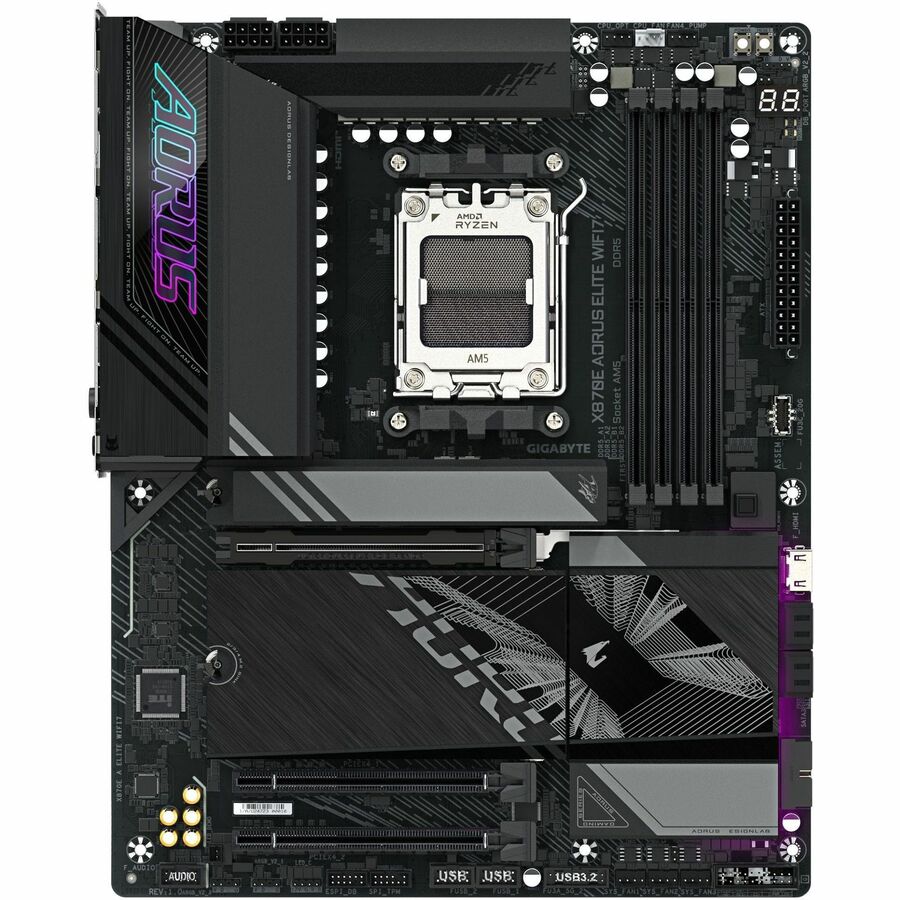

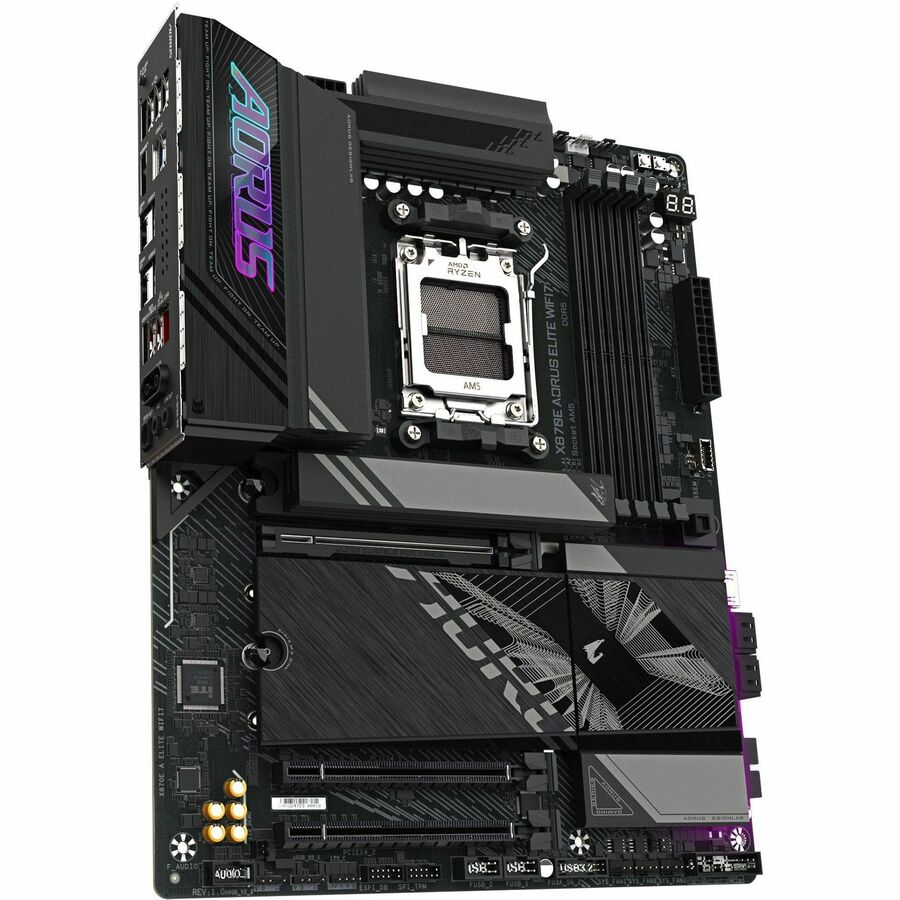

| Product Name | Ultra Durable X870E AORUS ELITE WIFI7 Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| Technical Information | |
| AI-powered | Yes |
| Processor & Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | X870E |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM5 |
| Processor Supported | Ryzen 5 |
| Processor Supported | Ryzen 9 |
| Processor Supported | Ryzen 7 |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM |
| Memory Form Factor | UDIMM |
| Maximum Memory Supported | 256 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Speed Supported | 4800 MHz |
| Memory Speed Supported | 6600 MHz |
| Memory Speed Supported | 6666 MHz |
| Memory Speed Supported | 8000 MHz |
| Memory Speed Supported | 6000 MHz |
| Memory Speed Supported | 7000 MHz |
| Memory Speed Supported | 7600 MHz |
| Memory Speed Supported | 7800 MHz |
| Memory Speed Supported | 6800 MHz |
| Memory Speed Supported | 4400 MHz |
| Memory Speed Supported | 6200 MHz |
| Memory Speed Supported | 6400 MHz |
| Memory Speed Supported | 5200 MHz |
| Memory Speed Supported | 7200 MHz |
| Memory Speed Supported | 5600 MHz |
| Error Checking | ECC |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 10 |
| RAID Levels | 0 |
| RAID Levels | 1 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Graphics Controller Manufacturer | AMD |
| Graphics Controller Model | Radeon Graphics |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.4 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| I/O Expansions | |
| Total Number of Expansion Slots | 3 |
| PCI Express Standard | PCI Express 3.0 |
| PCI Express Standard | PCI Express 4.0 |
| PCI Express Standard | PCI Express 5.0 |
| Total Number of PCI Express Slots | 3 |
| Number of PCI Express x16 Slots | 3 |

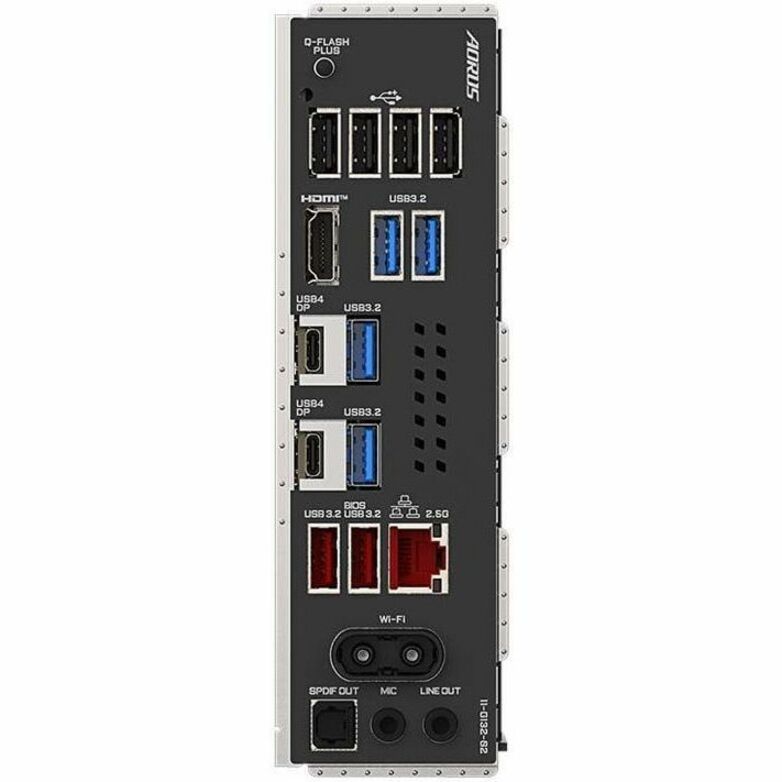

| Interfaces/Ports | |
| Total Number of USB Ports | 12 |
| Number of USB 2.0 Ports | 4 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Number of USB 3.2 Gen 2 Type-A Ports | 2 |
| S/PDIF | Yes |
| HDMI | Yes |
| HDMI Version | 2.1 |
| HDMI Version | 1.4 |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 4 |
| Total Number of Onboard USB Ports | 9 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" |
| Depth | 9.6" |
| Miscellaneous | |
| Brand Compatibility | AMD |
