ASUS
ASUS MB PRO WS Z890-ACE SE Z890 LGA1851 Max192GB DDR5 ATX Brown Box
Mfg Part Number: PRO WS Z890-ACE SE , Item #: 5241842
Image may not reflect the actual item.
Price: $648.39
Quantity:
In Stock: 78
Last Updated: May 08, 2025
No Sales Tax except these states
, PO and Wire.

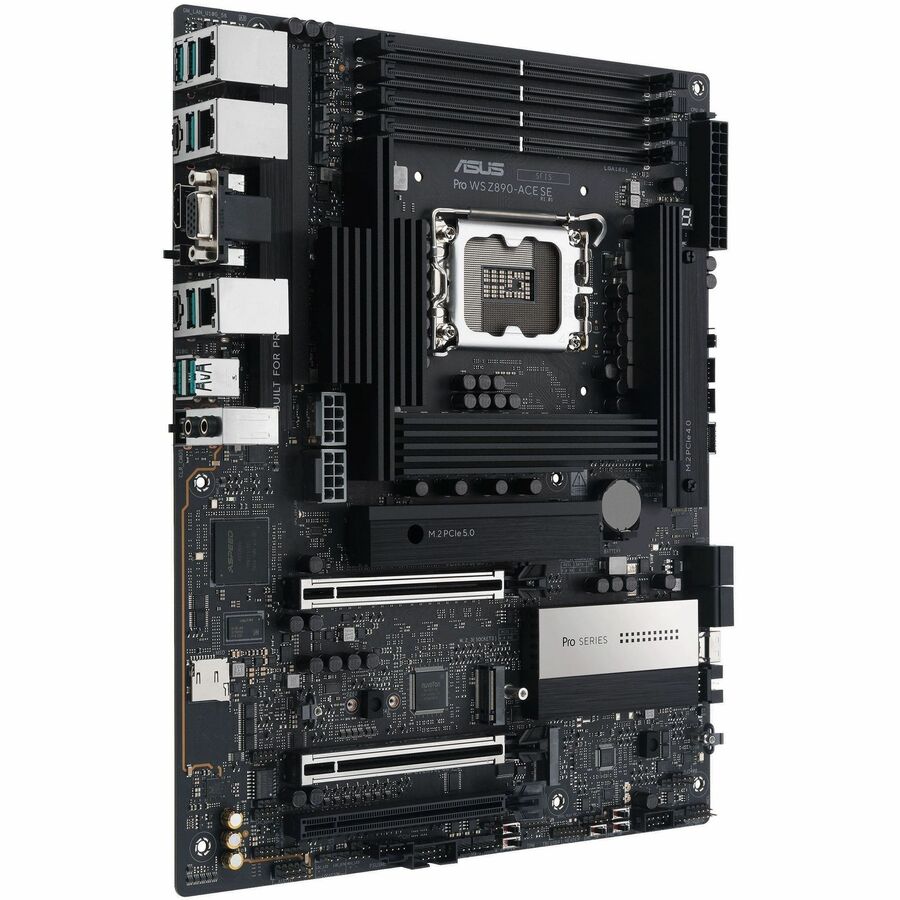

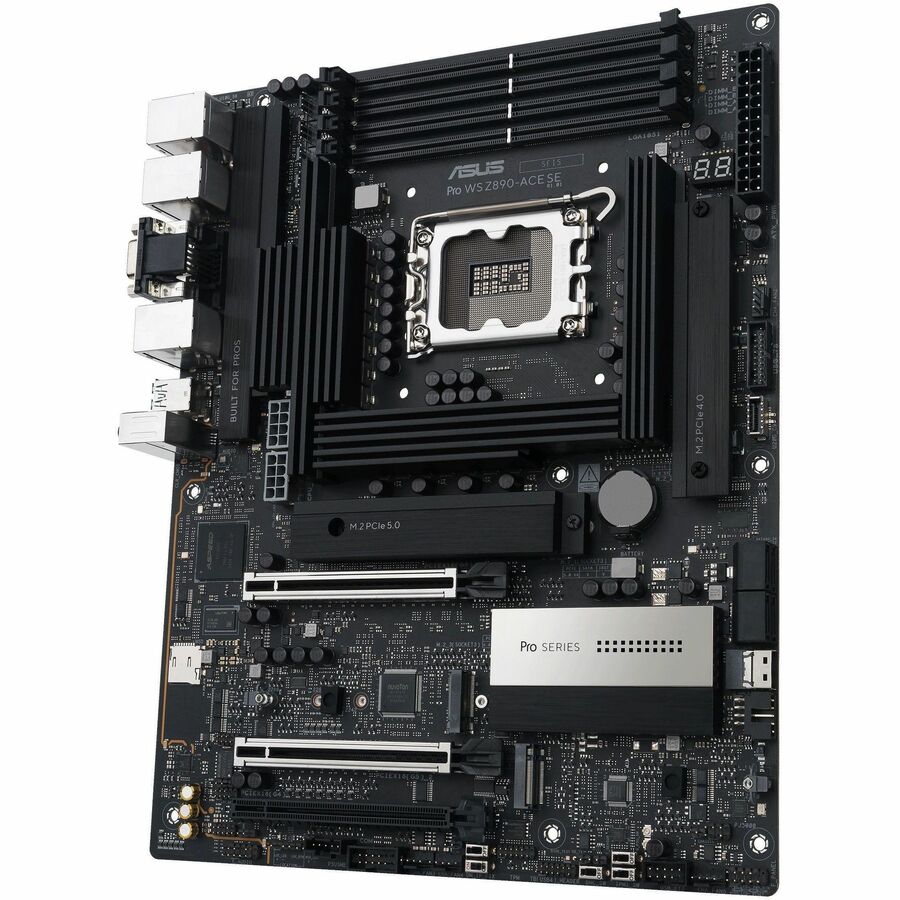

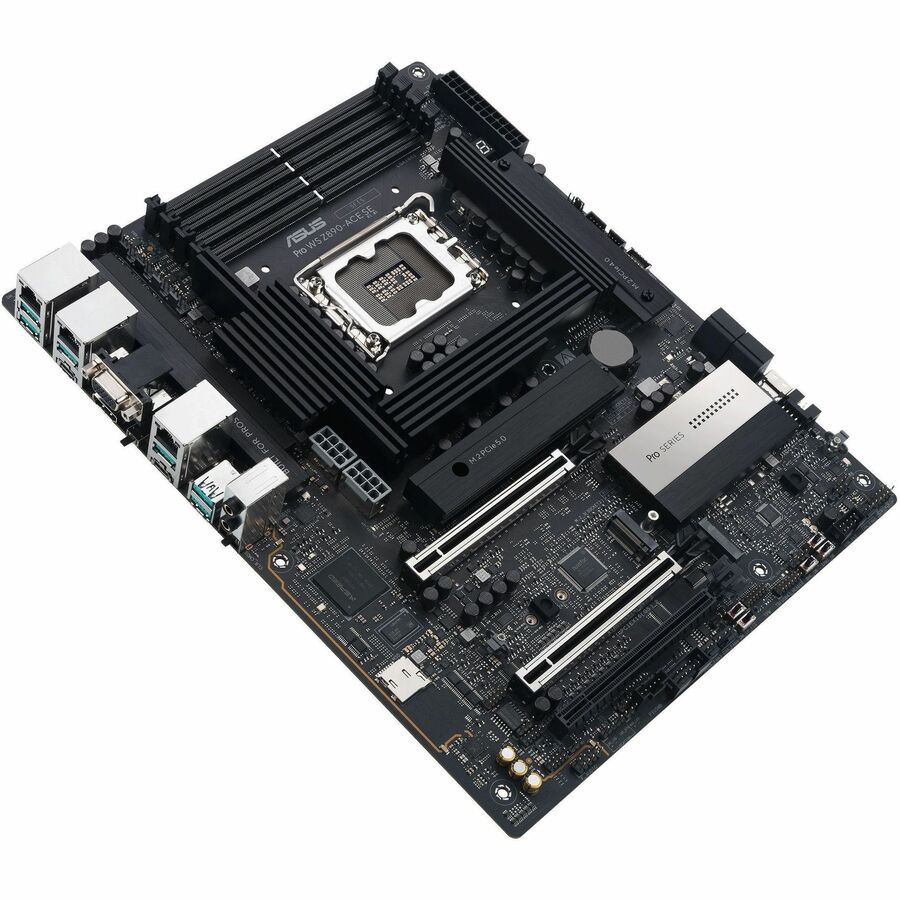

Intel Z890 LGA1851 ATX workstation motherboard with PCIe®5.0, DDR5 support, 10Gb & 2.5Gb Ethernet, four M.2 slots, plus a USB 20Gpbs front-panel connector and onboard BMC.
- Ready for advanced AI PCs:Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel LGA1851 socket: Ready for Intel®Core™ Ultra 9, 7, and 5 desktop processors
- Robust performance: 16+2+1+2 teamed power stages, ProCool II power connectors, high-quality alloy chokes and durable capacitors
- Future-proofed connectivity:Thunderbolt™ 4, 10Gb & 2.5Gb Ethernet, two PCIe® 5.0 PCIe slots with full support for next-gen graphics cards, one PCIe 5.0 M.2 and three PCIe 4.0 M.2 slots and a USB 20Gbps front-panel header
- Exclusive AI and overclocking technologies:AI Overclocking, AI Cooling II, AI Advisor and NPU boost
- DIY-friendly design: PCIe Slot Q-Release Slim with SafeSlot, M.2 Q-Latch, BIOS FlashBack™, Q-Connector
- Server-grade IPMI remote management and onboard BMC:Hardware- and software-level management with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management
Main Specification
| General Information | |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | PRO WS Z890-ACE SE |
| Manufacturer Website Address | http://usa.asus.com |
| Brand Name | Asus |
| Product Line | Pro |
| Product Model | WS Z890-ACE SE |
| Product Name | Pro WS Z890-ACE SE Workstation Motherboard |
| Product Type | Workstation Motherboard |
| Technical Information | |
| AI-powered | Yes |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | Z890 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1851 |
| Processor Supported | Core Ultra |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | UDIMM |
| Memory Form Factor | DIMM |
| Maximum Memory Supported | 192 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Speed Supported | 9066 MHz |
| Error Checking | ECC |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 5 |
| RAID Levels | 10 |
| RAID Levels | 0 |
| RAID Levels | 1 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Graphics Controller Model | AST2600 |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| 10Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 3 |
| PCI Express Standard | PCI Express 5.0 |
| PCI Express Standard | PCI Express 4.0 |
| Total Number of PCI Express Slots | 3 |
| Number of PCI Express x16 Slots | 3 |
| Interfaces/Ports | |
| Total Number of USB Ports | 8 |
| VGA | Yes |
| HDMI | Yes |
| HDMI Version | 2.1 |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 3 |
| Thunderbolt | Yes |
| Number of Thunderbolt 4 Ports | 2 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 8 |
| Number of M.2 Interfaces | 4 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" |
| Depth | 9.6" |
| Miscellaneous | |
| Package Contents |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
