Elo TouchSystems

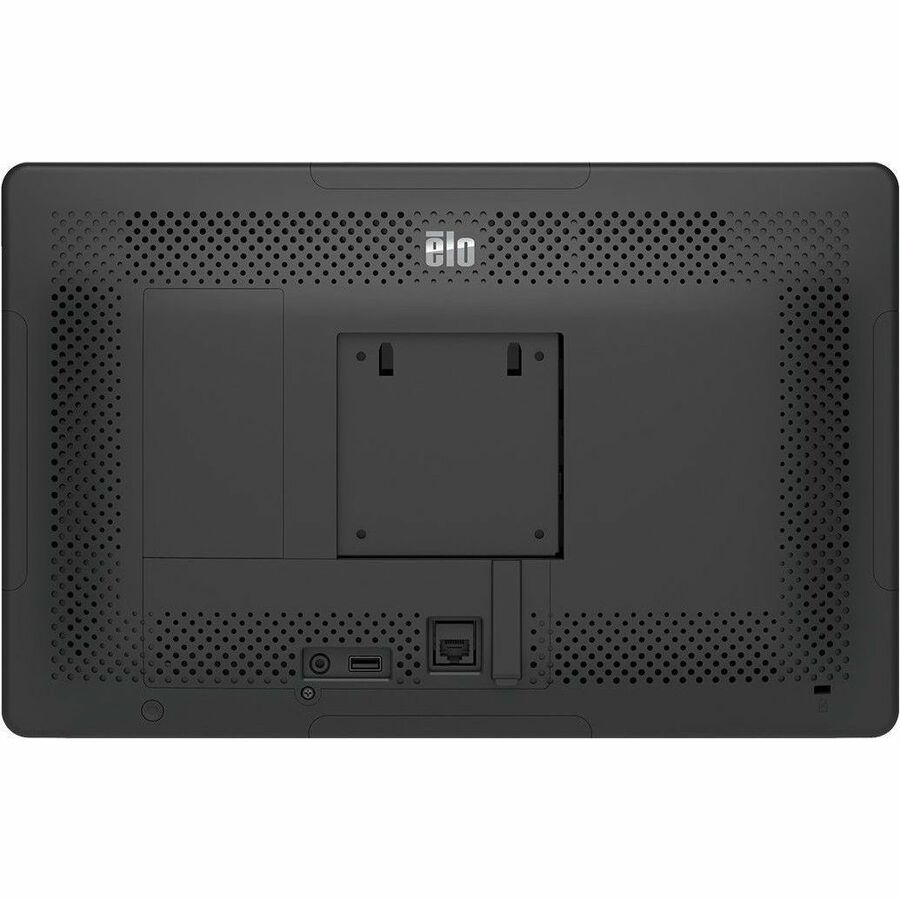

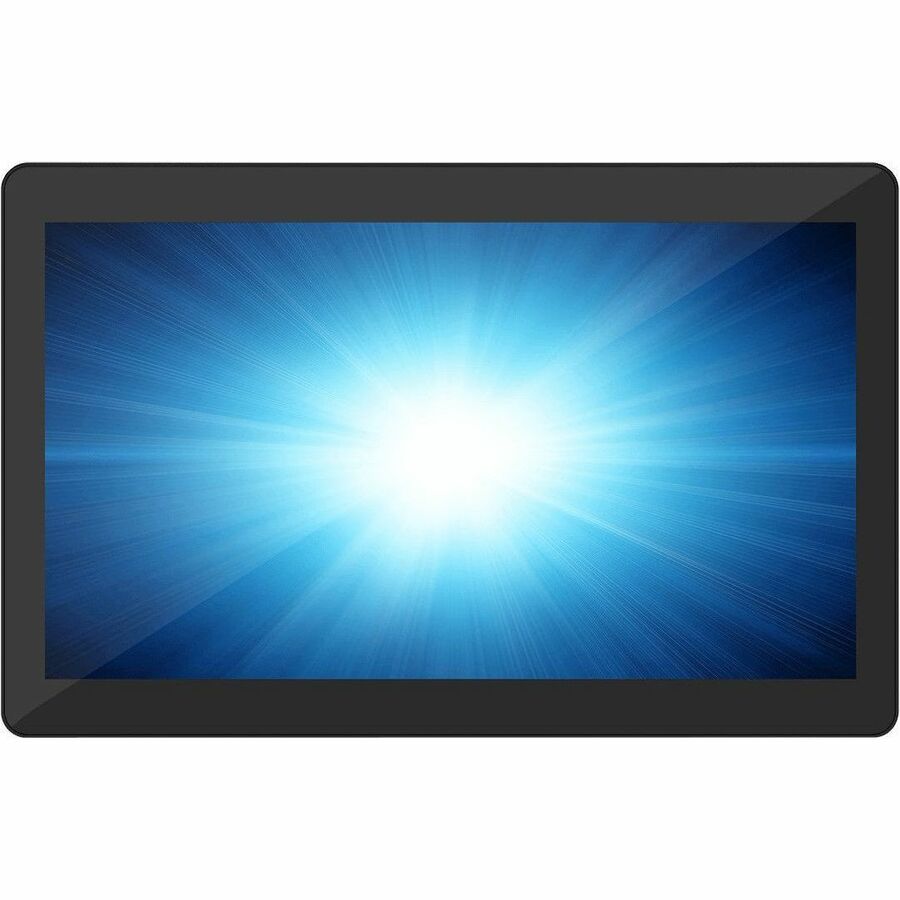

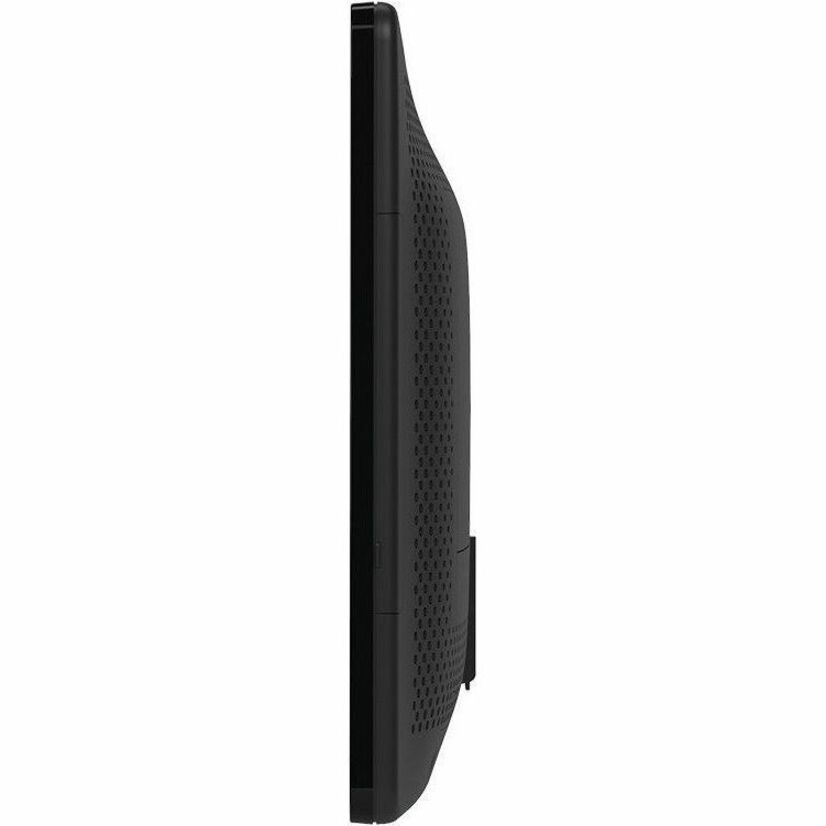

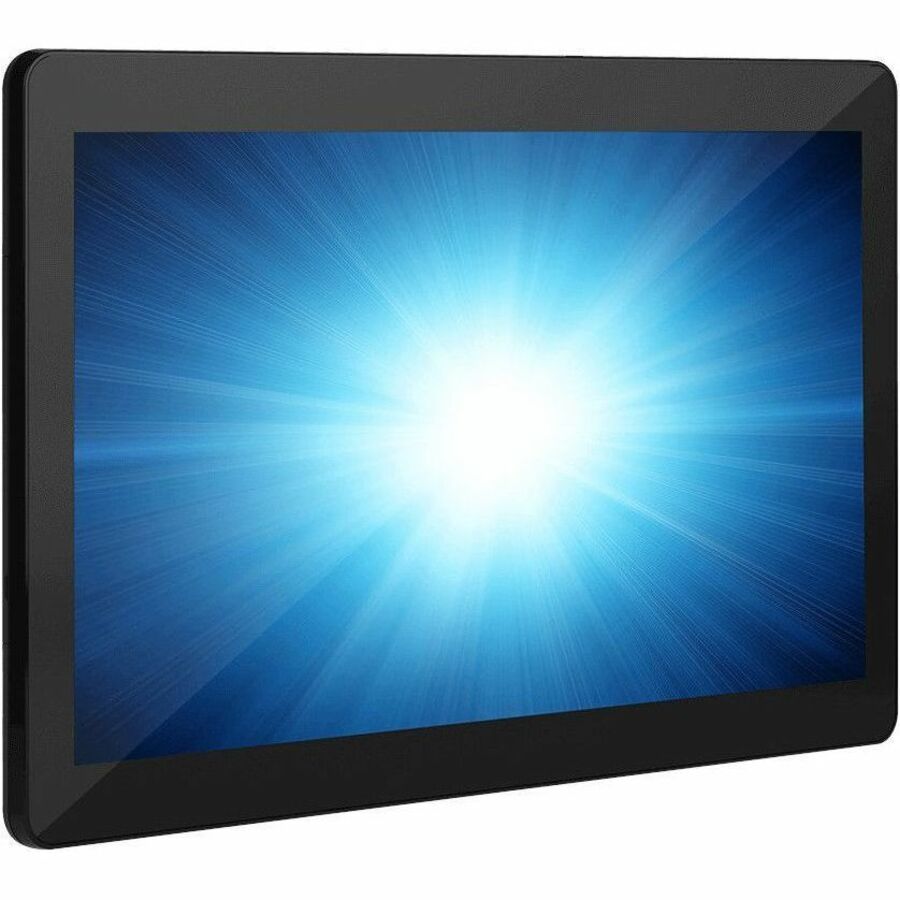

Elo TouchSystems E551270 ELO I-SERIES 2.0 NO OS 15.6IN WIDE FULL HD 1920 X 1080 DISPLAY CE
Mfg Part Number: E551270 , Item #: 5240496
, PO and Wire.

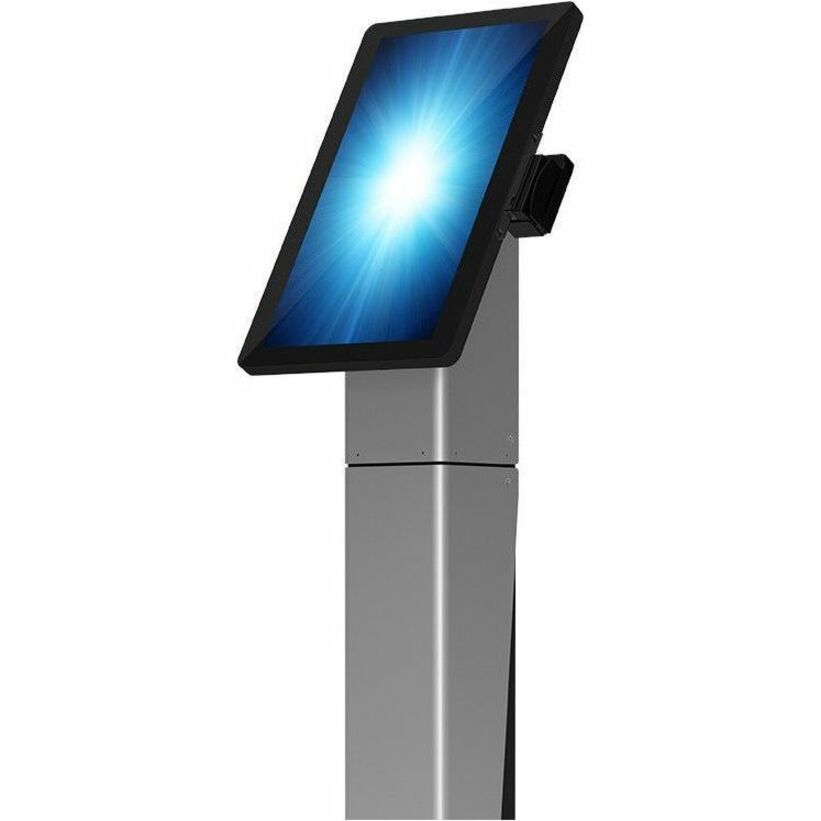

I-Series 2 with Intel®
Elo's I-Series 2 with Intel delivers commercial-grade computing with the capabilities, security and enterprise infrastructure of a powerful, Intel-based platform-all in a sleek, yet durable fixed tablet form factor.

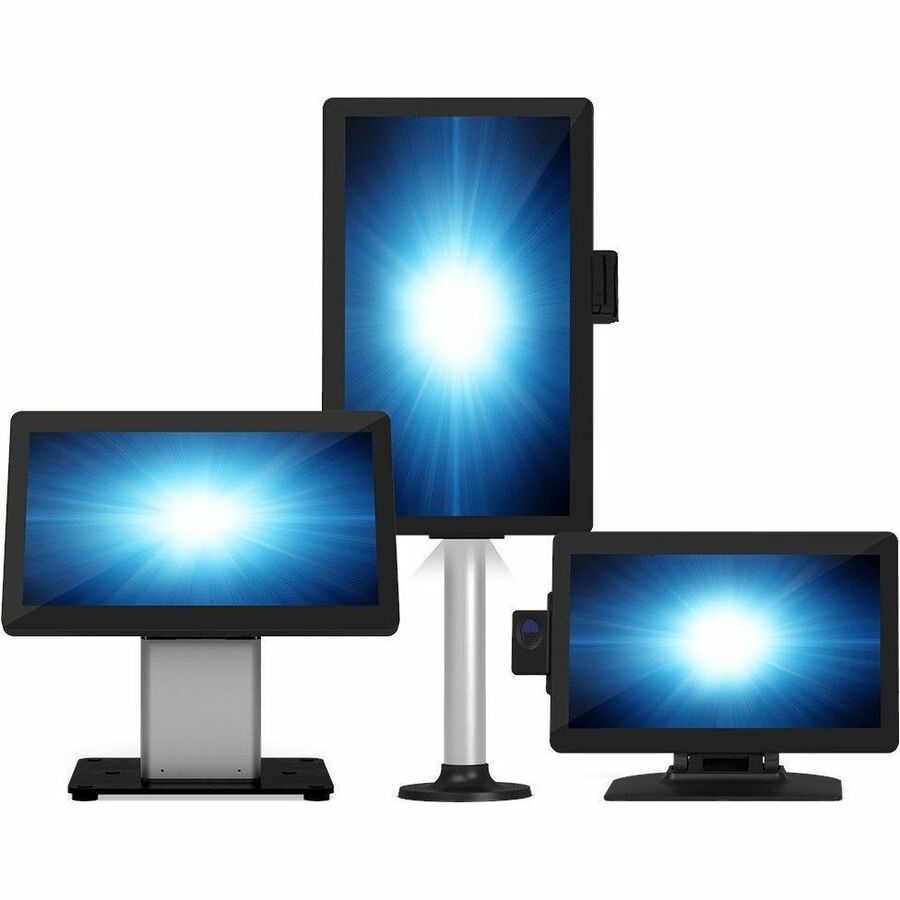

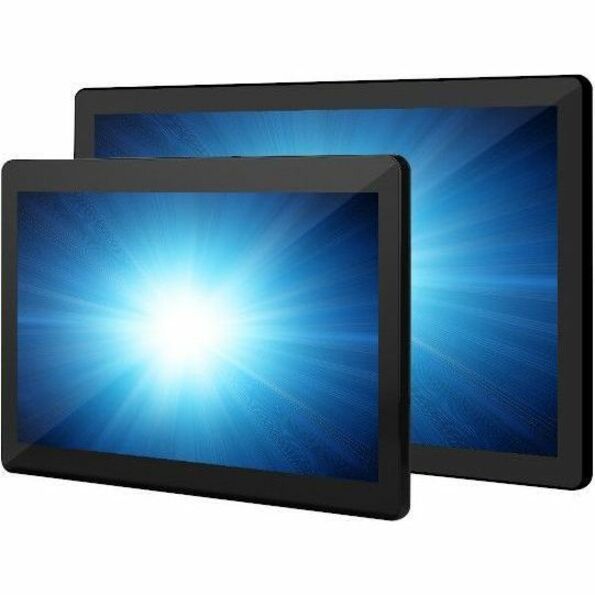

Built on a modular platform and available with either 15-inch or 22-inch displays, the I-Series with Intel can be found in installations across the globe, from in-store interaction and point-of-sale to self-service, hospitality and corporate office environments. The uses are virtually unlimited.
Endless Versatility

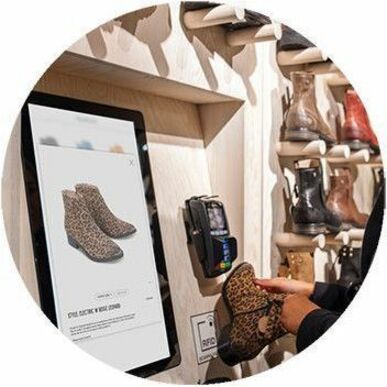

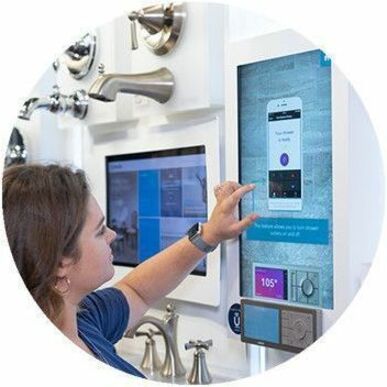

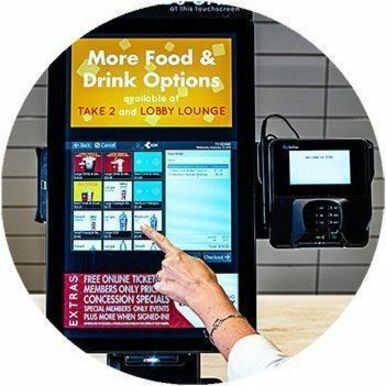

The Elo I-Series offers versatility across environments. From retail and entertainment to corporate offices and signage, the I-Series is an excellent choice to meet the demands of continuous public use.
| General Information | |
| Manufacturer | Elo Touch Solutions, Inc |
| Manufacturer Part Number | E551270 |
| Manufacturer Website Address | http://www.elotouch.com |
| Brand Name | Elo |
| Product Line | I-Series 2 |
| Product Name | I-Series 2 POS Terminal |
| Product Type | POS Terminal |
| Technical Information | |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.0 |
| Form Factor | All-in-One |
| Features | Edge-to-Edge Glass Design |
| Processor & Chipset | |
| Processor Type | Celeron |
| Maximum Turbo Speed | 2.90 GHz |
| Processor Model | G4900T |
| Processor Cache | 2 MB |
| Memory | |
| Standard Memory | 4 GB |
| Memory Technology | DDR4 SDRAM |
| Maximum Memory Supported | 8 GB |
| Storage | |
| Solid State Drive Capacity | 128 GB |
| Solid State Drive Interface | M.2/SATA |
| Display & Graphics | |
| Screen Size | 15.6" |
| Active Display Size (Horizontal) | 13.55" |
| Active Display Size (Vertical) | 7.62" |
| Display Screen Type | LED |
| Screen Mode | Full HD |
| Touchscreen | Yes |
| Touchscreen Technology | Projected Capacitive |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touch Points | 10 |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 700:1 |
| Response Time | 25 ms |
| Color Supported | 266,144 Colors |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing Angle | 160° |
| Network & Communication | |
| Wireless LAN | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| USB | Yes |
| USB Type-C | Yes |
| Network (RJ-45) | Yes |
| Number of Micro USB 2.0 Ports | 4 |
| Number of USB 3.0 Ports | 1 |
| Built-in Devices | |
| Number of Speakers | 2 |
| Speaker Power | 2 W |
| Power Description | |
| Power Source | AC Power |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Mount Type | Wall Mountable |
| Mount Type | Table Mount |
| Weight (Approximate) | 4.85 lb |
| Miscellaneous | |
| Energy Star | Yes |
