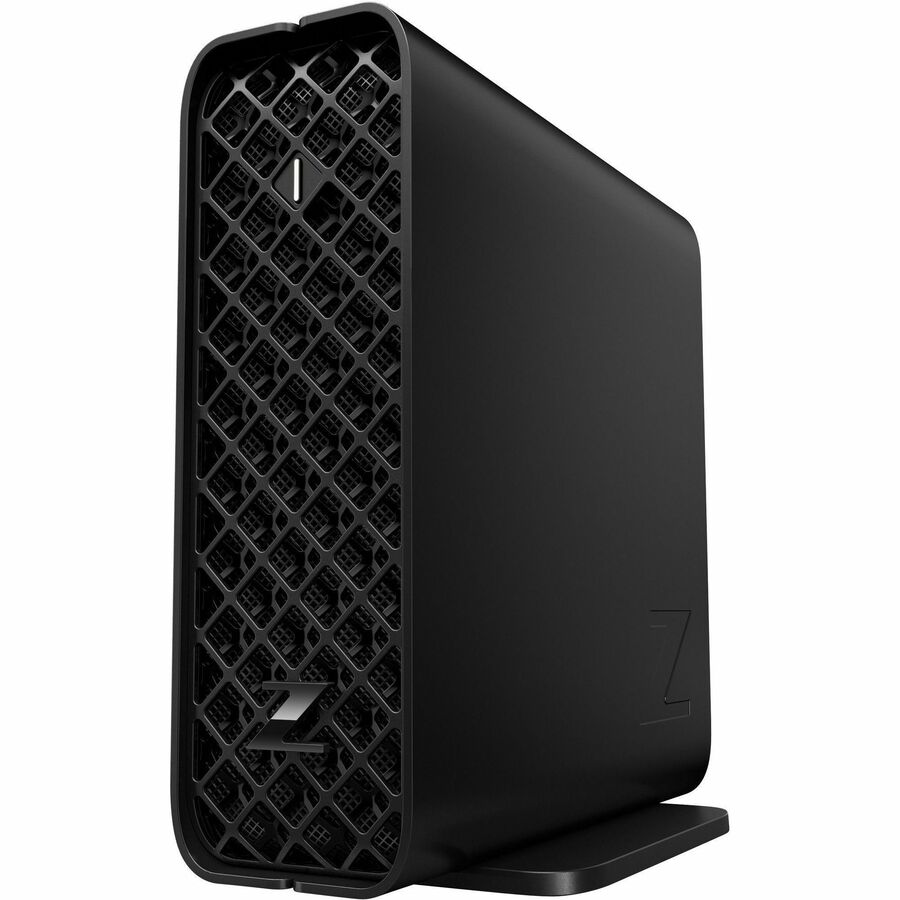

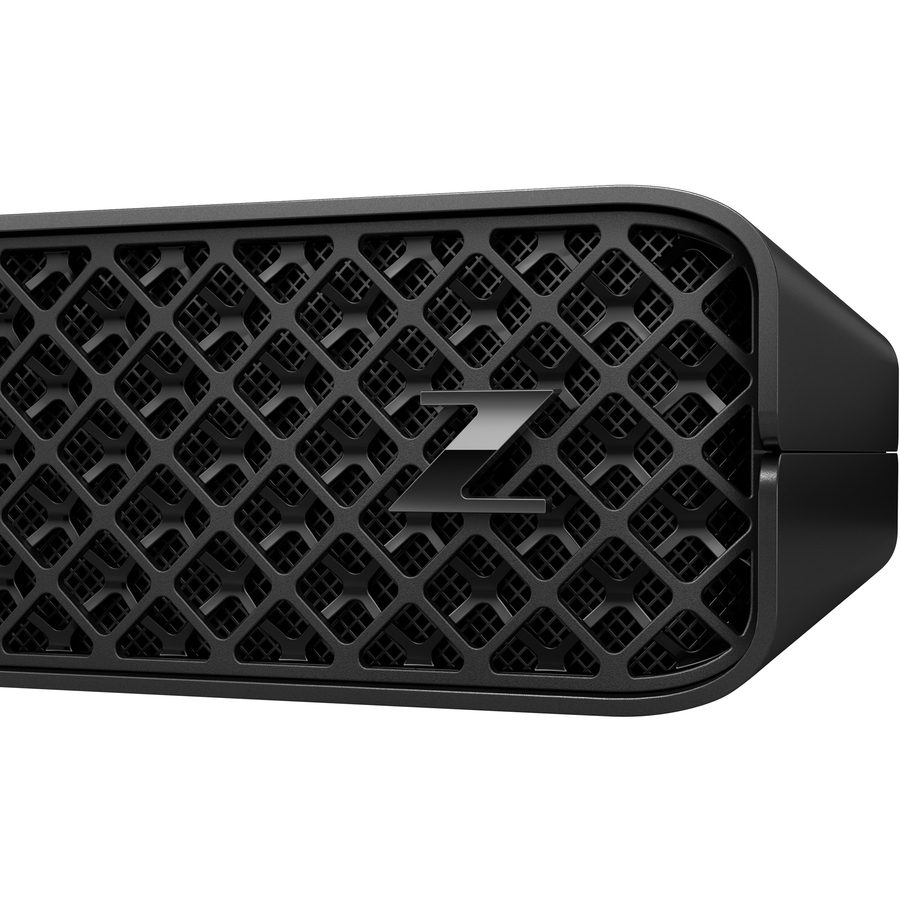

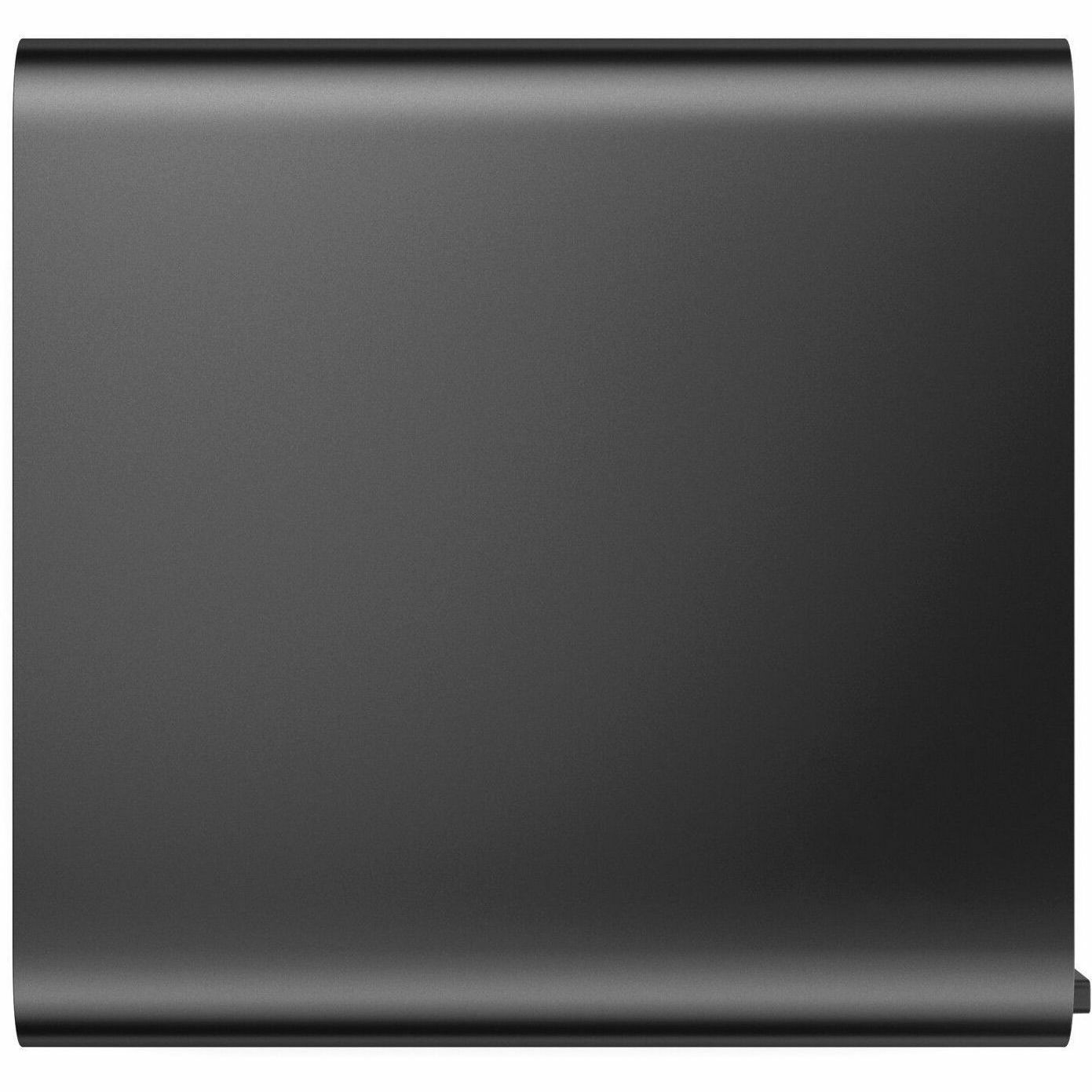

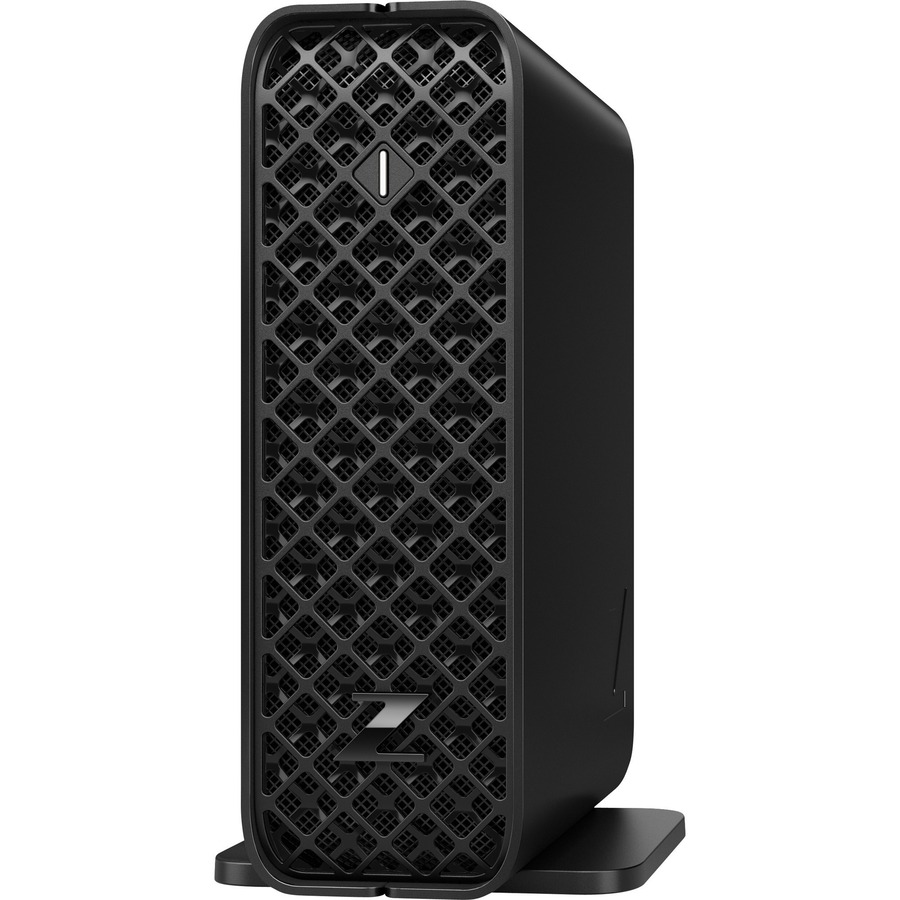

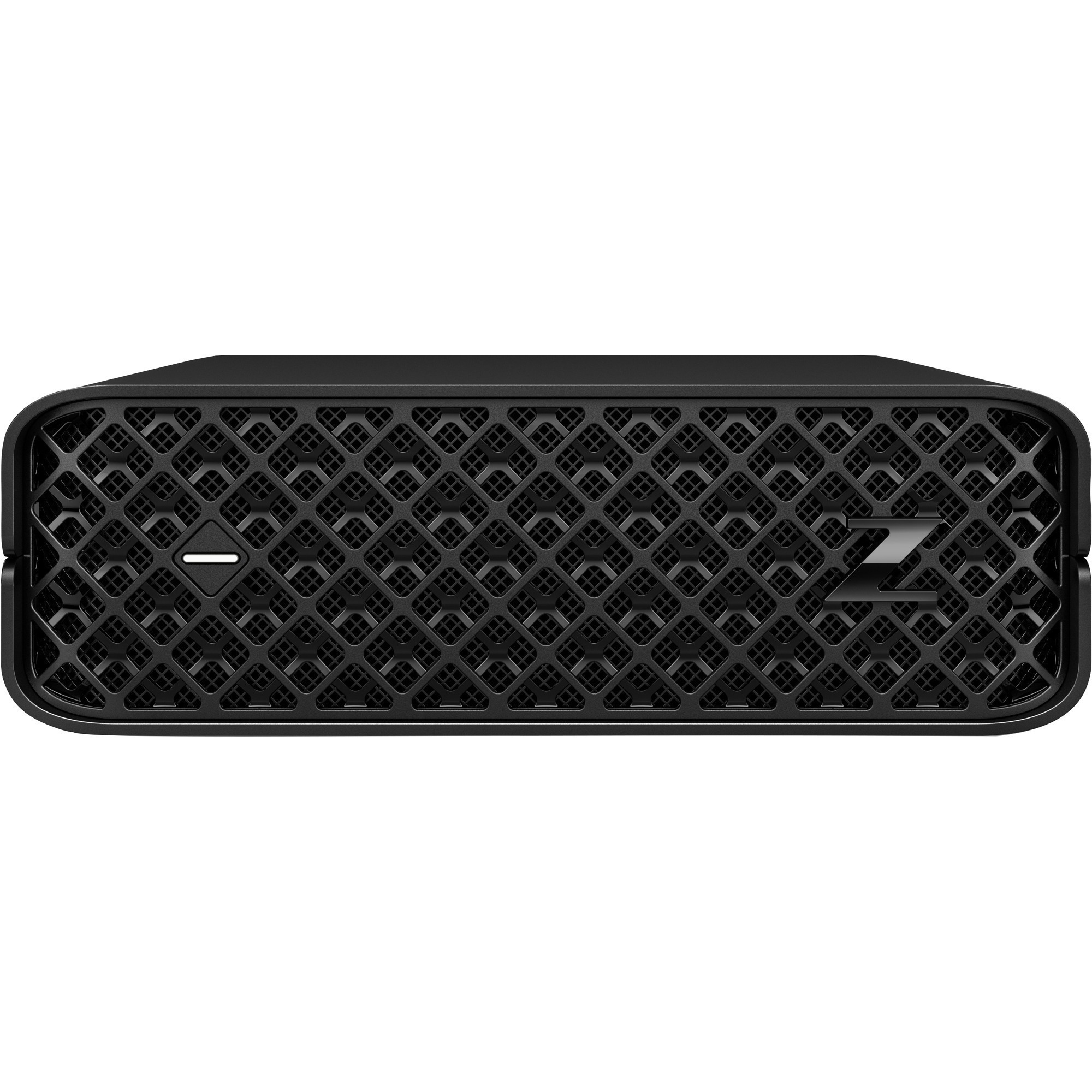

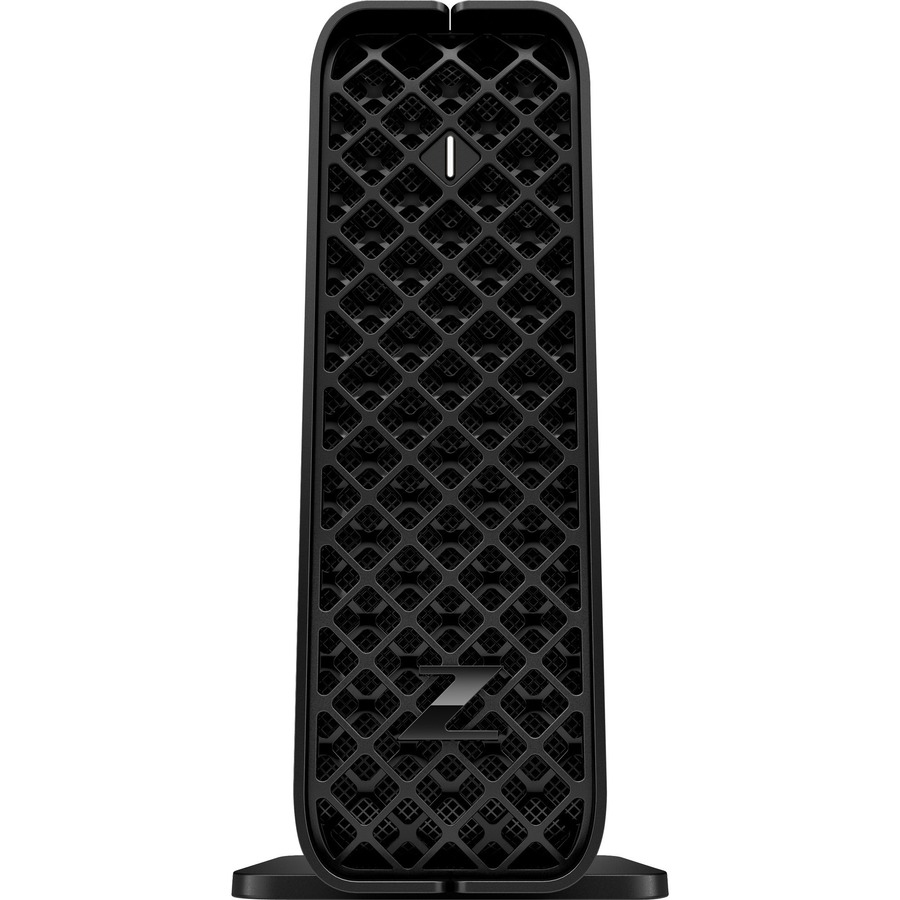

HP B6NT0UT#ABA Z2 G9 Mini i914900 64G 1TB

Powers large workflows. Fits a tiny space.

Tackle workflows you never thought before possible on such a tiny PC. The HP Z2 Mini easily fits on your desk or behind your monitor so you can tackle 3D projects without losing valuable office space. All while feeling protected From the BIOS to the browser, above, in, and below the OS with HP Wolf Security Suite.

Unprecedented Z mini power

Get a standard low-profile NVIDIA® GPU and an Intel© CPU for seamless design, rendering and simulation.

Engineered to Evolve with your worflow

The new slide-out design gives tool-free interior access so you can easily swap graphics, memory, and more.

Fits anywhere

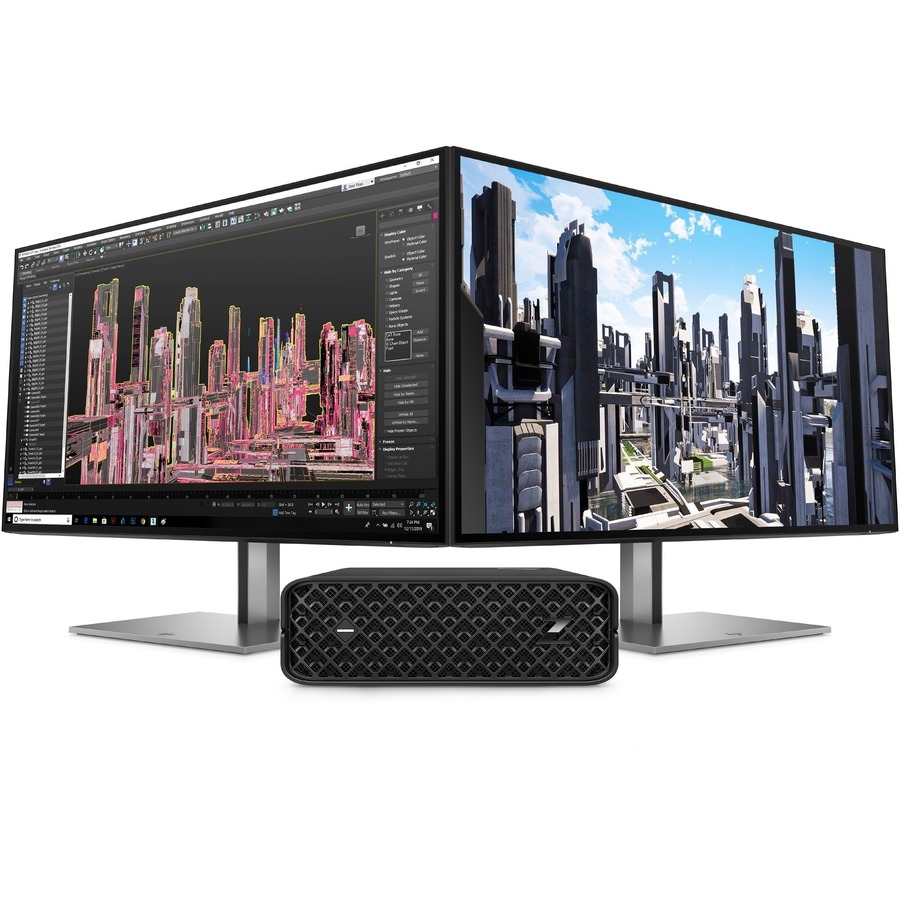

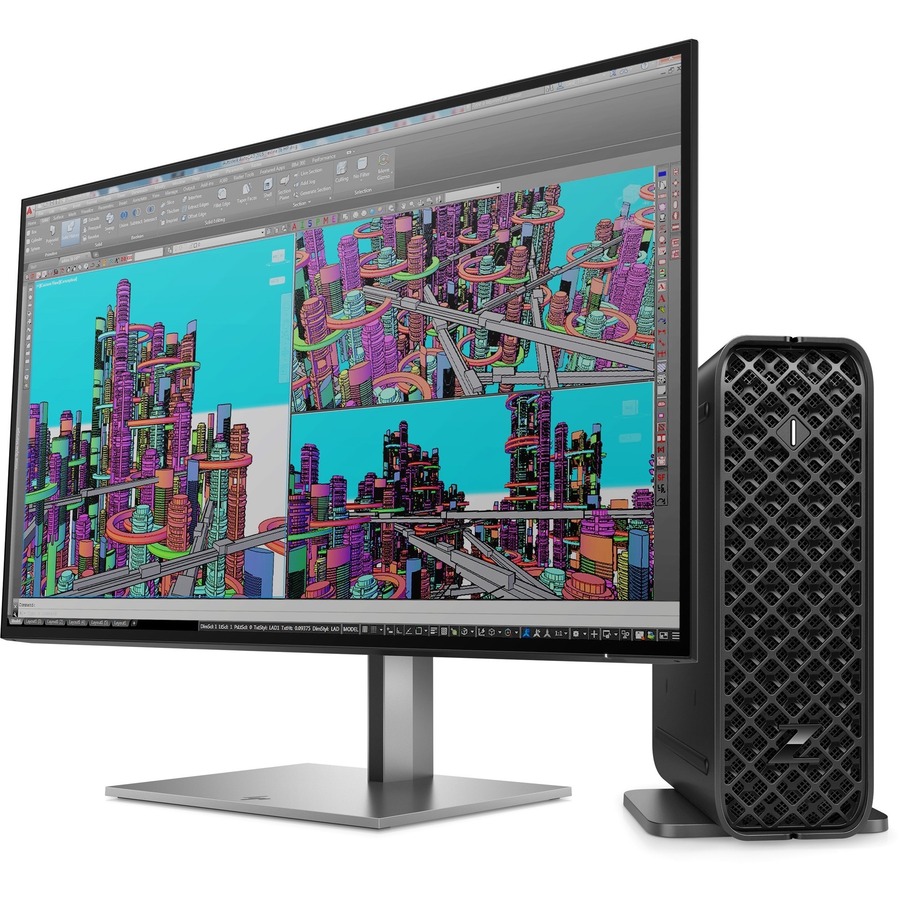

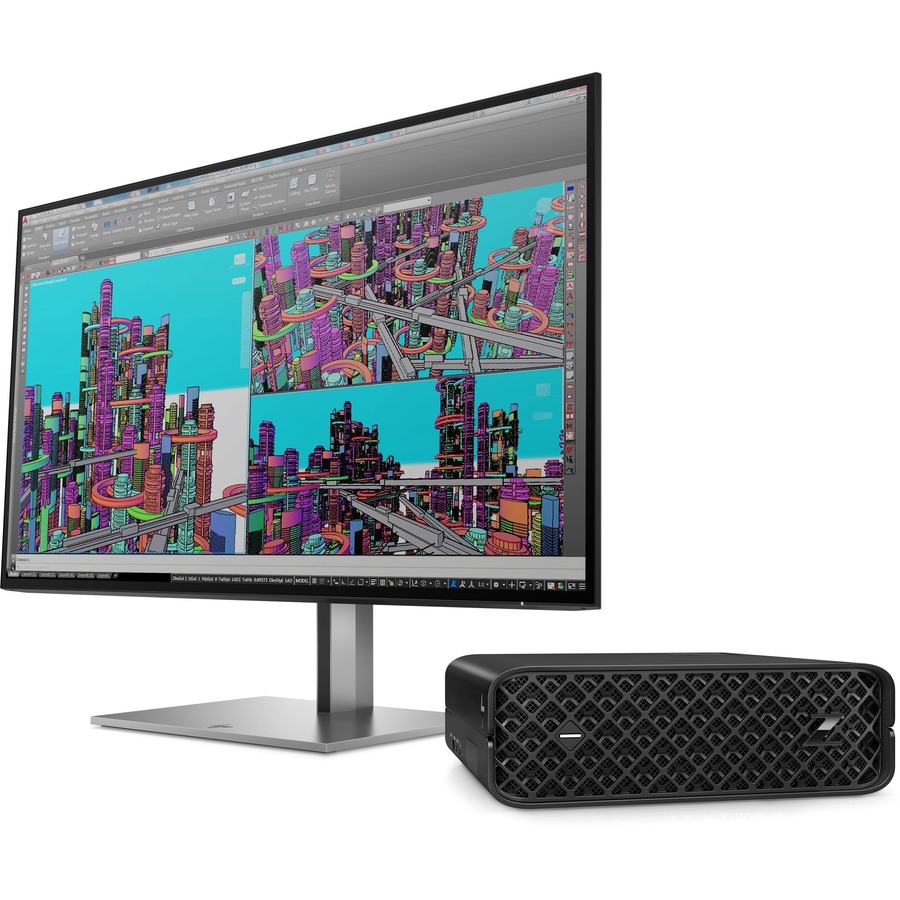

Create your ideal workspace in an office or at home. Mount the Z2 mini behind your monitor or under your desk.

Industry leading security. Reliability you can trust

Get peace of mind with a PC that's built to endure. The Z2 Mini undergoes 360K hours of rigorous testing, military-standard testing and is certified for pro apps. And with HP Wolf Security for Business, it's protected below, in and above the OS.

Features | HP recommends Windows 11 Pro for business

Work anywhere without compromising on performance with Windows 11 and HP collaboration, security, and connectivity technology. Summarize and rewrite content, get relevant content recommendations, and stay organized with Microsoft Copilot.

Intel® Core™ i9 processor

Get high-end performance for intensive tasks like rendering and video editing with the Intel® Core™ i9 processor.

Security is your top priority

The HP Wolf Pro Security Edition provides preconfigured enterprise-level PC protection for small and medium sized businesses.

Multi-Display Support

See all your windows in perfect detail with support for up to 8 displays at 4K resolution

Tool-less Access

Evolve your work. Evolve your rig. With a tool-less sliding access cover, you can easily get into the the interior, and customize your Z to fit your needs.

Network Connectivity

Connect and collaborate quickly with 10Gb Ethernet interface.

General Information
Manufacturer	HP Inc.
Manufacturer Part Number	B6NT0UT#ABA
Manufacturer Website Address	http://www.hp.com
Brand Name	HP
Product Series	Z2 Mini G9
Product Name	Z2 Mini G9 Workstation
Product Type	Workstation
Processor
Number of Processors Supported	1
Number of Processors Installed	1
Processor Type	Core i9
Processor Generation	14th Gen
Processor Model	i9-14900
Processor Core	Tetracosa-core (24 Core)
Processor Speed	2 GHz
L3 Cache	36 MB
Processor Socket	Socket LGA-1700
Processor Threads	32
Chipset
Chipset Manufacturer	Intel
Chipset Model	W680
Memory
Standard Memory	32 GB
Maximum Memory Supported	64 GB
Memory Technology	DDR5 SDRAM
Total Number of Memory Slots	2
Error Checking	Non-ECC
Memory Configuration	2 x 16GB
Storage
Drive Type	SSD
Total Solid State Drive Capacity	1 TB
Solid State Drive Interface	PCI Express NVMe 4.0 x4
Controllers
Controller Type	NVMe
RAID Supported	Yes
RAID Levels	0, 1
Display & Graphics
Graphics Controller Model	RTX 2000 Ada Generation
Graphics Memory Capacity	16 GB
Graphics Memory Accessibility	Dedicated
Maximum Memory Bandwidth	224 GB/s
Network & Communication
Ethernet Technology	Gigabit Ethernet
Wireless LAN	Yes
Bluetooth	Yes

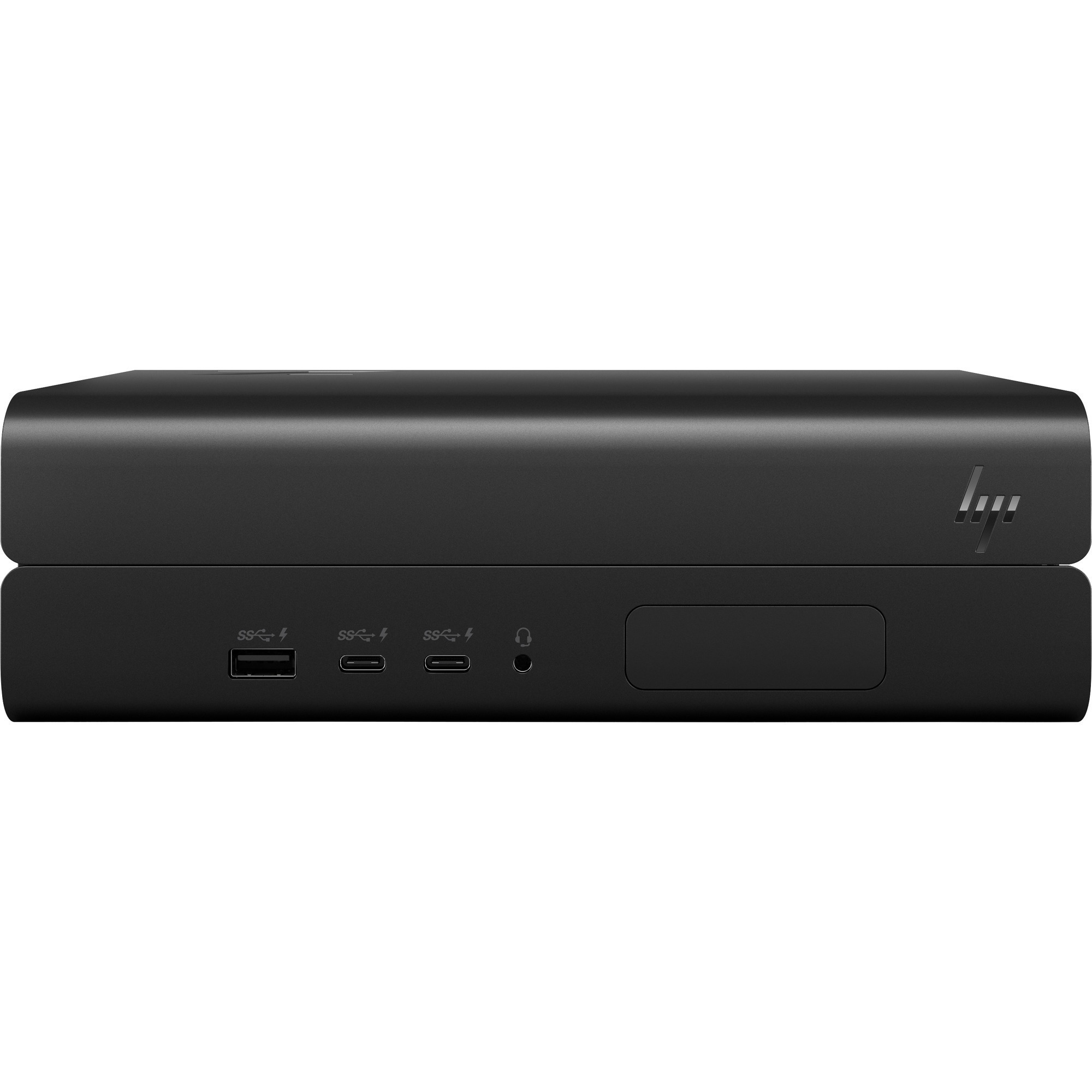

Interfaces/Ports
Total Number of USB Ports	6
USB Type-C	Yes
USB Type-C Detail	2 x SuperSpeed USB Type-C® 20Gbps signaling rate
DisplayPort	Yes
Mini DisplayPort	Yes
Number of Mini DisplayPort	4
Number Of Ethernet Ports	1
Number of DisplayPort Outputs	2
Optional Ports	Details regarding optional ports aggregated from the information available for this product's family/series. Flex IO, choice of: (1) Dual Type-A SuperSpeed USB 5Gbps port, (1) Type-C® SuperSpeed USB 10Gbps port (Alt Mode) (1) Dual SuperSpeed USB Type-A 10Gbps , (1) DisplayPort™ 1.4 (1) USB-C® 10Gbps port (Alt Mode), (1) Thunderbolt™ 3 with USB4 40Gbps, (1) 1Gbps Fiber LC NIC, (1) 2.5GbE LAN, (1) USB-based Serial port, (1) 10GbE LAN (1) 1GbE LAN (1) serial (1) VGA (1) HDMI 2.0b
Input Devices
Keyboard Localization	English
Operating System
Operating System Platform	Windows
Operating System	Windows 11 Pro
Operating System Language	English
Power Description
Input Voltage	120 V AC
Input Voltage	230 V AC
Maximum Power Supply Wattage	280 W
Frequency	50 Hz
Frequency	60 Hz
Physical Characteristics
Cooler Type	Air Cooler
Form Factor	Mini PC
Height	2.7"
Width	8.3"
Depth	8.6"
Weight (Approximate)	5.29 lb
Miscellaneous
Package Contents	Z2 Mini G9 Workstation Keyboard Mouse Power Adapter
Energy Star	Yes
TCO Certified	Yes
Environmentally Friendly	Yes
Environmental Certification	Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)
Environmental Certification	Electronic Product Environmental Assessment Tool Climate+ (EPEAT Climate+)
Energy Efficiency Certification	China Energy Conservation Program (CECP)
Energy Efficiency Compliance	Energy-related Products Directive (ErP)
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	1 Year
Additional Warranty Information	Support Service Included: HP 1 Year Wolf Pro Security Edition Service. For terms and conditions, please visit https://h20195.www2.hp.com/v2/GetPDF.aspx/4AA8-1150ENW & https://www8.hp.com/h20195/v2/getpdf.aspx/4AA5-7123ENUS.pdf Manufacturer Warranty: 1 year (1/1/0) limited warranty includes 1 year of parts and labor. No on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.
