HPE JL702A#B2C ARUBA 8360-16Y2C PRT2PWR3F2PS Bundle PDU

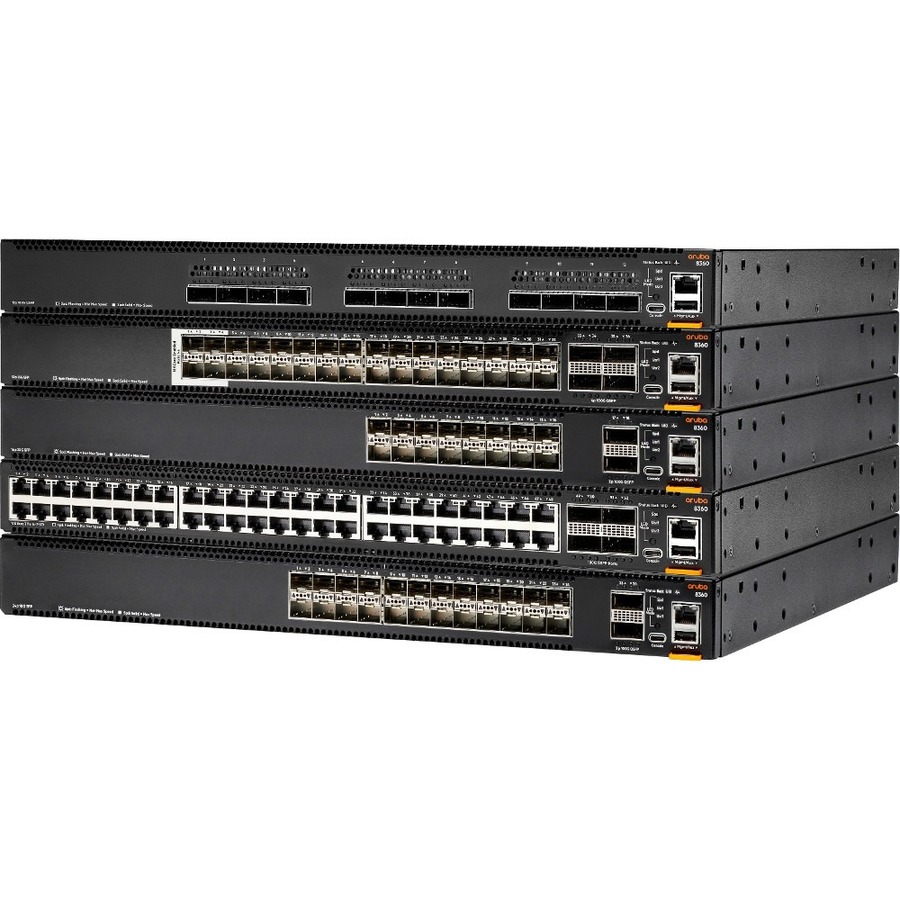

Aruba CX 8360 Switch Series | High Performance Enterprise Campus and Data Center Switch
The Aruba CX 8360 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT era. These switches serve the needs of the next-generation core and aggregation layer of campuses, as well as virtual and highly dynamic data center environments. They provide up to 2.4Tbps of capacity, with line-rate Gigabit Ethernet interfaces including 1Gbps, 10Gbps, 25Gbps, 40Gbps, and 100Gbps.

The 8360 series includes industry-leading line rate ports with 1/10/25GbE (SFP/SFP+/SFP28) and 40/100 GbE (QSFP+/ QSFP28) connectivity in a compact 1U form factor. 4x10Gbps and 4x25Gbps break out from 40/100G ports offer advanced flexibility in connectivity and aggregation. These switches deliver a fantastic investment for customers wanting to migrate from older 1GbE/10GbE to faster 25GbE, or from 10GbE/40GbE uplinks to 100GbE ports.

In addition, the 32 x 25G port 8360 models support lowdensity MACsec ports and enable secured connectivity at 10GbE and 25GbE over unsecured domains.

General Information
Manufacturer	Hewlett Packard Enterprise
Manufacturer Part Number	JL702A#B2C
Manufacturer Website Address	http://www.hpe.com
Brand Name	HPE
Product Series	CX 8360
Product Model	8360-16Y2C
Product Name	8360-16Y2C Ethernet Switch
Product Type	Ethernet Switch
Interfaces/Ports
Uplink Port	Yes
Modular	Yes
Port/Expansion Slot Details	16 x 25 Gigabit Ethernet Expansion Slot
Port/Expansion Slot Details	2 x 100 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported	Optical Fiber
Ethernet Technology	25 Gigabit Ethernet
Ethernet Technology	100 Gigabit Ethernet
Network Technology	100GBase-X
Network Technology	25GBase-X
I/O Expansions
Total Number of Expansion Slots	18.0
Expansion Slot Type	SFP28
Expansion Slot Type	QSFP28
Network & Communication
Layer Supported	3
Management & Protocols
Manageable	Yes
Power Description
Frequency	50 Hz
Frequency	60 Hz
Power Source	Power Supply
Redundant Power Supply Supported	Yes
Number of Power Supplies Supported	2
Power Consumption	325 W
Physical Characteristics
Compatible Rack Unit	1U
Form Factor	Rack-mountable
Form Factor	Surface Mount
Height	1.7"
Width	17.4"
Depth	16"
Miscellaneous
TAA Compliant	Yes
