MANHATTAN 461863 ANTI-THEFT TILTING TV WALL MOUNT WITH EXTENSION
Mfg Part Number: 461863 , Item #: 5239590
, PO and Wire.

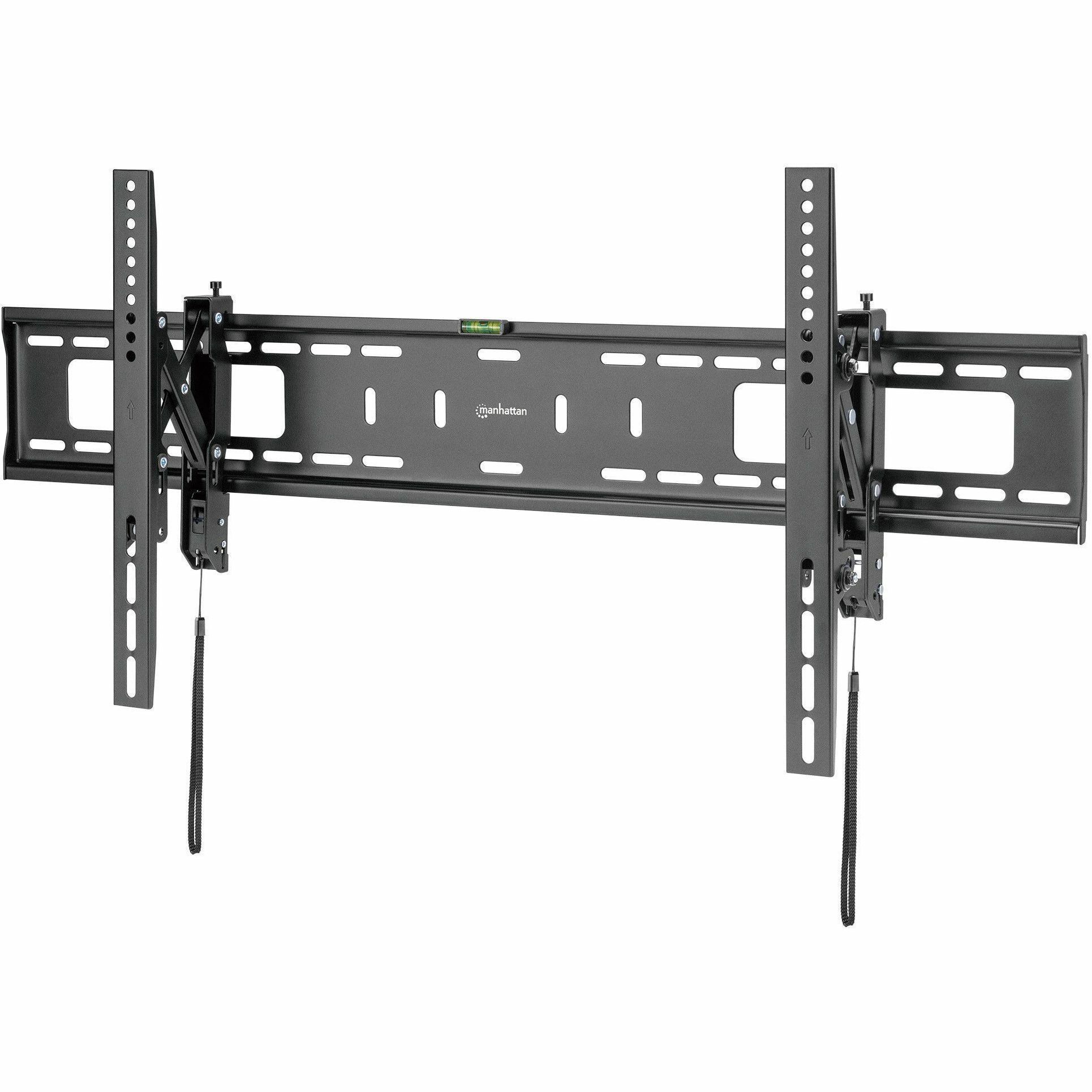

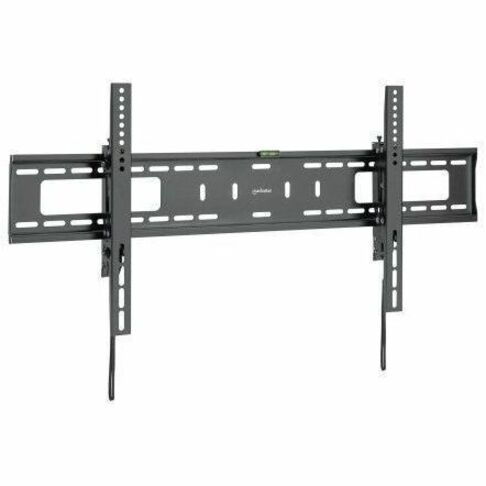

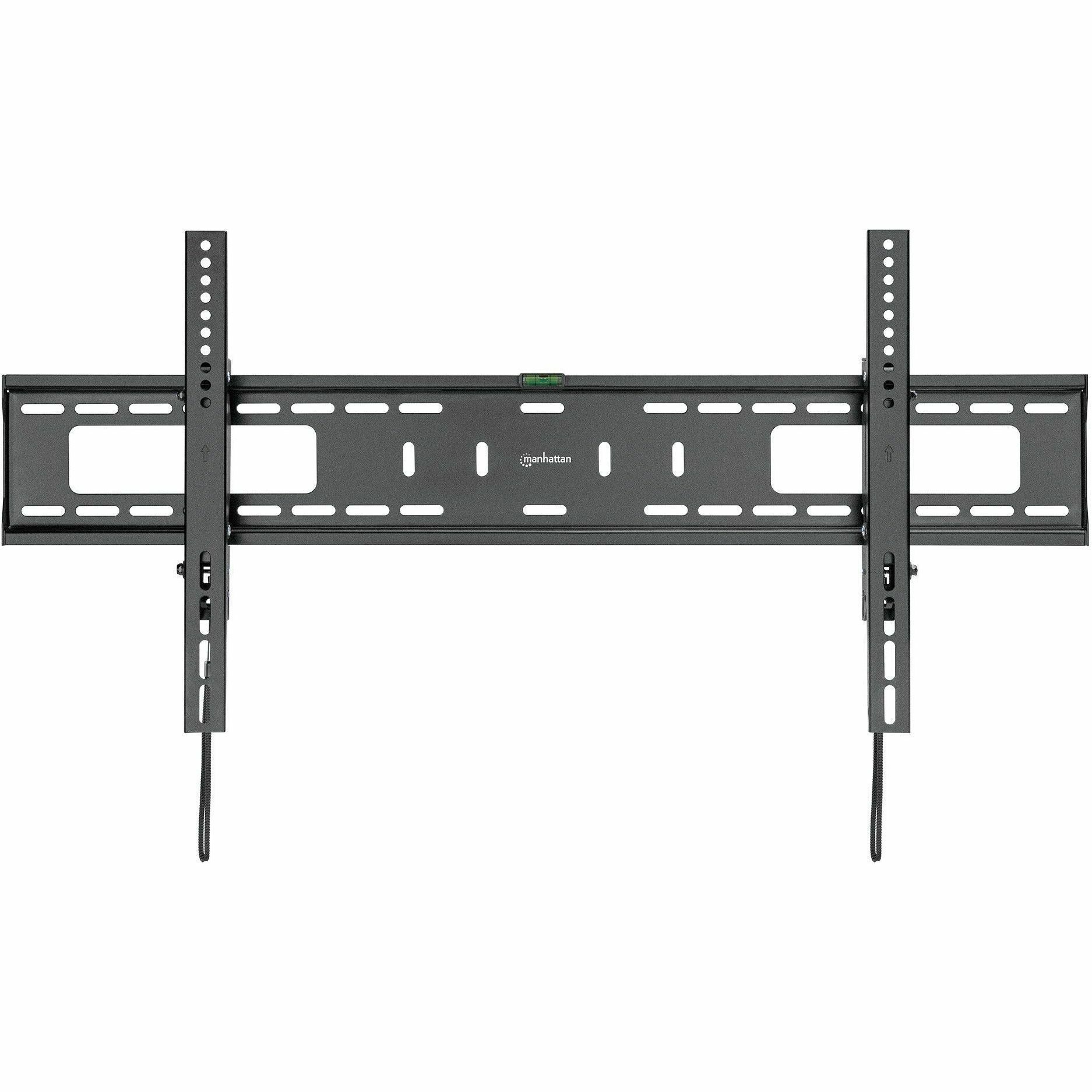

Adjustable, Secure TV Wall Bracket that Extends for Easy Cabling

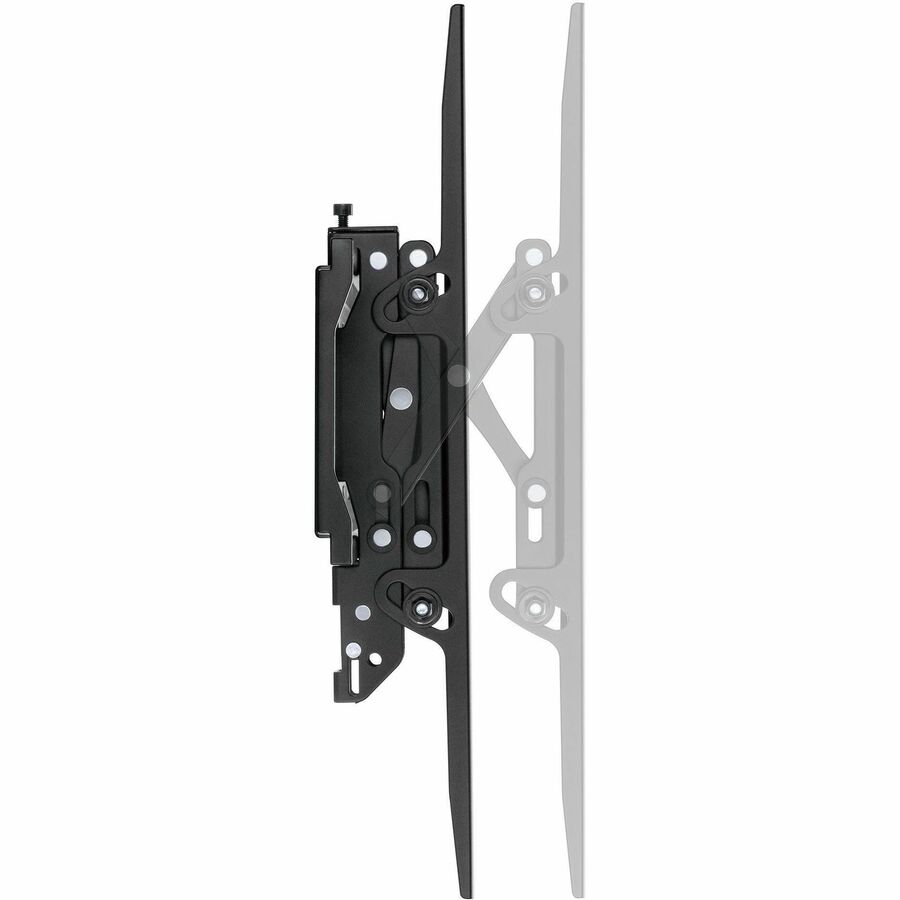

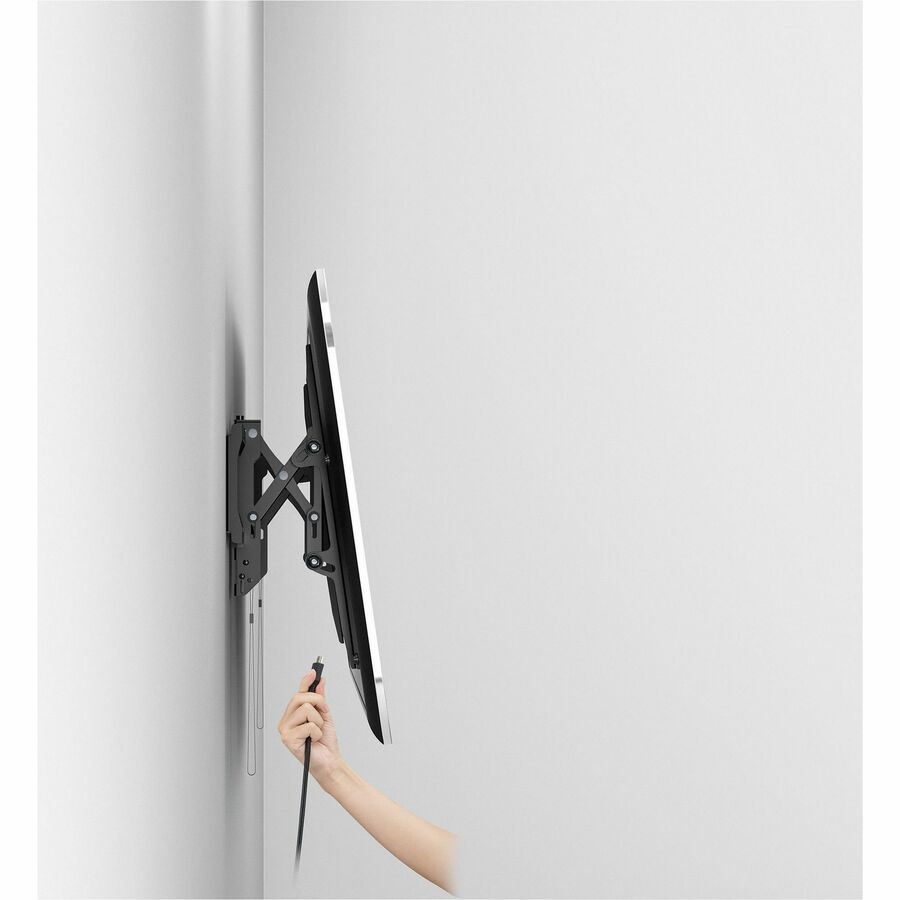

This TV Wall Mount from Manhattan is your convenient solution to safely hold your flat or curved 43" to 90" display up to 75 kg (165 lbs.). Mount your screen just 75 mm (3 in.) from the wall for a sleek, modern look. Need easier access to your cables? Its innovative design allows an optional extension of an additional 60 mm (2.4 in.), making it easier than ever to manage your cabling without hassle.
Optimal Viewing Angles

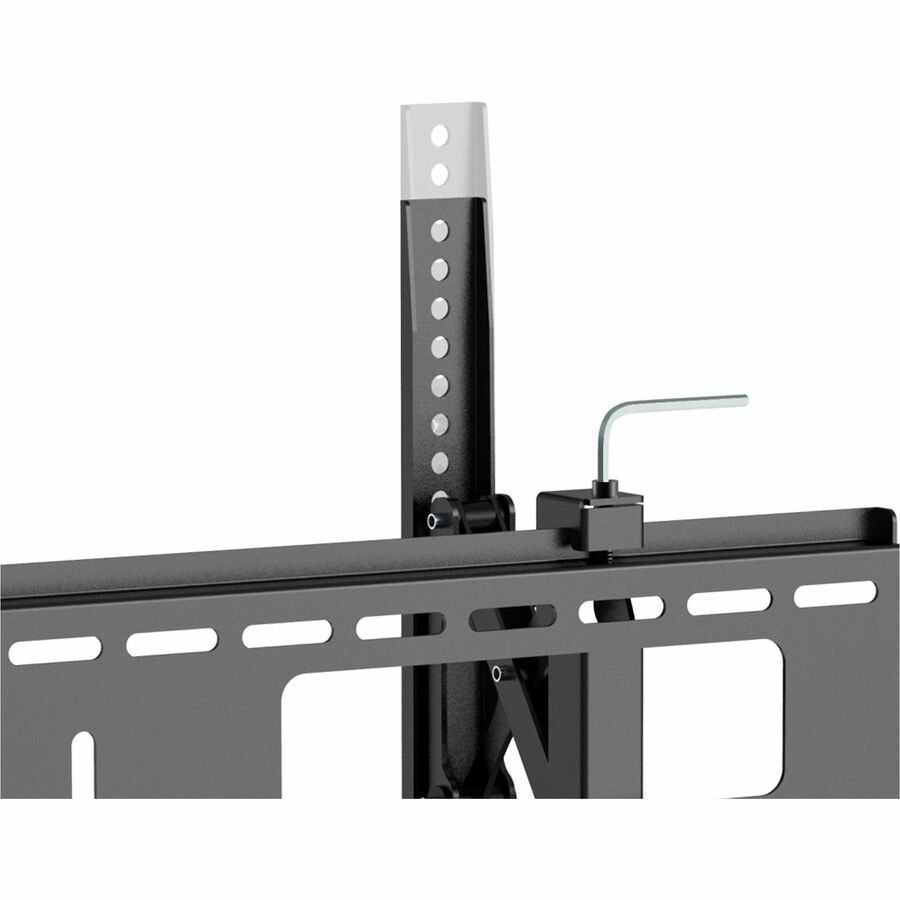

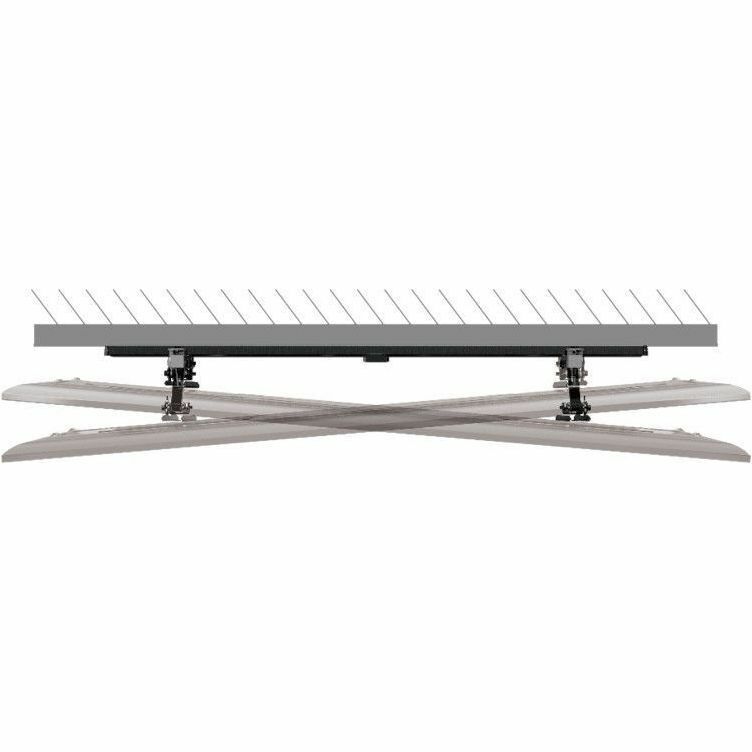

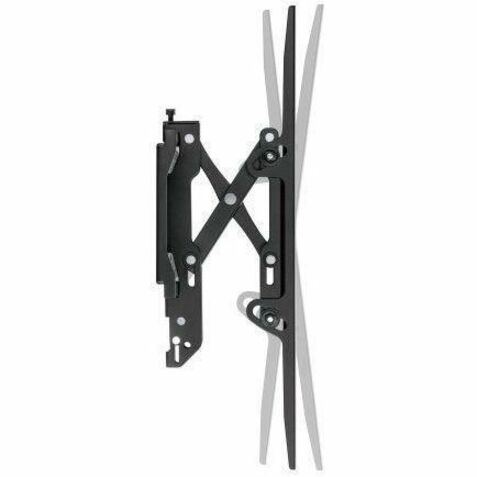

Achieve the perfect view with a versatile +5 to -10° tool-free tilt, +/-5° swivel, and +/-6 mm post-installation leveling adjustment.
Robust and Reliable Construction
Constructed with heavy-duty, 2 mm thick reinforced steel and a durable powder coating, this mount provides strength and reliability.
Precision Installation Made Simple
Included is an attachable bubble level for perfect alignment during installation. The snap-in spring locks with release cords make mounting or removing your TV a breeze, adding an extra layer of safety and ease.
Enhanced Security Protects from Theft
Ideal for public or commercial spaces, the anti-theft locking option (padlock required, not included) prevents the TV from being removed from the mount, perfect for digital signage or any setting where additional protection is desired, like office, hospitality or classroom.
| General Information | |
| Manufacturer | IC INTRACOM |
| Manufacturer Part Number | 461863 |
| Manufacturer Website Address | http://www.icintracom.com |
| Brand Name | Manhattan |
| Product Name | Anti-Theft Tilting TV Wall Mount with Extension |
| Package Type | Retail |
| Product Type | Wall Mount |
| Product Information | |
| Device Supported | Flat Panel Display |
| Device Supported | Curved Screen Display |
| Device Supported | TV |
| Maximum Load Capacity | 165.35 lb |
| Minimum Screen Size Supported | 43" |
| Maximum Screen Size Supported | 90" |
| Features | Tilt |
| Features | Bubble Level |
| Features | Heavy Duty |
| Features | Anti-theft |
| Features | Robust |
| Features | Durable |
| Features | Spring Lock |
| Minimum Tilt Angle | -10° |
| Maximum Tilt Angle | 5° |
| Minimum Swivel Angle | -5° |
| Maximum Swivel Angle | 5° |
| Mount Function | Wall Mount |
| Mount Function | Tilt |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Finishing | Powder Coated |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 600 x 400 |
| Mounting Pattern | 600 x 300 |
| Mounting Pattern | 400 x 200 |
| Mounting Pattern | 300 x 400 |
| Mounting Pattern | 600 x 200 |
| Mounting Pattern | 300 x 300 |
| Mounting Pattern | 400 x 400 |
| Mounting Pattern | 200 x 400 |
| Mounting Pattern | 300 x 200 |
| Mounting Pattern | 400 x 300 |
| Mounting Pattern | 200 x 300 |
| Mounting Pattern | 800 x 400 |
| Mounting Pattern | 200 x 200 |
| Product Material | Reinforced Steel |
| Product Material | Steel |
| Form Factor | Wall Mountable |
| Height | 16.93" |
| Width | 37.56" |
| Length | 5.35" |
| Weight (Approximate) | 9.28 lb |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Commercial |
| Application/Usage | Office |
| Application/Usage | Hospitality |
| Application/Usage | Classroom |
| Warranty | |
| Limited Warranty | 3 Year |
