TRENDnet TPE-B541 5-PORT GIGABIT POE++ POWERED MANAGED SWITCH WITH POE PASSTHROUGH

TRENDnet's 5-Port Gigabit PoE++ Powered Managed Switch with PoE Passthrough, model TPE-B541, is powered by a PoE++ switch or injector, no AC adapter is required. The compact PoE++-powered managed switch features four gigabit PoE+ ports to power devices, such as IP cameras, VoIP handsets, and wireless access points, with a 60W total PoE power budget. Reducing unnecessary switch complexity, this PoE++ passthrough managed switch is equipped with management features such as VLANs, QoS, PoE control, and monitoring.

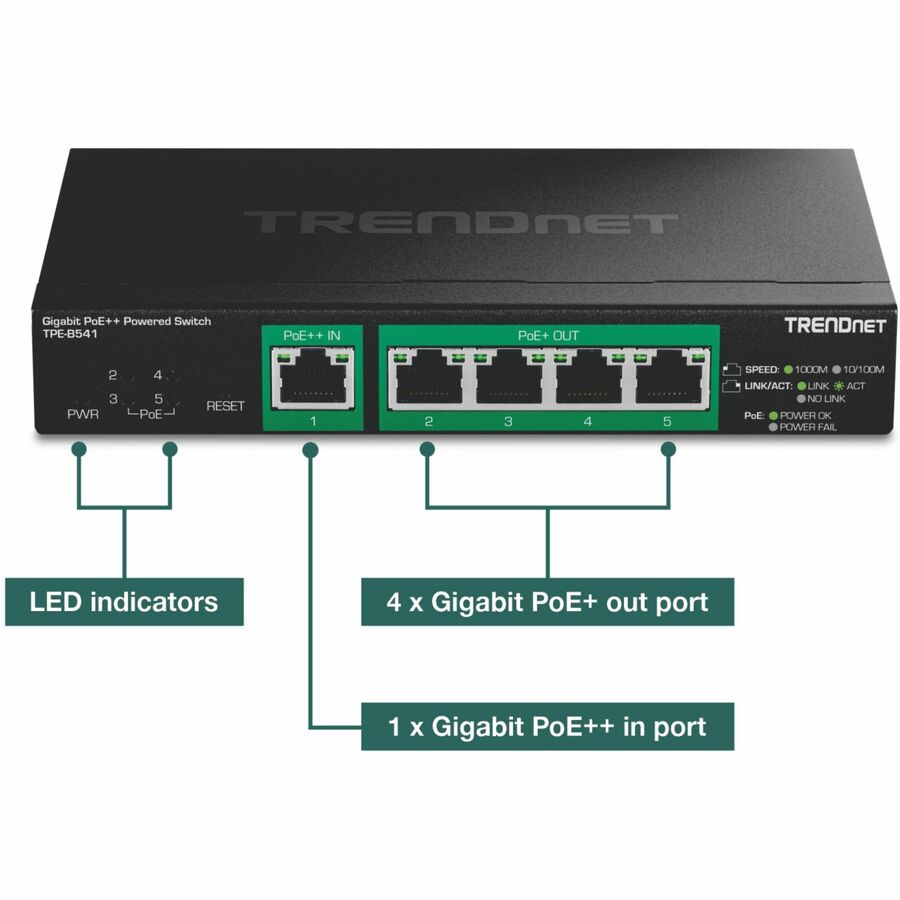

• DEVICE INTERFACE: 1 x Gigabit PoE++ In Port; 4 x Gigabit PoE+ Out Ports; LED Indicators; Wall Mount
• LIFETIME PROTECTION -We stand by the quality of our products. The TPE-B541 5-Port Switch is secured with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only)
• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant network switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
• POE++ POWERED: No AC adapter required-this switch is powered by a PoE++ switch or injector. It features four gigabit PoE+ ports to power PoE devices, such as IP cameras.
• POE+ POWER & SWITCHING CAPACITY: Equipped with 10Gbps switching capacity, and a 60W PoE power budget with PoE++ Type 4 (90W) input power. PoE++ reduces equipment cost by delivering data and power over existing network cables
• NETWORK MANAGEMENT: The web-based management interface on the PoE++ powered managed switch offers features for loopback detection, RSTP, VLAN, IGMP Snooping, and QoS

• POE PASSTHROUGH: Instead of using a regular power adapter, you can connect a PoE cable to one of these ports to enable power across the other connections. Powered by PoE, while simultaneously providing power to other connected devices.

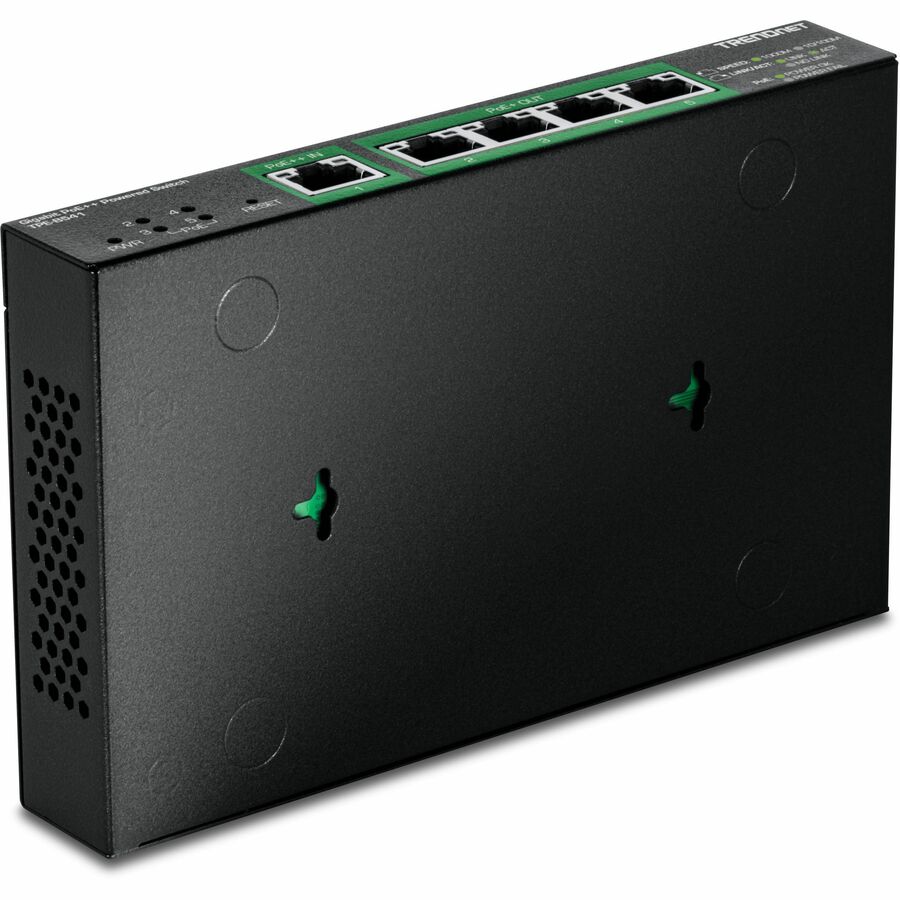

• JUMBO FRAME: Sends larger packets, or Jumbo Frames (up to 10KB), for increased performance; WALL MOUNTABLE: The Gigabit PoE++ switch features metal housing, and a convenient wall mountable design for greater installation flexibility
• COMPACT DESIGN: Compact, lightweight, and fanless, this switch is designed for desktops and quiet environments. Dimensions: 170 x 105 x 27mm (4.69 x 4.13 x 1.06 in.)

More from the Manufacturer

General Information
Manufacturer	TRENDnet
Manufacturer Part Number	TPEB541
Manufacturer Website Address	http://www.trendnet.com
Brand Name	TRENDnet
Product Model	TPE-B541
Product Name	5-Port Gigabit PoE++ Powered Managed Switch with PoE Passthrough
Product Type	Ethernet Switch
Technical Information
Features	Fanless
Interfaces/Ports
Total Number of Network Ports	5
Port/Expansion Slot Details	1 x Gigabit Ethernet PoE++
Port/Expansion Slot Details	4 x Gigabit Ethernet PoE+
Media & Performance
Media Type Supported	Twisted Pair
Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-T
Network & Communication
Layer Supported	2
Networking Standards	IEEE 802.1Q
Networking Standards	IEEE 802.3x
Networking Standards	IEEE 802.3ab
Networking Standards	IEEE 802.3af
Networking Standards	IEEE 802.3u
Networking Standards	IEEE 802.3at
Networking Standards	IEEE 802.1p
Networking Standards	IEEE 802.1w
Networking Standards	IEEE 802.3bt
Networking Standards	IEEE 802.1D
Networking Standards	IEEE 802.3
Management & Protocols
Manageable	Yes
Reliability
MTBF	503726 Hour
Power Description
PoE (RJ-45) Port	Yes
PoE Budget	60 W
Power Source	AC
Power Source	PoE++
Power Source	Power Adapter
Physical Characteristics
Product Material	Metal
Form Factor	Compact
Form Factor	Wall Mountable
Height	1.1"
Width	6.7"
Depth	4.1"
Weight (Approximate)	15.87 oz
Miscellaneous
Package Contents	5-Port Gigabit PoE++ Powered Managed Switch with PoE Passthrough Quick Installation Guide
Application/Usage	IP Camera
Application/Usage	Network
Application/Usage	Desktop
TAA Compliant	Yes
Warranty
Limited Warranty	Lifetime
