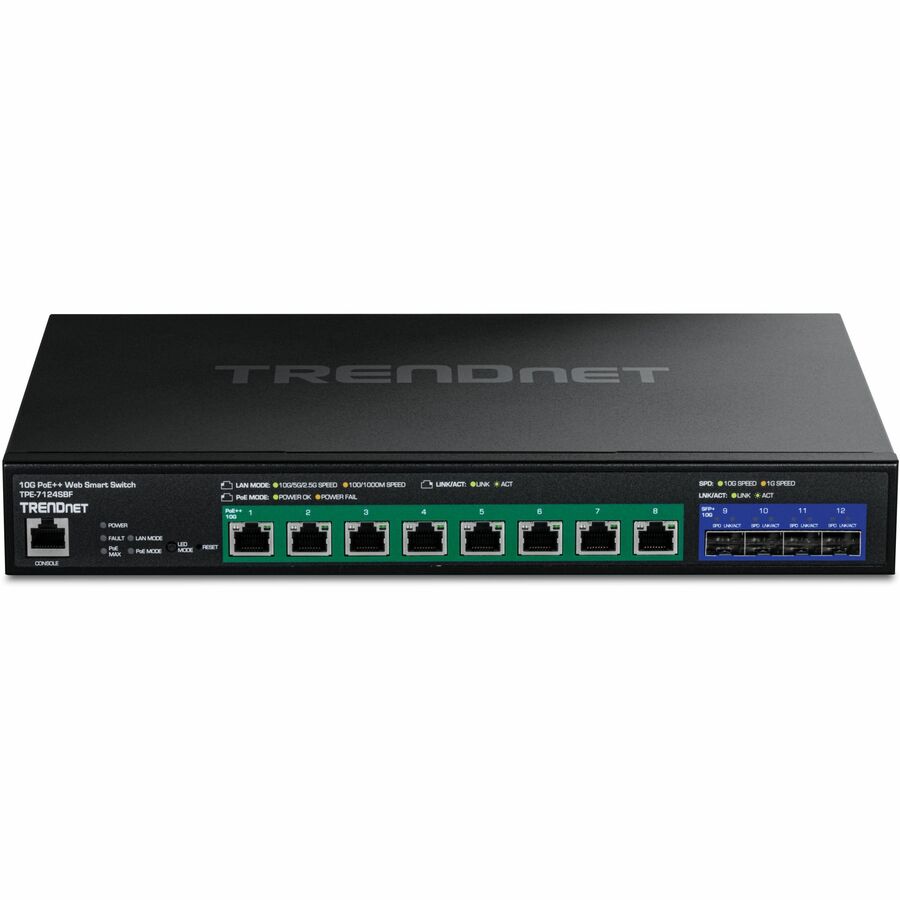

TRENDnet TPE-7124SBF 12-PORT 10G POE++ WEB SMART SWITCH (720W)

TRENDnet's 12-Port 10G PoE++ Web Smart Switch (720W), model TPE-7124SBF, offers advanced traffic management controls to meet the evolving demands of SMB networks. This 10G managed PoE++ switch comes with an intuitive web-based interface.Management features include LACP to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.Free up router resources by offloading routing processes to this 10G managed PoE++ switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IPsurveillance system performance, and minimize network traffic.This 12-Port 10G managed PoE++ switch also features eight 10GBASE-T PoE++ ports, and four 10G fiber SFP+ ports for longdistance, high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network.Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's 10G PoE++ switch by delivering up to 90W per port of PoE power and data over existing Ethernet cables. Easily network PoE devices with a 720W PoE budget to devices, such as high-power wireless access points, LED lighting, digital signage, IPTV decoders, access controls, cameras, and more with this high-power 10G managed PoE++ switch.

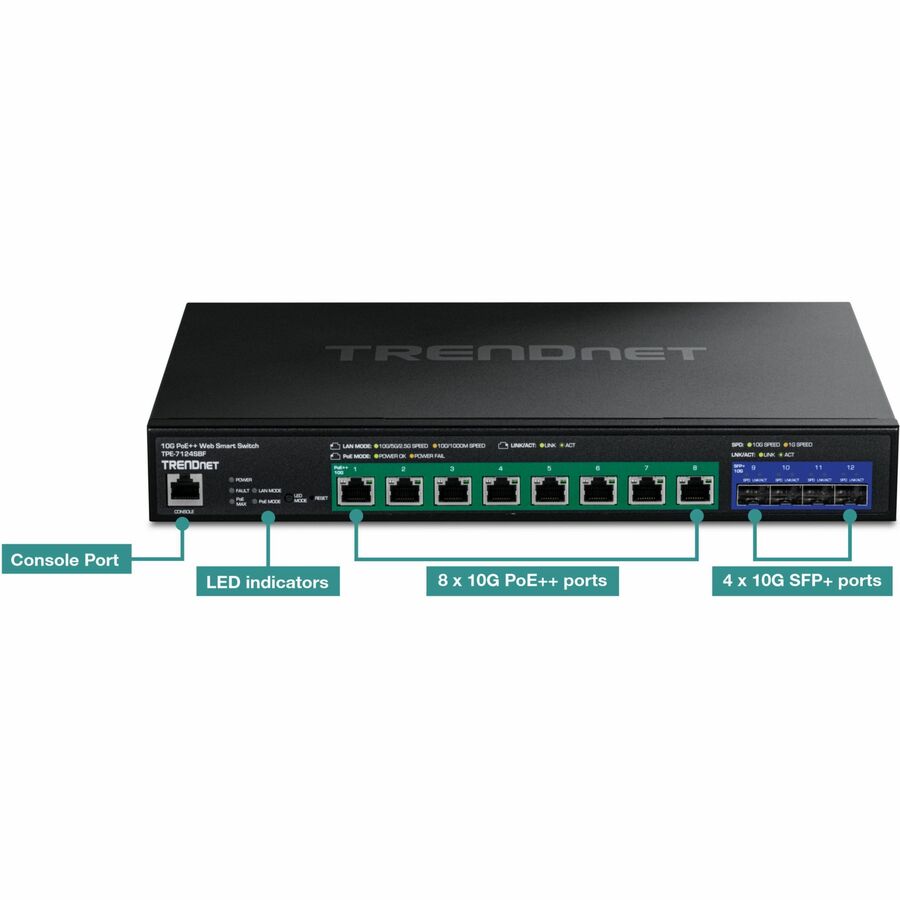

• DEVICE INTERFACE: 8 x 10G PoE++ Ports; 4 x 10G SFP+ Ports; 720W PoE Power Budget; LED indicators; Reset Button
• TRENDnet LIFETIME PROTECTION: We stand by our products. The TPE-7124SBF 10G PoE++ Switch is secured with Lifetime Manufacturer Protection from TRENDnet
• NDAA + TAA COMPLIANT: With NDAA and TAA compliant network switches, you can plan and install the networking solutions that government customers demand today. (U.S. and Canada only)
• RELIABLE TECH SUPPORT: Our team of advisors, support and tech experts are English speaking, and available for all your needs during normal business hours. We take pride in being there for our customers.
• WEB SMART MANAGEMENT: Provides an easy-to-use web-based GUI management for reduced switch configuration complexity and offers a combination of SMB management features for easy deployment.
• POE++ POWER: A 720W total PoE power budget on this 10G PoE++ switch supplies up to eight PoE++ devices with up to 90W per port.
• PERPETUAL POE + ALIVE CHECK: Continuously send power to your PoE PD devices during a switch reboot or a firmware update, PoE alive check automatically attempts to recover an unresponsive PoE device connected

• TRAFFIC MANAGEMENT: A broad range of network configurations are supported by: 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, RSTP, MSTP, Loopback Detection, GVRP, 802.1p Class of Service (CoS), port bandwidth management, and more
• MONITORING: RMON, SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions
• RACKMOUNT READY: The network switch is equipped with 1U 19" rack mountable metal housin

More from the Manufacturer

General Information
Manufacturer	TRENDnet
Manufacturer Part Number	TPE-7124SBF
Manufacturer Website Address	http://www.trendnet.com
Brand Name	TRENDnet
Product Model	TPE-7124SBF
Product Name	12-Port 10G PoE++ Web Smart Switch (720W)
Product Type	Ethernet Switch
Technical Information
Features	Built-in Fan
Features	DHCP Snooping
Features	Reset Button
Interfaces/Ports
Total Number of Network Ports	12
Modular	Yes
Network (RJ-45)	Yes
Port/Expansion Slot Details	4 x 10 Gigabit Ethernet Expansion Slot
Port/Expansion Slot Details	8 x 10 Gigabit Ethernet PoE++
Media & Performance
Media Type Supported	Optical Fiber
Media Type Supported	Twisted Pair
Ethernet Technology	Gigabit Ethernet
Ethernet Technology	10 Gigabit Ethernet
Network Technology	10GBase-T
Network Technology	10GBase-X
Maximum Data Transfer Rate	1.25 GB/s
I/O Expansions
Total Number of Expansion Slots	4
Expansion Slot Type	SFP+
Number of SFP+ Slots	4
Network & Communication
Layer Supported	3
Networking Standards	IEEE 802.1Q
Networking Standards	IEEE 802.3z
Networking Standards	IEEE 802.1s
Networking Standards	IEEE 802.3an
Networking Standards	IEEE 802.3ae
Networking Standards	IEEE 802.1D
Networking Standards	IEEE 802.1ab
Networking Standards	IEEE 802.3
Networking Standards	IEEE 802.3bt
Networking Standards	IEEE 802.1x
Networking Standards	IEEE 802.3bz
Networking Standards	IEEE 802.3ab
Networking Standards	IEEE 802.3at
Networking Standards	IEEE 802.3ad
Networking Standards	IEEE 802.1p
Networking Standards	IEEE 802.3u
Networking Standards	IEEE 802.3af
Networking Standards	IEEE 802.3az
Networking Standards	IEEE 802.3x
Networking Standards	IEEE 802.1w
Management & Protocols
Manageable	Yes
Data Link Protocols	HTTP
Data Link Protocols	HTTPS
Reliability
MTBF	161000 Hour
Power Description
PoE (RJ-45) Port	Yes
PoE Budget	720 W
Input Voltage	120 V AC
Input Voltage	230 V AC
Frequency	60 Hz
Frequency	50 Hz
Power Source	Power Supply
Power Consumption	57.40 W
Physical Characteristics
Product Material	Metal
Compatible Rack Unit	1U
Form Factor	Rack-mountable
Height	1.7"
Width	13"
Depth	9"
Weight (Approximate)	6.33 lb
Miscellaneous
Package Contents	12-Port 10G PoE++ Web Smart Switch (720W) Power Cord (1.5m / 5 ft.) Console Cable (1m / 3.28 ft.) Rackmount Brackets
Application/Usage	Network
Application/Usage	Digital Signage
Application/Usage	Camera
Application/Usage	Wireless Access Point
Certifications & Standards	CE FCC UL
TAA Compliant	Yes
Warranty
Limited Warranty	Lifetime
