TRENDnet TI-BG108 10-PORT INDUSTRIAL GIGABIT 400W POE++ DIN-RAIL SWITCH

TRENDnet's 10-Port Industrial Gigabit 400W PoE++ DIN-Rail Switch, model TI-BG108, delivers network connectivity to rugged environments, while saving you on installation costs and setup time using Power over Ethernet technology. The industrial PoE++ switch features a rugged IP50 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within - 40° - 75° C (- 40° - 167° F). This hardened industrial PoE++ switch features copper gigabit PoE++ ports for high-powered device connections, and SFP ports that support 1000Base-FX modules for long-distance fiber networking applications.

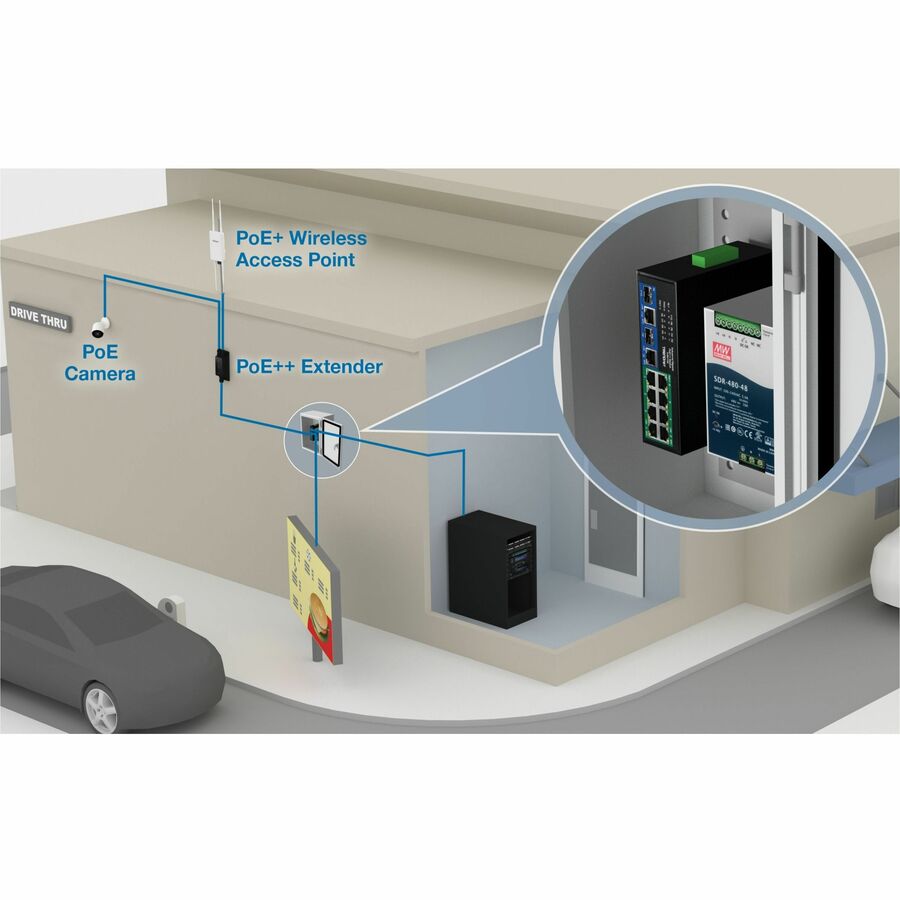

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Industrial Gigabit PoE++ DIN Rail Switch by delivering up to 95W per port of PoE power and data over existing Ethernet cables. With PoE technology inside this industrial PoE++ switch, users only need one cable to deliver both data and power. Easily network PoE devices to this hardened industrial PoE++ switch, such as high-power wireless access points, IP cameras, VoIP phone systems, IPTV decoders, and access controls.

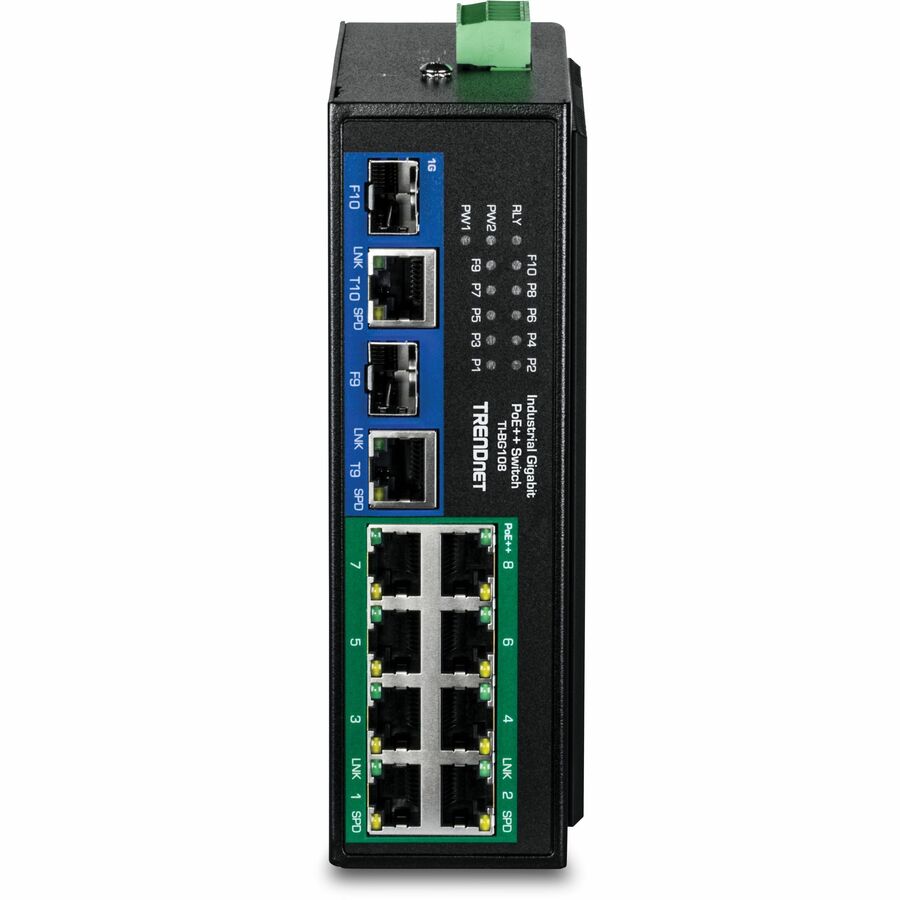

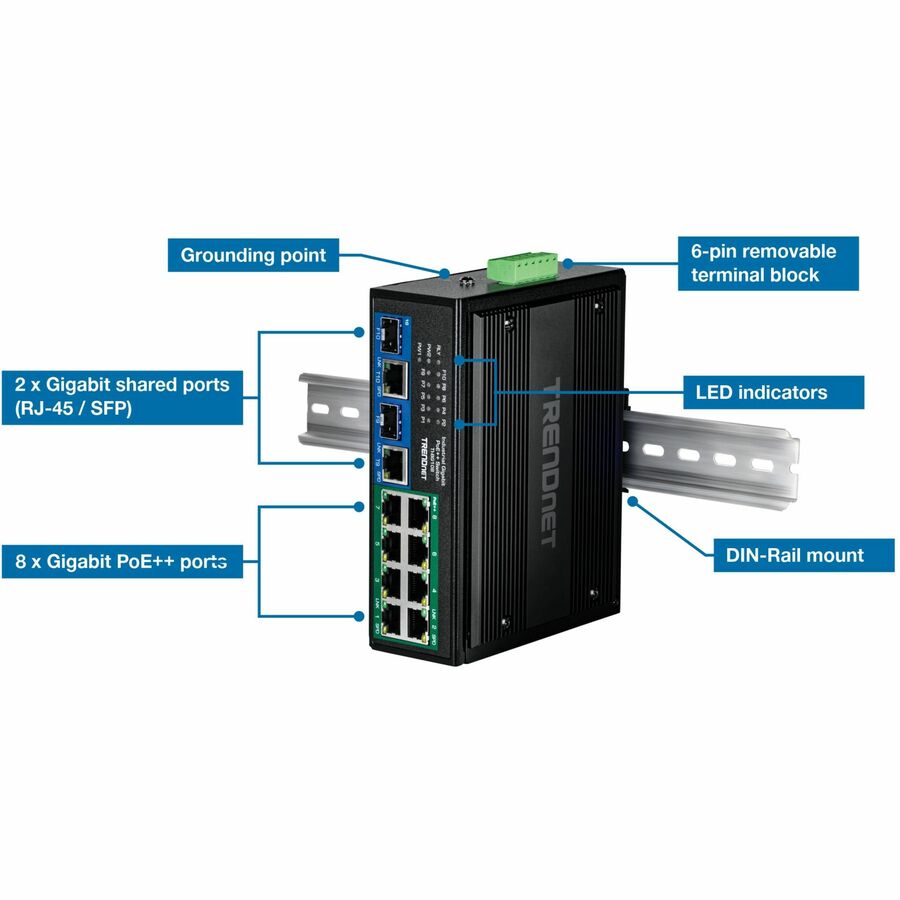

• DEVICE INTERFACE: 8 x Gigabit PoE++ Ports; 2 x Gigabit Shared Ports (RJ-45 / SFP); 20Gbps Switching Capacity; 400W PoE Power Budget; LED Indicators
• TRENDnet LIFETIME PROTECTION: We stand by our products. The TI-BG108 Industrial Gigabit PoE++ DIN-Rail Switch is secured with Lifetime Manufacturer Protection from TRENDnet.
• NDAA + TAA COMPLIANT: With NDAA and TAA compliant network switches, you can plan and install the networking solutions that government customers demand today. (U.S. and Canada only)
• POWER SUPPLY SOLD SEPARATELY: Compatible power supplies sold separately, (models: TI-S48048, TI-S24052)
• POE POWER: A 400W total PoE power budget on this 10 port switch supplies eight PoE++ devices with PoE (15.4W), PoE+ (30W), or PoE++ (95W) power
• EXTREME TEMPERATURE SWITCH: The metal hardened DIN-Rail switch is equipped with a rugged IP50 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD/EMI/surge, and operate with a wide temperature range (- 40 - 75 °C (-40 - 167 °F)) for harsh environments.

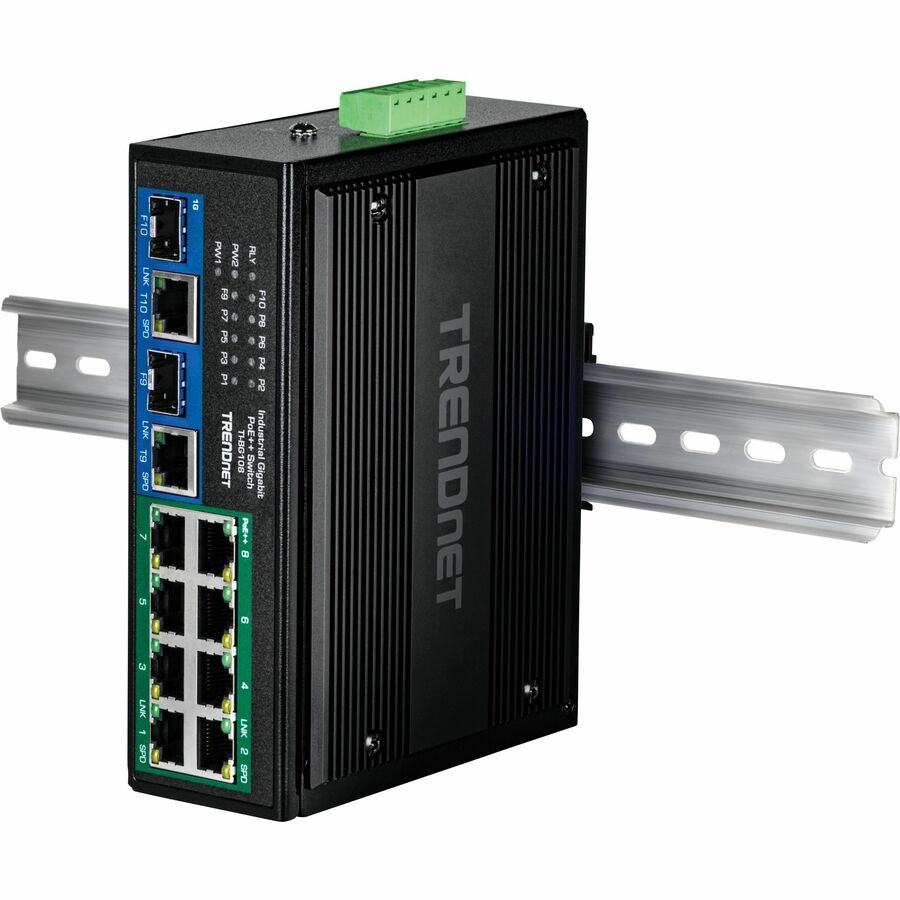

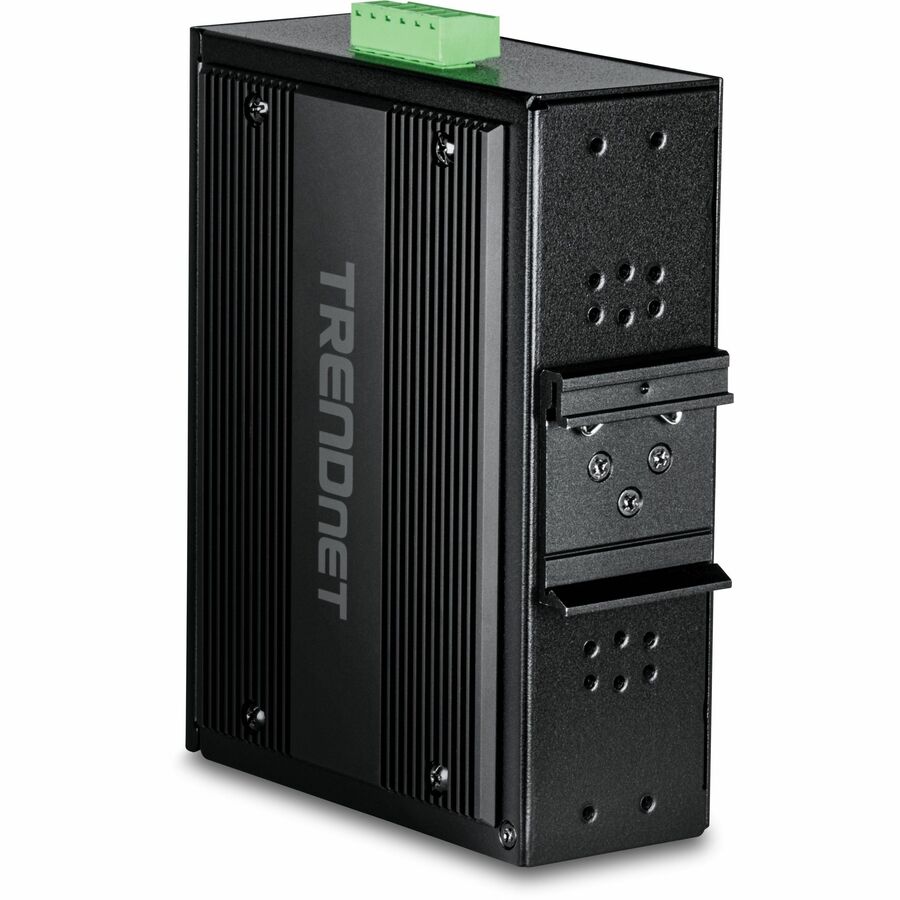

• DIN-RAIL & WALL MOUNT KIT: This 10-Port industrial switch comes with an integrated IP50 rated DIN-Rail mount and wall mounting hardware.

• SHOCK AND VIBRATION RESISTANT: Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
• REDUNDANT POWER: The 10-port network switch dual power inputs provide redundant power with overload current protection on this industrial switch, minimizing overall network downtime (power supply sold separately).

More from the Manufacturer

General Information
Manufacturer	TRENDnet
Manufacturer Part Number	TI-BG108
Manufacturer Website Address	http://www.trendnet.com
Brand Name	TRENDnet
Product Model	TI-BG108
Product Name	10-Port Industrial Gigabit 400W PoE++ DIN-Rail Switch
Product Type	Ethernet Switch
Interfaces/Ports
Total Number of Network Ports	10
Network (RJ-45)	Yes
Port/Expansion Slot Details	8 x Gigabit Ethernet PoE++
Port/Expansion Slot Details	2 x Gigabit Shared Ports (RJ-45 / SFP)
Media & Performance
Media Type Supported	Optical Fiber
Media Type Supported	Twisted Pair
Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-T
Network Technology	1000Base-X
I/O Expansions
Total Number of Expansion Slots	2
Expansion Slot Type	SFP
Number of SFP Slots	2
Network & Communication
Layer Supported	2
Networking Standards	IEEE 802.3x
Networking Standards	IEEE 802.3bt
Networking Standards	IEEE 802.3af
Networking Standards	IEEE 802.3u
Networking Standards	IEEE 802.3ab
Networking Standards	IEEE 802.3at
Networking Standards	IEEE 802.3
Networking Standards	IEEE 802.3z
Management & Protocols
Manageable	No
Reliability
MTBF	515469 Hour
Power Description
PoE (RJ-45) Port	Yes
PoE Budget	400 W
Input Voltage	56 V DC
Input Voltage	48 V DC
Power Source	PoE++
Power Source	Power Supply
Power Source	DC
Redundant Power Supply Supported	Yes
Power Consumption	8.50 W

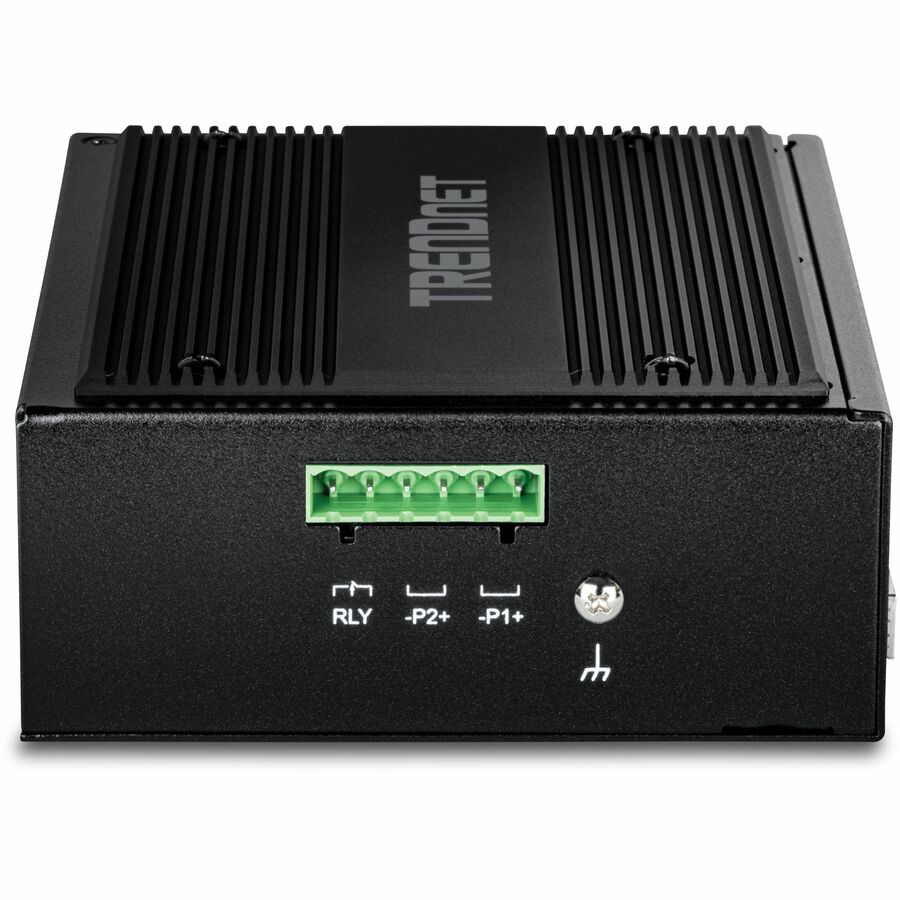

Plug/Connector Type	Terminal Block
Physical Characteristics
Product Material	Metal
Form Factor	Wall Mountable
Form Factor	DIN Rail Mountable
Height	1.9"
Width	6.1"
Depth	4.8"
Weight (Approximate)	1.33 lb
Miscellaneous
Package Contents	10-Port Industrial Gigabit 400W PoE++ DIN-Rail Switch Quick Installation Guide Removable Terminal Block DIN-Rail And Wall Mount Kit
Application/Usage	IP Camera
Application/Usage	Wireless Access Point
Application/Usage	VoIP Phone
Application/Usage	Industrial
Application/Usage	Network
Application/Usage	Camera
Country of Origin	Taiwan
TAA Compliant	Yes
Warranty
Limited Warranty	Lifetime
