SUNON

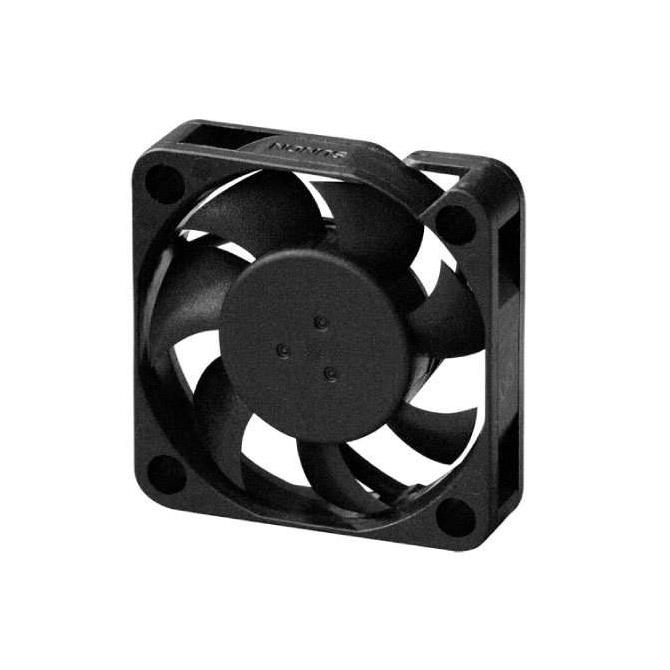

SUNON MF40100V1-1000U-G99 DC Fans Axial Fan, 40x40x10mm, 5VDC, 8CFM, 0.19"H2O, Vapo, 3x Wire, Auto Restart, Tach
Mfg Part Number: MF40100V1-1000U-G99 , Item #: 5234348
Image may not reflect the actual item.
Price: $64.02
Quantity:
In Stock: 2145
Last Updated: Dec 12, 2025
No Sales Tax except these states
, PO and Wire.
|
Voltage - Rated |
|
|
|
Size / Dimension |
Square - 40mm L x 40mm H |
|
|
Width |
10.00mm |
|
|
Air Flow |
8.0 CFM (0.224m³/min) |
|
|
Static Pressure |
0.190 in H2O (47.3 Pa) |
|
|
Bearing Type |
Vapo-Bearing™ |
|
|
Fan Type |
|
|
|
Features |
Auto Restart, Speed Sensor (Tach) |
|
|
Noise |
27.3dB(A) |
|
|
Power (Watts) |
680 mW |
|
|
RPM |
|
|
|
Termination |
3 Wire Leads |
|
|
Ingress Protection |
- |
|
|
Operating Temperature |
14 ~ 158°F (-10 ~ 70°C) |
|
|
Approval Agency |
cURus, TUV |
|
|
Weight |
0.035 lb (15.88 g) |
|
|
Current Rating (Amps) |
0.136A |
|
|
Voltage Range |
3.5 ~ 6VDC |
|
|
Material - Frame |
Polybutylene Terephthalate (PBT) |
|
|
Material - Blade |
Polybutylene Terephthalate (PBT) |
|
|
Lifetime @ Temp. |
70000 Hrs @ 40°C |
