TRIPP LITE

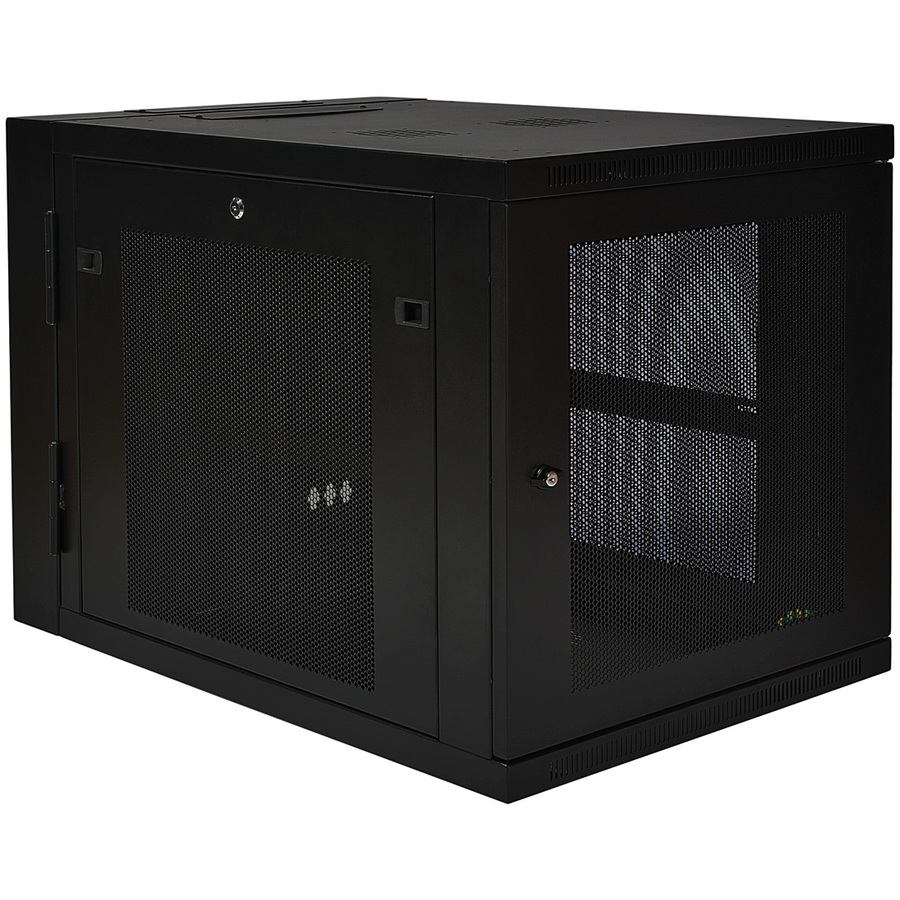

TRIPP LITE SRW12US33C LIGHT NETWORKS ONLY

Mfg Part Number:  SRW12US33C
Image may not reflect the actual item.
Price: $490.05
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Sep 14, 2025
No Sales Tax except these states
, PO and Wire.

The SRW12US33 12U Extended-Depth Wall-Mount Rack Enclosure Cabinet is designed to integrate wall-mounting, easy equipment access, and cable management in IT network applications with limited floor space. Extended depth to 33" accommodates most 1U servers and provides extra clearance for cable management. It has a heavy-duty steel construction to handle the added leverage. Ventilated front door and side panels allow generous airflow to keep equipment operating safely. Adjustable rack rails with square mounting holes accommodate up to 12U of standard 19" rackmount equipment. A sturdy hinge between the cabinet and the wall-mount bracket allows the cabinet to swing away from the wall for easy access to equipment and cabling. Top and bottom panels include convenient cutouts for cable routing.

Main Specification
General Information
Manufacturer Eaton Corporation
Manufacturer Part Number SRW12US33C
Manufacturer Website Address https://tripplite.eaton.com/
Brand Name Tripp Lite by Eaton
Product Line SmartRack
Product Model SRW12US33
Product Name SmartRack 12U Extended-Depth Wall-Mount Rack Enclosure Cabinet
Product Type Rack Cabinet
Physical Characteristics
Form Factor Wall Mountable
Color Family Black
Product Color Black
Maximum Weight Capacity 250 lb
Height 25"
Width 23.6"
Depth 33.5"
Weight (Approximate) 100 lb
Rack Height 12U
Rack Width 19"
Miscellaneous
Package Contents
  • SmartRack 12U Extended-Depth Wall-Mount Rack Enclosure Cabinet
  • 36 x M6 Screws
  • 36 x M6 Cage Nuts
  • 36 x M6 Washers
  • 2 x Keys
  • Owner's Manual
Additional Information
  • Grounding lug: Front and Back door frames
  • 12U with adjustable front and rear vertical rackmount rails
  • 33" depth accommodates most 1U servers and simplifies cable management
  • Heavy duty construction supports the added leverage
  • Hinged cabinet swings away from wall bracket for easy equipment access (swing direction is reversible)
  • Adjustable mounting depths from 3" to 33" - accommodates most 1U servers and simplifies cable management
  • Ventilated front door and side panels for increased airflow
  • Hinged cabinet swings away from wall bracket for easy equipment and cable access
  • Heavy duty construction to handle added leverage
  • Top and bottom panel cable access openings
  • Fully assembled for quick installation
  • PCI-Compliant: meets stringent physical security requirements

Approvals:

  • EIA-310-D
  • IEC 60297-3-100
  • DIN 41494
  • IP250 Protection Rating
Assembly Required No
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 5 Year
