KIOXIA

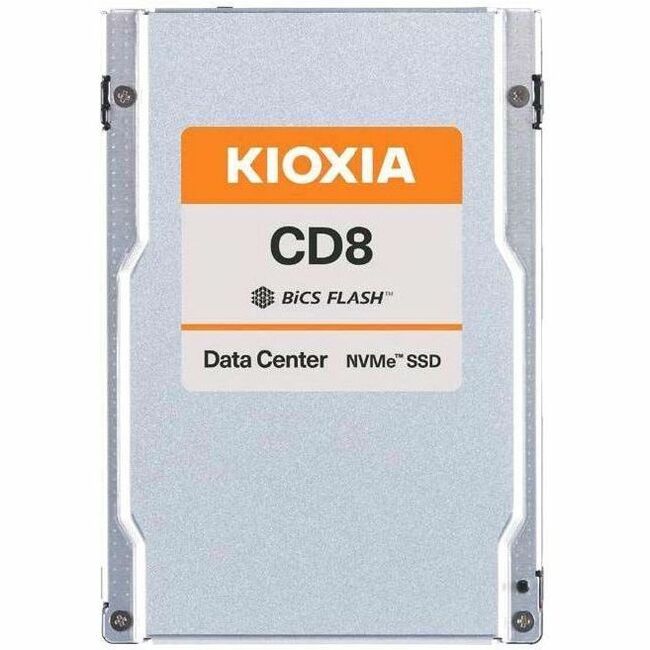

KIOXIA ioxia SSD KCD81RUG7T68 7680GB 2.5 PCIe4 CD8-R 1DWPD Non-SED Bare
Mfg Part Number: KCD81RUG7T68 , Item #: 5232030
Image may not reflect the actual item.
Price: $1,508.36
Quantity:
More to Come
Last Updated: May 10, 2025
No Sales Tax except these states
, PO and Wire.
KIOXIA CD8-R Series is a read intensive data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing, and virtualization. Built with a PCIe®4.0 (16 GT/s x4) interface, the CD8-R Series SSDs deliver consistent performance up to 1,250K IOPS (random read) and 200K IOPS (random write).
Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, the CD8-R 2.5-inch form factor SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 15.36 TB in a 2.5-inch form factor, making them well-suited for hyperscale data center applications.
Key Features
- PCIe®4.0, NVMe™ 1.4 specification compliant
- Open Compute Project Datacenter NVMe™ SSD specification v2.0 support (not all requirements)
- Form factor: 2.5-inch, 15mm thickness
- Proprietary KIOXIA architecture: controller, firmware and 112-layer BiCS FLASH™ 3D TLC
- Single-port design, optimized for data center class workloads
- Consistent performance and reliability for demanding 24x7 environments
- Designed for high-density storage deployments
- Power loss protection (PLP) and end-to-end data correction
- Security options: SIE, SED
Key Applications
- Hyperscale
- IoT and big data analytics
- Online transaction processing (OLTP)
- (transactional and relational databases)
- Virtualized environments
- Streaming media and content delivery networks
Main Specification
| General Information | |
| Manufacturer | Toshiba |
| Manufacturer Part Number | KCD81RUG7T68 |
| Manufacturer Website Address | http://www.toshiba.com |
| Brand Name | KIOXIA |
| Product Series | CD8-R |
| Product Model | KCD81RUG7T68 |
| Product Name | Data Center NVMe Read Intensive SSD |
| Product Type | Solid State Drive |
| Technical Information | |
| Storage Capacity | 7.50 TB |
| Drive Performance | |
| Maximum Read Transfer Rate | 7100 MB/s |
| Maximum Write Transfer Rate | 6000 MB/s |
| Random 4KB Read | 1150000IOPS |
| Random 4KB Write | 200000IOPS |
| Endurance (DWPD) | 1 |
| Endurance Type | Read Intensive |
| Interfaces/Ports | |
| Drive Interface | PCI Express NVMe |
| Drive Interface Standard | PCI Express NVMe 4.0 x4 |
| Physical Characteristics | |
| Drive Type | Internal |
| Form Factor | 2.5" |
| Height | 0.6" |
| Width | 2.8" |
| Length | 4" |
| Weight (Approximate) | 4.59 oz |
| Miscellaneous | |
| Device Supported | Storage System |
| Device Supported | Server |
